◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#59592) — 20 parça

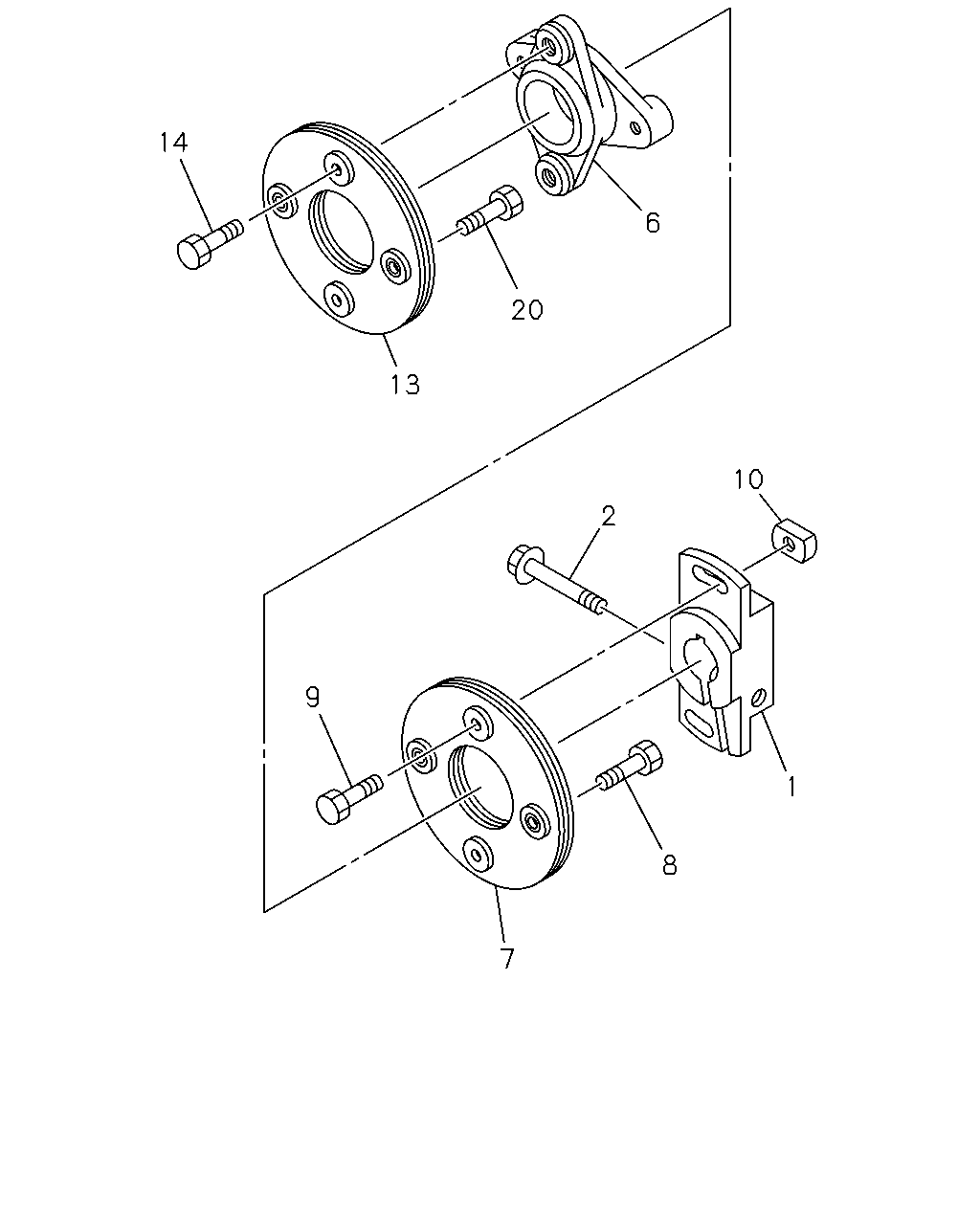

çizim 172911
14 6 20 13 10 2 9 1 8 7
BalonParca AdiParca NoAdetTipApplied Date
1 COUPLING; INJ PUMP DRIVE 1-15782-014-0 01 1 9510-0210
1 COUPLING; INJ PUMP DRIVE 1-15782-019-0 01 1 0211-
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9510-0210
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 0211-
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9510-0210
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 0211-
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9510-0210
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 0211-
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9510-0210
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 0211-
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9510-0210
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 0211-
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9510-0210
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-167-0 02 1 0211-
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9510-0210
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 0211-
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9510-0210
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 0211-
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9510-0210
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 0211-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
