3-10 — BRAKE PEDAL AND CONTROL (#5959) — 103 parça

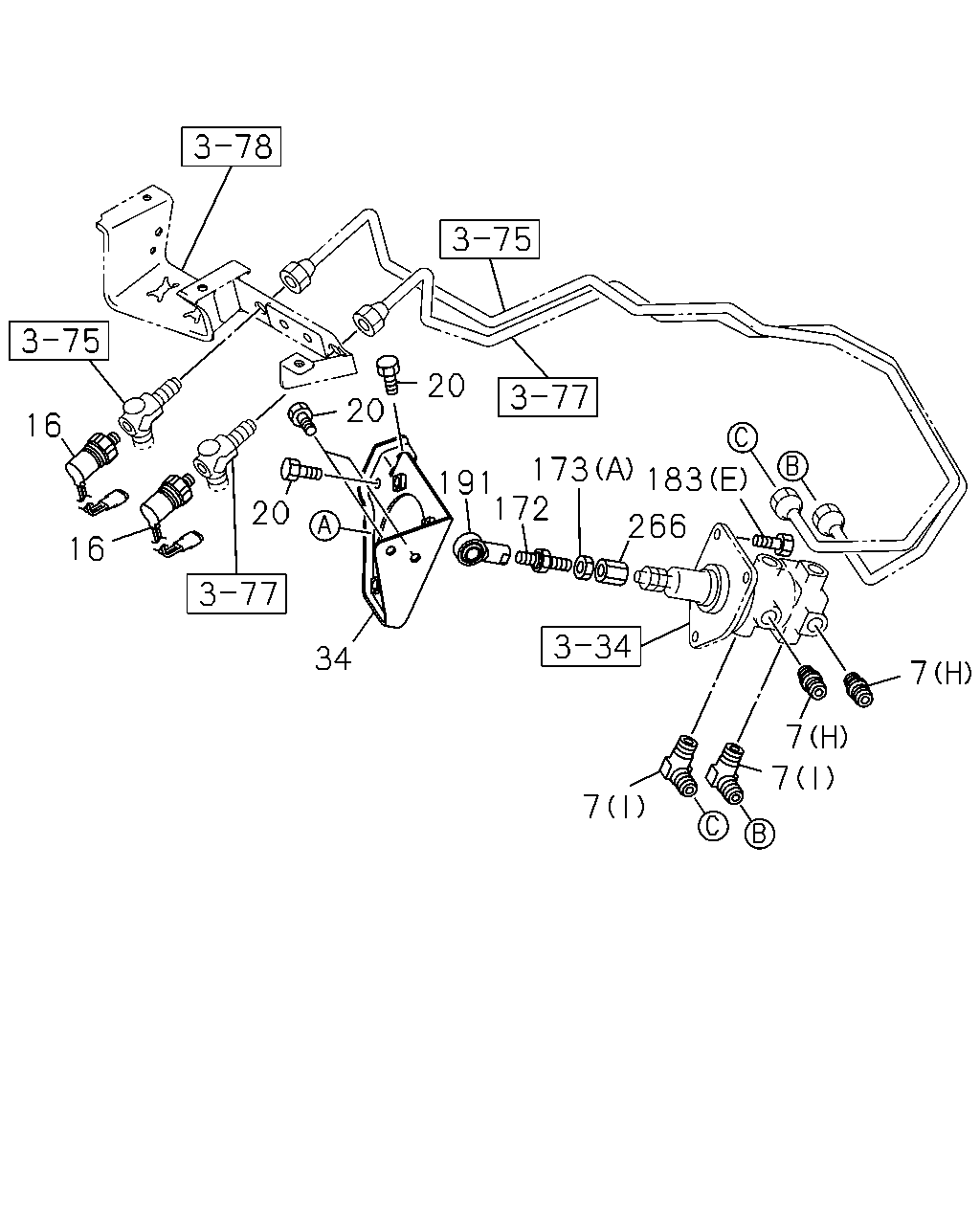

20 20 16 173 191 172 183 20 266 16 34 7 7 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	CONNECTOR; BRK VALVE (C) M16 & PT3/8 STRAIGHT	1-09650-150-2	01	1	9606-9609
7	CONNECTOR; BRK VALVE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) M16 & PT3/8 STRAIGHT	1-09650-150-2	01	1	9610-9810
7	CONNECTOR; BRK VALVE (A) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	9606-9609
7	CONNECTOR; BRK VALVE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	9610-9810
7	CONNECTOR; BRK VALVE (H) M16 & PT3/8 STRAIGHT	1-09650-233-1	02	1	9811-
7	CONNECTOR; BRK VALVE (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9606-9609
7	CONNECTOR; BRK VALVE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9610-9810
7	CONNECTOR; BRK VALVE (I) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9811-
7	CONNECTOR; BRK VALVE (B) PT3/8 ELBOW	1-09660-696-0	01	1	9606-9609
7	CONNECTOR; BRK VALVE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) PT3/8 ELBOW	1-09660-696-0	01	1	9610-9810
7	CONNECTOR; BRK VALVE HEAVY DUTY PACKAGE TRUCK<RD2> (E) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9610-9810
7	CONNECTOR; BRK VALVE HEAVY DUTY PACKAGE TRUCK<RD2> (F) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9610-9810
7	CONNECTOR; BRK VALVE HEAVY DUTY PACKAGE TRUCK<RD2> (G)	1-09660-910-0	01	1	9610-9810
16	SWITCH; STOP LAMP	1-82380-036-1	01	1	9606-9609
16	SWITCH; STOP LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82380-036-1	01	1	9610-9810
16	SWITCH; STOP LAMP HEAVY DUTY PACKAGE TRUCK<RD2> OPERATE PRESSURE 0.3	1-82410-039-0	02	1	9610-9810
16	SWITCH; STOP LAMP GREEN	1-82410-176-1	02	1	9811-
20	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK<RD2> M10X25 FLANGE	0-28681-025-0	02	1	9610-9810
20	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK<RD2> M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9610-9810
20	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9811-
34	BRACKET ASM; BRK VLV	1-79738-808-3	01	1	9811-
172	JOINT; JAW,BRK PEDAL	1-73908-167-1	01	1	9811-
173	NUT; JOINT LOCK (B) M10 FLANGE	0-91150-110-0	01	1	9811-0602
173	NUT; JOINT LOCK (B) M10 FLANGE	0-91180-110-0	01	1	0603-
173	NUT; JOINT LOCK (A) M12	9-99110-412-0	01	1	9811-0512
173	NUT; JOINT LOCK (A) M12	0-91110-512-0	01	1	0601-
183	BOLT; BRK VLV (A) M6X10 FLANGE	0-28080-610-0	02	1	9606-9609
183	BOLT; BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M6X10 FLANGE	0-28080-610-0	02	1	9610-9810
183	BOLT; BRK VLV (B) M8X20 FLANGE	0-28680-820-0	04	1	9606-9609
183	BOLT; BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) M8X20 FLANGE	0-28680-820-0	04	1	9610-9810
183	BOLT; BRK VLV (C) M10X25 FLANGE	0-28681-025-0	01	1	9606-9810
183	BOLT; BRK VLV (E) M10X25 W/LK WASHER	1-09980-503-0	03	1	9811-
183	BOLT; BRK VLV (D) M10X35 FLANGE	0-28681-035-0	02	1	9606-9810
191	JOINT; BALL,PUSH ROD	1-47355-001-0	01	1	9811-
266	JOINT ROD	1-73908-166-3	01	1	9811-

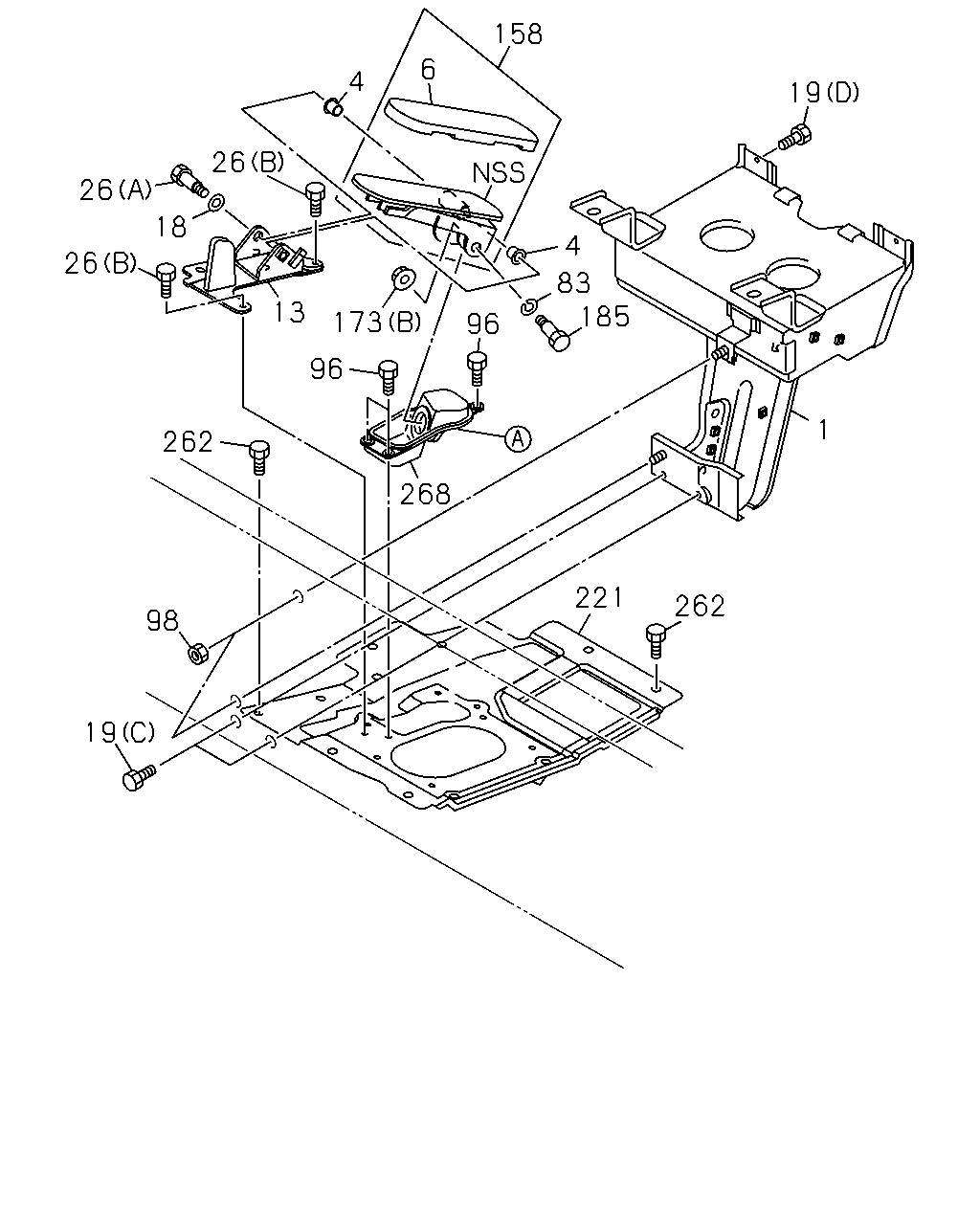

158 6 4 19 26 26 18 4 26 83 185 96 13 173 96 1 262 268 221 262 98 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET ASM; PEDAL	1-73998-563-4	01	1	9606-9810
1	BRACKET ASM; PEDAL	1-73908-077-9	01	1	9811-
4	BUSHING; BRK PEDAL	1-73908-201-1	02	1	9811-
6	COVER; BRK PEDAL	1-48119-333-0	01	1	0204-
13	BRACKET; BRK PEDAL	1-73908-203-1	01	1	9811-
18	WASHER; PL ID=12.5	9-09164-512-0	01	1	9811-
19	BOLT; BRKT (A) M8X20	1-09980-435-0	01	1	9606-9810
19	BOLT; BRKT (C) M8X20	1-79198-002-0	02	1	9811-
19	BOLT; BRKT (B) M8X20	1-09980-529-0	03	1	9606-9810
19	BOLT; BRKT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9811-
26	BOLT; PEDAL (A)	1-09980-614-0	01	1	9811-
26	BOLT; PEDAL (B) M6X25	8-94279-204-0	02	1	9811-
83	WASHER; LK,BRKT ID=14.2	9-09150-814-0	01	1	9811-0603
83	WASHER; LK,BRKT ID=14.2	0-91510-814-0	01	1	0604-
96	BOLT; COVER M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9811-
98	NUT; BRKT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	9811-
158	PEDAL ASM; BRK	1-73908-068-5	01	1	9811-
173	NUT; JOINT LOCK (B) M10 FLANGE	0-91150-110-0	01	1	9811-0602
173	NUT; JOINT LOCK (B) M10 FLANGE	0-91180-110-0	01	1	0603-
173	NUT; JOINT LOCK (A) M12	9-99110-412-0	01	1	9811-0512
173	NUT; JOINT LOCK (A) M12	0-91110-512-0	01	1	0601-
185	BOLT; BRKT	1-73996-282-1	01	1	9811-
221	PLATE ASM; SIDE	1-73908-114-7	01	1	9811-
262	BOLT; PLATE M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	9811-
268	COVER; ROD	1-73908-192-1	01	1	9811-

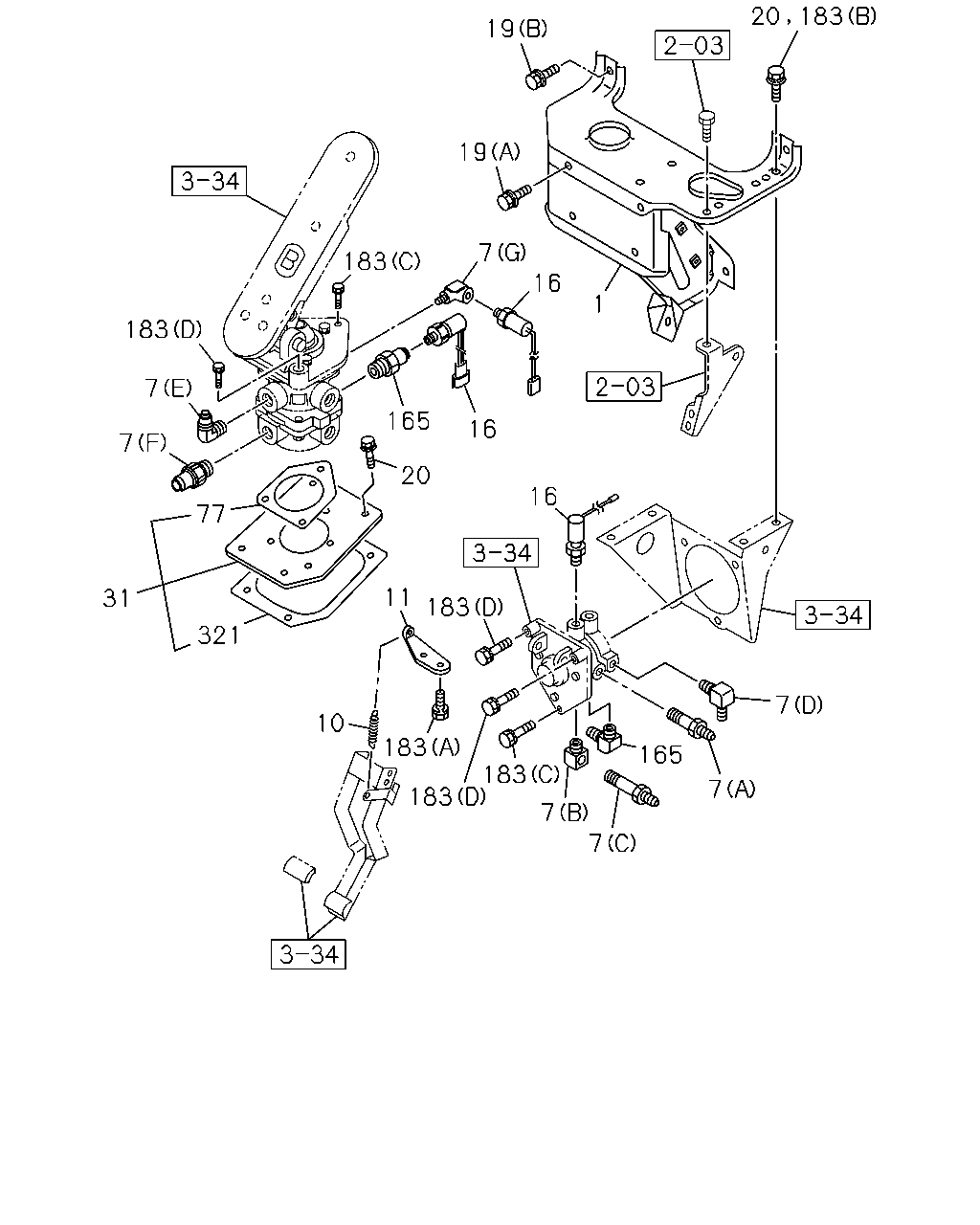

183 19 19 7 16 183 1 183 7 165 16 7 20 16 77 11 31 183 321 7 183 10 165 183 183 7 7 7 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET ASM; PEDAL	1-73998-563-4	01	1	9606-9810
1	BRACKET ASM; PEDAL	1-73908-077-9	01	1	9811-
7	CONNECTOR; BRK VALVE (C) M16 & PT3/8 STRAIGHT	1-09650-150-2	01	1	9606-9609
7	CONNECTOR; BRK VALVE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) M16 & PT3/8 STRAIGHT	1-09650-150-2	01	1	9610-9810
7	CONNECTOR; BRK VALVE (A) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	9606-9609
7	CONNECTOR; BRK VALVE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	9610-9810
7	CONNECTOR; BRK VALVE (H) M16 & PT3/8 STRAIGHT	1-09650-233-1	02	1	9811-
7	CONNECTOR; BRK VALVE (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9606-9609
7	CONNECTOR; BRK VALVE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9610-9810
7	CONNECTOR; BRK VALVE (I) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9811-
7	CONNECTOR; BRK VALVE (B) PT3/8 ELBOW	1-09660-696-0	01	1	9606-9609
7	CONNECTOR; BRK VALVE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) PT3/8 ELBOW	1-09660-696-0	01	1	9610-9810
7	CONNECTOR; BRK VALVE HEAVY DUTY PACKAGE TRUCK<RD2> (E) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9610-9810
7	CONNECTOR; BRK VALVE HEAVY DUTY PACKAGE TRUCK<RD2> (F) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9610-9810
7	CONNECTOR; BRK VALVE HEAVY DUTY PACKAGE TRUCK<RD2> (G)	1-09660-910-0	01	1	9610-9810
10	SPRING; RETURN,BRK PEDAL	8-94251-601-0	01	1	9606-9609
10	SPRING; RETURN,BRK PEDAL EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	8-94251-601-0	01	1	9610-9810
11	BRACKET; RETURN SPRING	1-73997-820-0	01	1	9606-9609
11	BRACKET; RETURN SPRING EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-73997-820-0	01	1	9610-9810
16	SWITCH; STOP LAMP	1-82380-036-1	01	1	9606-9609
16	SWITCH; STOP LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82380-036-1	01	1	9610-9810
16	SWITCH; STOP LAMP HEAVY DUTY PACKAGE TRUCK<RD2> OPERATE PRESSURE 0.3	1-82410-039-0	02	1	9610-9810
16	SWITCH; STOP LAMP GREEN	1-82410-176-1	02	1	9811-
19	BOLT; BRKT (A) M8X20	1-09980-435-0	01	1	9606-9810
19	BOLT; BRKT (C) M8X20	1-79198-002-0	02	1	9811-
19	BOLT; BRKT (B) M8X20	1-09980-529-0	03	1	9606-9810
19	BOLT; BRKT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9811-
20	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK<RD2> M10X25 FLANGE	0-28681-025-0	02	1	9610-9810
20	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK<RD2> M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9610-9810
20	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9811-
31	PLATE; MTG,BRKT VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-73996-329-0	01	1	9610-9810
77	RUBBER; SEAL,BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-73996-207-0	01	1	9610-9810
165	CONNECTOR; SECONDARY DELIVERY M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9606-9609
165	CONNECTOR; SECONDARY DELIVERY EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9610-9810
165	CONNECTOR; SECONDARY DELIVERY HEAVY DUTY PACKAGE TRUCK<RD2> DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9610-9810
183	BOLT; BRK VLV (A) M6X10 FLANGE	0-28080-610-0	02	1	9606-9609
183	BOLT; BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M6X10 FLANGE	0-28080-610-0	02	1	9610-9810
183	BOLT; BRK VLV (B) M8X20 FLANGE	0-28680-820-0	04	1	9606-9609
183	BOLT; BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) M8X20 FLANGE	0-28680-820-0	04	1	9610-9810
183	BOLT; BRK VLV (C) M10X25 FLANGE	0-28681-025-0	01	1	9606-9810
183	BOLT; BRK VLV (E) M10X25 W/LK WASHER	1-09980-503-0	03	1	9811-
183	BOLT; BRK VLV (D) M10X35 FLANGE	0-28681-035-0	02	1	9606-9810
321	SEAL; VALVE HEAVY DUTY PACKAGE TRUCK<RD2>	1-73996-143-0	01	1	9610-9810
