Sayfa 0-80 - Isuzu EPC

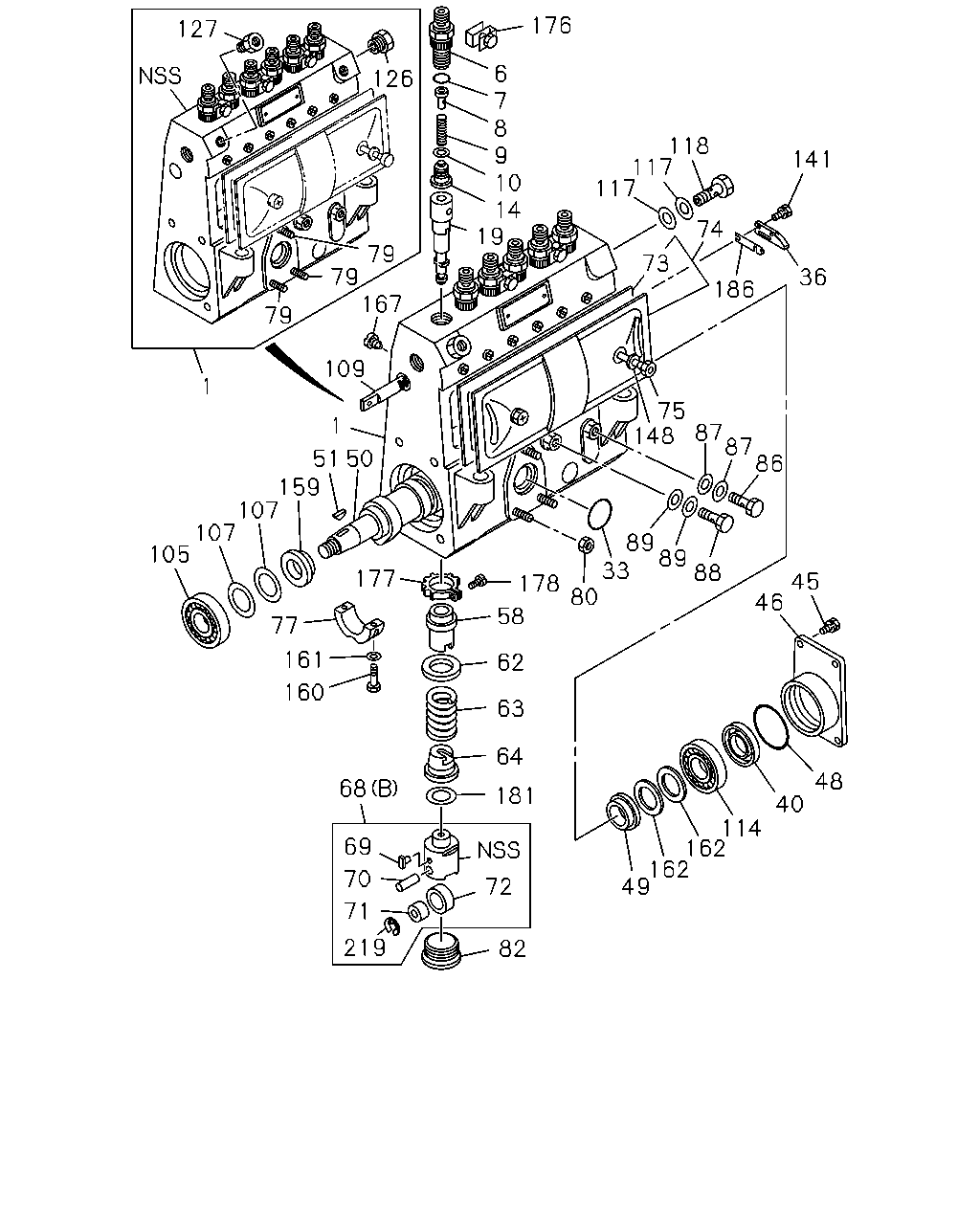

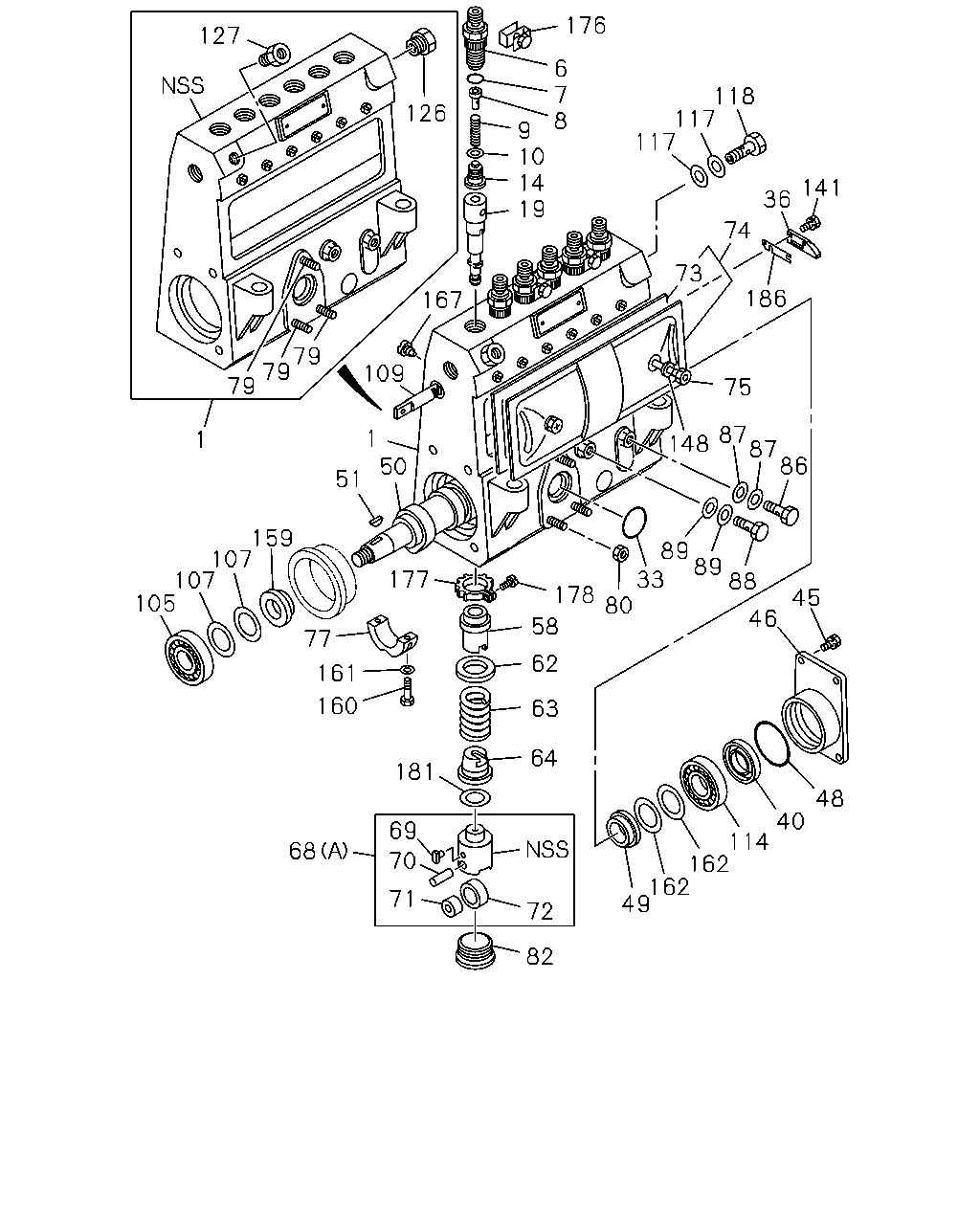

0-80 — INJECTION PUMP (#59587) — 317 parça

176 127 6 7 8 9 10 14 19 126 118 117 117 141 74 79 79 167 73 36 186 79 109 1 75 148 1 87 87 86 51 159 107 107 105 50 89 89 33 88 80 177 45 46 178 58 77 161 62 160 63 64 48 68 181 40 114 162 162 49 69 70 72 71 219 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15611-120-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 8-94390-081-1	1-15611-181-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15644-017-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94390-081-1	8-97084-986-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-09623-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-94390-081-1	9-81235-046-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-045-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94390-081-1	8-97084-987-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15643-003-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-94390-081-1	1-15643-010-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15649-001-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94390-081-1	9-81245-018-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-94390-081-1	1-15619-406-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 8-94395-901-1	1-15641-019-0	06	1	-9511
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 8-94395-901-1	1-15641-021-0	06	1	9512-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-94395-813-1	1-15641-021-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15631-139-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 8-94390-081-1	1-15632-030-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15629-058-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15619-304-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: A = 8-94390-081-1	1-15619-402-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15629-034-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15629-059-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: A = 8-94390-081-1	1-15629-004-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-024-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15621-080-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 8-94390-081-1	1-15621-109-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	9-81225-058-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 8-94390-081-1	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-94390-081-1	1-15639-022-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	9-81235-015-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-94390-081-1	1-15634-007-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	8-94387-977-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-94390-081-1	1-15629-125-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	9-81235-021-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: A = 8-94390-081-1	1-15622-011-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15622-009-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-94390-081-1	1-15629-018-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15619-041-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-94390-081-1	1-15629-123-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15622-006-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15629-001-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-94390-081-1	1-15629-122-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15622-003-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-94390-081-1	1-15629-121-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15729-960-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15612-050-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15619-003-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-94390-081-1	1-15619-264-0	03	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15629-014-0	01	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 8-94390-081-1	1-15619-160-0	06	1	-
82	PLUG; HSG,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15619-136-0	06	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15619-091-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP L=96 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15729-066-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15719-093-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 8-94390-081-1	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: A = 8-94390-081-1	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	9-00090-677-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: A = 8-94390-081-1	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: A = 8-94390-081-1	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: A = 8-94390-081-1	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.40 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15639-088-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15619-039-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-015-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-016-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-017-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-018-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-020-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-038-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.40 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-090-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	9-81225-033-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: A = 8-94390-081-1	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: A = 8-94390-081-1	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: A = 8-94390-081-1	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: A = 8-94390-081-1	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: A = 8-94390-081-1	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: A = 8-94390-081-1	9-81225-054-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15637-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15629-003-0	01	1	-
117	GASKET; EYE BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1	1-09630-085-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: C = 8-94395-901-1	1-09630-085-0	02	1	9512-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: C = 8-94395-901-1	1-15759-012-0	02	1	-9511
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15759-011-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81235-017-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: A = 8-94390-081-1	1-15619-190-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15629-057-0	01	1	-
141	BOLT; POINTER ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15729-758-0	02	1	-
148	GASKET; COVER FIX BOLT ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81215-144-0	02	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 8-94390-081-1	1-15629-004-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-023-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: A = 8-94390-081-1	1-15629-017-0	06	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	9-88410-066-0	02	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	9-81225-043-0	02	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 8-94390-081-1	9-81225-043-0	06	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 8-94390-081-1	1-15629-007-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 8-94390-081-1	1-15629-008-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: A = 8-94390-081-1	1-15629-105-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-025-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-026-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-027-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-028-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-029-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-030-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-031-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-032-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 8-94390-081-1	9-81225-049-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 8-94390-081-1	9-81225-050-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 8-94390-081-1	9-81225-051-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 8-94390-081-1	9-81225-052-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 8-94390-081-1	9-81225-053-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 8-94390-081-1	9-81225-054-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 8-94390-081-1	1-15649-034-0	03	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15625-001-0	03	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81225-057-0	06	1	-
178	SCREW; PINION,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81235-003-0	06	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81235-045-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15639-093-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15639-094-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15639-095-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15639-096-0	AR	1	-
219	RING; SNAP,ROLLER ASM PART: A = 8-94390-081-1	1-15629-124-0	06	1	-

176 127 6 7 8 118 117 117 126 9 10 14 19 141 36 74 73 186 167 79 79 79 109 75 87 148 87 86 1 50 1 51 159 107 107 105 89 89 33 88 80 177 178 45 46 58 77 62 161 160 63 64 181 48 40 114 162 162 49 69 68 70 71 72 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15611-120-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 8-94390-081-1	1-15611-181-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15644-017-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94390-081-1	8-97084-986-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-09623-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-94390-081-1	9-81235-046-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-045-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94390-081-1	8-97084-987-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15643-003-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-94390-081-1	1-15643-010-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15649-001-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94390-081-1	9-81245-018-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-94390-081-1	1-15619-406-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 8-94395-901-1	1-15641-019-0	06	1	-9511
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 8-94395-901-1	1-15641-021-0	06	1	9512-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-94395-813-1	1-15641-021-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15631-139-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 8-94390-081-1	1-15632-030-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15629-058-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15619-304-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: A = 8-94390-081-1	1-15619-402-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15629-034-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15629-059-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: A = 8-94390-081-1	1-15629-004-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-024-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15621-080-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 8-94390-081-1	1-15621-109-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	9-81225-058-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 8-94390-081-1	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-94390-081-1	1-15639-022-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	9-81235-015-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-94390-081-1	1-15634-007-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	8-94387-977-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-94390-081-1	1-15629-125-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	9-81235-021-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: A = 8-94390-081-1	1-15622-011-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15622-009-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-94390-081-1	1-15629-018-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15619-041-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-94390-081-1	1-15629-123-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15622-006-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15629-001-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-94390-081-1	1-15629-122-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15622-003-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-94390-081-1	1-15629-121-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15729-960-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15612-050-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15619-003-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-94390-081-1	1-15619-264-0	03	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15629-014-0	01	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 8-94390-081-1	1-15619-160-0	06	1	-
82	PLUG; HSG,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15619-136-0	06	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15619-091-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP L=96 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15729-066-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15719-093-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 8-94390-081-1	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: A = 8-94390-081-1	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	9-00090-677-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: A = 8-94390-081-1	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: A = 8-94390-081-1	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: A = 8-94390-081-1	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.40 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15639-088-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15619-039-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-015-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-016-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-017-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-018-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-020-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-038-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.40 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-090-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	9-81225-033-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: A = 8-94390-081-1	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: A = 8-94390-081-1	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: A = 8-94390-081-1	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: A = 8-94390-081-1	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: A = 8-94390-081-1	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: A = 8-94390-081-1	9-81225-054-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15637-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15629-003-0	01	1	-
117	GASKET; EYE BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1	1-09630-085-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: C = 8-94395-901-1	1-09630-085-0	02	1	9512-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: C = 8-94395-901-1	1-15759-012-0	02	1	-9511
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15759-011-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81235-017-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: A = 8-94390-081-1	1-15619-190-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	1-15629-057-0	01	1	-
141	BOLT; POINTER ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15729-758-0	02	1	-
148	GASKET; COVER FIX BOLT ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81215-144-0	02	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 8-94390-081-1	1-15629-004-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-023-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: A = 8-94390-081-1	1-15629-017-0	06	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	9-88410-066-0	02	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	9-81225-043-0	02	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 8-94390-081-1	9-81225-043-0	06	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 8-94390-081-1	1-15629-007-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 8-94390-081-1	1-15629-008-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: A = 8-94390-081-1	1-15629-105-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-025-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-026-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-027-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-028-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-029-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-030-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-031-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15629-032-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 8-94390-081-1	9-81225-049-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 8-94390-081-1	9-81225-050-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 8-94390-081-1	9-81225-051-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 8-94390-081-1	9-81225-052-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 8-94390-081-1	9-81225-053-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 8-94390-081-1	9-81225-054-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 8-94390-081-1	1-15649-034-0	03	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: B = 8-94395-813-1, C = 8-94395-901-1	5-15625-001-0	03	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81225-057-0	06	1	-
178	SCREW; PINION,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81235-003-0	06	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	9-81235-045-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15639-093-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15639-094-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15639-095-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: A = 8-94390-081-1, B = 8-94395-813-1, C = 8-94395-901-1	1-15639-096-0	AR	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
