0-65 — STARTER (#59585) — 104 parça

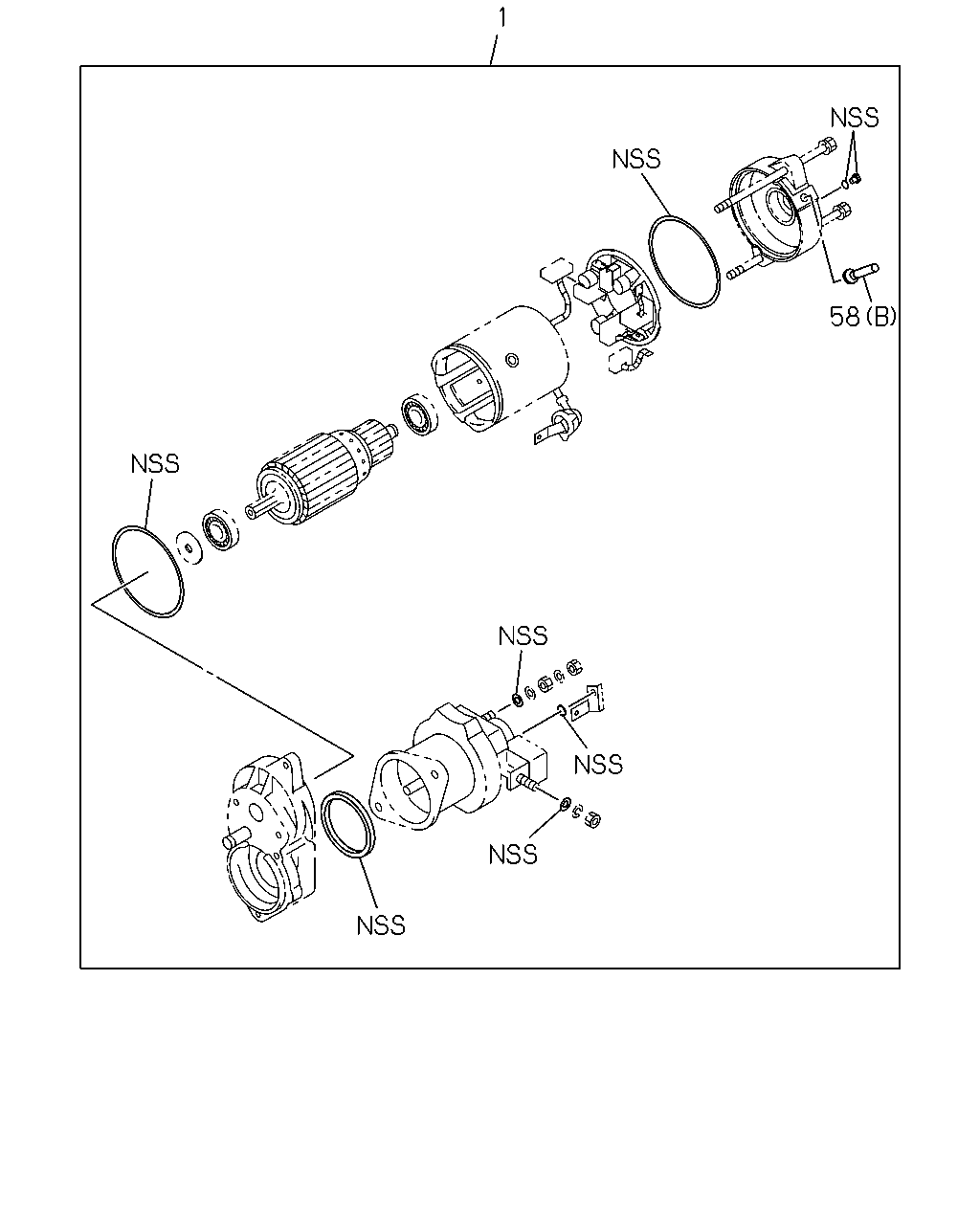

1 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-716-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: C = 8-94394-151-2	1-81129-677-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (B) NIKKO ASM PART: B = 1-81100-324-1	1-81129-757-0	01	1	-

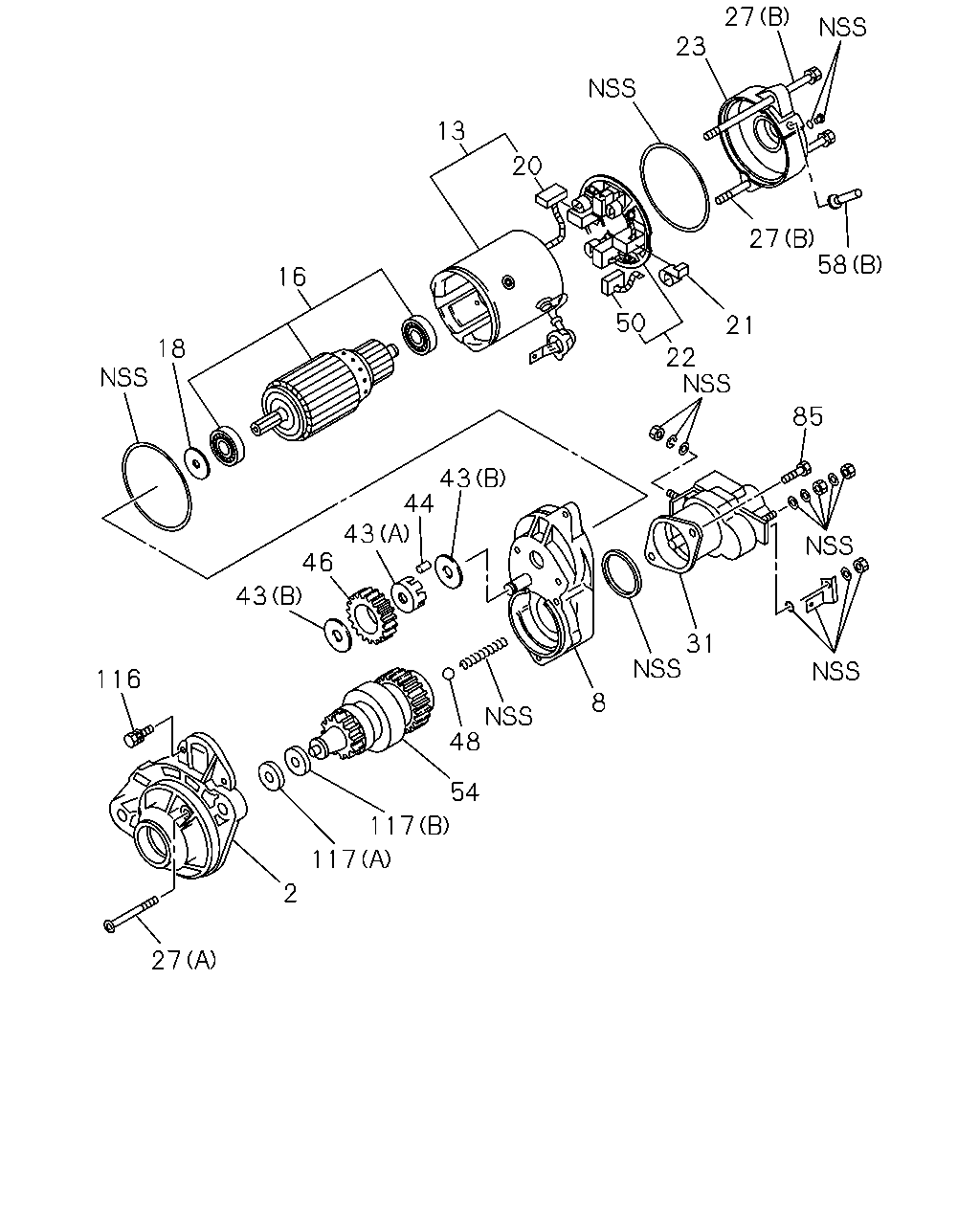

27 23 13 20 27 58 16 50 21 18 22 85 43 44 43 46 43 31 116 8 48 54 117 117 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81123-050-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 8-94394-151-2	1-81129-697-0	01	1	-
8	BRACKET; CENTER STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81118-059-0	01	1	-
13	YOKE; STARTER ASM PART: C = 8-94394-151-2	1-81129-696-0	01	1	-
13	YOKE; STARTER ASM PART: A = 1-81100-308-0	1-81129-705-0	01	1	-
13	YOKE; STARTER ASM PART: B = 1-81100-324-1	1-81129-705-0	01	1	-1105
13	YOKE; STARTER ASM PART: B = 1-81100-324-1	8-98197-520-0	01	1	1106-
16	ARMATURE; STARTER ASM PART: C = 8-94394-151-2	1-81121-055-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81121-062-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	5-81129-156-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: B = 1-81100-324-1	1-81116-060-0	02	1	-1105
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-308-0	1-81116-060-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: C = 8-94394-151-2	8-94171-853-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: B = 1-81100-324-1	8-98197-175-0	02	1	1106-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	5-81117-019-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-324-1	1-81118-061-0	01	1	-1105
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-308-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER DENSO ASM PART: C = 8-94394-151-2	5-81118-013-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-324-1	8-98155-174-0	01	1	1106-
23	COVER; RR COVER STARTER ASM PART: C = 8-94394-151-2	1-81115-220-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81115-222-0	01	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: C = 8-94394-151-2	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-708-0	02	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: C = 8-94394-151-2	8-94167-434-0	03	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-324-1	1-81100-133-0	01	1	0307-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-94394-151-2	1-81151-099-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-324-1	1-81151-103-1	01	1	-0306
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-308-0	1-81151-103-1	01	1	-
43	RETAINER; PINION STARTER (A) NIKKO ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81118-060-0	01	1	-
43	RETAINER; PINION STARTER (B) NIKKO ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-709-0	02	1	-
43	RETAINER; PINION STARTER (A) DENSO ASM PART: C = 8-94394-151-2	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) DENSO ASM PART: C = 8-94394-151-2	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-715-0	05	1	-
44	ROLLER; PINION STARTER ASM PART: C = 8-94394-151-2	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-714-0	01	1	-
46	GEAR; CLU STARTER ASM PART: C = 8-94394-151-2	5-81123-018-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-713-0	01	1	-
48	BALL; PINION,STARTER ASM PART: C = 8-94394-151-2	5-81129-092-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: A = 1-81100-308-0	1-81116-061-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: B = 1-81100-324-1	1-81116-061-0	02	1	-1105
50	BRUSH; (-),STARTER ASM PART: B = 1-81100-324-1	8-98197-176-0	02	1	1106-
54	CLUTCH; PINION,STARTER ASM PART: C = 8-94394-151-2	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-308-0	1-81129-712-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-324-1	1-81129-712-0	01	1	-0306
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-324-1	8-98146-940-0	01	1	0307-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: C = 8-94394-151-2	1-81129-677-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (B) NIKKO ASM PART: B = 1-81100-324-1	1-81129-757-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-722-0	02	1	-
116	BOLT; BRKT ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-722-0	02	1	-
117	WASHER; CLUTCH (A) NIKKO ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-710-0	01	1	-
117	WASHER; CLUTCH (B) NIKKO ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-711-0	01	1	-

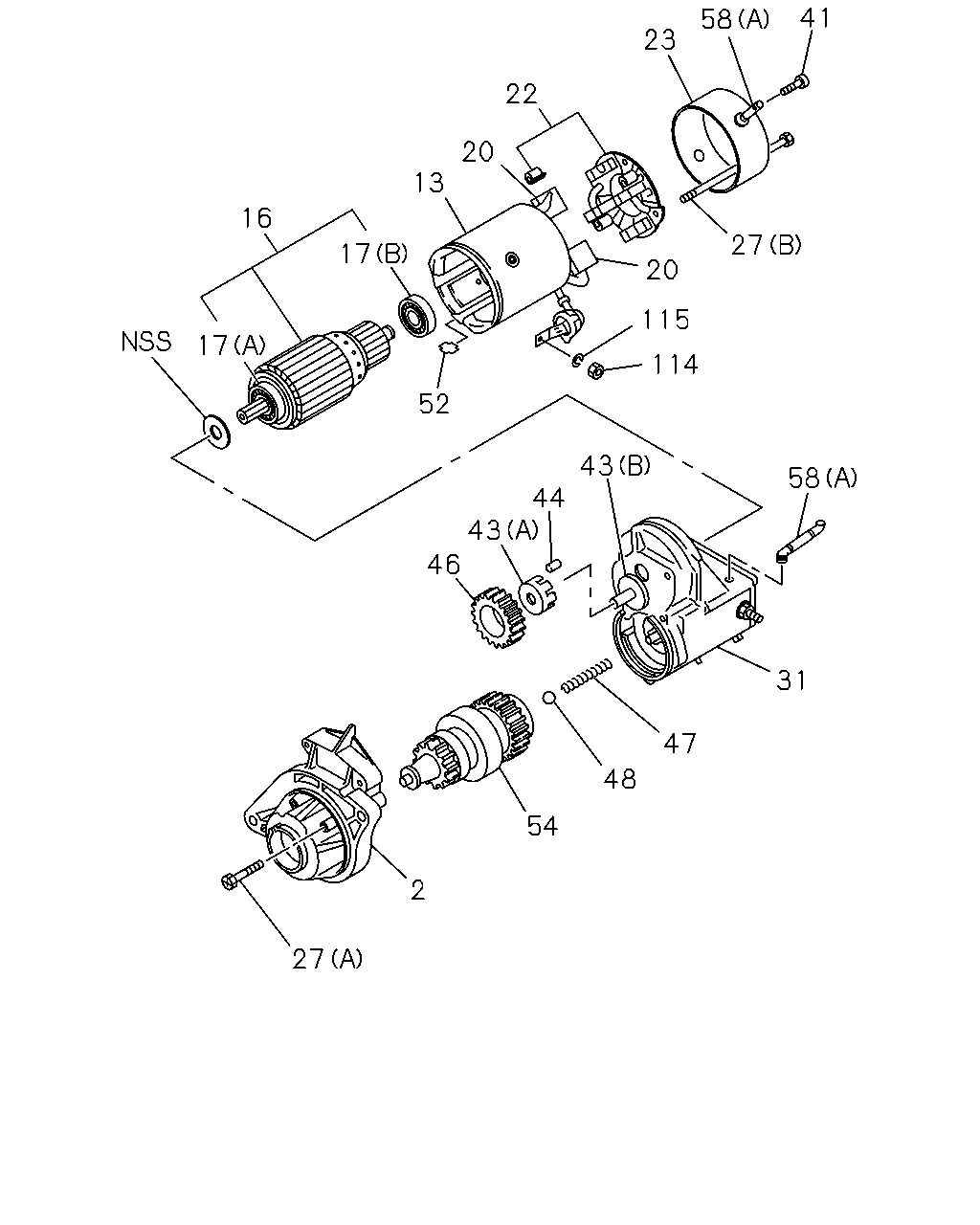

41 58 23 22 20 13 16 27 17 20 115 17 114 52 43 58 44 43 46 31 47 48 54 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81123-050-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 8-94394-151-2	1-81129-697-0	01	1	-
13	YOKE; STARTER ASM PART: C = 8-94394-151-2	1-81129-696-0	01	1	-
13	YOKE; STARTER ASM PART: A = 1-81100-308-0	1-81129-705-0	01	1	-
13	YOKE; STARTER ASM PART: B = 1-81100-324-1	1-81129-705-0	01	1	-1105
13	YOKE; STARTER ASM PART: B = 1-81100-324-1	8-98197-520-0	01	1	1106-
16	ARMATURE; STARTER ASM PART: C = 8-94394-151-2	1-81121-055-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81121-062-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) DENSO ASM PART: C = 8-94394-151-2	1-81129-626-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) DENSO ASM PART: C = 8-94394-151-2	5-09800-081-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: B = 1-81100-324-1	1-81116-060-0	02	1	-1105
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-308-0	1-81116-060-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: C = 8-94394-151-2	8-94171-853-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: B = 1-81100-324-1	8-98197-175-0	02	1	1106-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-324-1	1-81118-061-0	01	1	-1105
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-308-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER DENSO ASM PART: C = 8-94394-151-2	5-81118-013-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-324-1	8-98155-174-0	01	1	1106-
23	COVER; RR COVER STARTER ASM PART: C = 8-94394-151-2	1-81115-220-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81115-222-0	01	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: C = 8-94394-151-2	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-708-0	02	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: C = 8-94394-151-2	8-94167-434-0	03	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-324-1	1-81100-133-0	01	1	0307-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-94394-151-2	1-81151-099-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-324-1	1-81151-103-1	01	1	-0306
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-308-0	1-81151-103-1	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: C = 8-94394-151-2	5-81129-130-0	02	1	-
43	RETAINER; PINION STARTER (A) NIKKO ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81118-060-0	01	1	-
43	RETAINER; PINION STARTER (B) NIKKO ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-709-0	02	1	-
43	RETAINER; PINION STARTER (A) DENSO ASM PART: C = 8-94394-151-2	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) DENSO ASM PART: C = 8-94394-151-2	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-715-0	05	1	-
44	ROLLER; PINION STARTER ASM PART: C = 8-94394-151-2	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-714-0	01	1	-
46	GEAR; CLU STARTER ASM PART: C = 8-94394-151-2	5-81123-018-0	01	1	-
47	SPRING; PINION STARTER ASM PART: C = 8-94394-151-2	5-81129-119-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 1-81100-308-0, B = 1-81100-324-1	1-81129-713-0	01	1	-
48	BALL; PINION,STARTER ASM PART: C = 8-94394-151-2	5-81129-092-0	01	1	-
52	PLATE; LK,STARTER ASM PART: C = 8-94394-151-2	5-81129-136-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 8-94394-151-2	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-308-0	1-81129-712-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-324-1	1-81129-712-0	01	1	-0306
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-324-1	8-98146-940-0	01	1	0307-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: C = 8-94394-151-2	1-81129-677-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (B) NIKKO ASM PART: B = 1-81100-324-1	1-81129-757-0	01	1	-
114	NUT; TERMINAL ASM PART: C = 8-94394-151-2	5-81129-126-0	01	1	-
115	WASHER; TERMINAL ASM PART: C = 8-94394-151-2	5-81129-134-0	01	1	-
