0-60 — ENGINE ELECTRICAL CONTROL PARTS (#59583) — 96 parça

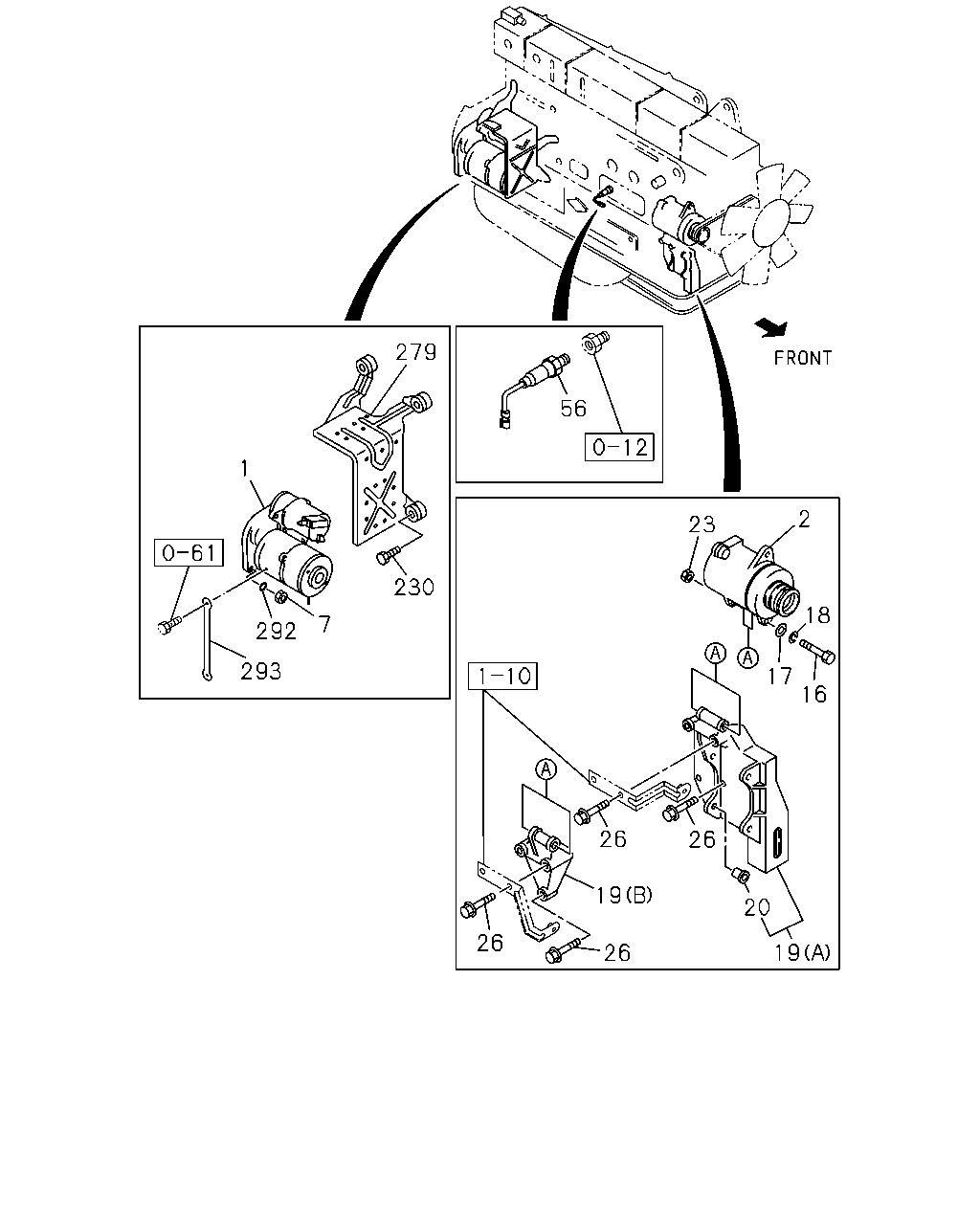

çizim 172893
279 56 1 2 23 230 18 7 292 293 17 16 26 26 19 20 26 19 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9510-9708 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9709-0210 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0211- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9905 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-577-0 01 1 9906-9907 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9510-0210 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-5 01 1 0211- ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9510-0210 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0211-0512 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601- ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9510-0210 ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0211- ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9510-0210 ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0211-0605 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606- ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9510-0210 ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 0211-0603 ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0604- ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-2 01 1 0209-0210 ● ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-5 01 1 0211- ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 9510-0112 ● ●
19 BRACKET; GEN
(B) 		8-97602-318-0 01 1 0201-0208 ● ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97602-318-0 01 1 0209-0210 ● ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97602-318-0 01 1 0211- ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 0209-0210 ● ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 0211-1302 ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9510-0210 ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0211-0512 ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0601- ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 0209-0210 ● ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 0211-0512 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28151-040-0 02 1 0601- ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9510-0208 ● ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 0209-0210 ● ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 0211-0512 ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9510-0210 ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 0211-0512 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0601- ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 9510-0210 ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0211- ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 9510-9512 ● ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 9510-9512 ● ●
279 PROTECTOR; STARTER 8-94394-952-1 01 1 9510-9512 ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9510-0210 ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 0211-0603 ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0604- ●
293 CABLE; STARTER EARTH
L=350 		1-82650-266-0 01 1 9510-9904 ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-266-0 02 1 9905-9907 ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-266-0 01 1 9908-0005 ● ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0006-0210 ● ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0211- ●

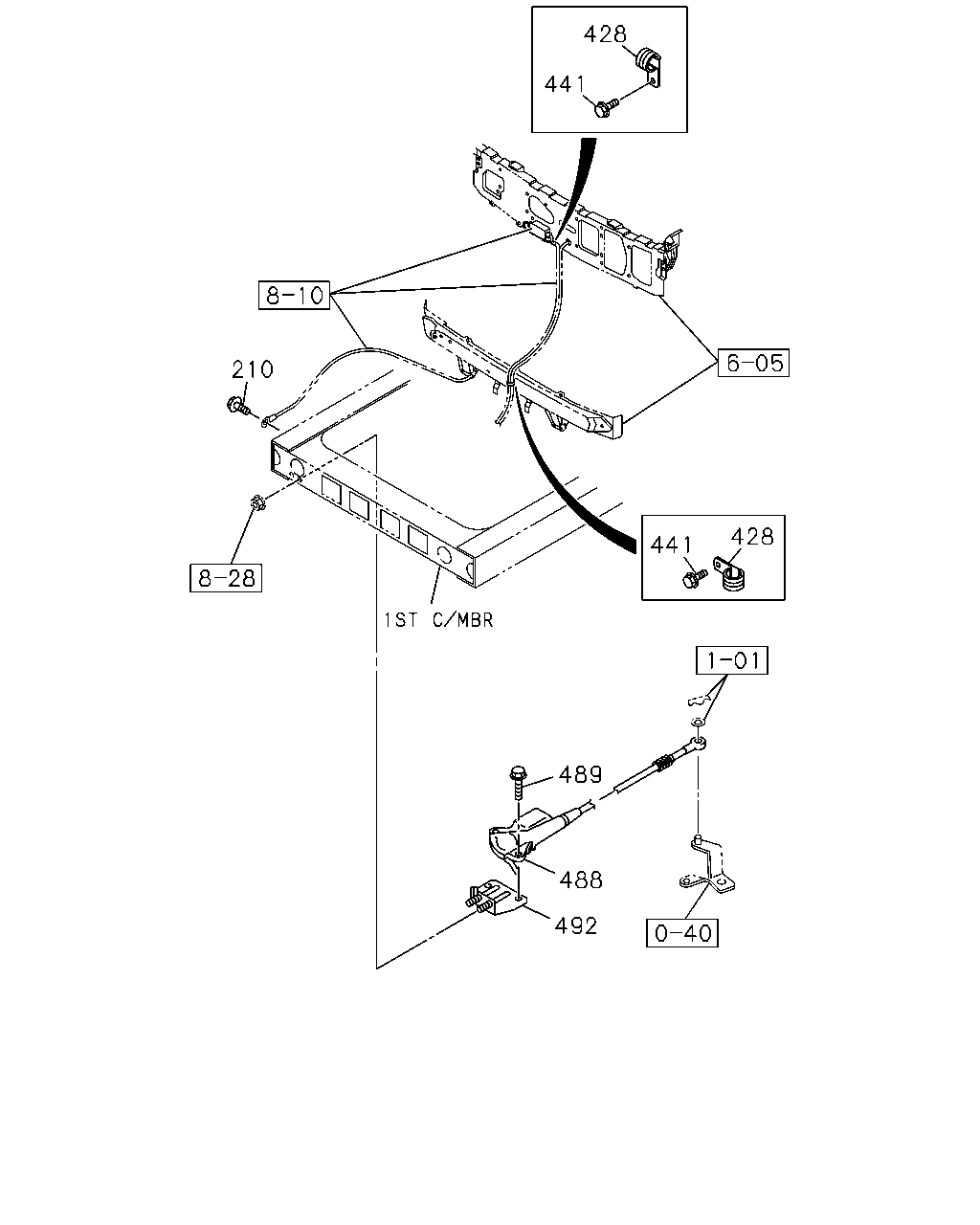

çizim 172894
428 441 210 428 441 489 488 492
BalonParca AdiParca NoAdetTipApplied Date A B
210 BOLT; CABLE FIX
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9510-9907 ● ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-0210 ● ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0211-1201 ●
210 BOLT; CABLE FIX
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ●
428 CLIP; HARNESS
ID=35 L=50 		1-09701-214-0 02 1 9510-0210 ● ●
428 CLIP; HARNESS
ID=35 L=50 		1-09701-214-0 02 1 0211- ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0210 ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
488 STOPPER; ENG 1-82840-128-2 01 1 9510-0210 ● ●
488 STOPPER; ENG 1-82840-128-3 01 1 0211- ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9510-0210 ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0211-0512 ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50640-825-0 02 1 0601- ●
492 BRACKET; ENG STOPPER 1-82849-067-0 01 1 9510-0210 ● ●
492 BRACKET; ENG STOPPER 1-82849-067-0 01 1 0211- ●

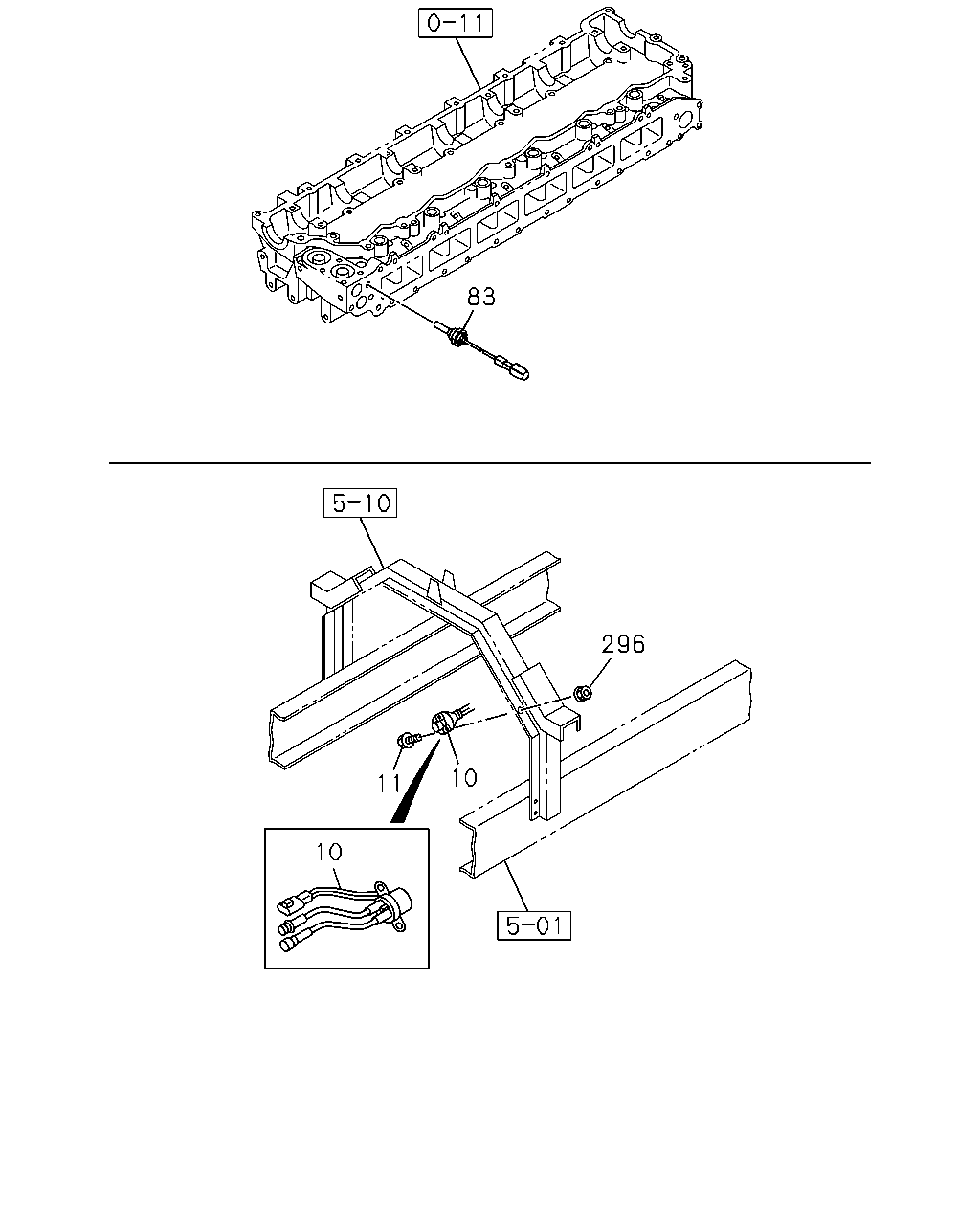

çizim 172895
83 296 10 11 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
HITACHI 		1-81171-087-0 01 1 9904-9907 ● ●
10 RELAY; STARTER
EXC. NIKKO<Y70> HITACHI 		1-81171-087-0 01 1 9908-0004 ● ●
10 RELAY; STARTER
NIKKO 		1-81171-067-0 01 1 9510-9608 ● ●
10 RELAY; STARTER
NIKKO 		1-81171-075-0 01 1 9609-0004 ● ●
10 RELAY; STARTER
HITACHI 		1-81171-087-0 01 1 0005-0210 ● ●
10 RELAY; STARTER
HITACHI 		1-81171-087-0 01 1 0211-0303 ●
10 RELAY; STARTER
NIKKO 		1-81171-075-1 01 1 0304- ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 9802-0210 ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9510-0210 ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 0211- ●
296 NUT; RELAY,STARTER
M8 		9-09110-408-0 02 1 9510-9606 ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9607-0210 ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
çizim 172896
430 38 46
BalonParca AdiParca NoAdetTipApplied Date A B
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9510-0210 ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0211- ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 9510-0210 ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0211- ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91150-106-0 02 1 9510-9601 ● ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91150-106-0 01 1 9602-0210 ● ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91150-106-0 01 1 0211-0602 ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91180-106-0 01 1 0603- ●
