0-50 — OIL COOLER AND OIL FILTER (#59580) — 118 parça

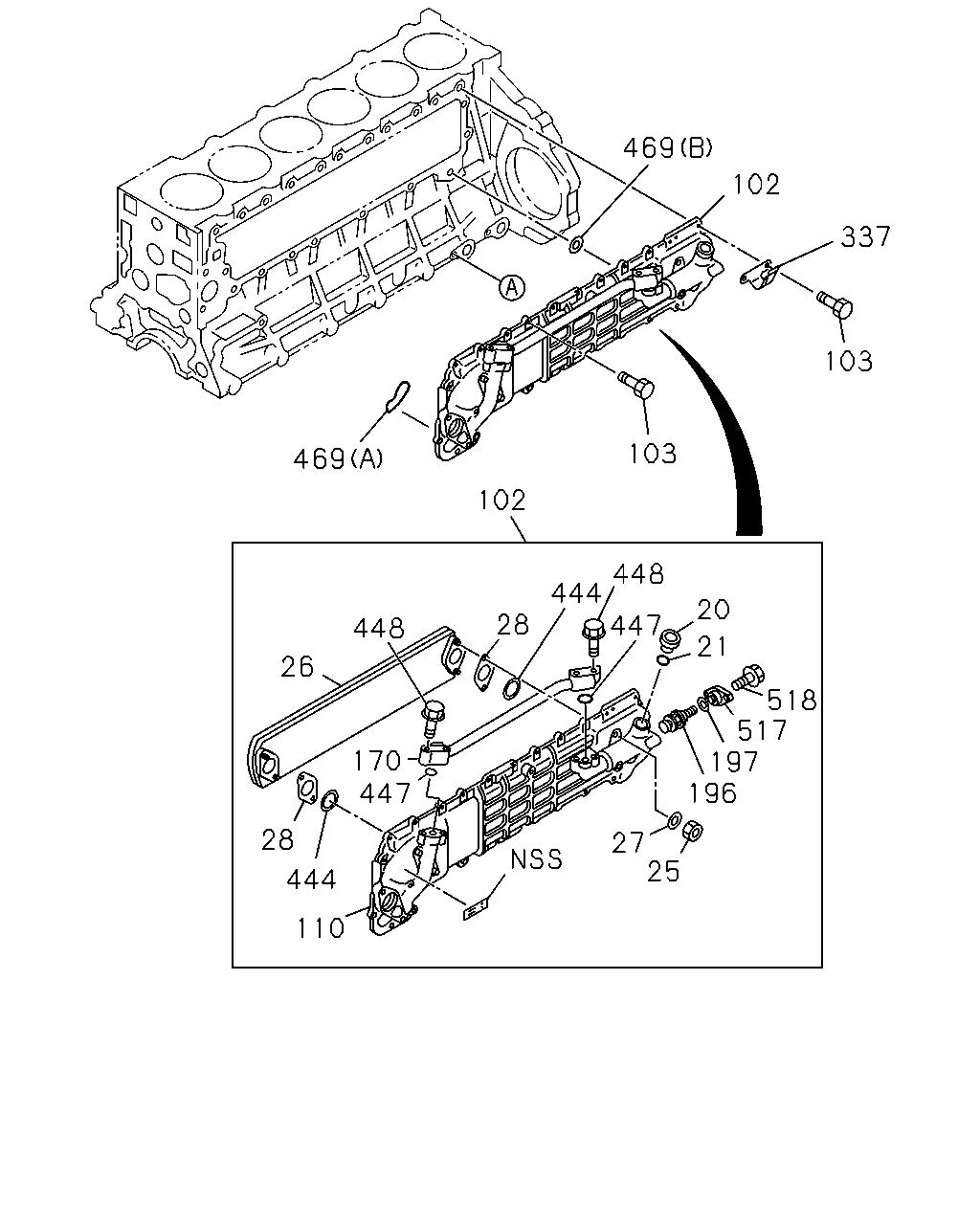

469 102 337 103 103 469 102 448 444 447 20 28 448 21 26 518 517 197 196 170 447 28 27 25 444 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	PLUG; COOLER BODY	8-94396-753-0	01	1	9510-
21	GASKET; PLUG M24	8-94396-755-0	01	1	9510-
25	NUT; CORE TO BODY M10	9-09111-410-0	04	1	9510-0512
25	NUT; CORE TO BODY M10	0-91111-510-0	04	1	0601-
26	CORE ASM; OIL COOLER	8-94395-711-0	01	1	9510-
27	WASHER; PL,CORE TO BODY ID=10.5	9-09164-510-0	04	1	9510-
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	9510-
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-074-4	01	1	0712-
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-074-4	01	1	9806-0210
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-074-3	01	1	9510-9712
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-075-3	01	1	9510-9712
102	COOLER ASM; OIL	8-94390-075-3	01	1	9801-9802
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-075-4	01	1	9803-0210
102	COOLER ASM; OIL	8-94390-075-4	01	1	0211-0612
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-075-4	01	1	0701-
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9510-
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9510-0512
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	02	1	0601-
110	BODY; CASE,OIL COOLER AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-027-2	01	1	9806-0004
110	BODY; CASE,OIL COOLER AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-027-2	01	1	9510-9712
110	BODY; CASE,OIL COOLER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-028-2	01	1	9510-9712
110	BODY; CASE,OIL COOLER	8-94390-028-2	01	1	9801-9802
110	BODY; CASE,OIL COOLER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-028-2	01	1	9803-0004
170	PIPE; BYPASS	8-94390-078-2	01	1	9510-
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9510-0111
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0112-
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	9510-
337	BRACKET; FUEL PIPE	8-94396-688-1	01	1	9510-
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	9510-
447	GASKET; BYPASS PIPE ID=17.8	1-09623-588-0	02	1	9510-
448	BOLT; BYPASS PIPE M8X30 FLANGE	0-28080-830-0	04	1	9510-0512
448	BOLT; BYPASS PIPE M8X30 FLANGE	0-28050-830-0	04	1	0601-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9510-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9510-0606
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-
517	PLUG; THERMOSTAT,OIL COOLER	8-94395-191-0	01	1	9510-
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	9510-0512
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0601-

496 307 308 265 328 2 516 328 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13240-132-0	01	1	0112-0210
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-87810-372-1	01	1	0112-0210
2	ELEMENT; OIL FILTER (C)	8-94396-375-4	01	1	9510-9609
2	ELEMENT; OIL FILTER (C)	8-94391-049-0	01	1	9610-0101
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94391-049-2	01	1	0102-0210
2	ELEMENT; OIL FILTER (C)	8-94391-049-4	01	1	0211-
2	ELEMENT; OIL FILTER (C) BEST VALUE PARTS	1-87610-064-0	01	1	0211-
265	BODY; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94393-503-0	01	1	0112-0210
265	BODY; OIL FILTER	8-94395-701-0	01	1	9510-9609
265	BODY; OIL FILTER	8-94391-016-3	01	1	9610-0101
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-016-4	01	1	0102-0210
265	BODY; OIL FILTER	8-94391-016-4	01	1	0211-
307	VALVE; OVERFLOW PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97015-672-0	01	1	0112-0210
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9510-0101
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	0102-0210
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0211-
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9510-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9510-0111
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94399-339-0	01	1	0112-0210
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8	8-94399-339-0	01	1	0112-0210
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0211-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9510-
328	BOLT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) M10X135	8-94397-139-1	03	1	0112-0210
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	9510-0512
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0601-
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28181-090-0	02	1	9510-0101
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE	0-28181-090-0	02	1	0102-0210
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28181-090-0	02	1	0211-0512
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0601-
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94392-898-1	01	1	0112-0210
496	FILTER ASM; OIL	8-94395-686-0	01	1	9510-9609
496	FILTER ASM; OIL	8-94391-015-3	01	1	9610-0101
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-015-5	01	1	0102-0210
496	FILTER ASM; OIL	8-94391-015-8	01	1	0211-
516	BRACKET; COVER	8-94394-986-2	01	1	0211-

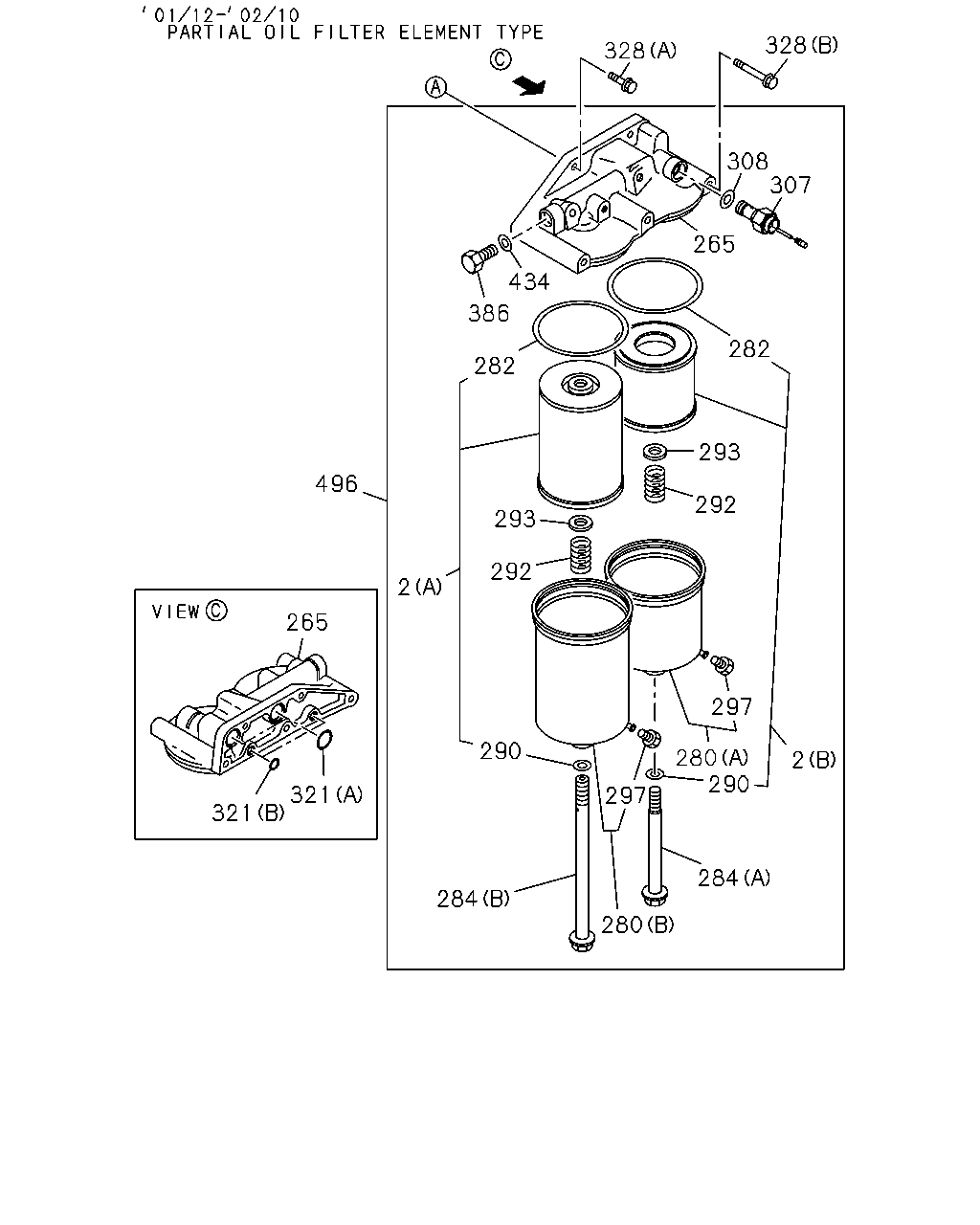

328 328 308 307 265 434 386 282 282 293 496 292 293 292 2 265 297 290 280 290 2 297 321 321 284 284 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13240-132-0	01	1	0112-0210
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-87810-372-1	01	1	0112-0210
2	ELEMENT; OIL FILTER (C)	8-94396-375-4	01	1	9510-9609
2	ELEMENT; OIL FILTER (C)	8-94391-049-0	01	1	9610-0101
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94391-049-2	01	1	0102-0210
2	ELEMENT; OIL FILTER (C)	8-94391-049-4	01	1	0211-
2	ELEMENT; OIL FILTER (C) BEST VALUE PARTS	1-87610-064-0	01	1	0211-
265	BODY; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94393-503-0	01	1	0112-0210
265	BODY; OIL FILTER	8-94395-701-0	01	1	9510-9609
265	BODY; OIL FILTER	8-94391-016-3	01	1	9610-0101
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-016-4	01	1	0102-0210
265	BODY; OIL FILTER	8-94391-016-4	01	1	0211-
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94393-504-1	01	1	0112-0210
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	8-94393-505-1	01	1	0112-0210
282	GASKET; BODY TO CASE PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09920-311-0	02	1	0112-0210
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13231-069-0	01	1	0112-0210
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-13231-070-1	01	1	0112-0210
290	GASKET; PLUG,OIL DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5	9-09920-694-0	02	1	0112-0210
292	SPRING; ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09941-283-0	02	1	0112-0210
293	SEAT; SPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-13239-025-0	02	1	0112-0210
297	PLUG; COVER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-275-0	02	1	0112-0210
307	VALVE; OVERFLOW PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97015-672-0	01	1	0112-0210
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9510-0101
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	0102-0210
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0211-
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9510-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9510-0111
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94399-339-0	01	1	0112-0210
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8	8-94399-339-0	01	1	0112-0210
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0211-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9510-
328	BOLT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) M10X135	8-94397-139-1	03	1	0112-0210
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	9510-0512
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0601-
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28181-090-0	02	1	9510-0101
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE	0-28181-090-0	02	1	0102-0210
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28181-090-0	02	1	0211-0512
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0601-
386	PLUG; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> M16X9	9-13226-011-0	01	1	0112-0210
434	GASKET; PLUG,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09920-526-0	01	1	0112-0210
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94392-898-1	01	1	0112-0210
496	FILTER ASM; OIL	8-94395-686-0	01	1	9510-9609
496	FILTER ASM; OIL	8-94391-015-3	01	1	9610-0101
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-015-5	01	1	0102-0210
496	FILTER ASM; OIL	8-94391-015-8	01	1	0211-
