3-08 — PARKING BRAKE (#5958) — 166 parça

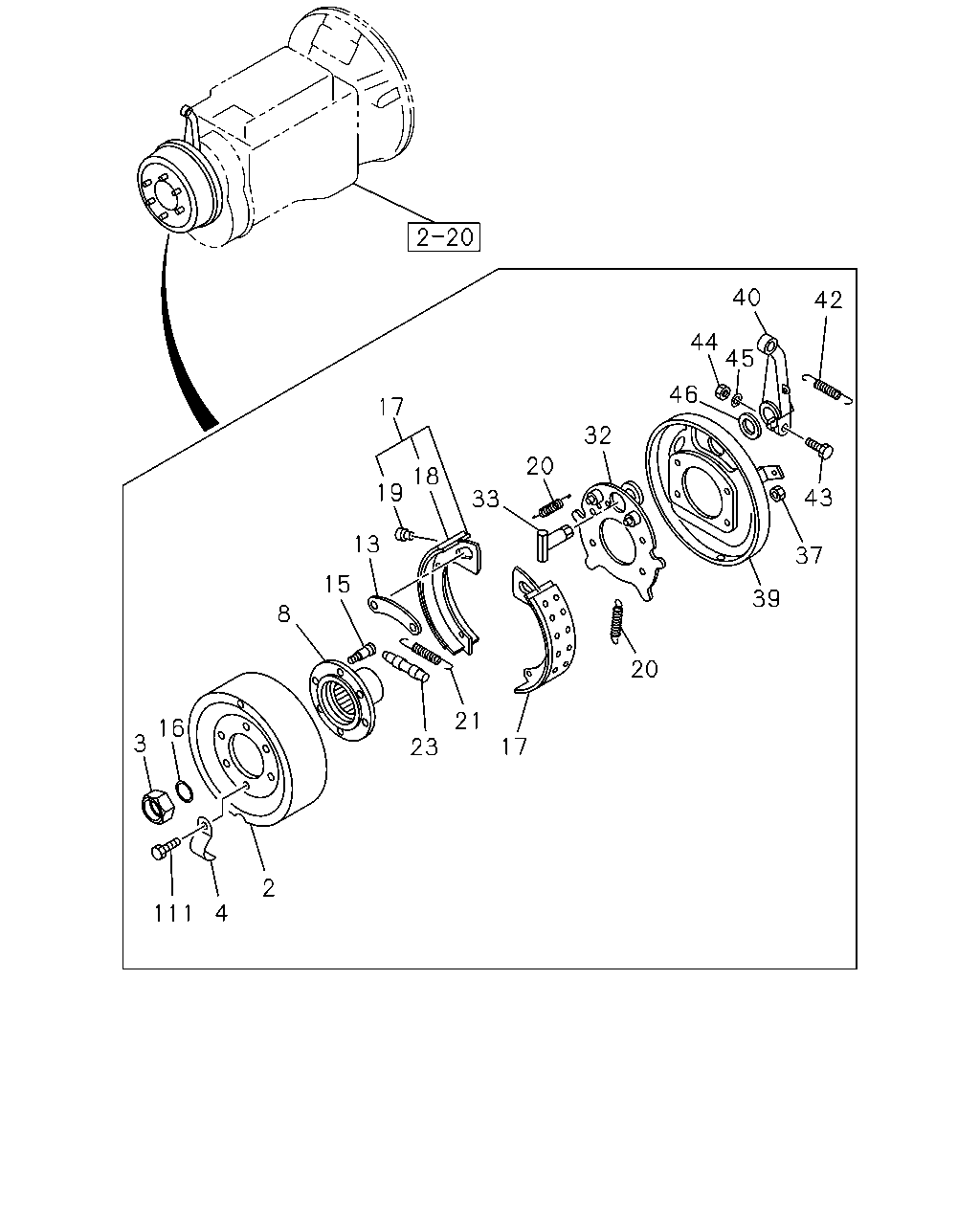

40 42 44 45 46 17 32 20 18 19 43 33 13 37 15 39 8 20 21 16 3 17 23 2 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	DRUM; PARKING BRK	1-46211-020-0	01	1	9606-9810	●	●	●
2	DRUM; PARKING BRK	1-46211-019-0	01	1	9610-9810				●
2	DRUM; PARKING BRK	1-46211-019-0	01	1	9811-					●
3	NUT; LK M30 FLANGE	1-09449-066-1	01	1	9606-9810	●	●	●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	9610-9810				●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	9811-0805					●
3	NUT; LK M36 FLANGE	8-98014-140-0	01	1	0806-					●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	9606-9810	●	●	●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	9610-9810				●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	9811-					●
8	FLANGE; PARKING BRK	1-37243-245-0	01	1	9606-9810	●	●	●
8	FLANGE; PARKING BRK	1-37243-235-0	01	1	9610-9810				●
8	FLANGE; PARKING BRK	1-37243-235-0	01	1	9811-					●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	0412-					●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	9606-9810	●	●	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9610-9810				●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9811-0410					●
15	BOLT; FLANGE M14X43 KNURL	1-09046-003-0	04	1	9606-9810	●	●	●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9610-9810				●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9811-0707					●
15	BOLT; FLANGE M16X55	8-98023-172-0	04	1	0708-					●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9606-9810	●	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9610-9810				●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9811-					●
17	SHOE; PARKING BRK	1-46220-022-1	02	1	0412-					●
17	SHOE; PARKING BRK	1-46220-024-0	02	1	9606-9810	●	●	●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9610-9810				●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9811-0410					●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	0412-					●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	9610-9810				●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	9811-0410					●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	0412-0807					●
19	RIVET; LINING,PARKING BRK	1-09732-058-0	32	1	0808-					●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	9610-9810				●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	9811-0410					●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	0412-					●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	9606-9810	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9610-9810				●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9811-0410					●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	0412-					●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	9606-9810	●	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9610-9810				●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9811-0410					●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	0412-					●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	9606-9810	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9610-9810				●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9811-0410					●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	0412-					●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	9606-9810	●	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	9610-9810				●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	9811-0410					●
33	SHAFT; CAM,PARKING BRK	1-46251-010-0	01	1	0412-					●
33	SHAFT; CAM,PARKING BRK	1-46251-002-0	01	1	9606-9810	●	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	9610-9810				●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	9811-0410					●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	01	1	9606-9810	●		●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	9811-0604					●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0605-					●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	9606-9609		●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	9610-9810		●		●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	0412-					●
39	COVER; DUST,PARKING BRK	1-46213-067-0	01	1	9606-9810	●	●	●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	9610-9810				●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	9811-0410					●
40	LEVER; CM/SHF,PARKING BRK	1-46252-046-0	01	1	0412-					●
40	LEVER; CM/SHF,PARKING BRK	1-46252-003-0	01	1	9606-9810	●	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	9610-9810				●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	9811-0410					●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	9606-9810	●	●	●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	9610-9810				●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	9811-					●
43	BOLT; LEVER TO CM/SHF	0-10811-040-0	01	1	0412-0710					●
43	BOLT; LEVER TO CM/SHF	8-98061-595-0	01	1	0711-					●
43	BOLT; LEVER TO CM/SHF	0-10811-040-0	01	1	9610-9810				●
43	BOLT; LEVER TO CM/SHF	0-10811-040-0	01	1	9811-0410					●
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	0412-0512					●
44	NUT; LEVER TO CM/SHF M10	0-91111-510-0	01	1	0601-					●
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	9610-9810				●
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	9811-0410					●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	0412-0603					●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	0-91510-510-0	01	1	0604-					●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	9610-9810				●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	9811-0410					●
46	WASHER; LEVER	9-09855-362-0	01	1	0412-					●
46	WASHER; LEVER	9-09855-367-0	01	1	9606-9810	●	●	●
46	WASHER; LEVER	9-09855-362-0	01	1	9610-9810				●
46	WASHER; LEVER	9-09855-362-0	01	1	9811-0410					●
111	BOLT; COVER,CHECK HOLE M8X18 W/LK WASHER	0-50040-818-0	02	1	9606-9810	●	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9610-9810				●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0812					●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50540-820-0	02	1	0901-					●

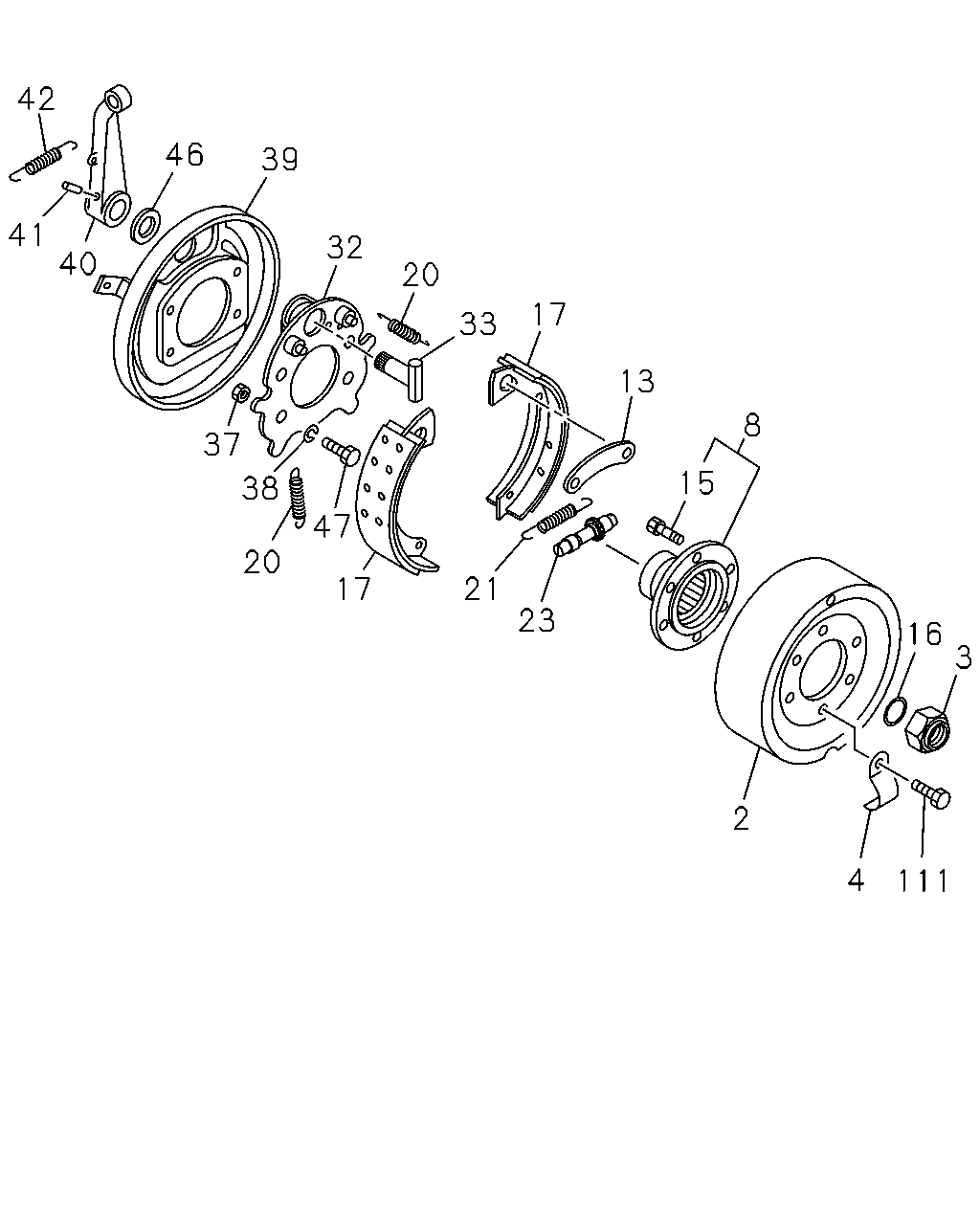

42 46 39 41 32 40 20 17 33 13 8 37 38 47 15 20 21 17 23 16 3 2 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	DRUM; PARKING BRK	1-46211-020-0	01	1	9606-9810	●	●	●
2	DRUM; PARKING BRK	1-46211-019-0	01	1	9610-9810				●
2	DRUM; PARKING BRK	1-46211-019-0	01	1	9811-					●
3	NUT; LK M30 FLANGE	1-09449-066-1	01	1	9606-9810	●	●	●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	9610-9810				●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	9811-0805					●
3	NUT; LK M36 FLANGE	8-98014-140-0	01	1	0806-					●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	9606-9810	●	●	●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	9610-9810				●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	9811-					●
8	FLANGE; PARKING BRK	1-37243-245-0	01	1	9606-9810	●	●	●
8	FLANGE; PARKING BRK	1-37243-235-0	01	1	9610-9810				●
8	FLANGE; PARKING BRK	1-37243-235-0	01	1	9811-					●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	0412-					●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	9606-9810	●	●	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9610-9810				●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9811-0410					●
15	BOLT; FLANGE M14X43 KNURL	1-09046-003-0	04	1	9606-9810	●	●	●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9610-9810				●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9811-0707					●
15	BOLT; FLANGE M16X55	8-98023-172-0	04	1	0708-					●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9606-9810	●	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9610-9810				●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9811-					●
17	SHOE; PARKING BRK	1-46220-022-1	02	1	0412-					●
17	SHOE; PARKING BRK	1-46220-024-0	02	1	9606-9810	●	●	●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9610-9810				●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9811-0410					●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	0412-					●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	9606-9810	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9610-9810				●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9811-0410					●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	0412-					●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	9606-9810	●	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9610-9810				●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9811-0410					●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	0412-					●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	9606-9810	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9610-9810				●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9811-0410					●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	0412-					●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	9606-9810	●	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	9610-9810				●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	9811-0410					●
33	SHAFT; CAM,PARKING BRK	1-46251-010-0	01	1	0412-					●
33	SHAFT; CAM,PARKING BRK	1-46251-002-0	01	1	9606-9810	●	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	9610-9810				●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	9811-0410					●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	01	1	9606-9810	●		●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	9811-0604					●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0605-					●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	9606-9609		●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	9610-9810		●		●
38	WASHER; LK,SUPPORT PLATE ID=14.2	9-09150-514-0	03	1	9606-9810	●		●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	0412-					●
39	COVER; DUST,PARKING BRK	1-46213-067-0	01	1	9606-9810	●	●	●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	9610-9810				●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	9811-0410					●
40	LEVER; CM/SHF,PARKING BRK	1-46252-046-0	01	1	0412-					●
40	LEVER; CM/SHF,PARKING BRK	1-46252-003-0	01	1	9606-9810	●	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	9610-9810				●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	9811-0410					●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	9606-9810	●	●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	9606-9810	●	●	●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	9610-9810				●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	9811-					●
46	WASHER; LEVER	9-09855-362-0	01	1	0412-					●
46	WASHER; LEVER	9-09855-367-0	01	1	9606-9810	●	●	●
46	WASHER; LEVER	9-09855-362-0	01	1	9610-9810				●
46	WASHER; LEVER	9-09855-362-0	01	1	9811-0410					●
47	BOLT; SUPPORT PLATE M14X32	0-23801-432-0	03	1	9606-9810	●		●
111	BOLT; COVER,CHECK HOLE M8X18 W/LK WASHER	0-50040-818-0	02	1	9606-9810	●	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9610-9810				●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0812					●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50540-820-0	02	1	0901-					●
