0-40 — FUEL INJECTION SYSTEM (#59577) — 132 parça

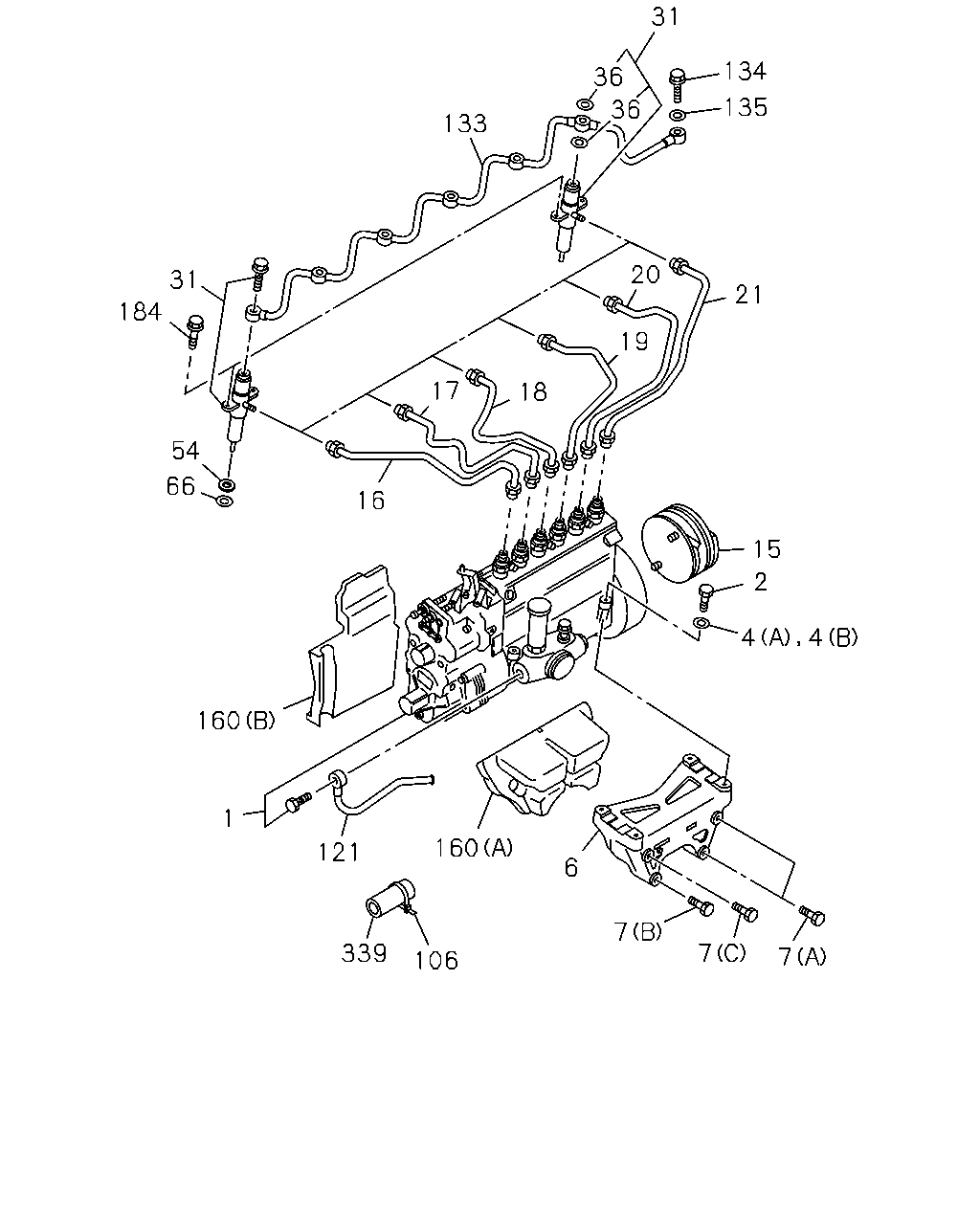

31 134 36 135 36 133 20 31 21 184 19 17 18 54 66 16 15 2 4 4 160 1 160 121 6 7 339 7 7 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-94395-813-1	01	1	0102-0210
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-081-1	01	1	0211-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-901-1	01	1	9510-0101
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-94395-901-1	01	1	0102-0210
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9510-
4	WASHER; INJ PUMP (A) ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9510-
4	WASHER; INJ PUMP (B) ID=8.5 KAWASAKI	9-09851-983-0	04	1	9510-
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	9510-
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	9510-0512
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28151-080-0	02	1	0601-
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	9510-
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	9510-0805
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-97365-449-0	01	1	0806-
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	9510-0210
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94393-962-2	01	1	0211-
16	PIPE; INJ NO.1	8-94396-007-2	01	1	9510-0210
16	PIPE; INJ NO.1	8-94394-546-0	01	1	0211-
17	PIPE; INJ NO.2	8-94396-008-3	01	1	9510-0210
17	PIPE; INJ NO.2	8-94394-547-0	01	1	0211-
18	PIPE; INJ NO.3	8-94396-009-3	01	1	9510-0210
18	PIPE; INJ NO.3	8-94394-548-0	01	1	0211-
19	PIPE; INJ NO.4	8-94396-010-4	01	1	9510-0210
19	PIPE; INJ NO.4	8-94394-549-0	01	1	0211-
20	PIPE; INJ NO.5	8-94396-011-2	01	1	9510-0210
20	PIPE; INJ NO.5	8-94394-550-0	01	1	0211-
21	PIPE; INJ NO.6	8-94396-494-3	01	1	9510-0210
21	PIPE; INJ NO.6	8-94394-551-0	01	1	0211-
31	NOZZLE ASM; INJ	8-94395-511-2	06	1	9510-0210
31	NOZZLE ASM; INJ	8-94395-498-2	06	1	0211-
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9510-9901
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9510-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9510-0006
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-0909
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-
106	CLIP; INJ PIPE L=140	5-09707-031-1	01	1	0002-0106
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	9510-
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-805-0	01	1	9510-
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	9510-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9510-0004
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	0005-
160	SPACER; INJ PUMP (B)	8-94390-169-0	01	1	0211-
160	SPACER; INJ PUMP (A)	8-94395-673-1	01	1	0211-
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28080-840-0	12	1	9510-0512
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28050-840-0	12	1	0601-
339	RUBBER; COVER ID=6 OD=10 L=70	1-09376-512-0	01	1	0002-

31 34 36 36 37 38 39 44 45 32 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	NOZZLE ASM; INJ	8-94395-511-2	06	1	9510-0210
31	NOZZLE ASM; INJ	8-94395-498-2	06	1	0211-
32	HOLDER ASM; NOZZLE	8-94390-384-0	06	1	9510-
33	NOZZLE; INJ	8-94390-383-0	06	1	9510-0210
33	NOZZLE; INJ	8-94390-382-0	06	1	0211-
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9510-9901
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	9510-
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9510-9901
37	NUT; CAP,NOZZLE HOLDER	1-15349-136-0	06	1	9510-
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9510-
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9510-
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9510-
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9510-

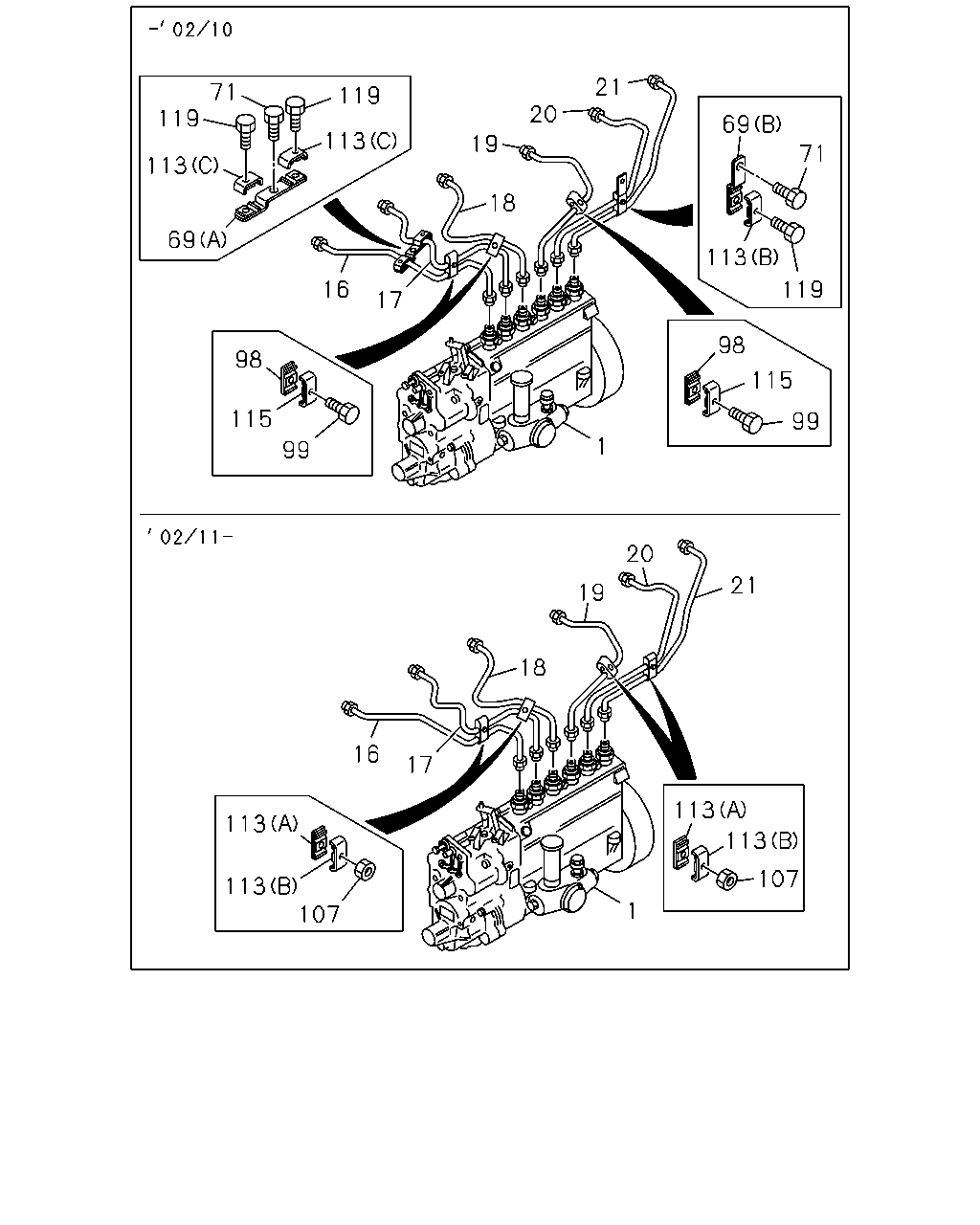

21 71 119 20 119 69 113 19 71 113 18 69 113 16 119 17 98 98 115 115 99 1 99 20 21 19 18 16 17 113 113 113 107 113 107 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-94395-813-1	01	1	0102-0210
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-081-1	01	1	0211-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-901-1	01	1	9510-0101
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-94395-901-1	01	1	0102-0210
16	PIPE; INJ NO.1	8-94396-007-2	01	1	9510-0210
16	PIPE; INJ NO.1	8-94394-546-0	01	1	0211-
17	PIPE; INJ NO.2	8-94396-008-3	01	1	9510-0210
17	PIPE; INJ NO.2	8-94394-547-0	01	1	0211-
18	PIPE; INJ NO.3	8-94396-009-3	01	1	9510-0210
18	PIPE; INJ NO.3	8-94394-548-0	01	1	0211-
19	PIPE; INJ NO.4	8-94396-010-4	01	1	9510-0210
19	PIPE; INJ NO.4	8-94394-549-0	01	1	0211-
20	PIPE; INJ NO.5	8-94396-011-2	01	1	9510-0210
20	PIPE; INJ NO.5	8-94394-550-0	01	1	0211-
21	PIPE; INJ NO.6	8-94396-494-3	01	1	9510-0210
21	PIPE; INJ NO.6	8-94394-551-0	01	1	0211-
69	BRACKET; INJ PIPE CLIP (A)	8-94396-086-0	01	1	9510-0210
69	BRACKET; INJ PIPE CLIP (B)	8-94396-087-0	01	1	9510-0210
71	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9510-0210
98	CLIP; "A",INJ PIPE	8-94397-445-0	03	1	9510-0210
99	BOLT; CLIP,INJ,PIPE	8-94365-129-0	03	1	9510-0210
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0211-0602
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91180-106-0	04	1	0603-
113	CLIP; INJ PIPE (C)	1-09701-091-0	02	1	9510-0210
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0211-
113	CLIP; INJ PIPE (B)	8-94397-444-0	01	1	9510-0210
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	0211-
115	CLIP; "B",INJ PIPE	8-94397-444-0	03	1	9510-0210
119	BOLT; CLIP,INJ PIPE M6X22 FLANGE	0-28080-622-0	03	1	9510-0210

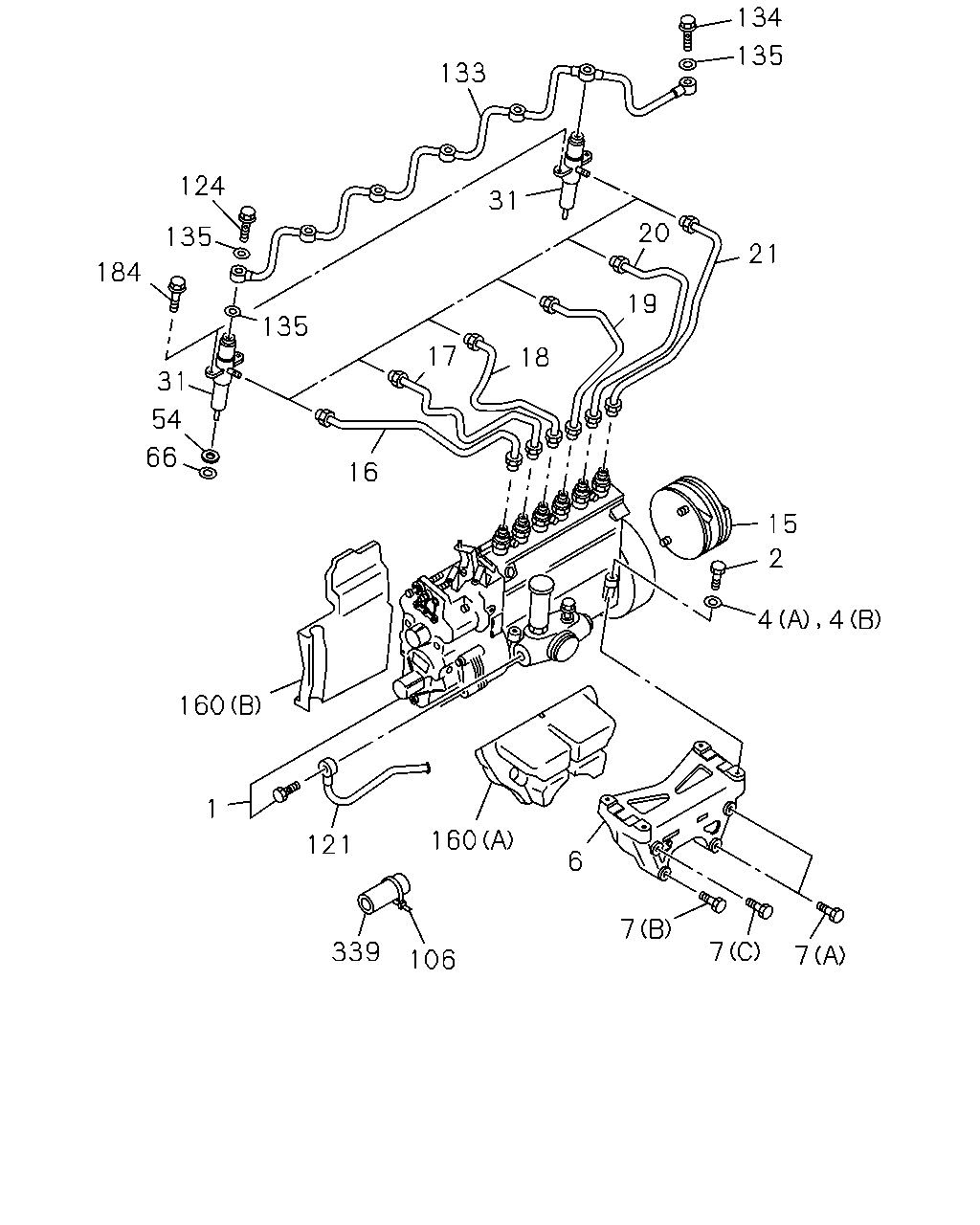

134 135 133 124 31 20 135 21 184 19 135 17 18 31 54 66 16 15 2 4 4 160 1 160 121 6 7 339 7 7 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-94395-813-1	01	1	0102-0210
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-081-1	01	1	0211-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-901-1	01	1	9510-0101
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-94395-901-1	01	1	0102-0210
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9510-
4	WASHER; INJ PUMP (A) ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9510-
4	WASHER; INJ PUMP (B) ID=8.5 KAWASAKI	9-09851-983-0	04	1	9510-
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	9510-
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	9510-0512
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28151-080-0	02	1	0601-
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	9510-
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	9510-0805
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-97365-449-0	01	1	0806-
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	9510-0210
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94393-962-2	01	1	0211-
16	PIPE; INJ NO.1	8-94396-007-2	01	1	9510-0210
16	PIPE; INJ NO.1	8-94394-546-0	01	1	0211-
17	PIPE; INJ NO.2	8-94396-008-3	01	1	9510-0210
17	PIPE; INJ NO.2	8-94394-547-0	01	1	0211-
18	PIPE; INJ NO.3	8-94396-009-3	01	1	9510-0210
18	PIPE; INJ NO.3	8-94394-548-0	01	1	0211-
19	PIPE; INJ NO.4	8-94396-010-4	01	1	9510-0210
19	PIPE; INJ NO.4	8-94394-549-0	01	1	0211-
20	PIPE; INJ NO.5	8-94396-011-2	01	1	9510-0210
20	PIPE; INJ NO.5	8-94394-550-0	01	1	0211-
21	PIPE; INJ NO.6	8-94396-494-3	01	1	9510-0210
21	PIPE; INJ NO.6	8-94394-551-0	01	1	0211-
31	NOZZLE ASM; INJ	8-94395-511-2	06	1	9510-0210
31	NOZZLE ASM; INJ	8-94395-498-2	06	1	0211-
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9510-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9510-0006
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-0909
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-
106	CLIP; INJ PIPE L=140	5-09707-031-1	01	1	0002-0106
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	9510-
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	06	1	0005-
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-805-0	01	1	9510-
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	9510-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9510-0004
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	0005-
160	SPACER; INJ PUMP (B)	8-94390-169-0	01	1	0211-
160	SPACER; INJ PUMP (A)	8-94395-673-1	01	1	0211-
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28080-840-0	12	1	9510-0512
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28050-840-0	12	1	0601-
339	RUBBER; COVER ID=6 OD=10 L=70	1-09376-512-0	01	1	0002-
