◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶
0-39 — AIR COMPRESSOR; BRAKE (#59576) — 116 parça

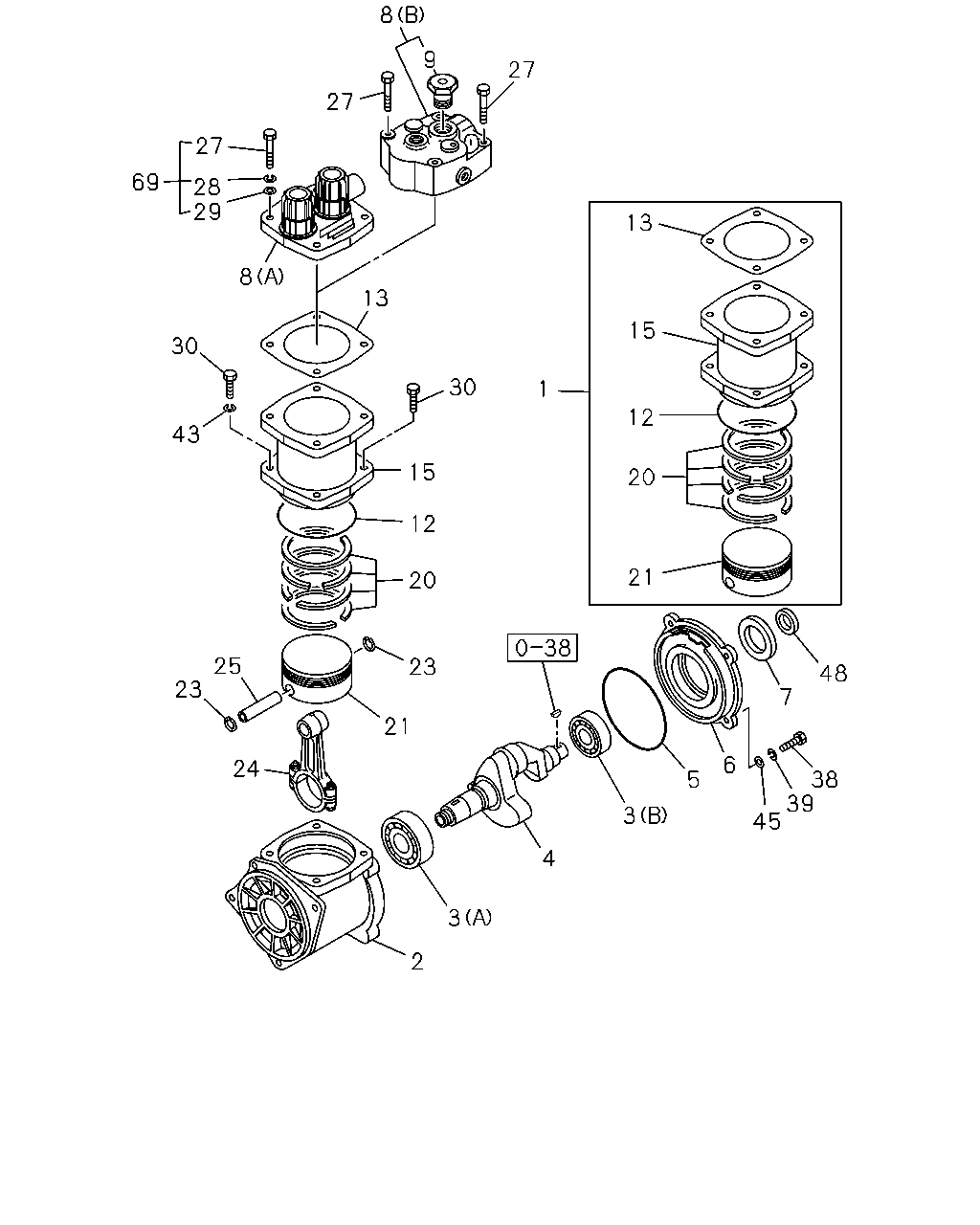

çizim 172882
8 27 27 69 28 29 8 9 27 13 30 43 30 15 12 20 23 25 23 24 21 13 15 1 12 20 21 48 7 38 39 45 3 5 6 4 3 2
BalonParca AdiParca NoAdetTipApplied Date
1 LINER KIT; CYL,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19163-053-2 01 1 0712-0812
1 LINER KIT; CYL,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19163-074-0 01 1 0901-
1 LINER KIT; CYL,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19163-053-2 01 1 9806-0210
1 LINER KIT; CYL,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19163-053-1 01 1 9510-9712
1 LINER KIT; CYL,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19163-050-0 01 1 9510-9712
1 LINER KIT; CYL,AIR CMPR 1-19163-050-0 01 1 9801-9802
1 LINER KIT; CYL,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19163-050-1 01 1 9803-0210
1 LINER KIT; CYL,AIR CMPR 1-19163-050-1 01 1 0211-0612
1 LINER KIT; CYL,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19163-050-1 01 1 0701-
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 9510-
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 9510-
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 9510-
4 CRANKSHAFT; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19171-048-1 01 1 0712-
4 CRANKSHAFT; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19171-048-1 01 1 9806-0210
4 CRANKSHAFT; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19171-048-1 01 1 9510-9712
4 CRANKSHAFT; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19171-047-1 01 1 9510-9712
4 CRANKSHAFT; AIR CMPR 1-19171-047-1 01 1 9801-9802
4 CRANKSHAFT; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19171-047-1 01 1 9803-0210
4 CRANKSHAFT; AIR CMPR 1-19171-047-1 01 1 0211-0612
4 CRANKSHAFT; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19171-047-1 01 1 0701-
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9510-1107
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108-
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 9510-
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 9510-
8 HEAD ASM; CYL,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19110-052-1 01 1 0712-
8 HEAD ASM; CYL,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19110-052-1 01 1 9806-0210
8 HEAD ASM; CYL,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19110-052-1 01 1 9510-9712
8 HEAD ASM; CYL,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-19110-019-0 01 1 9510-9712
8 HEAD ASM; CYL,AIR CMPR
(A) 		1-19110-019-0 01 1 9801-9802
8 HEAD ASM; CYL,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-19110-019-0 01 1 9803-0210
8 HEAD ASM; CYL,AIR CMPR
(A) 		1-19110-019-0 01 1 0211-0612
8 HEAD ASM; CYL,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-19110-019-0 01 1 0701-
9 VALVE ASM; UNLOADER,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19120-017-1 01 1 0712-
9 VALVE ASM; UNLOADER,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19120-017-1 01 1 9806-0210
9 VALVE ASM; UNLOADER,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19120-017-1 01 1 9510-9712
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9510-1107
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108-
13 GASKET; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-98112-947-0 01 1 0712-
13 GASKET; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-98112-947-0 01 1 9806-0210
13 GASKET; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) T=0.8 		1-19139-004-0 01 1 9510-9712
13 GASKET; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19115-006-0 01 1 9510-9712
13 GASKET; AIR CMPR 1-19115-006-0 01 1 9801-9805
13 GASKET; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-98113-036-0 01 1 9806-0210
13 GASKET; AIR CMPR 8-98113-036-0 01 1 0211-0612
13 GASKET; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-98113-036-0 01 1 0701-
15 CYLINDER; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19151-219-0 01 1 0712-
15 CYLINDER; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19151-219-0 01 1 9806-0210
15 CYLINDER; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19151-219-0 01 1 9510-9712
15 CYLINDER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19151-250-0 01 1 9510-9712
15 CYLINDER; AIR CMPR 1-19151-250-0 01 1 9801-9802
15 CYLINDER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19151-250-0 01 1 9803-0210
15 CYLINDER; AIR CMPR 1-19151-250-0 01 1 0211-0612
15 CYLINDER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19151-250-0 01 1 0701-
20 RING KIT; PISTON,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19163-051-1 01 1 0712-0812
20 RING KIT; PISTON,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19163-058-0 01 1 0901-
20 RING KIT; PISTON,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19163-051-1 01 1 9806-0210
20 RING KIT; PISTON,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19163-051-1 01 1 9510-9712
20 RING KIT; PISTON,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19163-043-0 01 1 9510-9712
20 RING KIT; PISTON,AIR CMPR 1-19163-043-0 01 1 9801-9802
20 RING KIT; PISTON,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19163-043-0 01 1 9803-0210
20 RING KIT; PISTON,AIR CMPR 1-19163-043-0 01 1 0211-0612
20 RING KIT; PISTON,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19163-043-0 01 1 0701-
21 PISTON; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19161-016-0 01 1 0712-0812
21 PISTON; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19161-027-0 01 1 0901-
21 PISTON; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19161-016-0 01 1 9806-0210
21 PISTON; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19161-016-0 01 1 9510-9712
21 PISTON; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19161-021-0 01 1 9510-9712
21 PISTON; AIR CMPR 1-19161-021-0 01 1 9801-9802
21 PISTON; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19161-021-0 01 1 9803-0210
21 PISTON; AIR CMPR 1-19161-021-0 01 1 0211-0612
21 PISTON; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19161-021-0 01 1 0701-
23 RING; SNAP,PISTON,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19169-004-0 02 1 0901-1107
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 1108-
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9510-0812
23 RING; SNAP,PISTON,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-19168-003-0 02 1 0901-1107
24 ROD ASM; CONN,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19173-010-0 01 1 0712-
24 ROD ASM; CONN,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19173-010-0 01 1 9806-0210
24 ROD ASM; CONN,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19173-010-0 01 1 9510-9712
24 ROD ASM; CONN,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19173-017-0 01 1 9510-9712
24 ROD ASM; CONN,AIR CMPR 1-19173-017-0 01 1 9801-9802
24 ROD ASM; CONN,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19173-017-0 01 1 9803-0210
24 ROD ASM; CONN,AIR CMPR 1-19173-017-0 01 1 0211-0612
24 ROD ASM; CONN,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19173-017-0 01 1 0701-
25 PIN; PISTON,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-19167-003-0 01 1 0712-0812
25 PIN; PISTON,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19167-003-0 01 1 0901-
25 PIN; PISTON,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-19167-003-0 01 1 9806-0210
25 PIN; PISTON,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-19167-003-0 01 1 9510-9712
25 PIN; PISTON,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-19167-006-0 01 1 9510-9712
25 PIN; PISTON,AIR CMPR 9-19167-006-0 01 1 9801-9802
25 PIN; PISTON,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-19167-006-0 01 1 9803-0210
25 PIN; PISTON,AIR CMPR 9-19167-006-0 01 1 0211-0612
25 PIN; PISTON,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-19167-006-0 01 1 0701-
27 BOLT; HD
AIR COMPRESSOR HEAVY DUTY(E1Q) M10X45 		9-01066-045-0 02 1 0712-
27 BOLT; HD
AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60 		9-01066-060-0 02 1 0712-
27 BOLT; HD
AIR COMPRESSOR HEAVY DUTY(E1Q) M10X45 		9-01066-045-0 02 1 9806-0210
27 BOLT; HD
AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60 		9-01066-060-0 02 1 9806-0210
27 BOLT; HD
AIR COMPRESSOR HEAVY DUTY(E1Q) M10X45 		9-01066-045-0 02 1 9510-9712
27 BOLT; HD
AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60 		9-01066-060-0 02 1 9510-9712
27 BOLT; HD
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X30 		9-02061-030-0 04 1 9510-9712
27 BOLT; HD
M10X30 		9-02061-030-0 04 1 9801-9805
28 WASHER; LK,HD BOLT
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2 		9-09150-610-0 04 1 9510-9712
28 WASHER; LK,HD BOLT
ID=10.2 		9-09150-610-0 04 1 9801-9805
29 WASHER; PL,HD BOLT
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5 		9-09164-510-0 04 1 9510-9712
29 WASHER; PL,HD BOLT
ID=10.5 		9-09164-510-0 04 1 9801-9805
30 BOLT; CYL TO CRANKCASE
AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25 		9-02051-025-0 04 1 9510-9712
30 BOLT; CYL TO CRANKCASE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09000-332-0 04 1 9510-9712
30 BOLT; CYL TO CRANKCASE 1-09000-332-0 04 1 9801-9805
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 9806-
38 BOLT; COVER FIX 9-81385-023-0 04 1 9510-
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9510-
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9510-9805
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 9510-
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 9510-
69 BOLT ASM; AIR COMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19119-031-0 04 1 9806-0210
69 BOLT ASM; AIR COMP 1-19119-031-0 04 1 0211-0612
69 BOLT ASM; AIR COMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19119-031-0 04 1 0701-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
