0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#59575) — 105 parça

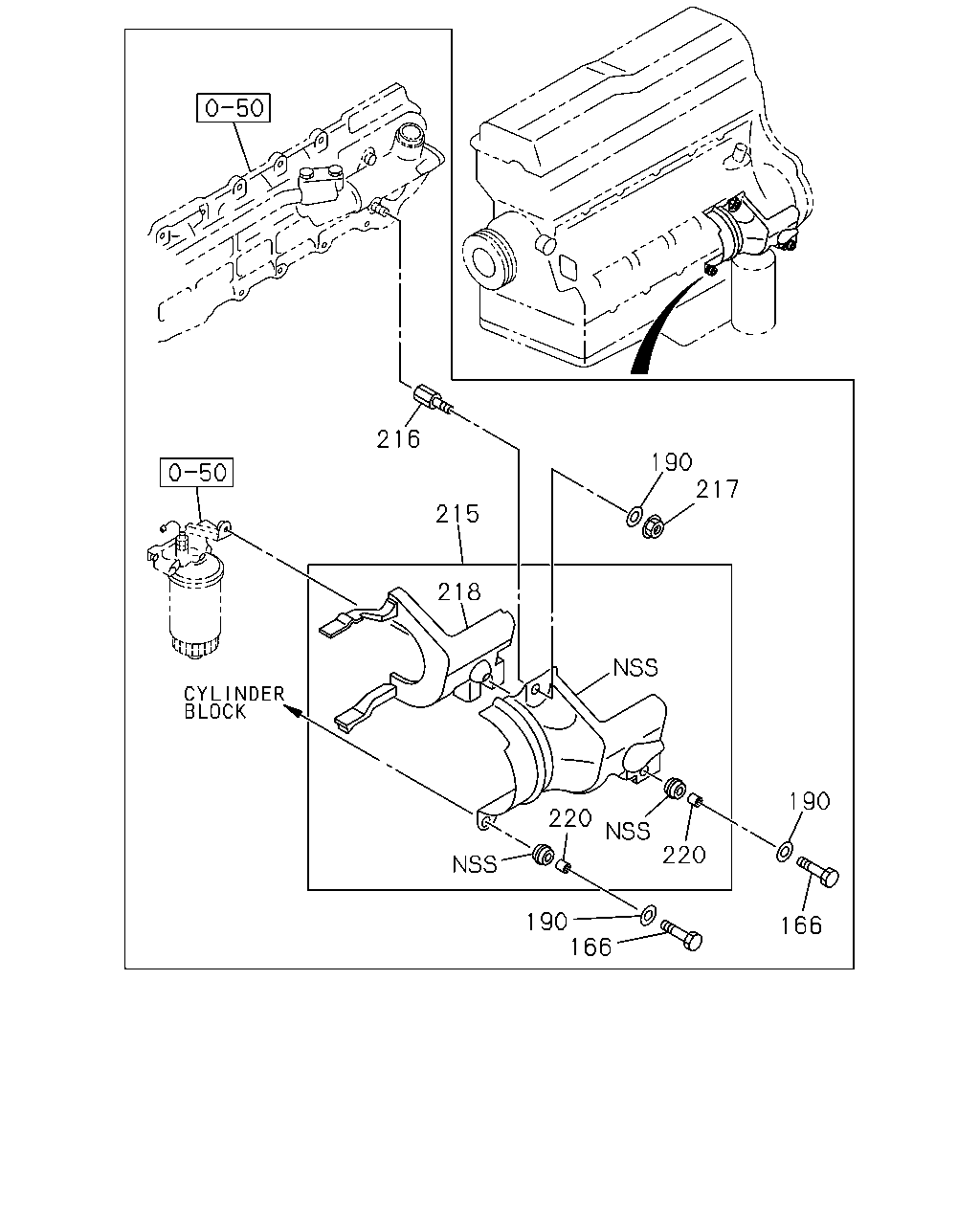

çizim 172875
216 190 217 215 218 190 220 220 190 166 166
BalonParca AdiParca NoAdetTipApplied Date
166 BOLT; COVER FIX
M10X25 FLANGE 		0-28781-025-0 02 1 0211-0512
166 BOLT; COVER FIX
M10X25 FLANGE 		0-28751-025-0 02 1 0601-
190 WASHER; PL,COVER
ID=10.5 OD=26 		9-09160-710-0 03 1 0211-
215 COVER; AIR CMPR 8-94390-408-0 01 1 0211-
216 SPACER; COVER 8-94394-990-1 01 1 0211-
217 NUT; COVER
M10 		9-09110-410-0 01 1 0211-0512
217 NUT; COVER
M10 		0-91110-510-0 01 1 0601-
218 INSULATOR; COVER 8-94394-995-2 01 1 0211-
220 TUBE; DIST
OD=13 T=9.5 		8-94140-427-1 03 1 0211-

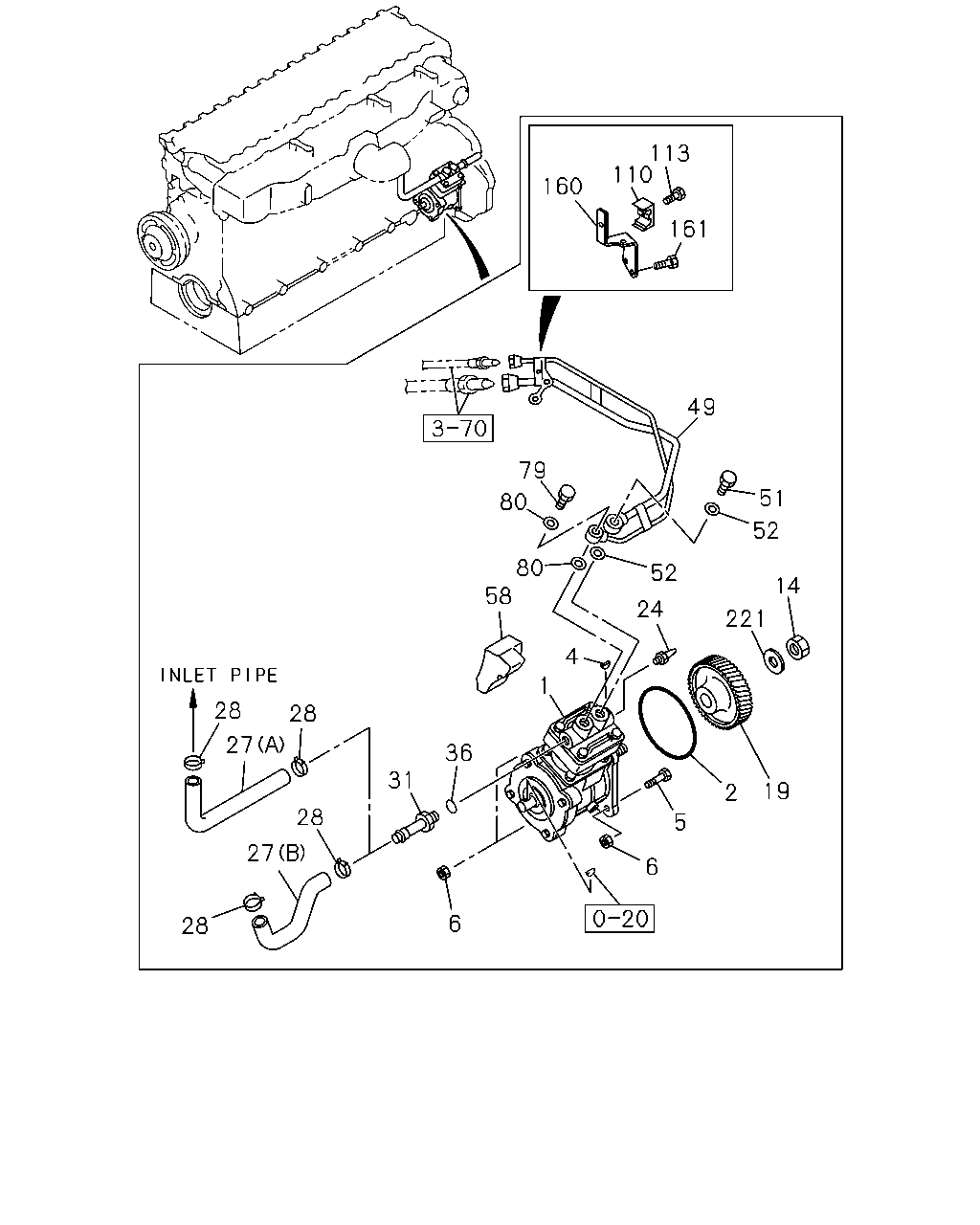

çizim 172878
113 110 160 161 49 79 51 80 52 80 58 52 14 24 221 4 1 28 28 27 36 31 19 2 28 5 27 6 6 28
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-892-9 01 1 0712-1107
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-98187-310-1 01 1 1108-
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-892-8 01 1 9806-0210
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-892-7 01 1 9510-9712
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-891-3 01 1 9510-9712
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-94396-891-3 01 1 9801-9802
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-891-4 01 1 9803-0210
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-94396-891-4 01 1 0211-0612
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94396-891-4 01 1 0701-1107
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-98187-309-1 01 1 1108-
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 9510-
4 KEY; INJ PUMP GEAR 9-08055-516-0 01 1 9510-
5 BOLT; AIR CMPR FIX
M12X95 FLANGE 		8-94396-485-1 01 1 9510-
6 NUT; AIR CMPR
M10 FLANGE 		0-91150-110-0 02 1 9510-0602
6 NUT; AIR CMPR
M10 FLANGE 		0-91180-110-0 02 1 0603-
6 NUT; AIR CMPR
M12 FLANGE 		0-91150-112-0 01 1 9510-0602
6 NUT; AIR CMPR
M12 FLANGE 		0-91180-112-0 01 1 0603-
14 NUT; GEAR
M20 		9-99110-520-0 01 1 9510-0512
14 NUT; GEAR
M20 		0-91110-520-0 01 1 0601-
19 GEAR; INJ PUMP
Z=35 		8-94336-157-4 01 1 9510-
24 POINTER; AIR CMPR
L=21 		9-11327-602-0 01 1 9510-
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94394-967-0 01 1 0712-
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94395-083-0 01 1 9806-0210
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94395-083-0 01 1 9510-9712
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94395-082-0 01 1 9510-9712
27 HOSE; AIR CMPR,SUCTION
(A) 		8-94395-082-0 01 1 9801-9802
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94395-082-0 01 1 9803-0210
27 HOSE; AIR CMPR,SUCTION
(B) 		8-94394-809-1 01 1 0211-0612
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94394-809-1 01 1 0701-
28 CLIP; HOSE,AIR CMPR
ID=26 		1-09707-091-0 02 1 9510-
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94399-954-0 01 1 0712-
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94399-954-0 01 1 9806-0210
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94399-954-0 01 1 9510-9712
31 PIPE; AIR,AIR CMPR SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94399-942-1 01 1 9510-9712
31 PIPE; AIR,AIR CMPR SUCTION 8-94399-942-1 01 1 9801-9802
31 PIPE; AIR,AIR CMPR SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94399-942-1 01 1 9803-0210
31 PIPE; AIR,AIR CMPR SUCTION 8-94399-942-1 01 1 0211-0612
31 PIPE; AIR,AIR CMPR SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94399-942-1 01 1 0701-
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32 		9-09571-424-0 01 1 9510-9712
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 01 1 9801-9802
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32 		9-09571-424-0 01 1 9803-0210
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 01 1 0211-0612
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32 		9-09571-424-0 01 1 0701-
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94395-087-2 01 1 0712-
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94395-087-2 01 1 9806-0210
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94395-087-2 01 1 9510-9712
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94390-063-0 01 1 9510-9712
49 PIPE; AIR,CHARGE 8-94390-063-0 01 1 9801-9802
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94390-063-1 01 1 9803-0112
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94394-275-1 01 1 0201-0210
49 PIPE; AIR,CHARGE 8-94394-275-1 01 1 0211-0612
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94394-275-1 01 1 0701-
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39 		1-09675-132-1 01 1 0712-1404
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39 		1-09675-175-2 01 1 1405-
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39 		1-09675-132-0 01 1 9806-0210
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39 		1-09675-132-0 01 1 9510-9712
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38 		1-09675-133-0 01 1 9510-9712
51 BOLT; EYE,AIR PIPE TO CMPR
M20X38 		1-09675-133-0 01 1 9801-9802
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38 		1-09675-133-0 01 1 9803-0210
51 BOLT; EYE,AIR PIPE TO CMPR
M20X38 		1-09675-133-0 01 1 0211-0612
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38 		1-09675-133-1 01 1 0701-
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32 		9-09571-424-0 02 1 0712-
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32 		9-09571-424-0 02 1 9806-0210
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32 		9-09571-424-0 02 1 9510-9712
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0 		9-09571-420-0 02 1 9510-9712
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0 		9-09571-420-0 02 1 9801-9802
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0 		9-09571-420-0 02 1 9803-0210
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0 		9-09571-420-0 02 1 0211-0612
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0 		9-09571-420-0 02 1 0701-
58 SPACER; AIR CMPR 8-94395-675-1 01 1 0211-
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 01 1 0712-
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 01 1 9806-0210
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 01 1 9510-9712
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33 		1-09675-058-0 01 1 9510-9712
79 BOLT; EYE,AIR PIPE TO CMPR
M18X33 		1-09675-058-0 01 1 9801-9802
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33 		1-09675-058-0 01 1 9803-0210
79 BOLT; EYE,AIR PIPE TO CMPR
M18X33 		1-09675-058-0 01 1 0211-0612
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33 		1-09675-058-0 01 1 0701-
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0712-1312
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9806-0210
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9510-9712
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9510-9712
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9801-9802
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9803-0210
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0211-0612
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0701-
110 CLIP; AIR PIPE 8-94393-037-0 01 1 9510-
113 BOLT; CLIP,AIR PIPE
M6X40 W/LK&PL WASHER 		0-50140-640-0 01 1 9510-9709
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9710-0512
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28050-640-0 01 1 0601-
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 9510-
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9510-0512
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
221 WASHER; PL,GEAR
ID=21 		9-09160-520-0 01 1 9510-0605
221 WASHER; PL,GEAR
ID=21 		0-91610-520-0 01 1 0606-
