Sayfa 3-05 - Isuzu EPC

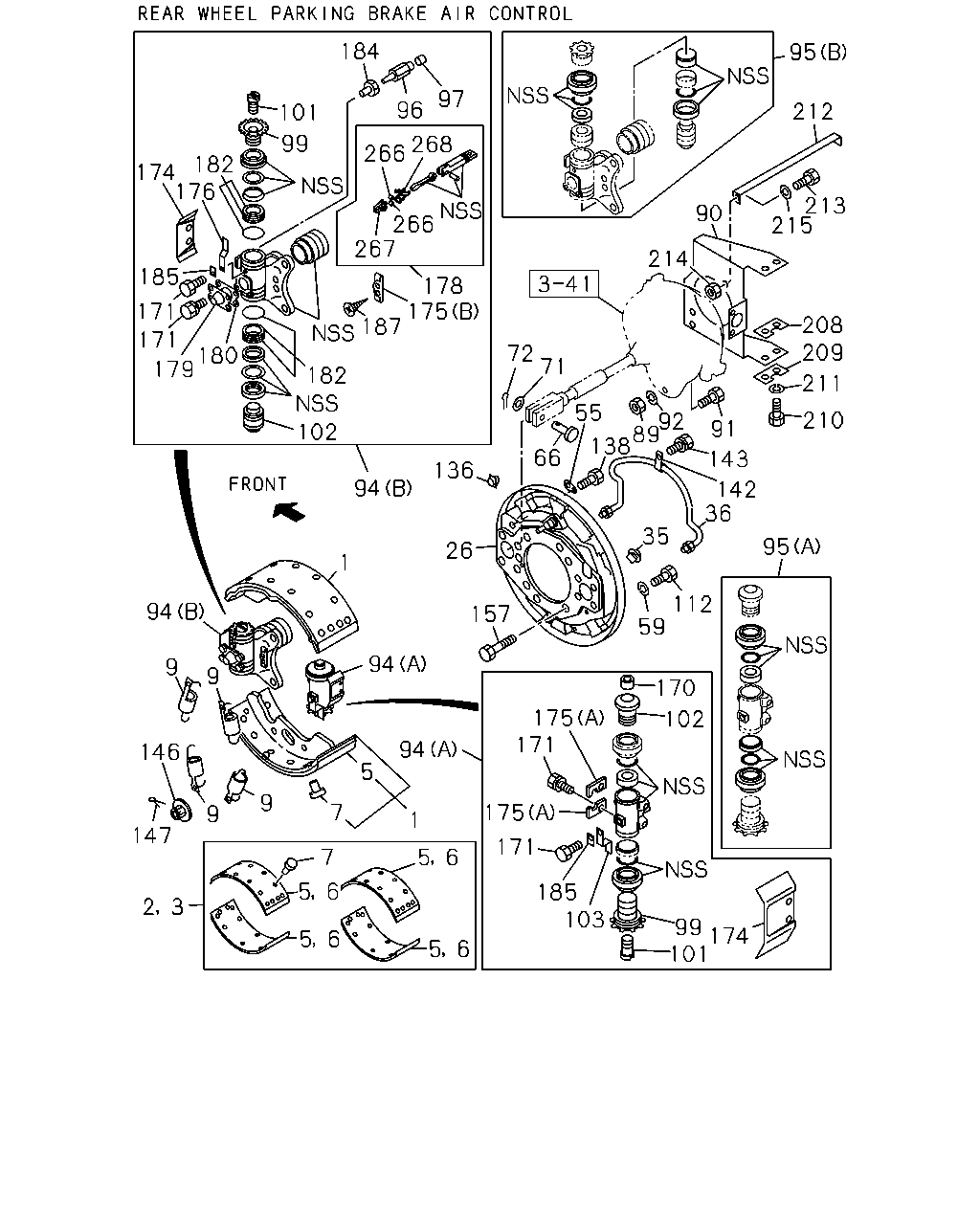

3-05 — REAR WHEEL BRAKE (#5957) — 362 parça

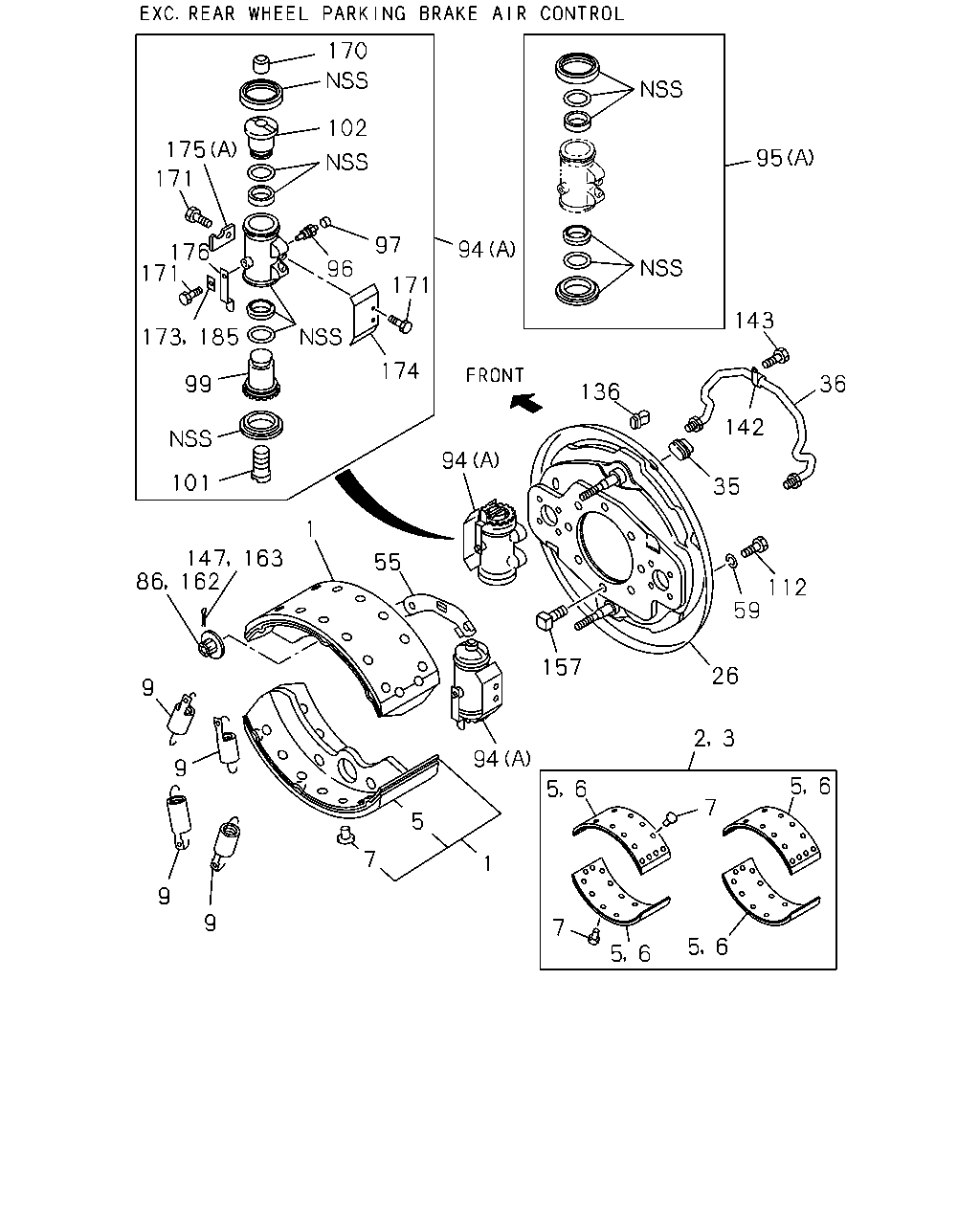

170 102 175 95 171 97 94 176 171 96 171 143 173 185 174 36 99 136 142 94 101 35 1 147 162 163 55 86 112 59 157 26 9 2 3 94 9 5 6 5 6 7 5 7 1 9 9 7 5 6 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47110-982-0	04	1	9606-9810
1	SHOE; BRK,RR	1-47110-982-0	04	1	9811-
1	SHOE; BRK,RR FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47110-962-0	04	1	9610-9810
2	LINING SET; RR BRK,STANDARD FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-88302-999-0	01	1	9606-9810
2	LINING SET; RR BRK,STANDARD	1-88302-999-0	01	1	9811-
2	LINING SET; RR BRK,STANDARD FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-88302-956-0	02	1	9610-9810
3	LINING SET; RR BRK,OVER SIZE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-88310-042-0	01	1	9606-9810
3	LINING SET; RR BRK,OVER SIZE	1-88310-042-0	01	1	9811-
3	LINING SET; RR BRK,OVER SIZE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-88310-001-0	02	1	9610-9810
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47115-941-0	04	1	9606-9810
5	LINING; RR BRK SHOE,STANDARD	1-47115-941-0	04	1	9811-
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47115-867-0	08	1	9610-9810
6	LINING; RR BRK SHOE,OVER SIZE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47115-942-0	04	1	9606-9810
6	LINING; RR BRK SHOE,OVER SIZE	1-47115-942-0	04	1	9811-
6	LINING; RR BRK SHOE,OVER SIZE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47115-869-0	08	1	9610-9810
7	RIVET; LINING,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) D6X11.5	1-09732-019-0	80	1	9606-9810
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	9811-
7	RIVET; LINING,RR BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) L=18.5	1-09732-034-0	80	1	9610-9810
9	SPRING; RETURN,BRK SHOE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-09583-167-0	08	1	9606-9810
9	SPRING; RETURN,BRK SHOE	1-09583-167-0	08	1	9811-
9	SPRING; RETURN,BRK SHOE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-09583-175-0	02	1	9610-9810
26	PLATE; BACK,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-443-0	01	1	9606-9810
26	PLATE; BACK,RR BRK	1-47150-443-0	01	1	9811-
26	PLATE; BACK,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-447-0	01	1	9606-9810
26	PLATE; BACK,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-442-0	01	1	9606-9810
26	PLATE; BACK,RR BRK	1-47150-442-0	01	1	9811-
26	PLATE; BACK,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-446-0	01	1	9606-9810
35	GROMMET; CHECK HOLE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-09333-066-1	04	1	9606-9810
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	9811-
36	PIPE; OIL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47416-356-0	02	1	9606-9810
36	PIPE; OIL,RR BRK	1-47416-356-0	02	1	9811-
36	PIPE; OIL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47415-139-0	01	1	9606-9810
36	PIPE; OIL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47415-138-0	01	1	9606-9810
55	PLATE; LK,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-068-0	04	1	9606-9810
55	PLATE; LK,RR WHEEL CYL	1-47139-068-0	04	1	9811-
55	PLATE; LK,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	9606-9810
55	PLATE; LK,RR WHEEL CYL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47133-005-0	02	1	9610-9810
59	WASHER; LK,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-614-0	16	1	9606-9810
59	WASHER; LK,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-614-0	12	1	9606-9810
59	WASHER; LK,RR WHEEL CYL ID=14.2	9-09150-614-0	16	1	9811-0603
59	WASHER; LK,RR WHEEL CYL ID=14.2	0-91510-614-0	16	1	0604-
86	NUT; FLANGE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-009-0	02	1	9606-9810
86	NUT; FLANGE	1-09440-009-0	02	1	9811-
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47600-559-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK (A) FORWARD	1-47600-559-1	01	1	9811-
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) FORWARD	1-47600-569-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47600-557-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK (A) FORWARD	1-47600-557-1	01	1	9811-
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) FORWARD	1-47600-568-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) (A) BACKWARD	1-47600-558-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47600-558-1	01	1	9811-
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) (A) BACKWARD	1-47600-556-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47600-556-1	01	1	9811-
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) (C)	1-47600-697-0	02	1	9610-9810
95	CUP SET; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-553-0	04	1	9606-9810
95	CUP SET; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-553-0	02	1	9606-9810
95	CUP SET; RR WHEEL CYL (A)	1-87830-553-0	04	1	9811-
95	CUP SET; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-87830-570-0	02	1	9606-9810
95	CUP SET; RR WHEEL CYL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) (C) ID=33.3	1-87830-525-0	02	1	9610-9810
96	SCREW; BLEEDER,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) L=44	1-47615-007-0	02	1	9606-9810
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	9811-
96	SCREW; BLEEDER,RR BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) L=66.5	1-47615-005-0	02	1	9610-9810
97	CAP; BLEEDER,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) OD=9.5	9-47619-005-0	02	1	9606-9810
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	9811-
97	CAP; BLEEDER,RR WHEEL CYL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) OD=12	1-47619-011-0	02	1	9610-9810
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-202-0	02	1	9606-9810
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-202-0	01	1	9606-9810
99	PISTON; RR WHEEL CYL	1-47624-202-0	02	1	9811-
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-208-0	01	1	9606-9810
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-201-0	02	1	9606-9810
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRCKWARD	1-47624-201-0	01	1	9606-9810
99	PISTON; RR WHEEL CYL	1-47624-201-0	02	1	9811-
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-207-0	01	1	9606-9810
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	9-47624-211-0	04	1	9610-9810
101	SCREW; ADJ,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47622-029-0	02	1	9606-9810
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	9811-
101	SCREW; ADJ,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47622-028-0	02	1	9606-9810
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	9811-
102	PISTON; REAR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-203-0	04	1	9606-9810
102	PISTON; REAR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-203-0	02	1	9606-9810
102	PISTON; REAR WHEEL CYL	1-47624-203-0	04	1	9811-
102	PISTON; REAR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-206-0	02	1	9606-9810
112	BOLT; WHEEL CYL SETTING FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-92361-435-0	16	1	9606-9810
112	BOLT; WHEEL CYL SETTING FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-92361-435-0	12	1	9606-9810
112	BOLT; WHEEL CYL SETTING	9-92361-435-0	16	1	9811-
112	BOLT; WHEEL CYL SETTING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) M12X32 W/LK WASHER	0-50051-232-0	04	1	9610-9810
136	GROMMET FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-09333-065-2	04	1	9606-9810
136	GROMMET	1-09333-065-2	04	1	9811-
142	CLAMP; OIL PIPE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-09700-454-0	02	1	9606-9810
142	CLAMP; OIL PIPE	1-09700-454-0	02	1	9811-
143	BOLT; CLAMP,OIL PIPE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) M6X10	9-01900-610-0	02	1	9606-9810
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	9811-
147	PIN; HOLDER FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	9-08112-020-0	02	1	9606-9810
147	PIN; HOLDER FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	9-08112-020-0	04	1	9606-9810
147	PIN; HOLDER OD=1.8 L=20	9-08112-020-0	02	1	9811-0606
147	PIN; HOLDER OD=1.8 L=20	0-81122-020-0	02	1	0607-
157	BOLT; RR BRK SET FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X56	1-09060-004-0	12	1	9606-9810
157	BOLT; RR BRK SET M14X56	1-09060-004-0	12	1	9811-
157	BOLT; RR BRK SET FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	9-92061-450-0	04	1	9606-9810
162	NUT; SHOE HOLD DOWN FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-009-0	02	1	9606-9810
162	NUT; SHOE HOLD DOWN	1-09440-009-0	02	1	9811-
163	PIN; SPLIT,SHOE HOLD FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	9-08112-020-0	02	1	9606-9810
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	9-08112-020-0	02	1	9811-0606
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	02	1	0607-
170	PIECE; ANCHOR,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-019-0	04	1	9606-9810
170	PIECE; ANCHOR,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-019-0	02	1	9606-9810
170	PIECE; ANCHOR,RR WHEEL CYL	1-47619-019-0	04	1	9811-
171	BOLT; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X8	0-20800-608-0	04	1	9606-9810
171	BOLT; RR WHEEL CYL M6X8	0-20800-608-0	04	1	9811-
171	BOLT; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	08	1	9606-9810
171	BOLT; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	04	1	9606-9810
171	BOLT; RR WHEEL CYL M8X18 W/LK WASHER	0-50040-818-0	08	1	9811-0812
171	BOLT; RR WHEEL CYL M8X18 W/LK WASHER	0-50540-818-0	08	1	0901-
171	BOLT; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X10	9-01900-610-0	12	1	9606-9810
171	BOLT; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X10	9-01900-610-0	20	1	9606-9810
171	BOLT; RR WHEEL CYL M6X10	9-01900-610-0	12	1	9811-
173	PLATE; LK,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	02	1	9606-9810
173	PLATE; LK,RR WHEEL CYL	1-47169-009-0	02	1	9811-
174	COVER; CYL,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47619-016-0	04	1	9606-9810
174	COVER; CYL,RR WHEEL CYL	1-47619-016-0	04	1	9811-
175	HANGER; RR WHEEL BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47118-084-0	08	1	9606-9810
175	HANGER; RR WHEEL BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47118-084-0	04	1	9606-9810
175	HANGER; RR WHEEL BRK (A)	1-47118-084-0	08	1	9811-
175	HANGER; RR WHEEL BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-022-0	02	1	9606-9810
176	STOPPER; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-008-0	04	1	9606-9810
176	STOPPER; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-008-0	02	1	9606-9810
176	STOPPER; RR WHEEL CYL	1-47169-008-0	04	1	9811-
185	PLATE; LK,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	02	1	9606-9810
185	PLATE; LK,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	04	1	9606-9810
185	PLATE; LK,RR WHEEL CYL	1-47169-009-0	02	1	9811-

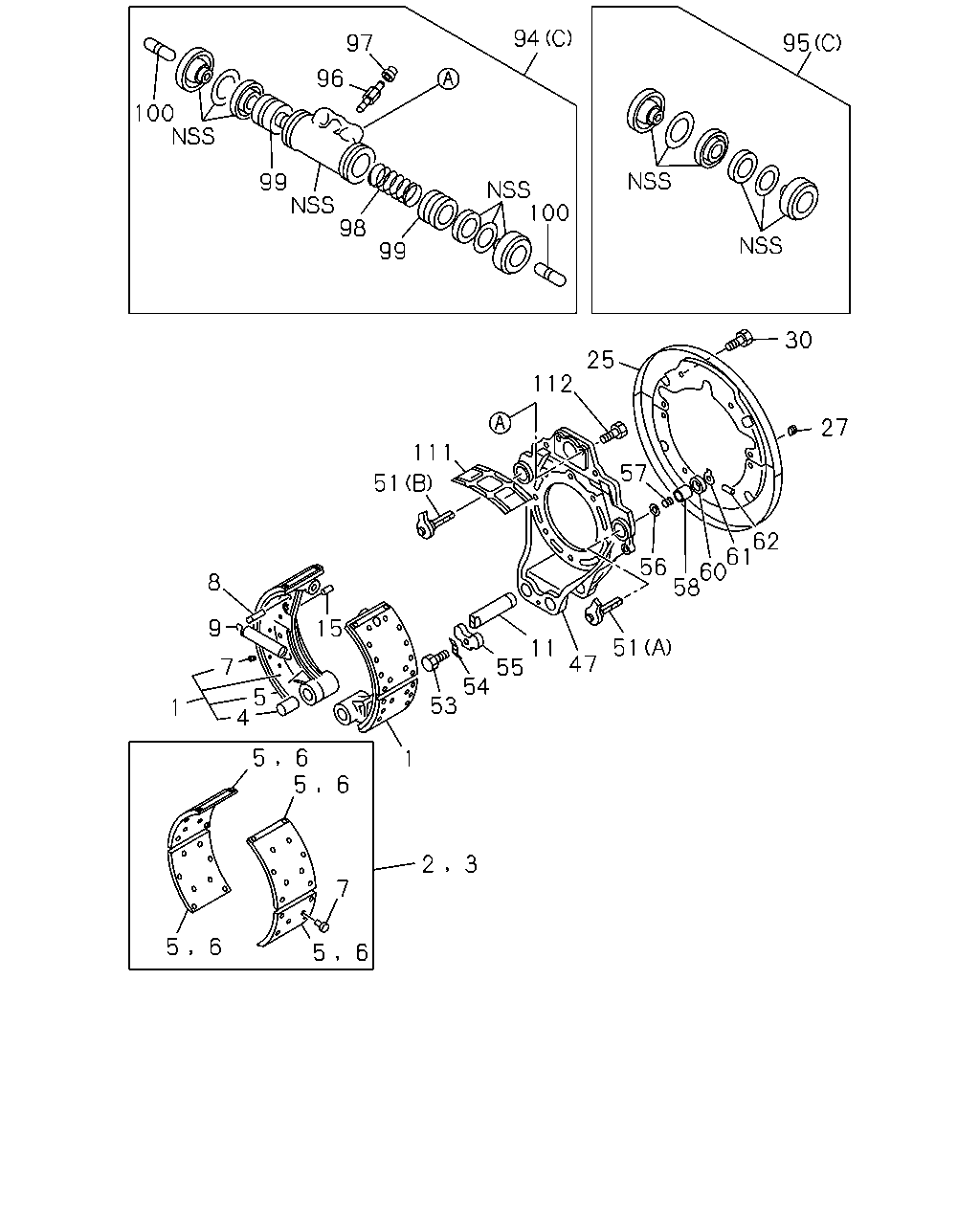

94 95 97 96 100 99 98 100 99 30 25 112 27 111 57 51 62 61 56 60 58 8 9 15 51 11 55 54 53 47 7 5 4 1 5 6 5 1 6 3 2 7 5 6 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47110-982-0	04	1	9606-9810
1	SHOE; BRK,RR	1-47110-982-0	04	1	9811-
1	SHOE; BRK,RR FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47110-962-0	04	1	9610-9810
2	LINING SET; RR BRK,STANDARD FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-88302-999-0	01	1	9606-9810
2	LINING SET; RR BRK,STANDARD	1-88302-999-0	01	1	9811-
2	LINING SET; RR BRK,STANDARD FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-88302-956-0	02	1	9610-9810
3	LINING SET; RR BRK,OVER SIZE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-88310-042-0	01	1	9606-9810
3	LINING SET; RR BRK,OVER SIZE	1-88310-042-0	01	1	9811-
3	LINING SET; RR BRK,OVER SIZE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-88310-001-0	02	1	9610-9810
4	BUSHING; BRK SHOE,RR WHEEL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47112-011-0	04	1	9610-9810
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47115-941-0	04	1	9606-9810
5	LINING; RR BRK SHOE,STANDARD	1-47115-941-0	04	1	9811-
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47115-867-0	08	1	9610-9810
6	LINING; RR BRK SHOE,OVER SIZE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47115-942-0	04	1	9606-9810
6	LINING; RR BRK SHOE,OVER SIZE	1-47115-942-0	04	1	9811-
6	LINING; RR BRK SHOE,OVER SIZE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47115-869-0	08	1	9610-9810
7	RIVET; LINING,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) D6X11.5	1-09732-019-0	80	1	9606-9810
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	9811-
7	RIVET; LINING,RR BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) L=18.5	1-09732-034-0	80	1	9610-9810
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) L=73.5	1-47119-017-1	04	1	9610-9810
9	SPRING; RETURN,BRK SHOE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-09583-167-0	08	1	9606-9810
9	SPRING; RETURN,BRK SHOE	1-09583-167-0	08	1	9811-
9	SPRING; RETURN,BRK SHOE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-09583-175-0	02	1	9610-9810
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) L=106.5	1-47131-038-0	04	1	9610-9810
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47116-002-0	04	1	9610-9810
25	COVER SET; RR BRK DRUM FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47151-458-1	02	1	9610-9810
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-09333-151-0	04	1	9610-9810
30	BOLT; DRUM COVER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) M10X16 W/LK WASHER	0-50041-016-0	12	1	9610-9810
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47137-112-3	02	1	9610-9810
51	CAM ASM; SHOE ADJ,RR WHEEL BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) (A)	1-47165-058-1	02	1	9610-9810
51	CAM ASM; SHOE ADJ,RR WHEEL BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) (B)	1-47165-059-1	02	1	9610-9810
53	BOLT; LOCK PLATE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) M10X16	0-20801-016-0	02	1	9610-9810
54	WASHER; LK,ANCHOR PIN,RR BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47133-011-0	02	1	9610-9810
55	PLATE; LK,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-068-0	04	1	9606-9810
55	PLATE; LK,RR WHEEL CYL	1-47139-068-0	04	1	9811-
55	PLATE; LK,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	9606-9810
55	PLATE; LK,RR WHEEL CYL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47133-005-0	02	1	9610-9810
56	WASHER; ADJ CAM,RR WHEEL BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47169-033-0	04	1	9610-9810
57	SPRING; ADJ CAM,RR WHEEL BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47169-046-0	04	1	9610-9810
58	BOOT; ADJ CAM,RR WHEEL BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47169-034-0	04	1	9610-9810
60	COVER; ADJ CAM BOOT,RR WHEEL BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47169-031-0	04	1	9610-9810
61	INDICATOR; WEAR,RR BRK SHOE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47169-032-1	04	1	9610-9810
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47169-030-0	04	1	9610-9810
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47600-559-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK (A) FORWARD	1-47600-559-1	01	1	9811-
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) FORWARD	1-47600-569-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47600-557-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK (A) FORWARD	1-47600-557-1	01	1	9811-
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) FORWARD	1-47600-568-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) (A) BACKWARD	1-47600-558-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47600-558-1	01	1	9811-
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) (A) BACKWARD	1-47600-556-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47600-556-1	01	1	9811-
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) (C)	1-47600-697-0	02	1	9610-9810
95	CUP SET; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-553-0	04	1	9606-9810
95	CUP SET; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-553-0	02	1	9606-9810
95	CUP SET; RR WHEEL CYL (A)	1-87830-553-0	04	1	9811-
95	CUP SET; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-87830-570-0	02	1	9606-9810
95	CUP SET; RR WHEEL CYL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) (C) ID=33.3	1-87830-525-0	02	1	9610-9810
96	SCREW; BLEEDER,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) L=44	1-47615-007-0	02	1	9606-9810
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	9811-
96	SCREW; BLEEDER,RR BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) L=66.5	1-47615-005-0	02	1	9610-9810
97	CAP; BLEEDER,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) OD=9.5	9-47619-005-0	02	1	9606-9810
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	9811-
97	CAP; BLEEDER,RR WHEEL CYL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) OD=12	1-47619-011-0	02	1	9610-9810
98	SPRING; RR WHEEL CYL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	9-09940-435-0	02	1	9610-9810
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-202-0	02	1	9606-9810
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-202-0	01	1	9606-9810
99	PISTON; RR WHEEL CYL	1-47624-202-0	02	1	9811-
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-208-0	01	1	9606-9810
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-201-0	02	1	9606-9810
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRCKWARD	1-47624-201-0	01	1	9606-9810
99	PISTON; RR WHEEL CYL	1-47624-201-0	02	1	9811-
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-207-0	01	1	9606-9810
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	9-47624-211-0	04	1	9610-9810
100	ROD; PUSH,RR WHEEL CYL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47621-009-0	04	1	9610-9810
111	COVER; WHEEL CYL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47159-080-0	02	1	9610-9810
112	BOLT; WHEEL CYL SETTING FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-92361-435-0	16	1	9606-9810
112	BOLT; WHEEL CYL SETTING FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-92361-435-0	12	1	9606-9810
112	BOLT; WHEEL CYL SETTING	9-92361-435-0	16	1	9811-
112	BOLT; WHEEL CYL SETTING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) M12X32 W/LK WASHER	0-50051-232-0	04	1	9610-9810

184 95 97 96 212 101 99 268 266 182 174 176 213 215 266 267 90 214 185 178 175 187 171 208 209 171 72 71 180 179 182 211 55 210 92 89 138 91 102 66 143 136 94 142 36 35 95 26 1 112 94 157 59 9 94 9 170 175 171 102 94 146 5 9 7 175 9 1 147 171 7 5 6 5 6 185 103 2 3 6 99 174 101 5 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47110-982-0	04	1	9606-9810
1	SHOE; BRK,RR	1-47110-982-0	04	1	9811-
1	SHOE; BRK,RR FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47110-962-0	04	1	9610-9810
2	LINING SET; RR BRK,STANDARD FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-88302-999-0	01	1	9606-9810
2	LINING SET; RR BRK,STANDARD	1-88302-999-0	01	1	9811-
2	LINING SET; RR BRK,STANDARD FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-88302-956-0	02	1	9610-9810
3	LINING SET; RR BRK,OVER SIZE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-88310-042-0	01	1	9606-9810
3	LINING SET; RR BRK,OVER SIZE	1-88310-042-0	01	1	9811-
3	LINING SET; RR BRK,OVER SIZE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-88310-001-0	02	1	9610-9810
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47115-941-0	04	1	9606-9810
5	LINING; RR BRK SHOE,STANDARD	1-47115-941-0	04	1	9811-
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47115-867-0	08	1	9610-9810
6	LINING; RR BRK SHOE,OVER SIZE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47115-942-0	04	1	9606-9810
6	LINING; RR BRK SHOE,OVER SIZE	1-47115-942-0	04	1	9811-
6	LINING; RR BRK SHOE,OVER SIZE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47115-869-0	08	1	9610-9810
7	RIVET; LINING,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) D6X11.5	1-09732-019-0	80	1	9606-9810
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	9811-
7	RIVET; LINING,RR BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) L=18.5	1-09732-034-0	80	1	9610-9810
9	SPRING; RETURN,BRK SHOE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-09583-167-0	08	1	9606-9810
9	SPRING; RETURN,BRK SHOE	1-09583-167-0	08	1	9811-
9	SPRING; RETURN,BRK SHOE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-09583-175-0	02	1	9610-9810
26	PLATE; BACK,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-443-0	01	1	9606-9810
26	PLATE; BACK,RR BRK	1-47150-443-0	01	1	9811-
26	PLATE; BACK,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-447-0	01	1	9606-9810
26	PLATE; BACK,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-442-0	01	1	9606-9810
26	PLATE; BACK,RR BRK	1-47150-442-0	01	1	9811-
26	PLATE; BACK,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-446-0	01	1	9606-9810
35	GROMMET; CHECK HOLE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-09333-066-1	04	1	9606-9810
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	9811-
36	PIPE; OIL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47416-356-0	02	1	9606-9810
36	PIPE; OIL,RR BRK	1-47416-356-0	02	1	9811-
36	PIPE; OIL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47415-139-0	01	1	9606-9810
36	PIPE; OIL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47415-138-0	01	1	9606-9810
55	PLATE; LK,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-068-0	04	1	9606-9810
55	PLATE; LK,RR WHEEL CYL	1-47139-068-0	04	1	9811-
55	PLATE; LK,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	9606-9810
55	PLATE; LK,RR WHEEL CYL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47133-005-0	02	1	9610-9810
59	WASHER; LK,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-614-0	16	1	9606-9810
59	WASHER; LK,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-614-0	12	1	9606-9810
59	WASHER; LK,RR WHEEL CYL ID=14.2	9-09150-614-0	16	1	9811-0603
59	WASHER; LK,RR WHEEL CYL ID=14.2	0-91510-614-0	16	1	0604-
66	PIN; JAW JOINT FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-08234-038-0	02	1	9606-9810
71	WASHER; PL,JAW JOINT FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.5 OD=18	9-09160-510-0	02	1	9606-9810
72	PIN; SPLIT FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=2.8 L=18	9-08113-018-0	02	1	9606-9810
89	NUT; CHAMBER FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99110-512-0	04	1	9606-9810
90	BRACKET; CHAMBER FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48258-157-0	01	1	9606-9810
90	BRACKET; CHAMBER FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48258-121-4	01	1	9606-9810
91	BOLT; CHAMBER FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X30	0-20801-230-0	04	1	9606-9810
92	WASHER; LK,CHAMBER FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	04	1	9606-9810
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47600-559-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK (A) FORWARD	1-47600-559-1	01	1	9811-
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) FORWARD	1-47600-569-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47600-557-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK (A) FORWARD	1-47600-557-1	01	1	9811-
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) FORWARD	1-47600-568-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) (A) BACKWARD	1-47600-558-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47600-558-1	01	1	9811-
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) (A) BACKWARD	1-47600-556-1	01	1	9606-9810
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47600-556-1	01	1	9811-
94	CYLINDER; WHEEL,RR BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) (C)	1-47600-697-0	02	1	9610-9810
95	CUP SET; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-553-0	04	1	9606-9810
95	CUP SET; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-553-0	02	1	9606-9810
95	CUP SET; RR WHEEL CYL (A)	1-87830-553-0	04	1	9811-
95	CUP SET; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-87830-570-0	02	1	9606-9810
95	CUP SET; RR WHEEL CYL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) (C) ID=33.3	1-87830-525-0	02	1	9610-9810
96	SCREW; BLEEDER,RR BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) L=44	1-47615-007-0	02	1	9606-9810
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	9811-
96	SCREW; BLEEDER,RR BRK FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) L=66.5	1-47615-005-0	02	1	9610-9810
97	CAP; BLEEDER,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) OD=9.5	9-47619-005-0	02	1	9606-9810
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	9811-
97	CAP; BLEEDER,RR WHEEL CYL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) OD=12	1-47619-011-0	02	1	9610-9810
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-202-0	02	1	9606-9810
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-202-0	01	1	9606-9810
99	PISTON; RR WHEEL CYL	1-47624-202-0	02	1	9811-
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-208-0	01	1	9606-9810
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-201-0	02	1	9606-9810
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRCKWARD	1-47624-201-0	01	1	9606-9810
99	PISTON; RR WHEEL CYL	1-47624-201-0	02	1	9811-
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-207-0	01	1	9606-9810
99	PISTON; RR WHEEL CYL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	9-47624-211-0	04	1	9610-9810
101	SCREW; ADJ,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47622-029-0	02	1	9606-9810
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	9811-
101	SCREW; ADJ,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47622-028-0	02	1	9606-9810
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	9811-
102	PISTON; REAR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-203-0	04	1	9606-9810
102	PISTON; REAR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-203-0	02	1	9606-9810
102	PISTON; REAR WHEEL CYL	1-47624-203-0	04	1	9811-
102	PISTON; REAR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-206-0	02	1	9606-9810
103	SPRING; LK,RR WHEEL CYL,ADJ FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-057-0	02	1	9606-9810
112	BOLT; WHEEL CYL SETTING FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-92361-435-0	16	1	9606-9810
112	BOLT; WHEEL CYL SETTING FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-92361-435-0	12	1	9606-9810
112	BOLT; WHEEL CYL SETTING	9-92361-435-0	16	1	9811-
112	BOLT; WHEEL CYL SETTING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) M12X32 W/LK WASHER	0-50051-232-0	04	1	9610-9810
136	GROMMET FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-09333-065-2	04	1	9606-9810
136	GROMMET	1-09333-065-2	04	1	9811-
138	SCREW; LOCK PLATE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	9-03910-510-0	04	1	9606-9810
142	CLAMP; OIL PIPE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-09700-454-0	02	1	9606-9810
142	CLAMP; OIL PIPE	1-09700-454-0	02	1	9811-
143	BOLT; CLAMP,OIL PIPE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) M6X10	9-01900-610-0	02	1	9606-9810
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	9811-
146	NUT; HOLDER FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-009-0	04	1	9606-9810
147	PIN; HOLDER FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	9-08112-020-0	02	1	9606-9810
147	PIN; HOLDER FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	9-08112-020-0	04	1	9606-9810
147	PIN; HOLDER OD=1.8 L=20	9-08112-020-0	02	1	9811-0606
147	PIN; HOLDER OD=1.8 L=20	0-81122-020-0	02	1	0607-
157	BOLT; RR BRK SET FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X56	1-09060-004-0	12	1	9606-9810
157	BOLT; RR BRK SET M14X56	1-09060-004-0	12	1	9811-
157	BOLT; RR BRK SET FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	9-92061-450-0	04	1	9606-9810
170	PIECE; ANCHOR,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-019-0	04	1	9606-9810
170	PIECE; ANCHOR,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-019-0	02	1	9606-9810
170	PIECE; ANCHOR,RR WHEEL CYL	1-47619-019-0	04	1	9811-
171	BOLT; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X8	0-20800-608-0	04	1	9606-9810
171	BOLT; RR WHEEL CYL M6X8	0-20800-608-0	04	1	9811-
171	BOLT; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	08	1	9606-9810
171	BOLT; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	04	1	9606-9810
171	BOLT; RR WHEEL CYL M8X18 W/LK WASHER	0-50040-818-0	08	1	9811-0812
171	BOLT; RR WHEEL CYL M8X18 W/LK WASHER	0-50540-818-0	08	1	0901-
171	BOLT; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X10	9-01900-610-0	12	1	9606-9810
171	BOLT; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X10	9-01900-610-0	20	1	9606-9810
171	BOLT; RR WHEEL CYL M6X10	9-01900-610-0	12	1	9811-
174	COVER; CYL,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47619-016-0	04	1	9606-9810
174	COVER; CYL,RR WHEEL CYL	1-47619-016-0	04	1	9811-
175	HANGER; RR WHEEL BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47118-084-0	08	1	9606-9810
175	HANGER; RR WHEEL BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47118-084-0	04	1	9606-9810
175	HANGER; RR WHEEL BRK (A)	1-47118-084-0	08	1	9811-
175	HANGER; RR WHEEL BRK FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-022-0	02	1	9606-9810
176	STOPPER; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-008-0	04	1	9606-9810
176	STOPPER; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-008-0	02	1	9606-9810
176	STOPPER; RR WHEEL CYL	1-47169-008-0	04	1	9811-
178	WEDGE; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47640-002-0	02	1	9606-9810
179	COVER; WEDGE,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-009-0	02	1	9606-9810
180	GASKET; COVER,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-017-0	02	1	9606-9810
182	TAPPET; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-069-0	04	1	9606-9810
184	CONNECTOR; RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09660-112-0	04	1	9606-9810
185	PLATE; LK,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	02	1	9606-9810
185	PLATE; LK,RR WHEEL CYL FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	04	1	9606-9810
185	PLATE; LK,RR WHEEL CYL	1-47169-009-0	02	1	9811-
187	SCREW; HANGER FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-03065-616-0	04	1	9606-9810
208	WASHER; BRKT FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=106	1-42129-028-3	04	1	9606-9810
209	SHIM; BRKT FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=106	1-42129-027-4	12	1	9606-9810
210	BOLT; BRKT FIX FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X25	0-20801-225-0	08	1	9606-9810
210	BOLT; BRKT FIX FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X38	0-20801-238-0	08	1	9606-9810
211	WASHER; LK,BRKT FIX FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	16	1	9606-9810
212	STAY FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48258-078-0	01	1	9606-9810
213	BOLT; STAY FIX FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X25	0-20801-225-0	02	1	9606-9810
214	NUT; STAY FIX FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99111-512-0	02	1	9606-9810
215	WASHER; LK,STAY FIX FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	02	1	9606-9810
266	ROLLER; WEDGE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47643-004-0	04	1	9606-9810
267	CAGE; WEDGE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-007-0	02	1	9606-9810
268	RETAINER; WEDGE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-008-0	02	1	9606-9610
268	RETAINER; WEDGE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-016-0	02	1	9611-9810

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
