0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#59565) — 83 parça

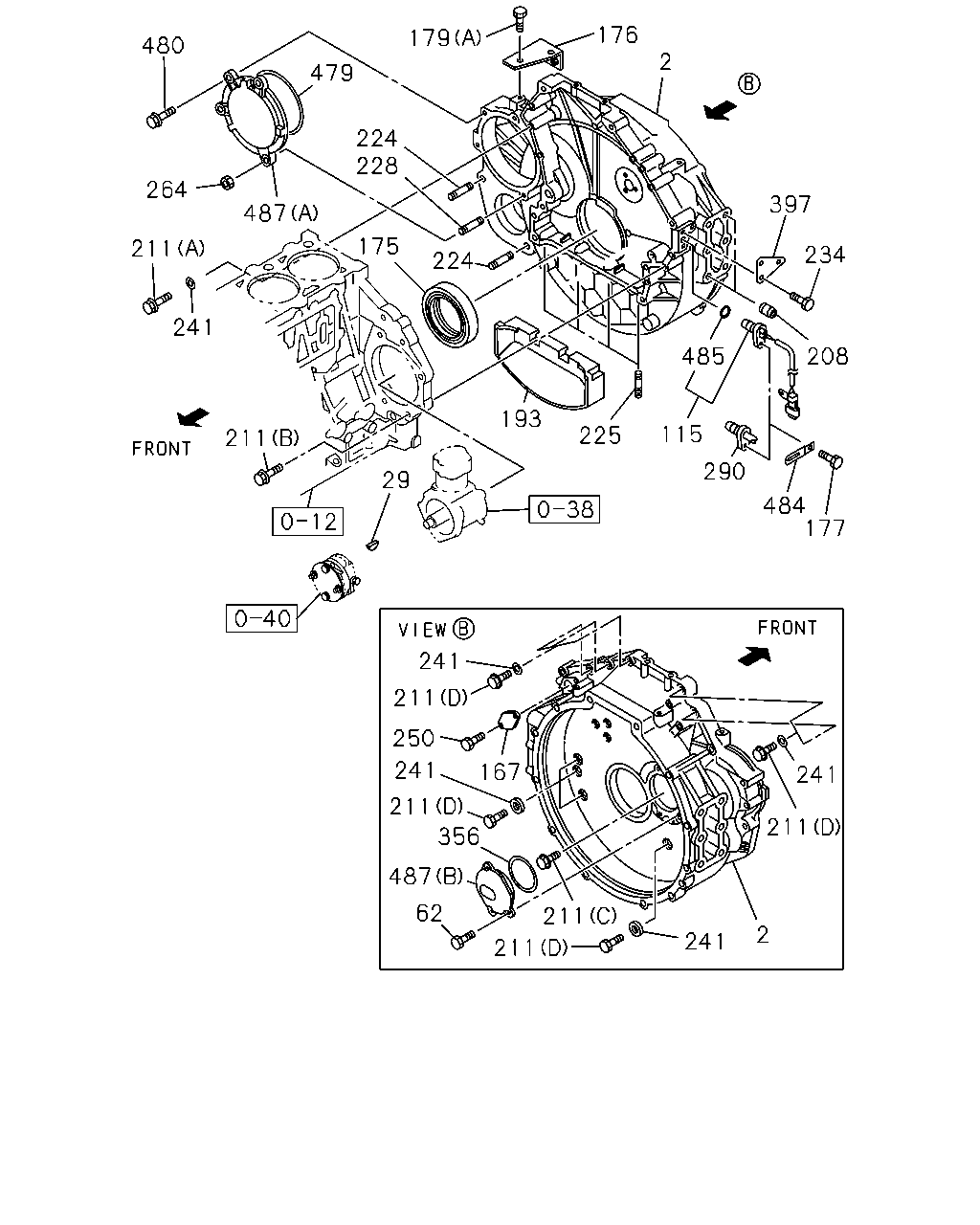

çizim 172854
176 179 480 2 479 224 228 264 397 487 175 211 234 224 241 485 208 193 115 225 211 290 29 484 177 241 211 250 241 167 241 211 211 356 487 211 62 2 241 211
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; FLYWHEEL 8-94395-972-9 01 1 9510-1112
2 HOUSING; FLYWHEEL 8-98202-582-1 01 1 1201-
29 KEY; COUPLING 9-08055-416-0 01 1 9510-
62 BOLT; COVER
M8X14 FLANGE 		0-28080-814-0 03 1 9510-
115 SENSOR; REVOLUTION,ENG SPD
TACHOMETER<UD7> 		1-81510-561-0 01 1 9510-
167 COVER; OIL 1-11219-163-0 01 1 9510-
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-94370-637-0 01 1 9510-0112
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0201-
176 BRACKET; HARNESS 1-82699-828-1 01 1 9510-
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 9510-0512
177 BOLT; SENSOR
M6X16 FLANGE 		0-28050-616-0 01 1 0601-
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9510-0512
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9510-0512
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
193 SPACER; STAY TO OIL,PAN 8-94395-674-0 01 1 0211-0504
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9510-
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 9510-9607
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 9510-0512
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0601-
211 BOLT; HSG
(A) M14X40 FLANGE 		0-28791-440-0 01 1 9510-0512
211 BOLT; HSG
(A) M14X40 FLANGE 		0-28761-440-0 01 1 0601-
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 9510-
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 9510-0512
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 11 1 0601-
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 9704-0512
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 0601-
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9510-0604
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0605-
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9510-
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9510-0604
228 STUD; AIR CMPR
M12X60 L=78 		0-44011-260-0 01 1 0605-
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 9702-0604
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 0605-
234 BOLT; BRKT
TACHOMETER<UD7> M8X12 FLANGE 		0-28080-812-0 02 1 9510-0512
234 BOLT; BRKT
TACHOMETER<UD7> M8X12 FLANGE 		0-28050-812-0 02 1 0601-
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 9510-
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 9510-
264 NUT; COVER
M12 FLANGE 		0-91150-212-0 01 1 9510-0602
264 NUT; COVER
M12 FLANGE 		0-91180-212-0 01 1 0603-
290 PLUG; SENSOR HOLE
EXC. TACHOMETER<UD7> 		1-11349-157-0 01 1 9510-0205
290 PLUG; SENSOR HOLE
EXC. TACHOMETER<UD7> 		8-97101-974-0 01 1 0206-
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110 		8-94394-186-0 01 1 9510-
397 BRACKET; CONNECTOR
TACHOMETER<UD7> 		8-94394-411-1 01 1 9510-
479 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=162 		1-09623-570-0 01 1 9510-
480 BOLT; COVER
M12X70 FLANGE 		0-28181-270-0 03 1 9510-0512
480 BOLT; COVER
M12X70 FLANGE 		0-28151-270-0 03 1 0601-
484 CLIP; BAND
TACHOMETER<UD7> L=250 		5-09707-030-1 01 1 1201-1205
484 CLIP; BAND
TACHOMETER<UD7> L=250 		8-98216-430-0 01 1 1206-
485 GASKET; SENSOR
TACHOMETER<UD7> 		9-09565-212-0 01 1 9510-
487 COVER; HOLE
(A) 		8-94394-381-1 01 1 9510-
487 COVER; HOLE
(B) 		8-94394-513-1 01 1 9510-0805
487 COVER; HOLE
(B) 		8-98023-824-1 01 1 0806-

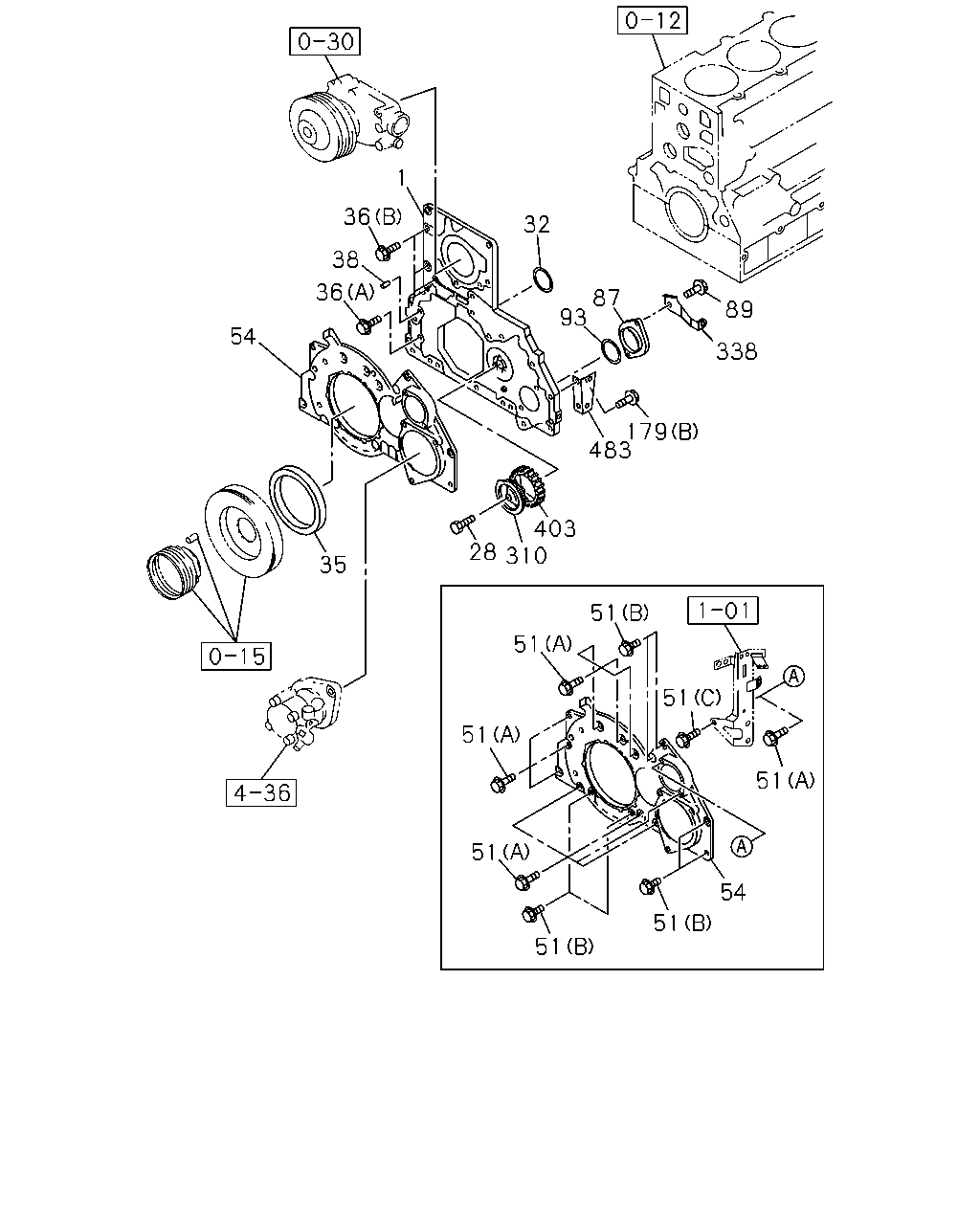

çizim 172856
36 38 36 54 35 28 310 51 51 51 51 51 51 54 51 51 403 483 179 338 89 93 87 32 1
BalonParca AdiParca NoAdetTipApplied Date
1 CASE; TIMING GEAR 8-94393-110-2 01 1 9510-9802
1 CASE; TIMING GEAR 8-94396-434-6 01 1 9803-
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 9510-
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		8-94397-364-0 01 1 9510-9805
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 9806-
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 9510-0112
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-3 01 1 0201-
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 9510-0801
36 BOLT; GEAR CASE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0802-
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 9510-0801
36 BOLT; GEAR CASE
(B) M8X35 FLANGE 		0-28050-835-0 04 1 0802-
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 9510-
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 10 1 9510-0512
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28050-840-0 10 1 0601-
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28080-845-0 01 1 9510-0512
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28050-845-0 01 1 0601-
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 9510-0512
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0601-
54 COVER; GEAR CASE 8-94393-304-1 01 1 9510-
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 9510-
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 9510-
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 9510-
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9510-0512
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9510-0512
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 9510-
338 BRACKET; CLIP,HARNESS 1-82699-889-0 01 1 9510-
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 9510-
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 9510-
