◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#59560) — 65 parça

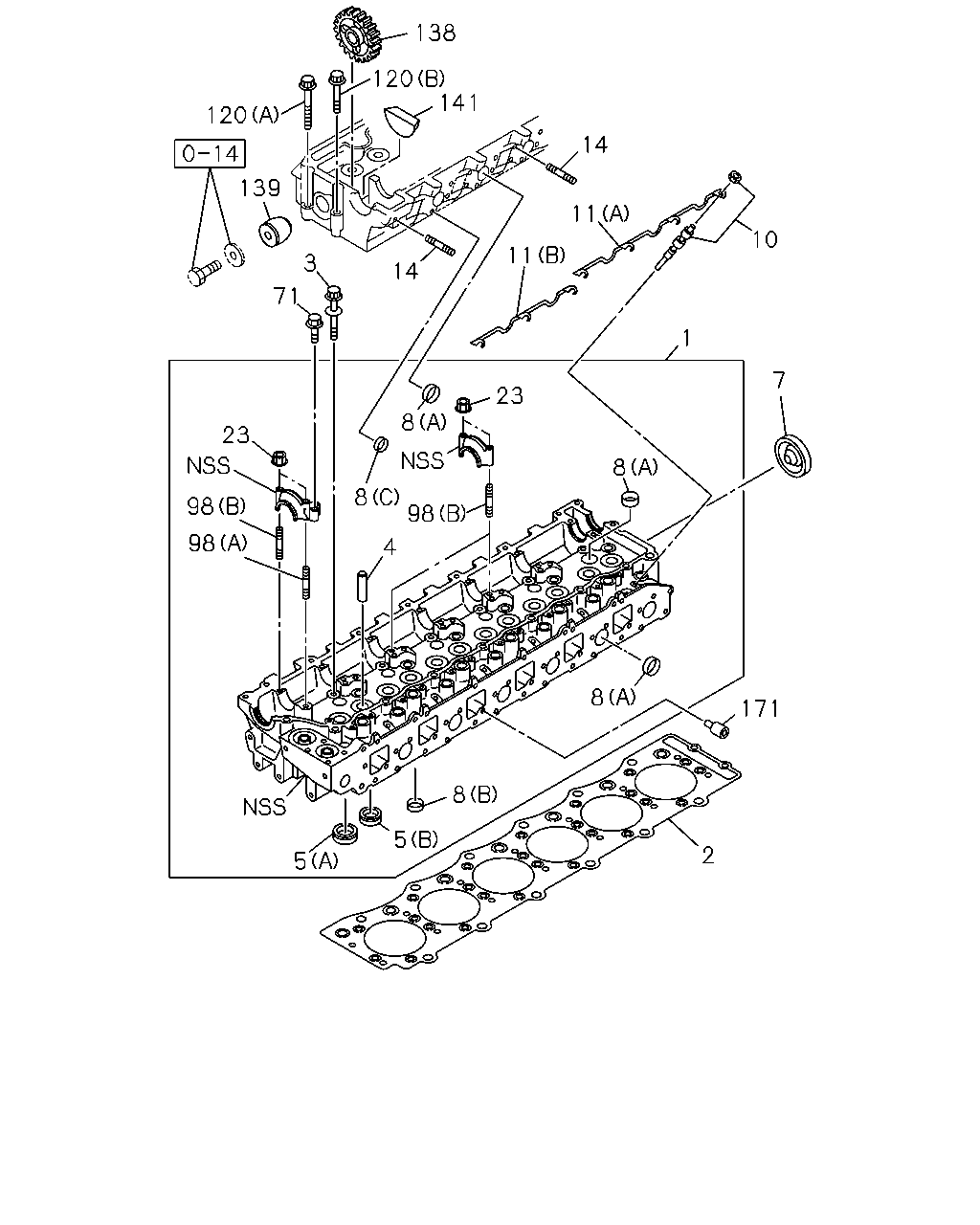

çizim 172853
138 120 120 141 14 139 3 14 11 11 10 7 1 8 23 8 71 23 98 98 8 98 4 8 8 5 5 2 171
BalonParca AdiParca NoAdetTipApplied Date
1 HEAD ASM; CYL 8-94393-375-2 01 1 9510-9608
1 HEAD ASM; CYL 8-94390-082-7 01 1 9609-1012
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101-
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-3 01 1 9510-
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9510-0901
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-98260-005-0 26 1 1408-
4 GUIDE; VLV 8-94396-598-0 12 1 9510-
5 SEAT; VLV INSERT
(B) OD=52 		8-94394-127-0 06 1 9510-
5 SEAT; VLV INSERT
(A) OD=43 		8-94396-172-0 06 1 9510-
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9510-0303
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304-
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 17 1 0712-
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9806-0210
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 9510-9712
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 18 1 9801-9805
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 9806-0210
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 18 1 0211-0711
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-2 01 1 0712-
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9510-9712
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9510-
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9510-
10 PLUG; GLOW 9-82513-928-9 06 1 9510-9809
10 PLUG; GLOW 1-82513-043-2 06 1 9810-
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9510-0206
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207-
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 9510-
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 9510-
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9510-9608
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9609-0602
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603-
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9510-0512
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601-
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9510-
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 12 1 9510-9608
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9609-
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9510-
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9510-
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 9510-
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9510-9711
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 9712-
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9510-1005
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006-
171 SEAT; VLV 8-94395-571-1 06 1 9510-

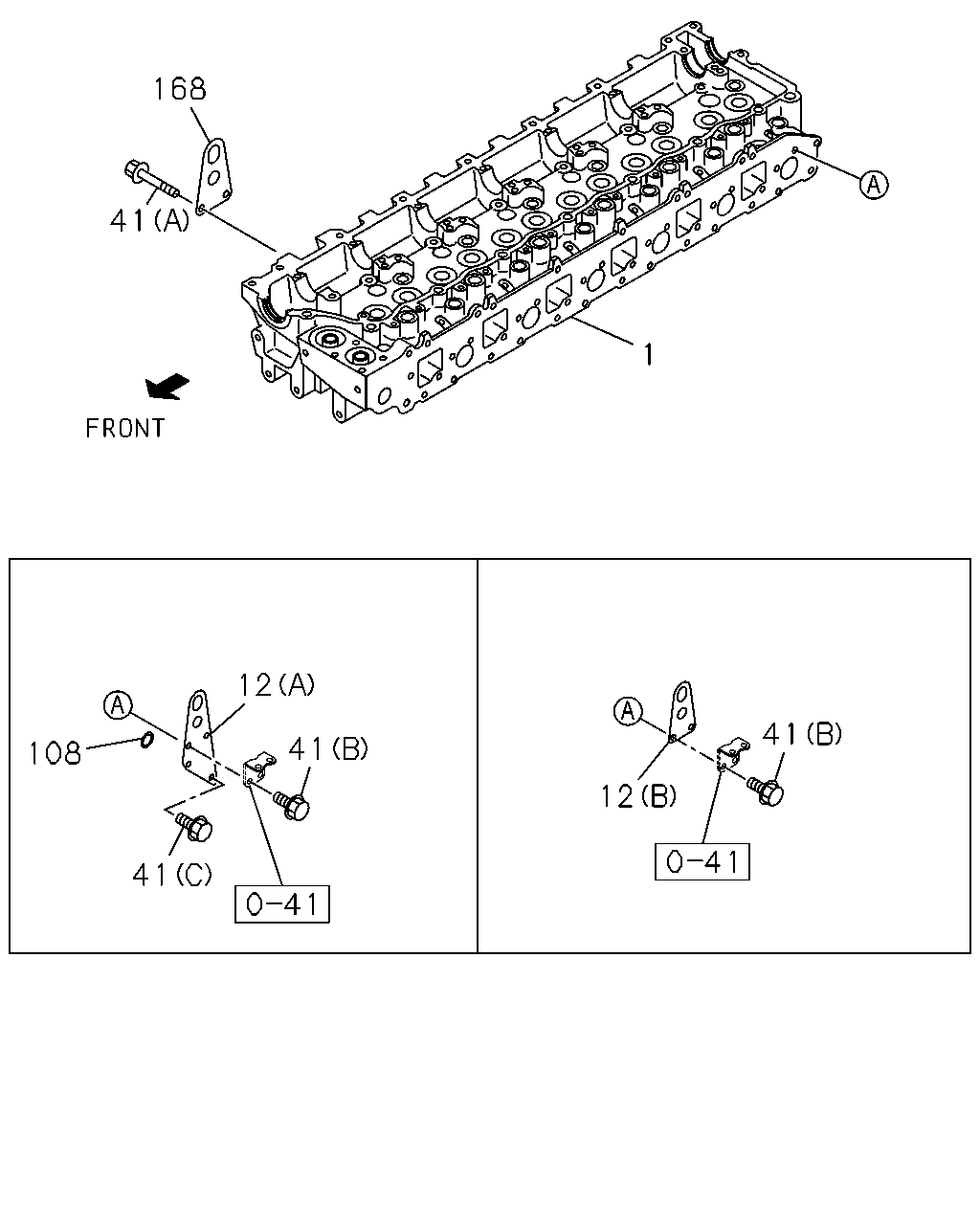

çizim 172859
168 41 1 12 41 41 108 12 41
BalonParca AdiParca NoAdetTipApplied Date
1 HEAD ASM; CYL 8-94393-375-2 01 1 9510-9608
1 HEAD ASM; CYL 8-94390-082-7 01 1 9609-1012
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101-
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-405-0 01 1 0712-
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-405-0 01 1 9806-0210
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-405-0 01 1 9510-9712
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-404-2 01 1 9510-9712
12 HANGER; ENG,RR
(B) 		8-94399-404-2 01 1 9801-9802
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-404-2 01 1 9803-0210
12 HANGER; ENG,RR
(B) 		8-94399-404-3 01 1 0211-0612
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-404-3 01 1 0701-
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 01 1 0712-
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 01 1 9806-0210
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 01 1 9510-9712
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9510-0512
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0601-
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9510-
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 0712-
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 9806-0210
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 9510-9712
168 HANGER; ENG,FRT 8-94399-403-1 01 1 9510-
