Sayfa 3-01 - Isuzu EPC

3-01 — FRONT WHEEL BRAKE (#5956) — 235 parça

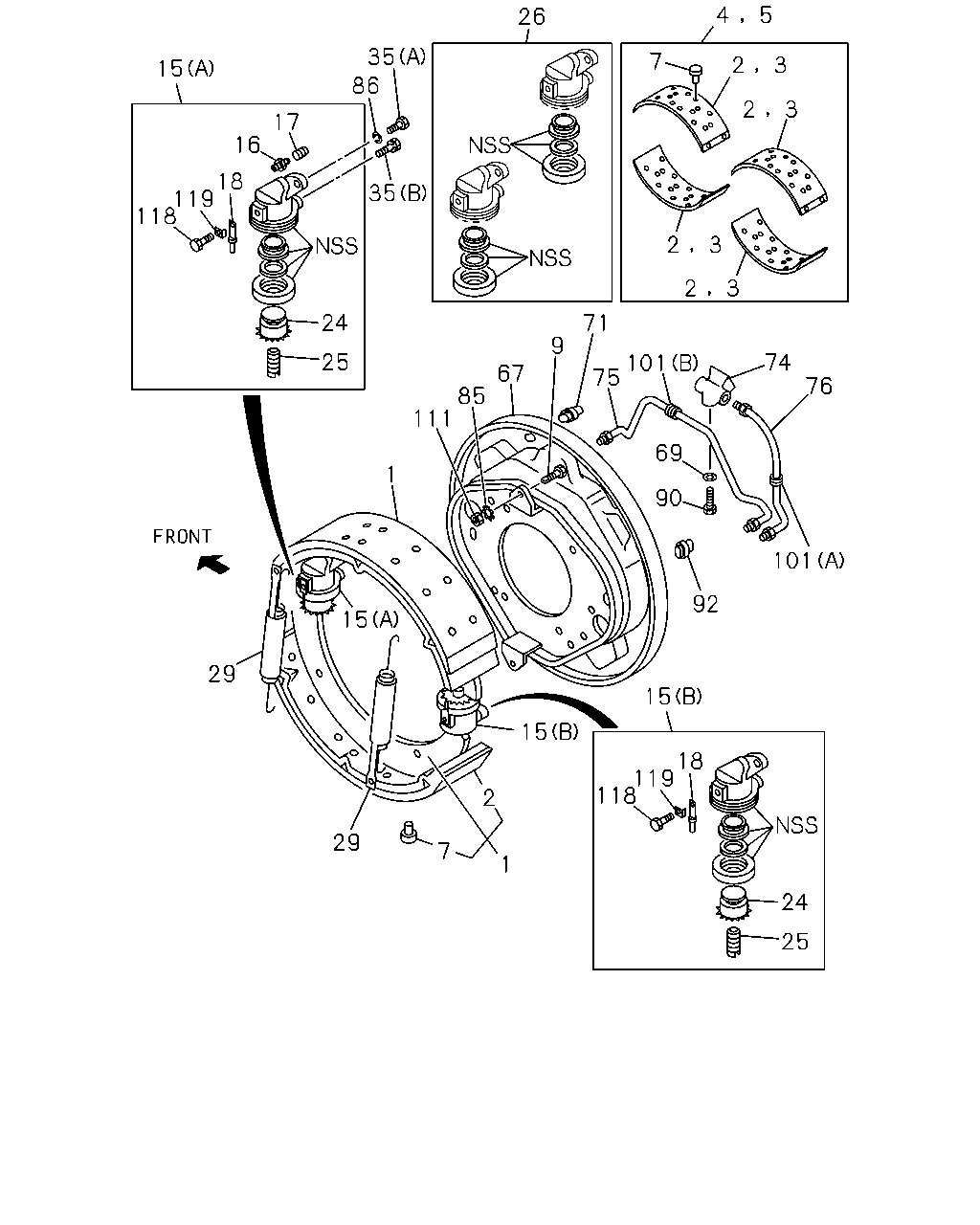

5 4 26 35 7 2 3 15 86 2 3 17 16 18 119 118 35 2 3 2 3 24 71 9 25 74 101 75 67 76 85 111 69 1 90 101 92 15 29 15 15 18 119 118 2 29 7 1 24 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT	1-47110-981-0	04	1	9606-9609
1	SHOE; BRK,FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47110-981-0	04	1	9610-9810
1	SHOE; BRK,FRT	1-47110-981-0	04	1	9811-
1	SHOE; BRK,FRT FRONT AXLE F049<FS4>	1-47110-962-0	04	1	9610-9810
2	LINING; FRT BRK SHOE,STANDARD	1-47125-008-0	04	1	9606-9609
2	LINING; FRT BRK SHOE,STANDARD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47125-008-0	04	1	9610-9810
2	LINING; FRT BRK SHOE,STANDARD	1-47125-008-0	04	1	9811-
2	LINING; FRT BRK SHOE,STANDARD FRONT AXLE F049<FS4>	1-47115-867-0	08	1	9610-9810
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-009-0	04	1	9606-9609
3	LINING; FRT BRK SHOE,OVER SIZE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47125-009-0	04	1	9610-9810
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-009-0	04	1	9811-
3	LINING; FRT BRK SHOE,OVER SIZE FRONT AXLE F049<FS4>	1-47115-869-0	08	1	9610-9810
4	LINING SET; FRT BRK,STANDARD	1-88302-998-0	01	1	9606-9609
4	LINING SET; FRT BRK,STANDARD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-88302-998-0	01	1	9610-9810
4	LINING SET; FRT BRK,STANDARD	1-88302-998-0	01	1	9811-
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F049<FS4>	1-88302-956-0	02	1	9610-9810
5	LINING SET; FRT BRK,OVER SIZE	1-88310-003-0	01	1	9606-9609
5	LINING SET; FRT BRK,OVER SIZE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-88310-003-0	01	1	9610-9810
5	LINING SET; FRT BRK,OVER SIZE	1-88310-003-0	01	1	9811-
5	LINING SET; FRT BRK,OVER SIZE FRONT AXLE F049<FS4>	1-88310-001-0	02	1	9610-9810
7	RIVET; LINING,FRT BRK D6X11.5	1-09732-019-0	64	1	9606-9609
7	RIVET; LINING,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> D6X11.5	1-09732-019-0	64	1	9610-9810
7	RIVET; LINING,FRT BRK D6X11.5	1-09732-019-0	64	1	9811-
7	RIVET; LINING,FRT BRK FRONT AXLE F049<FS4> L=18.5	1-09732-034-0	80	1	9610-9810
9	PIN; SHOE HOLDER	1-47162-012-0	04	1	9606-9609
9	PIN; SHOE HOLDER EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47162-012-0	04	1	9610-9810
9	PIN; SHOE HOLDER	1-47162-012-0	04	1	9811-0303
9	PIN; SHOE HOLDER	1-47162-036-0	04	1	0304-
15	CYLINDER; WHEEL,FRT BRK (A) FORWARD	1-47600-555-1	01	1	9606-9609
15	CYLINDER; WHEEL,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) FORWARD	1-47600-555-1	01	1	9610-9810
15	CYLINDER; WHEEL,FRT BRK (A) FORWARD	1-47600-555-1	01	1	9811-
15	CYLINDER; WHEEL,FRT BRK (B) BRCKWARD	1-47600-735-0	01	1	9606-9609
15	CYLINDER; WHEEL,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) BRCKWARD	1-47600-735-0	01	1	9610-9810
15	CYLINDER; WHEEL,FRT BRK (B) BRCKWARD	1-47600-735-0	01	1	9811-
15	CYLINDER; WHEEL,FRT BRK (A) FORWARD	1-47600-554-1	01	1	9606-9609
15	CYLINDER; WHEEL,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) FORWARD	1-47600-554-1	01	1	9610-9810
15	CYLINDER; WHEEL,FRT BRK (A) FORWARD	1-47600-554-1	01	1	9811-
15	CYLINDER; WHEEL,FRT BRK (B) BRCKWARD	1-47600-734-0	01	1	9606-9609
15	CYLINDER; WHEEL,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) BRCKWARD	1-47600-734-0	01	1	9610-9810
15	CYLINDER; WHEEL,FRT BRK (B) BRCKWARD	1-47600-734-0	01	1	9811-
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049<FS4> (C)	1-47600-675-0	01	1	9610-9810
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049<FS4> (C)	1-47600-674-0	01	1	9610-9810
16	SCREW; BLEEDER,FRT BRK L=44	1-47615-007-0	02	1	9606-9609
16	SCREW; BLEEDER,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=44	1-47615-007-0	02	1	9610-9810
16	SCREW; BLEEDER,FRT BRK L=44	1-47615-007-0	02	1	9811-
16	SCREW; BLEEDER,FRT BRK FRONT AXLE F049<FS4> L=66.5	1-47615-005-0	02	1	9610-9810
17	CAP; BLEEDER,FRT WHEEL CYL OD=9.5	9-47619-005-0	02	1	9606-9609
17	CAP; BLEEDER,FRT WHEEL CYL EXC. HEAVY DUTY PACKAGE TRUCK<RD2> OD=9.5	9-47619-005-0	02	1	9610-9810
17	CAP; BLEEDER,FRT WHEEL CYL OD=9.5	9-47619-005-0	02	1	9811-
17	CAP; BLEEDER,FRT WHEEL CYL FRONT AXLE F049<FS4> OD=12	1-47619-011-0	02	1	9610-9810
18	STOPPER; ADJ SCREW	1-47169-008-0	04	1	9606-9609
18	STOPPER; ADJ SCREW EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47169-008-0	04	1	9610-9810
18	STOPPER; ADJ SCREW	1-47169-008-0	04	1	9811-
24	PISTON; FRT WHEEL CYL	1-47624-200-0	02	1	9606-9609
24	PISTON; FRT WHEEL CYL EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47624-200-0	02	1	9610-9810
24	PISTON; FRT WHEEL CYL	1-47624-200-0	02	1	9811-
24	PISTON; FRT WHEEL CYL	1-47624-199-0	02	1	9606-9609
24	PISTON; FRT WHEEL CYL EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47624-199-0	02	1	9610-9810
24	PISTON; FRT WHEEL CYL	1-47624-199-0	02	1	9811-
24	PISTON; FRT WHEEL CYL FRONT AXLE F049<FS4>	9-47624-210-0	04	1	9610-9810
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-015-0	02	1	9606-9609
25	SCREW; ADJ,FRT WHEEL CYL EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47622-015-0	02	1	9610-9810
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-015-0	02	1	9811-
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-014-0	02	1	9606-9609
25	SCREW; ADJ,FRT WHEEL CYL EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47622-014-0	02	1	9610-9810
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-014-0	02	1	9811-
26	CUP SET; FRT WHEEL CYL	1-87830-577-0	02	1	0204-
26	CUP SET; FRT WHEEL CYL	1-87830-577-0	02	1	9606-9609
26	CUP SET; FRT WHEEL CYL EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87830-577-0	02	1	9610-9810
26	CUP SET; FRT WHEEL CYL	1-87830-577-0	02	1	9811-0203
26	CUP SET; FRT WHEEL CYL FRONT AXLE F049<FS4> ID=47.5	1-87830-521-0	02	1	9610-9810
29	SPRING; RETURN,FRT BRK SHOE	1-09583-126-1	04	1	9606-9609
29	SPRING; RETURN,FRT BRK SHOE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-09583-126-1	04	1	9610-9810
29	SPRING; RETURN,FRT BRK SHOE	1-09583-126-1	04	1	9811-
29	SPRING; RETURN,FRT BRK SHOE FRONT AXLE F049<FS4>	1-09583-185-2	02	1	9610-9810
35	BOLT; FRT WHEEL CYL (A) M16X30	0-23801-630-0	04	1	9606-9609
35	BOLT; FRT WHEEL CYL EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M16X30	0-23801-630-0	04	1	9610-9810
35	BOLT; FRT WHEEL CYL (A) M16X30	0-23801-630-0	04	1	9811-
35	BOLT; FRT WHEEL CYL (B) M10X22 W/LK WASHER	0-50051-022-0	08	1	9606-9609
35	BOLT; FRT WHEEL CYL EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) M10X22 W/LK WASHER	0-50051-022-0	08	1	9610-9810
35	BOLT; FRT WHEEL CYL (B) M10X22 W/LK WASHER	0-50051-022-0	08	1	9811-0812
35	BOLT; FRT WHEEL CYL (B) M10X22 W/LK WASHER	0-50551-022-0	08	1	0901-
35	BOLT; FRT WHEEL CYL FRONT AXLE F049<FS4> (C) M12X35 W/LK WASHER	0-50051-235-0	04	1	9610-9810
67	PLATE; BACK,FRT BRK	1-47150-501-0	01	1	9606-9609
67	PLATE; BACK,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47150-501-0	01	1	9610-9810
67	PLATE; BACK,FRT BRK	1-47150-501-0	01	1	9811-
67	PLATE; BACK,FRT BRK	1-47150-500-0	01	1	9606-9609
67	PLATE; BACK,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47150-500-0	01	1	9610-9810
67	PLATE; BACK,FRT BRK	1-47150-500-0	01	1	9811-
69	WASHER; LK,CONNECTOR ID=8.2	9-09150-608-0	02	1	9606-9609
69	WASHER; LK,CONNECTOR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=8.2	9-09150-608-0	02	1	9610-9810
69	WASHER; LK,CONNECTOR ID=8.2	9-09150-608-0	02	1	9811-0603
69	WASHER; LK,CONNECTOR ID=8.2	0-91510-608-0	02	1	0604-
71	GROMMET; CHECK HOLE	1-09333-058-1	04	1	9606-9609
71	GROMMET; CHECK HOLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-09333-058-1	04	1	9610-9810
71	GROMMET; CHECK HOLE	1-09333-058-1	04	1	9811-
74	CONNECTOR; FRT BRK	1-47630-030-0	01	1	9606-9609
74	CONNECTOR; FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47630-030-0	01	1	9610-9810
74	CONNECTOR; FRT BRK	1-47630-030-0	01	1	9811-
74	CONNECTOR; FRT BRK	1-47630-029-0	01	1	9606-9609
74	CONNECTOR; FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47630-029-0	01	1	9610-9810
74	CONNECTOR; FRT BRK	1-47630-029-0	01	1	9811-
75	PIPE; OIL,FWD,FRT BRK	1-47423-927-0	02	1	9606-9609
75	PIPE; OIL,FWD,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47423-927-0	02	1	9610-9810
75	PIPE; OIL,FWD,FRT BRK	1-47423-927-0	02	1	9811-
76	PIPE; OIL,BACKWARD,FRT BRK	1-47424-940-0	01	1	9606-9609
76	PIPE; OIL,BACKWARD,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47424-940-0	01	1	9610-9810
76	PIPE; OIL,BACKWARD,FRT BRK	1-47424-940-0	01	1	9811-
76	PIPE; OIL,BACKWARD,FRT BRK	1-47424-939-0	01	1	9606-9609
76	PIPE; OIL,BACKWARD,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47424-939-0	01	1	9610-9810
76	PIPE; OIL,BACKWARD,FRT BRK	1-47424-939-0	01	1	9811-
85	PLATE; LK,CONNECTOR	1-09533-006-0	04	1	9606-9609
85	PLATE; LK,CONNECTOR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-09533-006-0	04	1	9610-9810
85	PLATE; LK,CONNECTOR	1-09533-006-0	04	1	9811-
86	WASHER; LK,FRT WHEEL CYL ID=16.2	9-09150-616-0	04	1	9606-9609
86	WASHER; LK,FRT WHEEL CYL EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=16.2	9-09150-616-0	04	1	9610-9810
86	WASHER; LK,FRT WHEEL CYL ID=16.2	9-09150-616-0	04	1	9811-0603
86	WASHER; LK,FRT WHEEL CYL ID=16.2	0-91510-616-0	04	1	0604-
90	BOLT; CONNECTOR M8X16	0-20800-816-0	02	1	9606-9609
90	BOLT; CONNECTOR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M8X16	0-20800-816-0	02	1	9610-9810
90	BOLT; CONNECTOR M8X16	0-20800-816-0	02	1	9811-0512
90	BOLT; CONNECTOR M8X16	0-20850-816-0	02	1	0601-
92	GROMMET; ADJ HOLE	1-09333-010-0	04	1	9606-9609
92	GROMMET; ADJ HOLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-09333-010-0	04	1	9610-9810
92	GROMMET; ADJ HOLE	1-09333-010-0	04	1	9811-
101	PROTECTOR; OIL PIPE,FRT BRK (B) ID=5 OD=18 T=8	1-09332-063-0	02	1	9606-9609
101	PROTECTOR; OIL PIPE,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) ID=5 OD=18 T=8	1-09332-063-0	02	1	9610-9810
101	PROTECTOR; OIL PIPE,FRT BRK (B) ID=5 OD=18 T=8	1-09332-063-0	02	1	9811-
101	PROTECTOR; OIL PIPE,FRT BRK (A)	1-09332-133-0	02	1	9606-9609
101	PROTECTOR; OIL PIPE,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-09332-133-0	02	1	9610-9810
101	PROTECTOR; OIL PIPE,FRT BRK (A)	1-09332-133-0	02	1	9811-
111	NUT; FLANGE,SHOE HOLD M16	9-99111-416-0	04	1	9606-9609
111	NUT; FLANGE,SHOE HOLD EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16	9-99111-416-0	04	1	9610-9810
111	NUT; FLANGE,SHOE HOLD M16	9-99111-416-0	04	1	9811-0512
111	NUT; FLANGE,SHOE HOLD M16	0-91111-516-0	04	1	0601-
118	BOLT; STOPPER M6X8	0-20800-608-0	04	1	9606-9609
118	BOLT; STOPPER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M6X8	0-20800-608-0	04	1	9610-9810
118	BOLT; STOPPER M6X8	0-20800-608-0	04	1	9811-
119	PLATE; LK,STOPPER	1-47169-009-0	04	1	9606-9609
119	PLATE; LK,STOPPER EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47169-009-0	04	1	9610-9810
119	PLATE; LK,STOPPER	1-47169-009-0	04	1	9811-

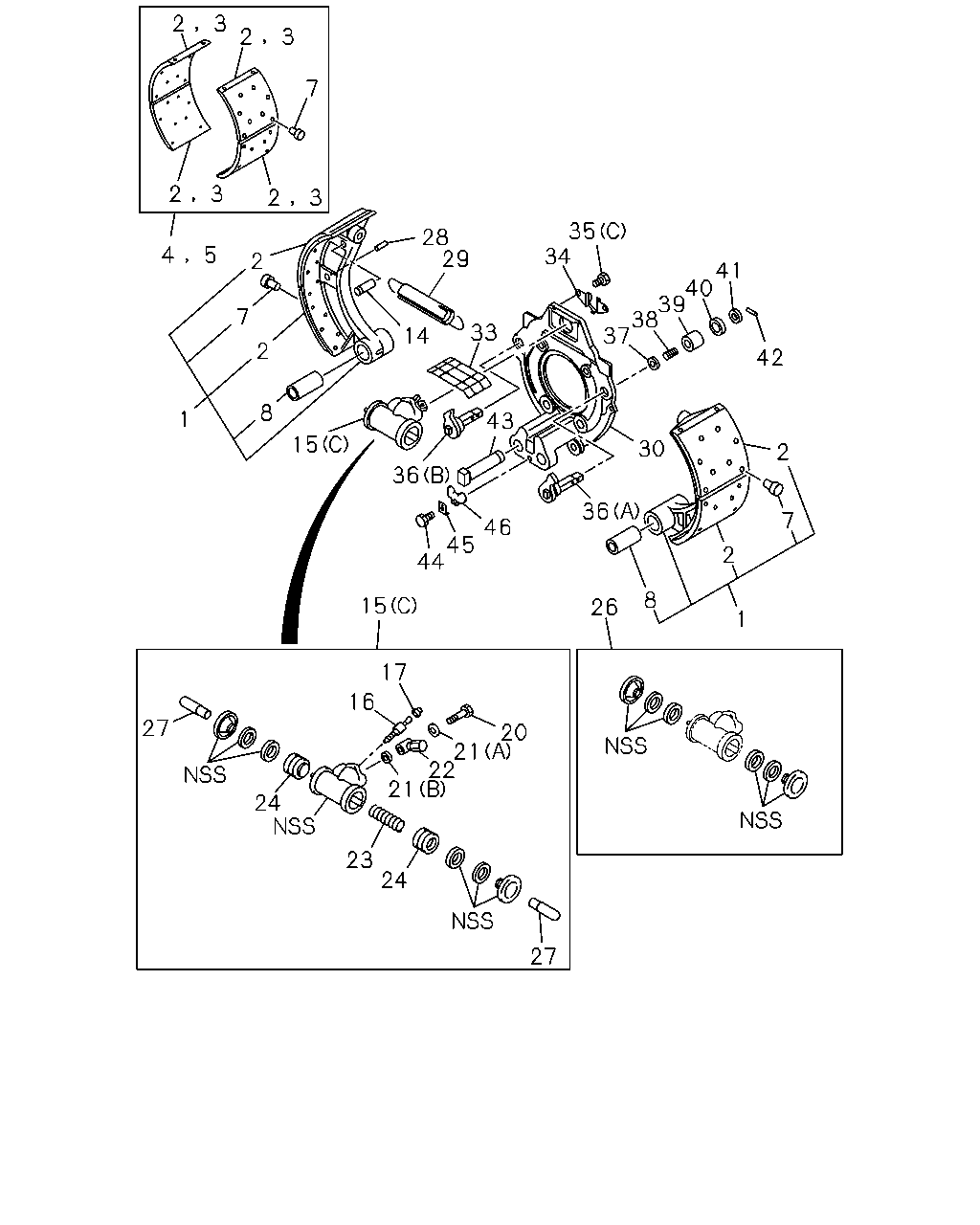

2 3 2 3 7 2 3 2 3 35 34 28 29 5 4 2 41 40 39 38 37 7 33 14 2 42 8 1 43 15 30 2 36 36 7 46 45 44 2 8 15 26 1 17 16 27 20 21 22 21 24 23 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT	1-47110-981-0	04	1	9606-9609
1	SHOE; BRK,FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47110-981-0	04	1	9610-9810
1	SHOE; BRK,FRT	1-47110-981-0	04	1	9811-
1	SHOE; BRK,FRT FRONT AXLE F049<FS4>	1-47110-962-0	04	1	9610-9810
2	LINING; FRT BRK SHOE,STANDARD	1-47125-008-0	04	1	9606-9609
2	LINING; FRT BRK SHOE,STANDARD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47125-008-0	04	1	9610-9810
2	LINING; FRT BRK SHOE,STANDARD	1-47125-008-0	04	1	9811-
2	LINING; FRT BRK SHOE,STANDARD FRONT AXLE F049<FS4>	1-47115-867-0	08	1	9610-9810
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-009-0	04	1	9606-9609
3	LINING; FRT BRK SHOE,OVER SIZE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47125-009-0	04	1	9610-9810
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-009-0	04	1	9811-
3	LINING; FRT BRK SHOE,OVER SIZE FRONT AXLE F049<FS4>	1-47115-869-0	08	1	9610-9810
4	LINING SET; FRT BRK,STANDARD	1-88302-998-0	01	1	9606-9609
4	LINING SET; FRT BRK,STANDARD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-88302-998-0	01	1	9610-9810
4	LINING SET; FRT BRK,STANDARD	1-88302-998-0	01	1	9811-
4	LINING SET; FRT BRK,STANDARD FRONT AXLE F049<FS4>	1-88302-956-0	02	1	9610-9810
5	LINING SET; FRT BRK,OVER SIZE	1-88310-003-0	01	1	9606-9609
5	LINING SET; FRT BRK,OVER SIZE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-88310-003-0	01	1	9610-9810
5	LINING SET; FRT BRK,OVER SIZE	1-88310-003-0	01	1	9811-
5	LINING SET; FRT BRK,OVER SIZE FRONT AXLE F049<FS4>	1-88310-001-0	02	1	9610-9810
7	RIVET; LINING,FRT BRK D6X11.5	1-09732-019-0	64	1	9606-9609
7	RIVET; LINING,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> D6X11.5	1-09732-019-0	64	1	9610-9810
7	RIVET; LINING,FRT BRK D6X11.5	1-09732-019-0	64	1	9811-
7	RIVET; LINING,FRT BRK FRONT AXLE F049<FS4> L=18.5	1-09732-034-0	80	1	9610-9810
8	BUSHING; BRK SHOE FRONT AXLE F049<FS4>	1-47112-011-0	04	1	9610-9810
14	PIN; SHOE RETURN SPR FRONT AXLE F049<FS4> L=73.5	1-47119-017-1	04	1	9610-9810
15	CYLINDER; WHEEL,FRT BRK (A) FORWARD	1-47600-555-1	01	1	9606-9609
15	CYLINDER; WHEEL,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) FORWARD	1-47600-555-1	01	1	9610-9810
15	CYLINDER; WHEEL,FRT BRK (A) FORWARD	1-47600-555-1	01	1	9811-
15	CYLINDER; WHEEL,FRT BRK (B) BRCKWARD	1-47600-735-0	01	1	9606-9609
15	CYLINDER; WHEEL,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) BRCKWARD	1-47600-735-0	01	1	9610-9810
15	CYLINDER; WHEEL,FRT BRK (B) BRCKWARD	1-47600-735-0	01	1	9811-
15	CYLINDER; WHEEL,FRT BRK (A) FORWARD	1-47600-554-1	01	1	9606-9609
15	CYLINDER; WHEEL,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) FORWARD	1-47600-554-1	01	1	9610-9810
15	CYLINDER; WHEEL,FRT BRK (A) FORWARD	1-47600-554-1	01	1	9811-
15	CYLINDER; WHEEL,FRT BRK (B) BRCKWARD	1-47600-734-0	01	1	9606-9609
15	CYLINDER; WHEEL,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) BRCKWARD	1-47600-734-0	01	1	9610-9810
15	CYLINDER; WHEEL,FRT BRK (B) BRCKWARD	1-47600-734-0	01	1	9811-
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049<FS4> (C)	1-47600-675-0	01	1	9610-9810
15	CYLINDER; WHEEL,FRT BRK FRONT AXLE F049<FS4> (C)	1-47600-674-0	01	1	9610-9810
16	SCREW; BLEEDER,FRT BRK L=44	1-47615-007-0	02	1	9606-9609
16	SCREW; BLEEDER,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=44	1-47615-007-0	02	1	9610-9810
16	SCREW; BLEEDER,FRT BRK L=44	1-47615-007-0	02	1	9811-
16	SCREW; BLEEDER,FRT BRK FRONT AXLE F049<FS4> L=66.5	1-47615-005-0	02	1	9610-9810
17	CAP; BLEEDER,FRT WHEEL CYL OD=9.5	9-47619-005-0	02	1	9606-9609
17	CAP; BLEEDER,FRT WHEEL CYL EXC. HEAVY DUTY PACKAGE TRUCK<RD2> OD=9.5	9-47619-005-0	02	1	9610-9810
17	CAP; BLEEDER,FRT WHEEL CYL OD=9.5	9-47619-005-0	02	1	9811-
17	CAP; BLEEDER,FRT WHEEL CYL FRONT AXLE F049<FS4> OD=12	1-47619-011-0	02	1	9610-9810
20	BOLT; JOINT FRONT AXLE F049<FS4> M12X40.5 EYE BOLT	1-47634-006-0	02	1	9610-9810
21	GASKET; UNION BOLT FRONT AXLE F049<FS4> (A) ID=15.2	1-09630-019-0	02	1	9610-9810
21	GASKET; UNION BOLT FRONT AXLE F049<FS4> (B) ID=12.2	1-09630-020-0	02	1	9610-9810
22	JOINT; PIPE FRONT AXLE F049<FS4>	1-47631-057-1	02	1	9610-9810
23	SPRING; COIL FRONT AXLE F049<FS4>	9-09940-435-0	02	1	9610-9810
24	PISTON; FRT WHEEL CYL	1-47624-200-0	02	1	9606-9609
24	PISTON; FRT WHEEL CYL EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47624-200-0	02	1	9610-9810
24	PISTON; FRT WHEEL CYL	1-47624-200-0	02	1	9811-
24	PISTON; FRT WHEEL CYL	1-47624-199-0	02	1	9606-9609
24	PISTON; FRT WHEEL CYL EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47624-199-0	02	1	9610-9810
24	PISTON; FRT WHEEL CYL	1-47624-199-0	02	1	9811-
24	PISTON; FRT WHEEL CYL FRONT AXLE F049<FS4>	9-47624-210-0	04	1	9610-9810
26	CUP SET; FRT WHEEL CYL	1-87830-577-0	02	1	0204-
26	CUP SET; FRT WHEEL CYL	1-87830-577-0	02	1	9606-9609
26	CUP SET; FRT WHEEL CYL EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87830-577-0	02	1	9610-9810
26	CUP SET; FRT WHEEL CYL	1-87830-577-0	02	1	9811-0203
26	CUP SET; FRT WHEEL CYL FRONT AXLE F049<FS4> ID=47.5	1-87830-521-0	02	1	9610-9810
27	ROD; PUSH FRONT AXLE F049<FS4>	1-47621-009-0	04	1	9610-9810
28	PIN; SHOE ADJ CAM GUIDE FRONT AXLE F049<FS4>	1-47116-002-0	04	1	9610-9810
29	SPRING; RETURN,FRT BRK SHOE	1-09583-126-1	04	1	9606-9609
29	SPRING; RETURN,FRT BRK SHOE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-09583-126-1	04	1	9610-9810
29	SPRING; RETURN,FRT BRK SHOE	1-09583-126-1	04	1	9811-
29	SPRING; RETURN,FRT BRK SHOE FRONT AXLE F049<FS4>	1-09583-185-2	02	1	9610-9810
30	BRACKET; ANCHOR,FRT FRONT AXLE F049<FS4>	1-47137-149-0	02	1	9610-9810
33	COVER; WHEEL CYL FRONT AXLE F049<FS4>	1-47159-080-0	02	1	9610-9810
34	PLATE; DIRECTION,FRT FRONT AXLE F049<FS4>	1-47159-094-0	02	1	9610-9810
35	BOLT; FRT WHEEL CYL (A) M16X30	0-23801-630-0	04	1	9606-9609
35	BOLT; FRT WHEEL CYL EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M16X30	0-23801-630-0	04	1	9610-9810
35	BOLT; FRT WHEEL CYL (A) M16X30	0-23801-630-0	04	1	9811-
35	BOLT; FRT WHEEL CYL (B) M10X22 W/LK WASHER	0-50051-022-0	08	1	9606-9609
35	BOLT; FRT WHEEL CYL EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) M10X22 W/LK WASHER	0-50051-022-0	08	1	9610-9810
35	BOLT; FRT WHEEL CYL (B) M10X22 W/LK WASHER	0-50051-022-0	08	1	9811-0812
35	BOLT; FRT WHEEL CYL (B) M10X22 W/LK WASHER	0-50551-022-0	08	1	0901-
35	BOLT; FRT WHEEL CYL FRONT AXLE F049<FS4> (C) M12X35 W/LK WASHER	0-50051-235-0	04	1	9610-9810
36	CAM ASM; ADJ FRONT AXLE F049<FS4> (B)	1-47165-059-1	02	1	9610-9810
36	CAM ASM; ADJ FRONT AXLE F049<FS4> (A)	1-47165-058-1	02	1	9610-9810
37	WASHER; ADJ CAM FRONT AXLE F049<FS4>	1-47169-033-0	04	1	9610-9810
38	SPRING; ADJ CAM FRONT AXLE F049<FS4>	1-47169-046-0	04	1	9610-9810
39	BOOT; ADJ CAM FRONT AXLE F049<FS4>	1-47169-034-0	04	1	9610-9810
40	COVER; BOOT,ADJ CAM FRONT AXLE F049<FS4>	1-47169-031-0	04	1	9610-9810
41	INDICATOR FRONT AXLE F049<FS4>	1-47169-032-1	04	1	9610-9810
42	PIN; SPINDLE FRONT AXLE F049<FS4>	1-47169-030-0	04	1	9610-9810
43	PIN; ANCHOR FRONT AXLE F049<FS4> L=106.5	1-47131-038-0	04	1	9610-9810
44	BOLT; LOCK,ANCHOR PIN FRONT AXLE F049<FS4> M10X16	0-20801-016-0	02	1	9610-9810
45	WASHER; LK FRONT AXLE F049<FS4>	1-47133-011-0	02	1	9610-9810
46	PLATE; LOCK FRONT AXLE F049<FS4>	1-47133-005-0	02	1	9610-9810

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
