2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#5955) — 65 parça

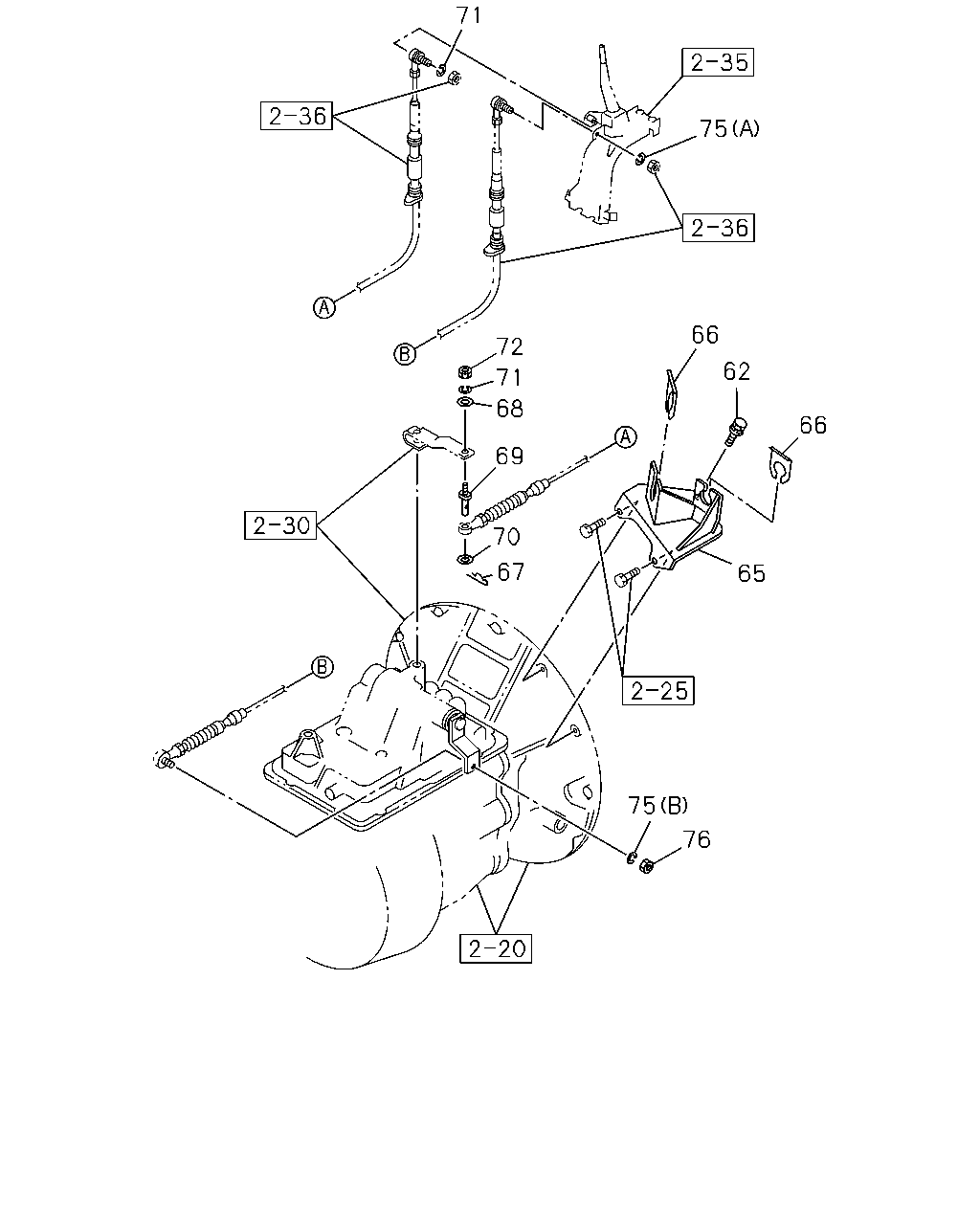

çizim 44445
71 75 66 72 62 71 68 66 69 70 67 65 75 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E
62 BOLT; STAY
M10X20 FLANGE 		0-28781-020-0 01 1 9606-9810 ● ● ●
62 BOLT; STAY
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9610-9810 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9811-0512 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-472-1 01 1 9606-9810 ● ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-347-1 01 1 9610-9810 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-534-2 01 1 9811- ●
66 CLIP; SELECT BRKT 1-09700-778-1 02 1 9606-9810 ● ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9811- ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9606-9810 ● ● ● ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9811- ●
68 WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18 		9-09164-608-0 01 1 9606-9810 ● ● ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9606-9810 ● ● ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9811- ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9606-9810 ● ● ● ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9811-0605 ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ●
70 WASHER; PL,SELECT WIRE
ID=6.4 OD=14 		9-09164-606-0 01 1 9610-9810 ●
71 WASHER; LK,TRANS CONT,SELECT
ID=8.2 		9-09150-508-0 02 1 9606-9810 ● ● ●
71 WASHER; LK,TRANS CONT,SELECT
ID=6.1 		9-09150-506-0 01 1 9610-9810 ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9606-9810 ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9811- ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
(A) ID=8.2 		9-09150-508-0 01 1 9606-9810 ● ● ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
(B) ID=10.2 		9-09150-510-0 01 1 9606-9810 ● ● ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
(C) ID=10.2 		9-09150-510-0 01 1 9811-0603 ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
(C) ID=10.2 		0-91510-510-0 01 1 0604- ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9606-9810 ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9811-0512 ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		0-91110-510-0 01 1 0601- ●

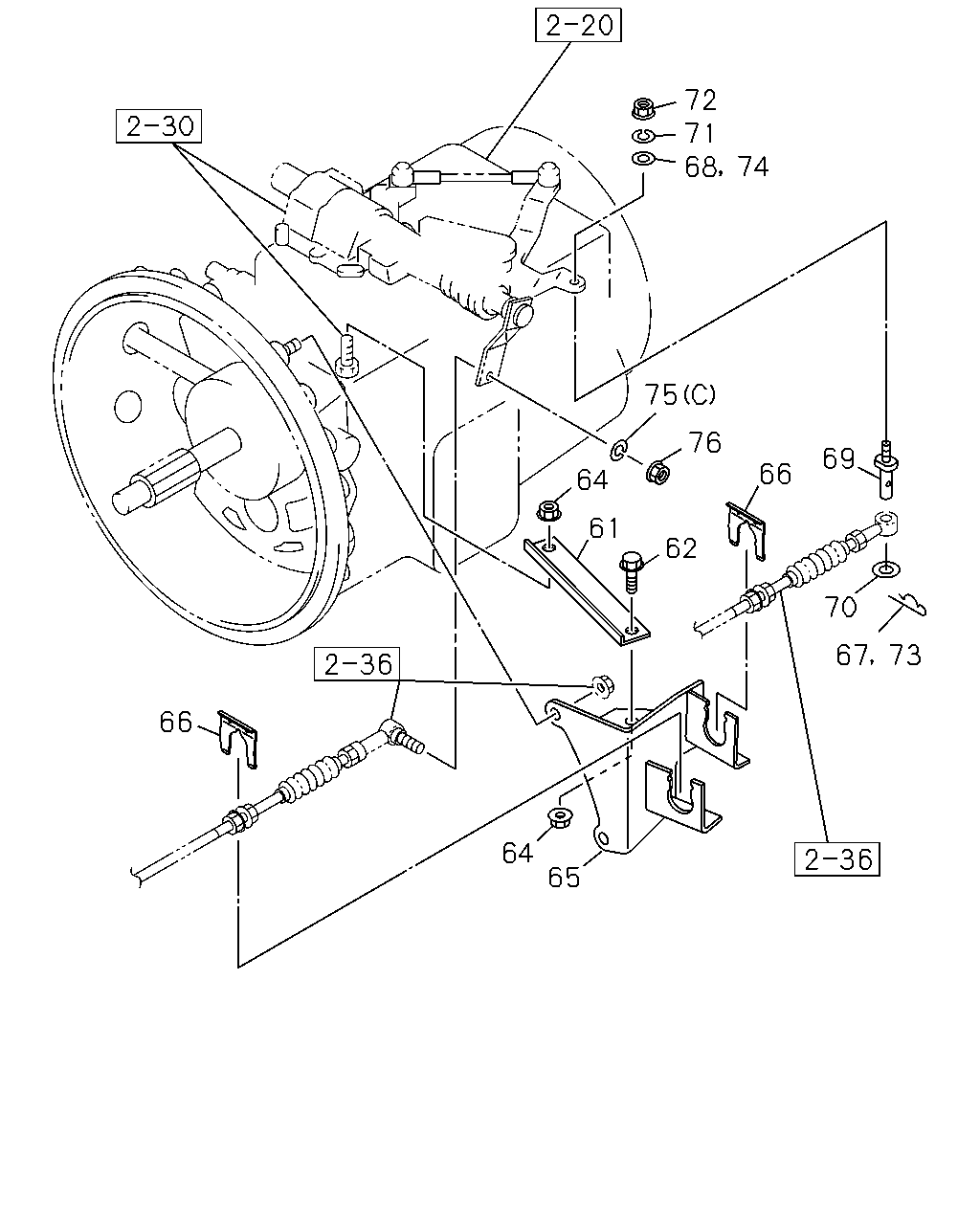

çizim 44503
72 71 68 74 75 76 69 66 64 61 62 70 67 73 66 64 65
BalonParca AdiParca NoAdetTipApplied Date A B C D E
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 9610-9810 ●
61 STAY; BRKT,TRANS CONT 1-33657-349-0 01 1 9811- ●
62 BOLT; STAY
M10X20 FLANGE 		0-28781-020-0 01 1 9606-9810 ● ● ●
62 BOLT; STAY
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9610-9810 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9811-0512 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
64 NUT; STAY
M10 FLANGE 		5-09440-006-0 02 1 9610-9810 ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 9811-0602 ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-472-1 01 1 9606-9810 ● ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-347-1 01 1 9610-9810 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-534-2 01 1 9811- ●
66 CLIP; SELECT BRKT 1-09700-778-1 02 1 9606-9810 ● ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9811- ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9606-9810 ● ● ● ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9811- ●
68 WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18 		9-09164-608-0 01 1 9606-9810 ● ● ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9606-9810 ● ● ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9811- ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9606-9810 ● ● ● ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9811-0605 ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ●
70 WASHER; PL,SELECT WIRE
ID=6.4 OD=14 		9-09164-606-0 01 1 9610-9810 ●
71 WASHER; LK,TRANS CONT,SELECT
ID=8.2 		9-09150-508-0 02 1 9606-9810 ● ● ●
71 WASHER; LK,TRANS CONT,SELECT
ID=6.1 		9-09150-506-0 01 1 9610-9810 ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9606-9810 ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9811- ●
73 RING; SNAP,WIRE SHAFT
L=32.6 		8-94157-842-0 01 1 9610-9810 ●
74 WASHER; PL,WIRE
ID=10.5 OD=32 		9-09164-810-0 02 1 9610-9810 ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
(A) ID=8.2 		9-09150-508-0 01 1 9606-9810 ● ● ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
(B) ID=10.2 		9-09150-510-0 01 1 9606-9810 ● ● ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
(C) ID=10.2 		9-09150-510-0 01 1 9811-0603 ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
(C) ID=10.2 		0-91510-510-0 01 1 0604- ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9606-9810 ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9811-0512 ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		0-91110-510-0 01 1 0601- ●
