◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11333 - FRR(MIDEAST)6H ENG ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#59543) — 10 parça

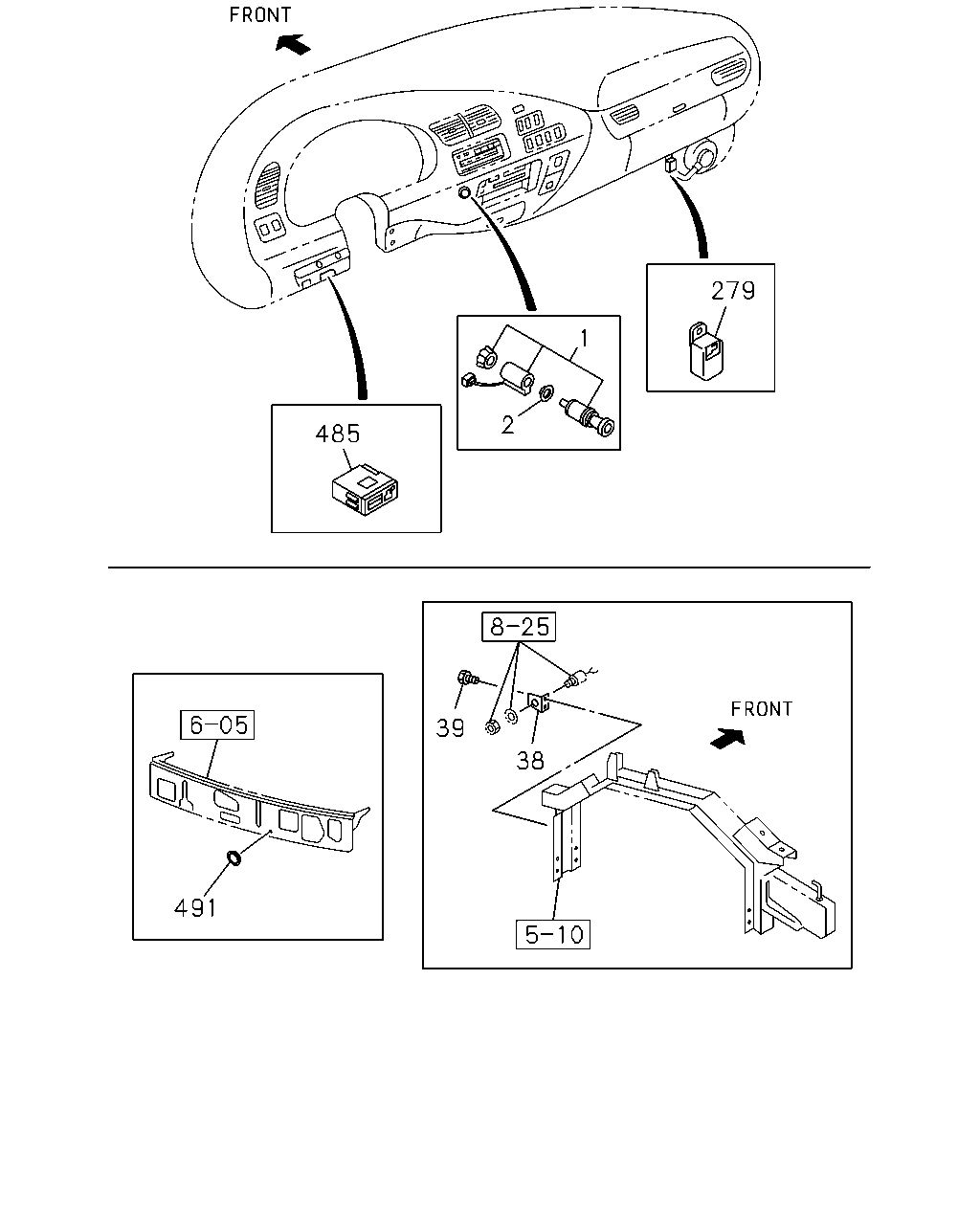

çizim 172651
279 1 2 485 39 38 491
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0411-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0411-
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82699-351-0 01 1 0411-
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0411-0512
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28650-820-0 02 1 0601-
279 BUZZER ASM; SEAT BELT WARNING
12V 		5-83460-004-1 01 1 0411-
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0411-0411
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411-
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0411-

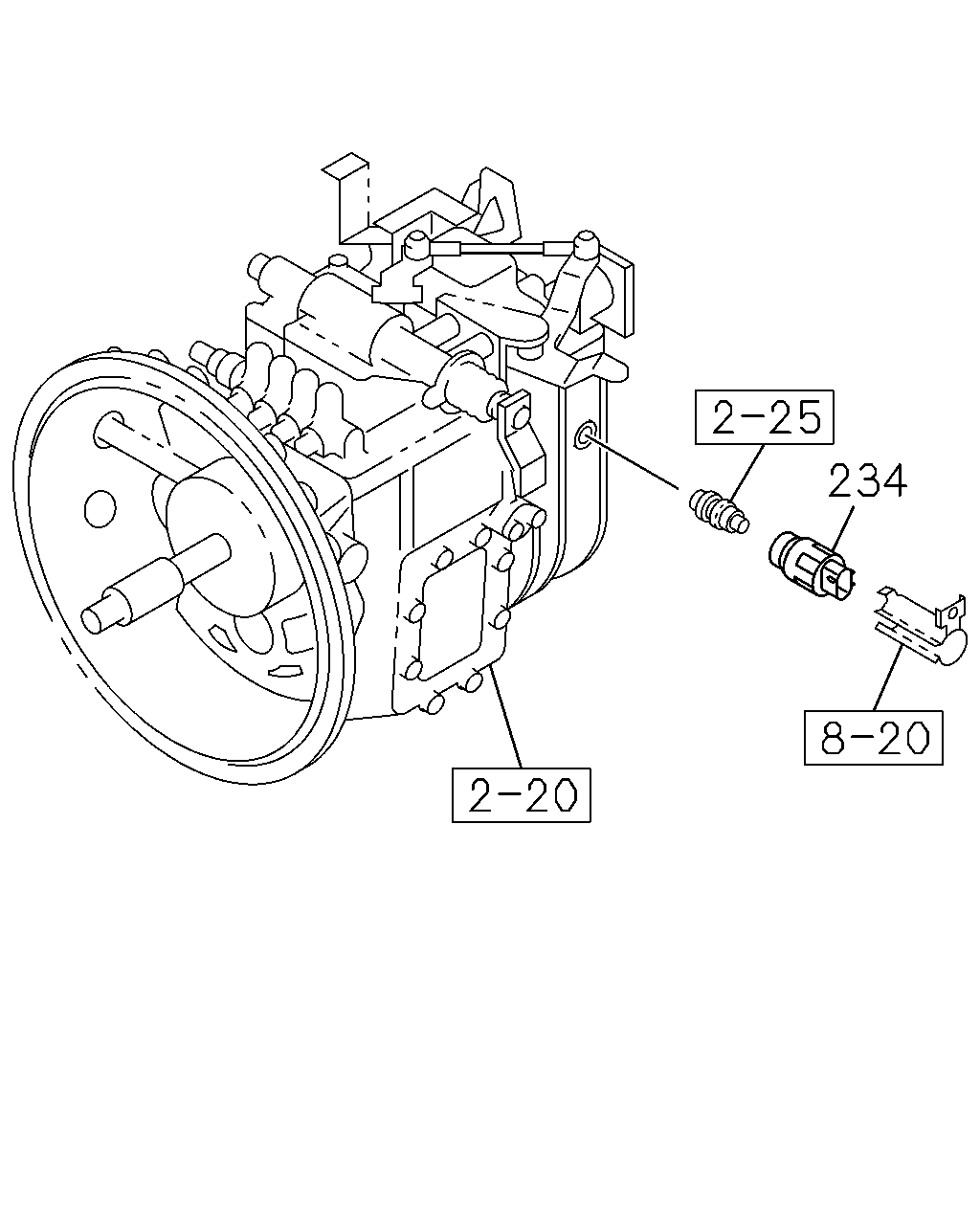

çizim 172652
234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0411-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
