2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#5954) — 58 parça
çizim 7944
287 287 103 287 285 306
BalonParca AdiParca NoAdetTipApplied Date A B C D E
103 NUT
M8 		9-09110-408-0 01 1 9606-9810 ● ● ●
103 NUT
M6 		9-09111-406-0 01 1 9610-9810 ●
285 WIRE; SHIFT,TRANS CONT
L=2900 		1-33670-340-0 01 1 9606-9810 ● ● ●
285 WIRE; SHIFT,TRANS CONT
L=3370 		1-33670-312-1 01 1 9610-9810 ●
287 WIRE; SELECT,TRANS CONT
L=2876 		1-33670-324-0 01 1 9606-9810 ● ● ●
287 WIRE; SELECT,TRANS CONT
L=3335 		1-33670-336-0 01 1 9610-9810 ●
306 NUT; WIRE BRKT
M8 		9-09110-408-0 01 1 9606-9609 ● ● ●
306 NUT; WIRE BRKT
M8 FLANGE 		0-91150-108-0 01 1 9610-9810 ● ● ● ●

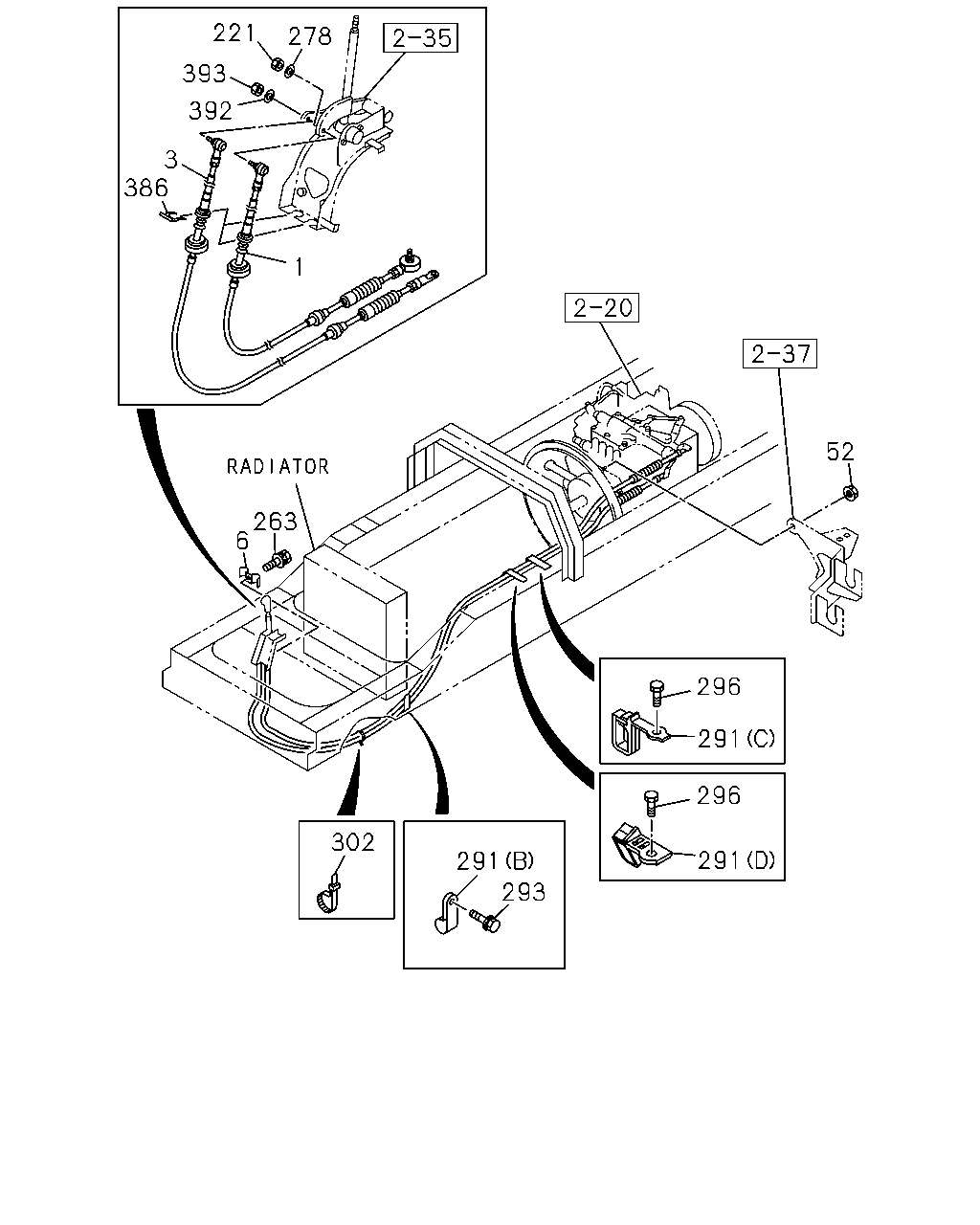

çizim 43836
221 278 393 392 3 386 1 52 263 6 296 291 296 302 291 291 293
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CABLE; SHIFT,TRANS CONT
L=3424 		1-33670-790-0 01 1 9811- ●
3 CABLE; SELECT,TRANS CONT
L=3486 		1-33670-797-1 01 1 9811- ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9811- ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9811-0602 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9811-0512 ●
221 NUT; SHIFT WIRE TO LEVER
M8 		0-91110-508-0 01 1 0601- ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9811- ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9811-0603 ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		0-91510-508-0 01 1 0604- ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) 		1-09701-100-3 01 1 9606-9810 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9811- ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		9-09535-026-0 01 1 9606-9810 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		9-09535-026-0 01 1 9811-0606 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		0-95325-026-0 01 1 0607- ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) ID=13X2 L=32 		1-09701-245-0 01 1 9811- ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X20 FLANGE 		0-28680-820-0 01 1 9606-9810 ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9811-0512 ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28680-820-0 01 1 9606-9810 ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28080-820-0 02 1 9811-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
302 CLIP; BAND
L=140 		5-09707-031-0 02 1 9606-9810 ● ● ● ●
302 CLIP; BAND
L=300 		1-09707-001-1 01 1 9811- ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 9811- ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9811-0603 ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		0-91510-508-0 01 1 0604- ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9811-0512 ●
393 NUT; SELECT CABLE,CAB
M8 		0-91110-508-0 01 1 0601- ●
çizim 44566
296 291 302 285 293 302 287 297 291 474 268
BalonParca AdiParca NoAdetTipApplied Date A B C D E
268 BRACKET; LINK ROD
EXC. POWER STEERING(N40) 		1-46147-082-0 01 1 9606-9810 ● ● ● ●
285 WIRE; SHIFT,TRANS CONT
L=2900 		1-33670-340-0 01 1 9606-9810 ● ● ●
285 WIRE; SHIFT,TRANS CONT
L=3370 		1-33670-312-1 01 1 9610-9810 ●
287 WIRE; SELECT,TRANS CONT
L=2876 		1-33670-324-0 01 1 9606-9810 ● ● ●
287 WIRE; SELECT,TRANS CONT
L=3335 		1-33670-336-0 01 1 9610-9810 ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) 		1-09701-100-3 01 1 9606-9810 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9811- ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		9-09535-026-0 01 1 9606-9810 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		9-09535-026-0 01 1 9811-0606 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		0-95325-026-0 01 1 0607- ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) ID=13X2 L=32 		1-09701-245-0 01 1 9811- ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X20 FLANGE 		0-28680-820-0 01 1 9606-9810 ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9811-0512 ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28680-820-0 01 1 9606-9810 ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28080-820-0 02 1 9811-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
297 NUT; CLIP
POWER STEERING(N40) M8 		9-09110-408-0 01 1 9606-9810 ● ● ● ●
302 CLIP; BAND
L=140 		5-09707-031-0 02 1 9606-9810 ● ● ● ●
302 CLIP; BAND
L=300 		1-09707-001-1 01 1 9811- ●
474 BOLT; BRKT
EXC. POWER STEERING(N40) M10X25 FLANGE 		0-28681-025-0 01 1 9606-9810 ● ● ● ●
