◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11333 - FRR(MIDEAST)6H ENG ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#59539) — 124 parça
çizim 172632
335 59 154
BalonParca AdiParca NoAdetTipApplied Date
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0411-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0412-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 0411-
çizim 172636
81 206 225 228 235 305 418 14 16 217 16 171 14 194 231 305 16 178 178 178 503 503 530
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 01 1 0412-1205
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 01 1 1206-
14 CLIP; BAND,HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=180 		1-09707-162-1 01 1 0411-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0411-
16 CLIP; HARNESS
(F) ID=28 L=78 		1-09700-858-0 01 1 0411-
16 CLIP; HARNESS
(F) ID=28 L=78 		1-09700-858-0 01 1 0411-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0411-
16 CLIP; HARNESS
(A) ID=19 H=21 L=50 		1-09700-910-1 01 1 0411-
16 CLIP; HARNESS
(D) ID=25 L=50 		1-09701-019-0 01 1 0411-
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0411-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0411-
16 CLIP; HARNESS
(E) L=175 		8-97110-167-0 02 1 0411-
16 CLIP; HARNESS
(B) ID=19 L=32 		9-09525-866-0 01 1 0411-0606
16 CLIP; HARNESS
(B) ID=19 L=32 		0-95235-866-0 01 1 0607-
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0411-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0411-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0411-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0411-0606
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607-
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0411-
178 GROMMET; HARNESS
(C) ID=32 OD=48 T=5 		9-09575-232-0 01 1 0411-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0411-
194 CLIP; BAND
DUAL AIR GAUGE<UG2> L=180 		1-09707-162-1 02 1 0411-
194 CLIP; BAND
EXC. DUAL AIR GAUGE<UG2> L=180 		1-09707-162-1 01 1 0411-
194 CLIP; BAND
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=180 		1-09707-162-1 01 1 0411-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0411-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0411-
225 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0411-
225 CLIP; AIR TANK HARNESS
DUAL AIR GAUGE<UG2> (B) L=140 		5-09707-031-1 02 1 0411-
225 CLIP; AIR TANK HARNESS
EXC. DUAL AIR GAUGE<UG2> (B) L=140 		5-09707-031-1 01 1 0411-
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 0411-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0411-
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=140 		5-09707-031-1 01 1 0411-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0411-
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 0411-
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 		5-09707-031-1 01 1 0703-
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82690-668-0 01 1 0411-
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-668-0 01 1 0411-
503 CONNECTOR
STARTER SWITCH DELETION<E5D> (B) 		1-82690-666-0 01 1 0411-
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 0411-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0411-

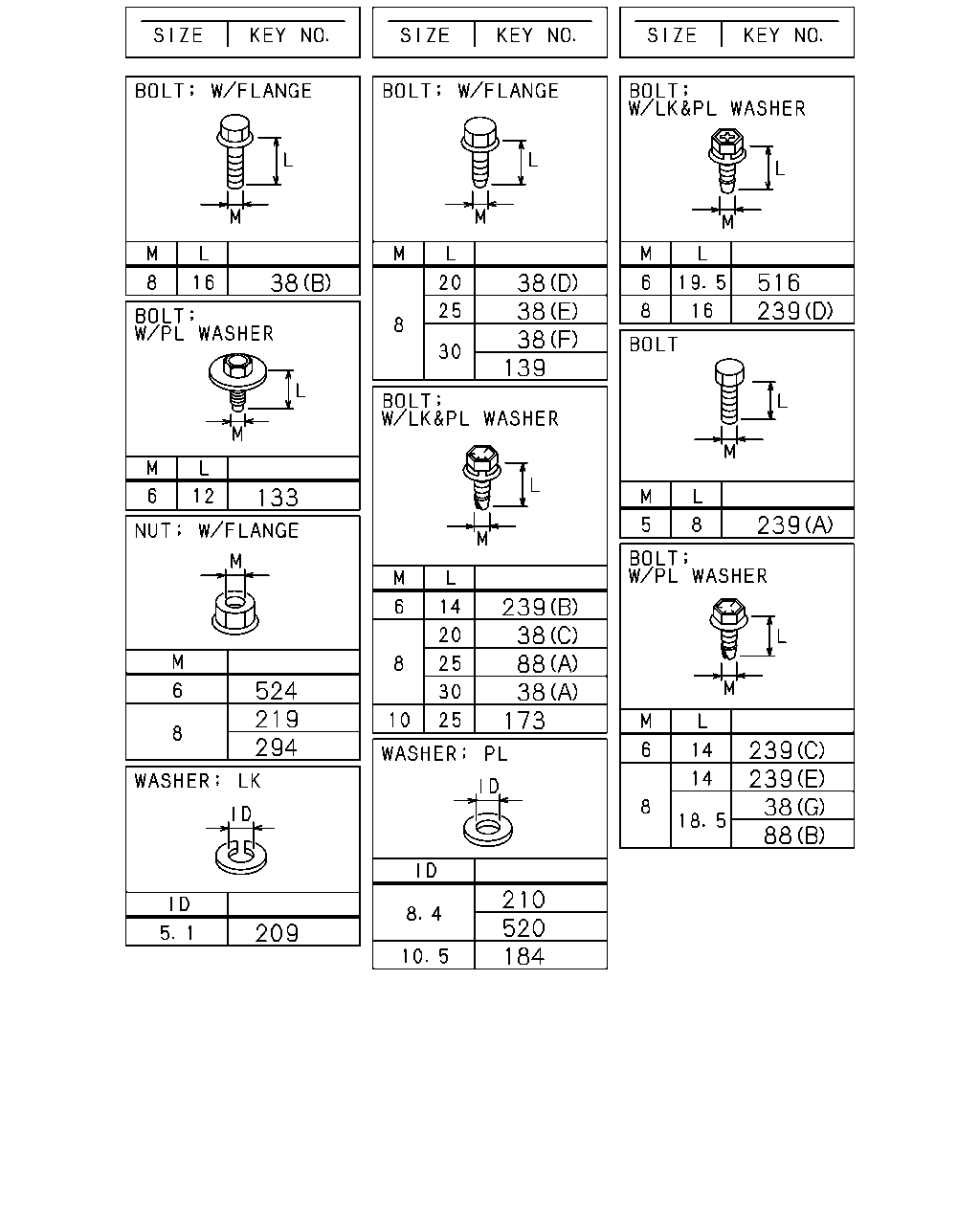

çizim 172642
516 239 38 38 38 38 139 133 239 239 38 88 38 173 524 219 294 239 239 38 88 210 520 184 209
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28080-816-0 04 1 0411-0512
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 02 1 0411-0512
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28680-825-0 02 1 0411-0512
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28680-830-0 02 1 0411-0512
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0411-1201
38 BOLT; CLIP,HARNESS
(G) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0411-0512
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0411-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0411-
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0411-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0411-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0411-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0411-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0411-
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0411-0602
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 0411-0602
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0603-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0411-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0411-1007
239 BOLT; GRAND
(C) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0411-1201
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0411-0602
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0411-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0411-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0411-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-

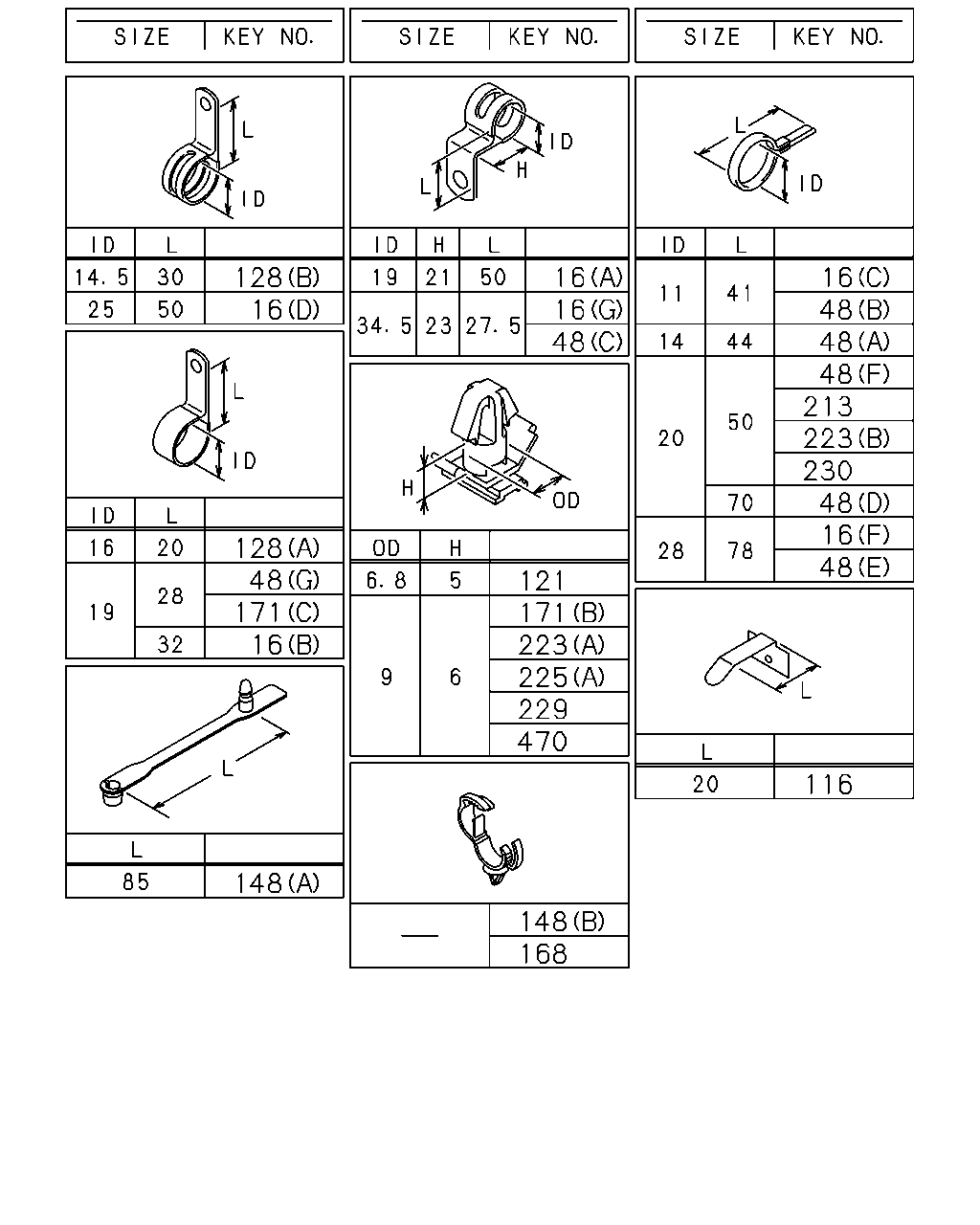

çizim 172644
128 16 16 16 48 16 48 48 48 213 223 230 48 16 48 128 48 171 16 121 171 223 225 229 470 116 148 148 168
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0411-
16 CLIP; HARNESS
(F) ID=28 L=78 		1-09700-858-0 01 1 0411-
16 CLIP; HARNESS
(F) ID=28 L=78 		1-09700-858-0 01 1 0411-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0411-
16 CLIP; HARNESS
(A) ID=19 H=21 L=50 		1-09700-910-1 01 1 0411-
16 CLIP; HARNESS
(D) ID=25 L=50 		1-09701-019-0 01 1 0411-
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0411-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0411-
16 CLIP; HARNESS
(E) L=175 		8-97110-167-0 02 1 0411-
16 CLIP; HARNESS
(B) ID=19 L=32 		9-09525-866-0 01 1 0411-0606
16 CLIP; HARNESS
(B) ID=19 L=32 		0-95235-866-0 01 1 0607-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0411-
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 04 1 0411-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 05 1 0411-
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 0411-0606
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 01 1 0411-
48 CLIP; FRAME HARNESS
(F) ID=20 L=50 		9-09917-430-0 18 1 0411-
48 CLIP; FRAME HARNESS
(F) ID=20 L=50 		9-09917-430-0 02 1 0411-
48 CLIP; FRAME HARNESS
(F) ID=20 L=50 		9-09917-430-0 02 1 0411-
48 CLIP; FRAME HARNESS
(C) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0411-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0411-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
121 CLIP; FACIA HARNESS
OD=6.8 H=5 		8-97082-051-0 02 1 0411-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0411-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0411-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0411-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0411-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0411-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0411-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0411-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0411-0606
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0411-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0411-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 0411-
225 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0411-
225 CLIP; AIR TANK HARNESS
DUAL AIR GAUGE<UG2> (B) L=140 		5-09707-031-1 02 1 0411-
225 CLIP; AIR TANK HARNESS
EXC. DUAL AIR GAUGE<UG2> (B) L=140 		5-09707-031-1 01 1 0411-
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0411-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0411-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0411-
