Isuzu WW
▶
TRUCKS
▶
FRR
▶
11333 - FRR(MIDEAST)6H ENG
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#59538) — 62 parça
◀
[810A] CAB,DOOR,ROOF AND FLOOR HARNESS (15 parça)
[810A] CAB TILT,AIR TANK HARN AND CONN BOX (16 parça)
[810A] FUSE BOX AND FUSE (17 parça)
[810A] FACIA HARNESS (6 parça)
[810A] BUMPER AND FRAME HARNESS (4 parça)
[810A] ENG HARNESS AND STARTER HARNESS (4 parça)
▶

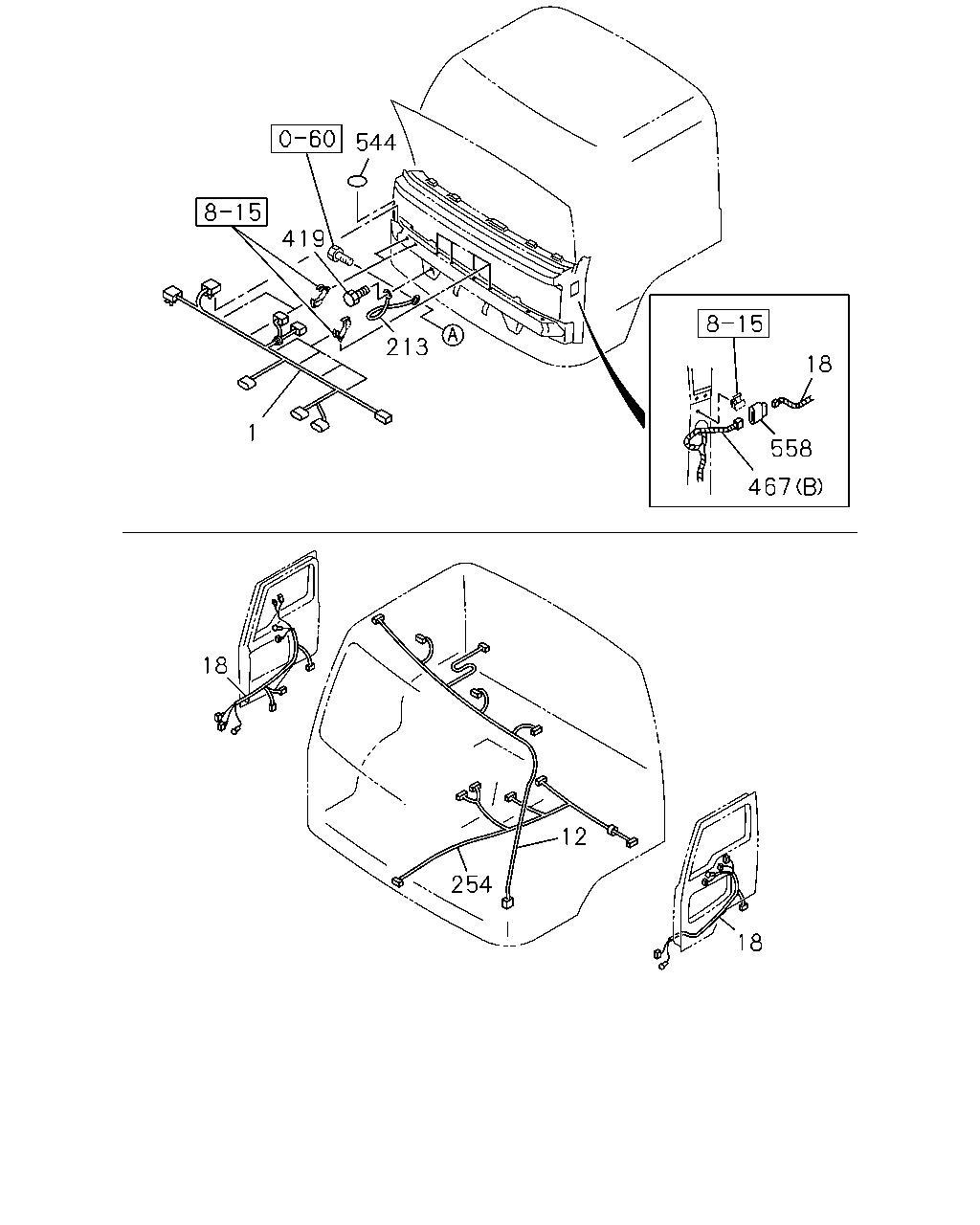

544
419
213
18
1
558
467
18
12
254
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60)
1-82625-718-3
01
1
0411-
1
HARNESS; CAB
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
1-82625-725-3
01
1
0411-
12
HARNESS; ROOF
1-82625-713-4
01
1
0411-
18
HARNESS; DOOR
1-82628-581-0
02
1
0411-
213
CABLE; EARTH,CAB TO FRAME
1-82657-055-1
01
1
0411-
254
HARNESS; CAB FLOOR
1-82629-307-3
01
1
0411-
419
BOLT; CAB EARTH
M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
0411-1201
419
BOLT; CAB EARTH
M8X18.5 W/PL WASHER
8-98141-255-0
01
1
1202-
467
HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)
1-82629-275-3
01
1
0411-
467
HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-82629-277-3
01
1
0411-
467
HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
1-82629-296-1
01
1
0411-
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)
1-82629-273-3
01
1
0411-
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
1-82629-295-1
01
1
0411-
544
SEAL; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK
1-76798-019-0
01
1
0411-
558
CONNECTOR; HARNESS
1-82690-666-0
02
1
0411-
467
276
277
265
266
262
6
264
267
467
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82677-471-0
01
1
0411-
201
HARNESS; AIR TANK
DUAL AIR GAUGE<UG2>
1-82670-502-0
01
1
0411-
201
HARNESS; AIR TANK
EXC. DUAL AIR GAUGE<UG2>
1-82638-997-0
01
1
0411-
262
COVER; CONNECTOR BOX,FRT PNL
1-82699-605-1
01
1
0411-
264
NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0411-
265
BOX; CONN,FRT PNL
1-82699-538-3
01
1
0411-
266
BRACKET; CONN BOX
1-82699-580-0
01
1
0411-
267
BOLT; BRKT
M6X16 W/PL WASHER
1-09981-438-0
02
1
0411-
276
COVER; BOX,FRAME HARNESS
1-82699-558-3
01
1
0411-
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50140-625-0
02
1
0411-0512
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50640-625-0
02
1
0601-
467
HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)
1-82629-275-3
01
1
0411-
467
HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-82629-277-3
01
1
0411-
467
HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
1-82629-296-1
01
1
0411-
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)
1-82629-273-3
01
1
0411-
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
1-82629-295-1
01
1
0411-

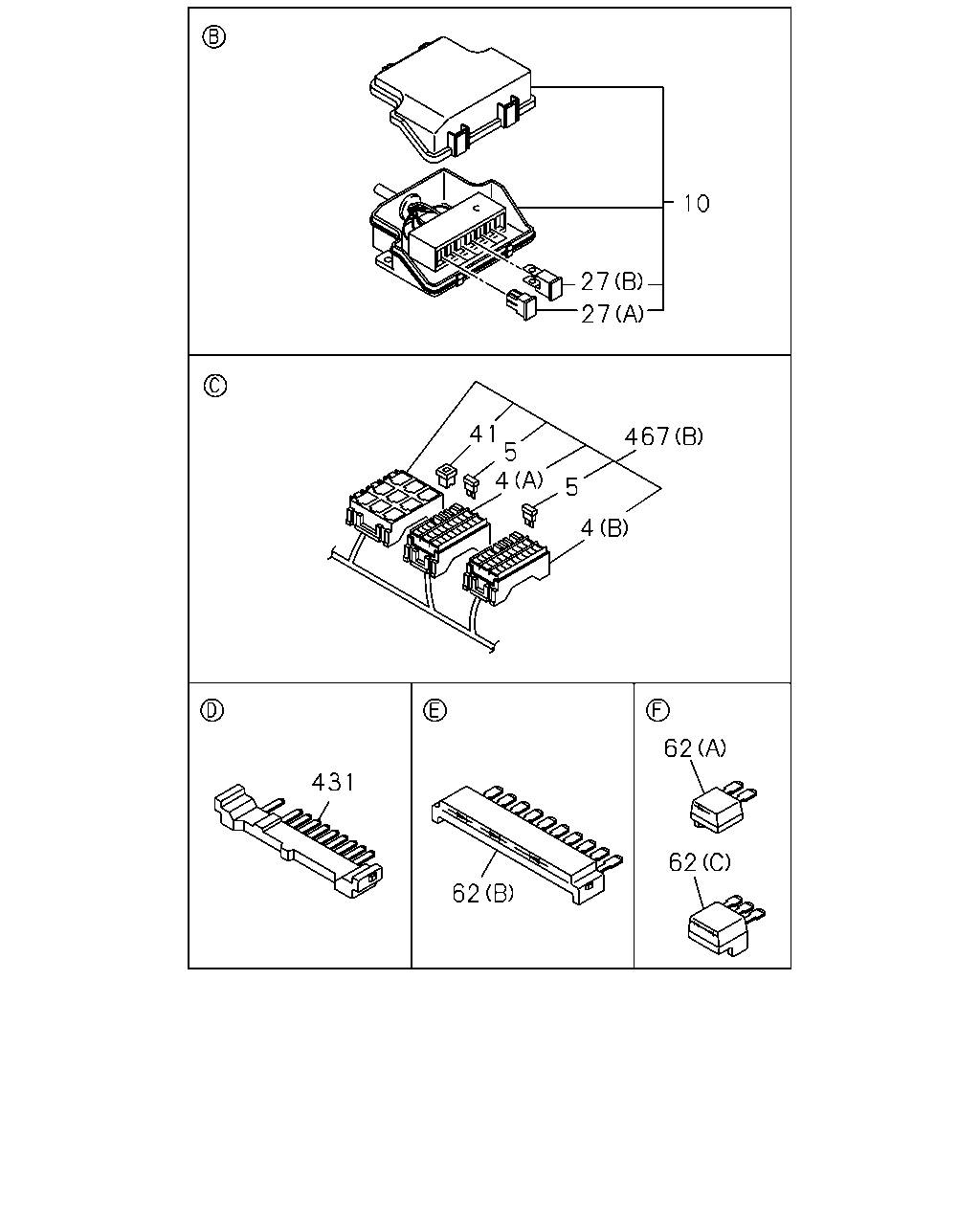

10
27
27
41
4
467
5
4
62
431
62
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
(B) 15AX14
1-82510-472-0
01
1
0411-
4
BOX ASM; FUSE,HARNESS
(A) 7.5AX14
1-82510-486-0
01
1
0411-
5
FUSE; FACIA HARNESS
15A BLUE
5-82516-003-0
14
1
0411-
5
FUSE; FACIA HARNESS
7.5A BROWN
8-94159-007-0
14
1
0411-
10
BOX; FUSE,HARNESS
1-82510-409-0
01
1
0411-
27
FUSE UNIT
(A) 40A GREEN
8-94468-662-0
03
1
0411-
27
FUSE UNIT
(B) 60A YELLOW
8-94468-669-0
01
1
0411-
41
PULLER; FUSE
L=25.3 B=11.5
8-94121-482-0
01
1
0411-
62
DIODE; HARNESS
(B) BLACK 10P
1-82699-703-0
02
1
0411-
62
DIODE; HARNESS
(C) BLACK 3P-1.5A
8-94416-438-1
01
1
0411-
62
DIODE; HARNESS
(A) BLACK 2P-1.5A
8-94422-639-1
02
1
0411-
431
CONNECTOR; JOINT
10P BROWN
1-82699-601-0
02
1
0411-
467
HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)
1-82629-275-3
01
1
0411-
467
HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-82629-277-3
01
1
0411-
467
HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
1-82629-296-1
01
1
0411-
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)
1-82629-273-3
01
1
0411-
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
1-82629-295-1
01
1
0411-

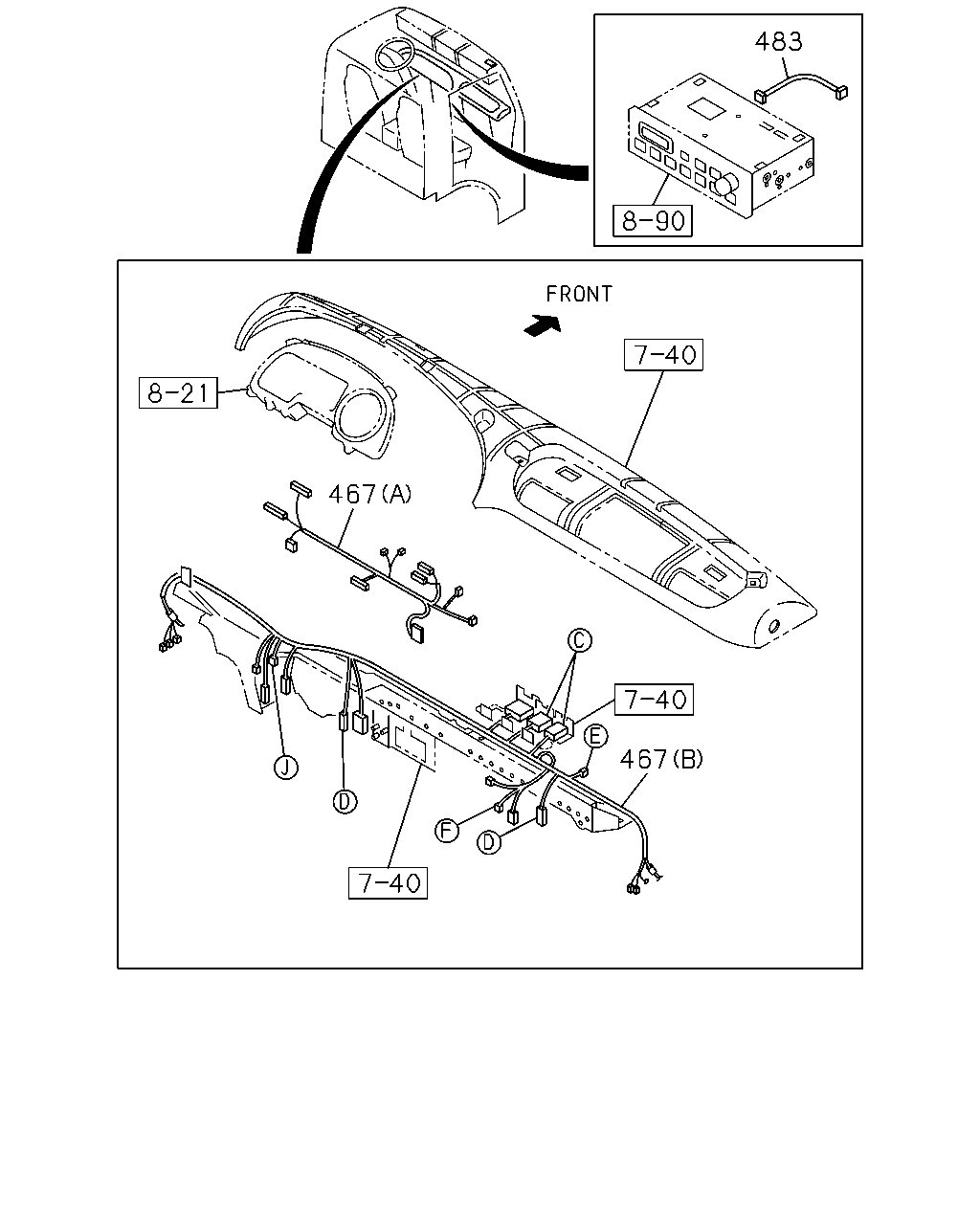

483
467
467
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
467
HARNESS; FACIA
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)
1-82629-275-3
01
1
0411-
467
HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-82629-277-3
01
1
0411-
467
HARNESS; FACIA
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
1-82629-296-1
01
1
0411-
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)
1-82629-273-3
01
1
0411-
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
1-82629-295-1
01
1
0411-
483
HARNESS; EXT,RADIO
RADIO CLARION(SK2)
8-98075-645-0
01
1
0703-

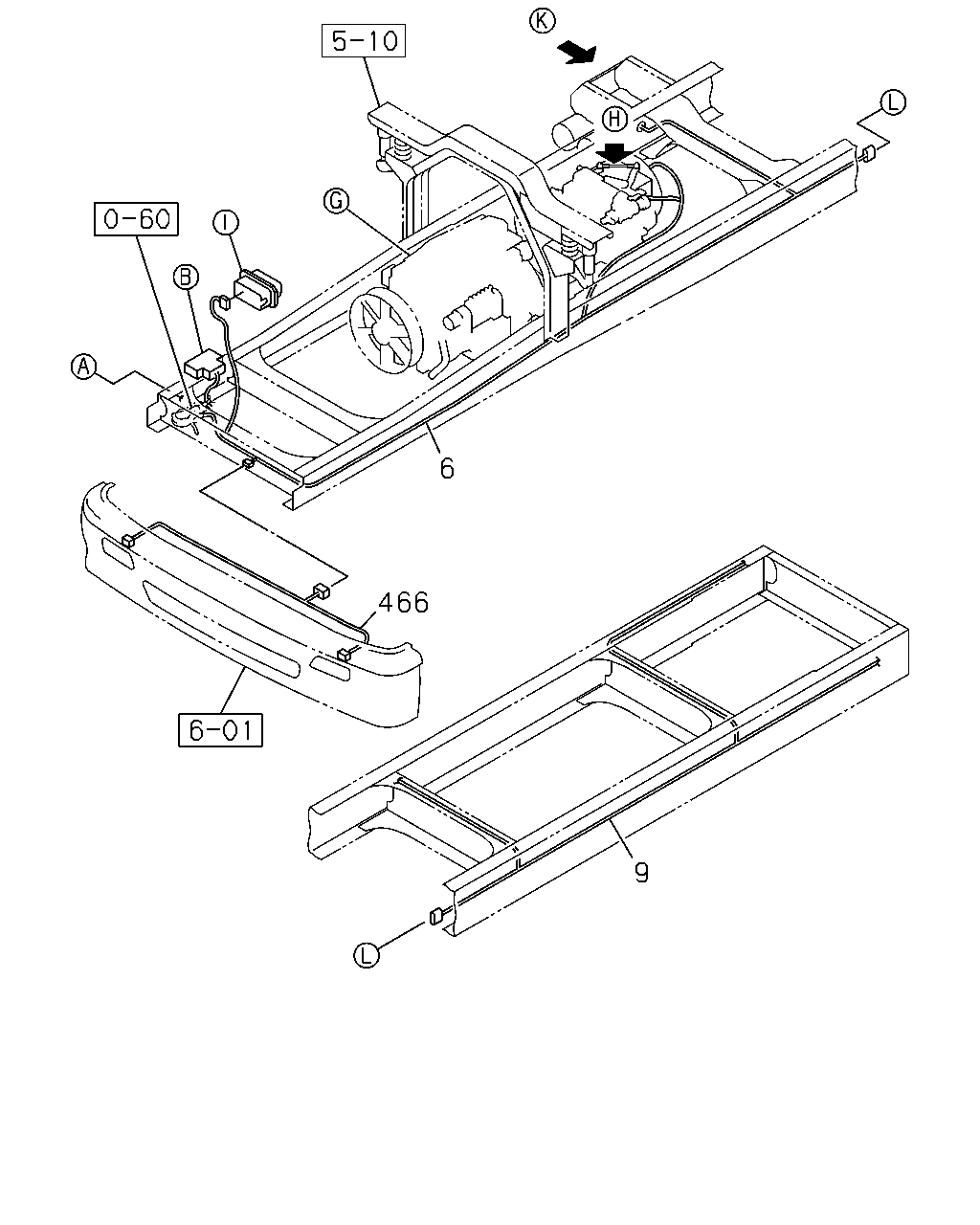

6
466
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82677-471-0
01
1
0411-
9
HARNESS; FRAME,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-82670-487-0
01
1
0411-
9
HARNESS; FRAME,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-82639-025-0
01
1
0411-
466
HARNESS; BUMPER
1-82638-758-1
01
1
0411-

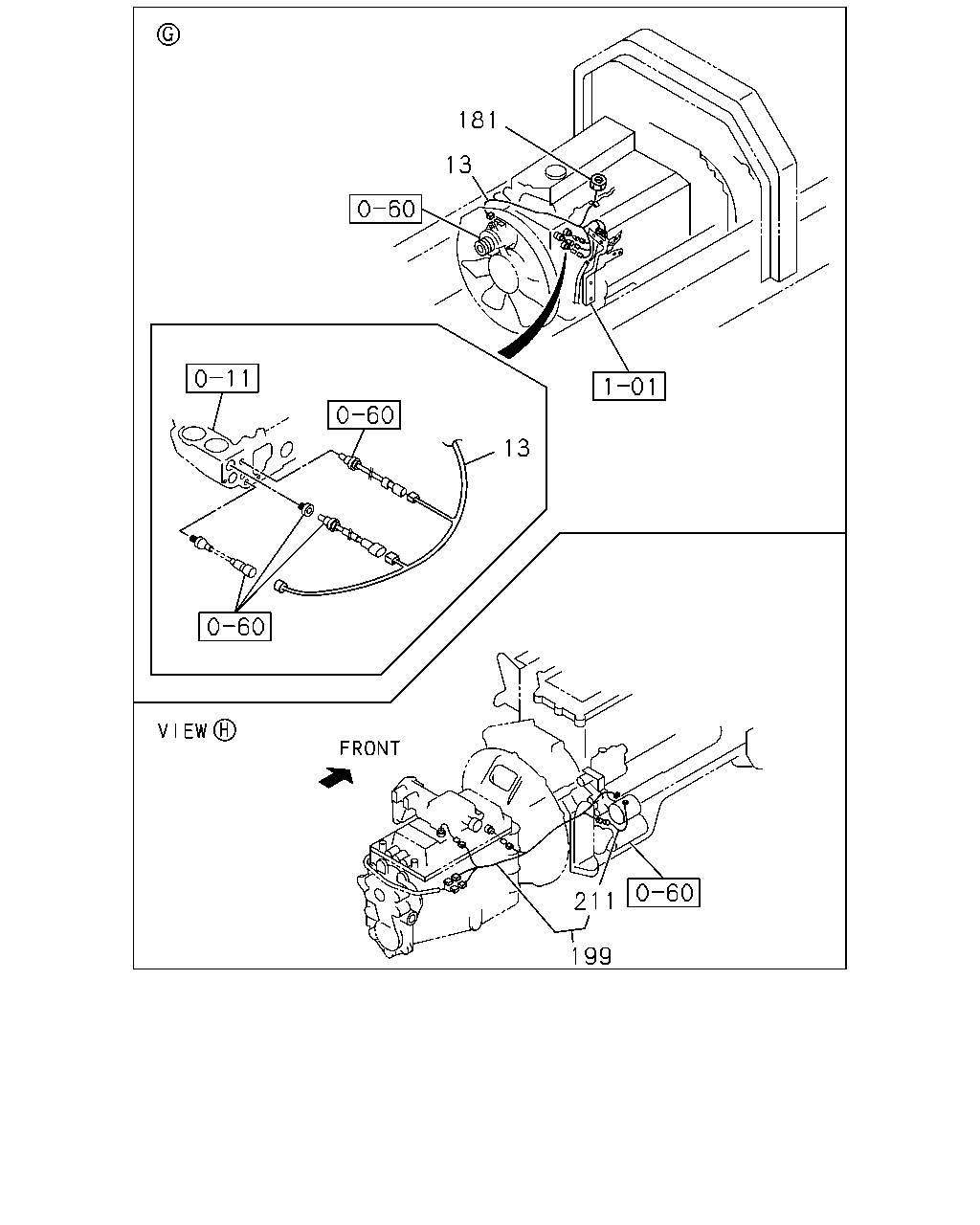

181
13
13
211
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
1-82640-714-0
01
1
0411-
181
NUT; GLOW PLUG HARNESS
M4 FLANGE
5-09440-007-0
01
1
0411-
199
HARNESS; STARTER
1-82640-966-1
01
1
0411-
211
WIRE; FUSIBLE LINK,STARTER
WHITE
1-82659-124-0
01
1
0411-
