7-50 — FRONT SEAT (#59532) — 151 parça

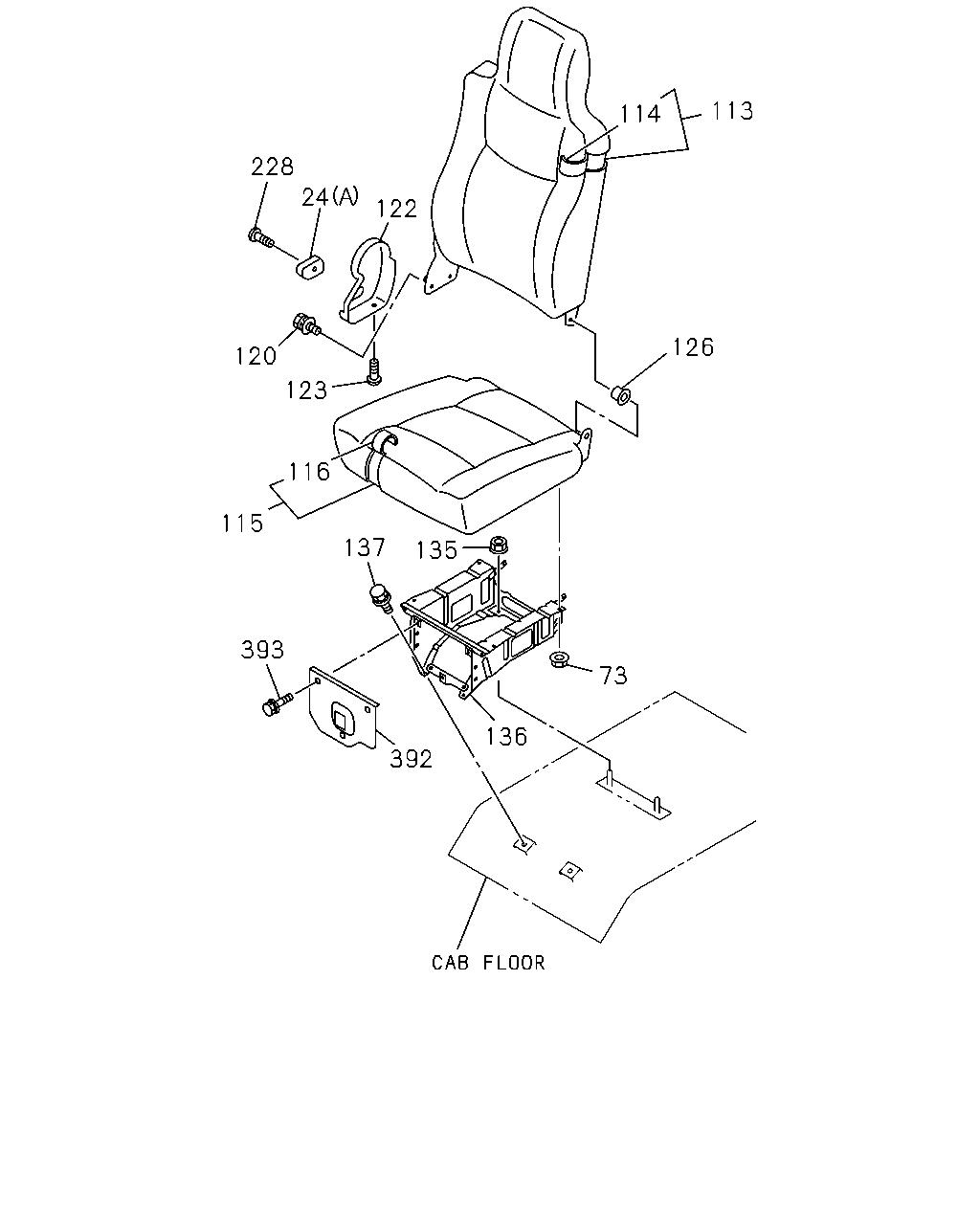

113 114 228 24 122 126 120 123 116 115 137 135 393 73 136 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0411-0710
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	0711-
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0411-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0411-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0411-0501
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75208-062-3	01	1	0411-
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75208-067-3	01	1	0411-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-602-1	01	1	0411-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-702-1	01	1	0411-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-698-1	01	1	0411-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-692-1	01	1	0411-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75116-686-1	01	1	0411-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-680-1	01	1	0411-
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0411-
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	0411-
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0411-
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0411-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0411-0703
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-
136	STAND; PASSENGER SEAT	1-75558-550-7	01	1	0411-1305
136	STAND; PASSENGER SEAT	8-98242-292-0	01	1	1306-
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0411-0703
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0411-0710
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0411-0710
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-
392	COVER; STAND,PASSENGER SEAT	1-75558-535-3	01	1	0411-
393	BOLT; COVER,SEAT STAND M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0411-0703
393	BOLT; COVER,SEAT STAND M6X16	0-52000-616-0	03	1	0704-

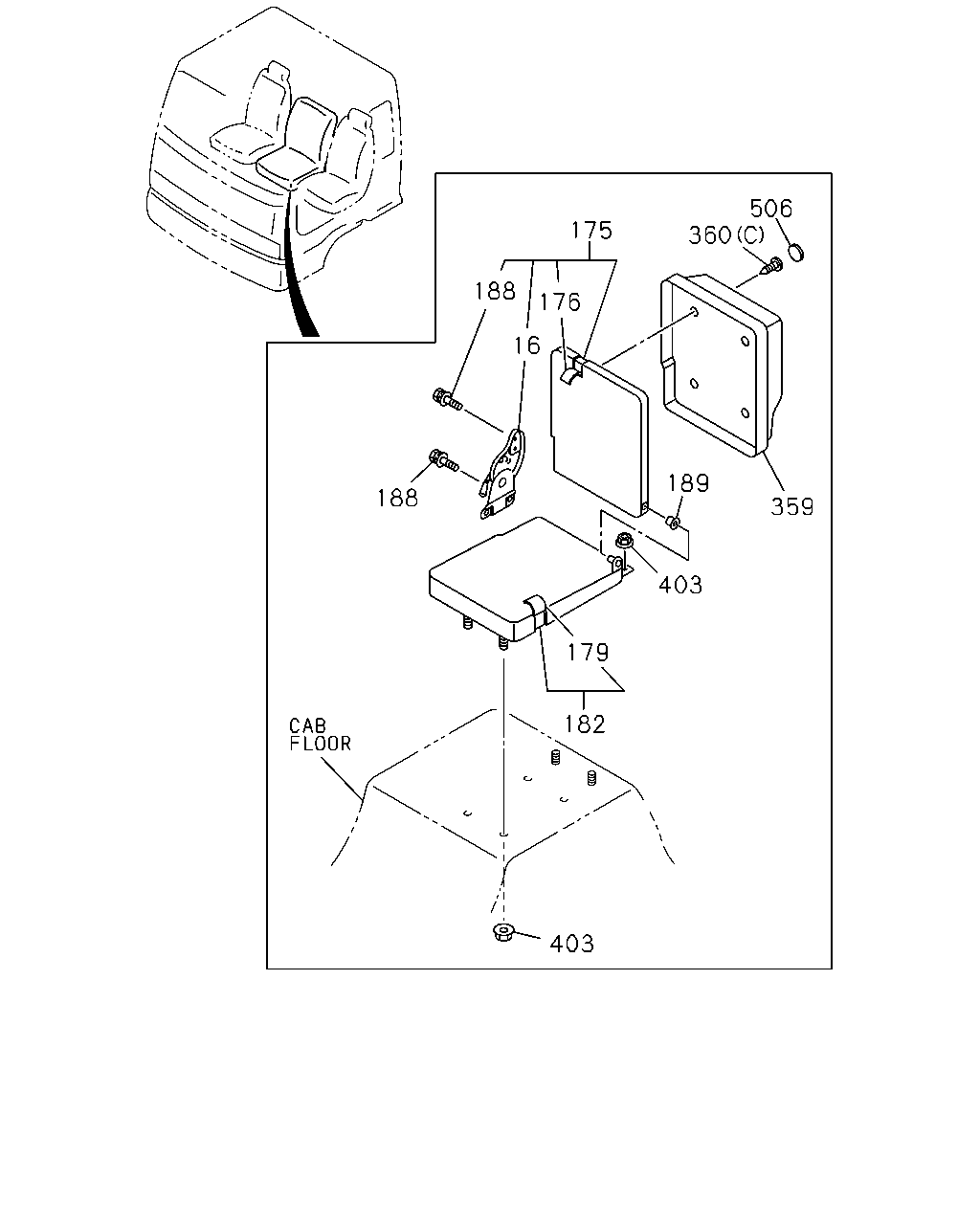

506 360 175 188 176 16 189 188 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING CENTER SEAT 3 CREWS<SA1>	1-75418-062-1	01	1	0411-
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-854-3	01	1	0411-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75026-856-3	01	1	0411-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-650-1	01	1	0411-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-710-1	01	1	0411-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-693-1	01	1	0411-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-692-1	01	1	0411-
182	CUSHION ASM; CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-842-4	01	1	0411-
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75026-841-4	01	1	0411-
188	BOLT; BACK TO CUSHION CENTER SEAT 3 CREWS<SA1> M10X16 FLANGE	1-75198-053-0	04	1	0411-
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT 3 CREWS<SA1>	8-97854-900-0	01	1	0411-
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1>	1-72538-275-4	01	1	0411-1006
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1>	8-98145-114-0	01	1	1007-
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0411-0612
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	0411-0612
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70040-416-0	06	1	0701-1104
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0411-1006
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE	1-75538-207-0	04	1	0411-0703
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE	0-91180-108-0	04	1	0704-
506	CAP; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-09983-180-3	04	1	0411-1006
506	CAP; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-09983-180-3	02	1	1007-

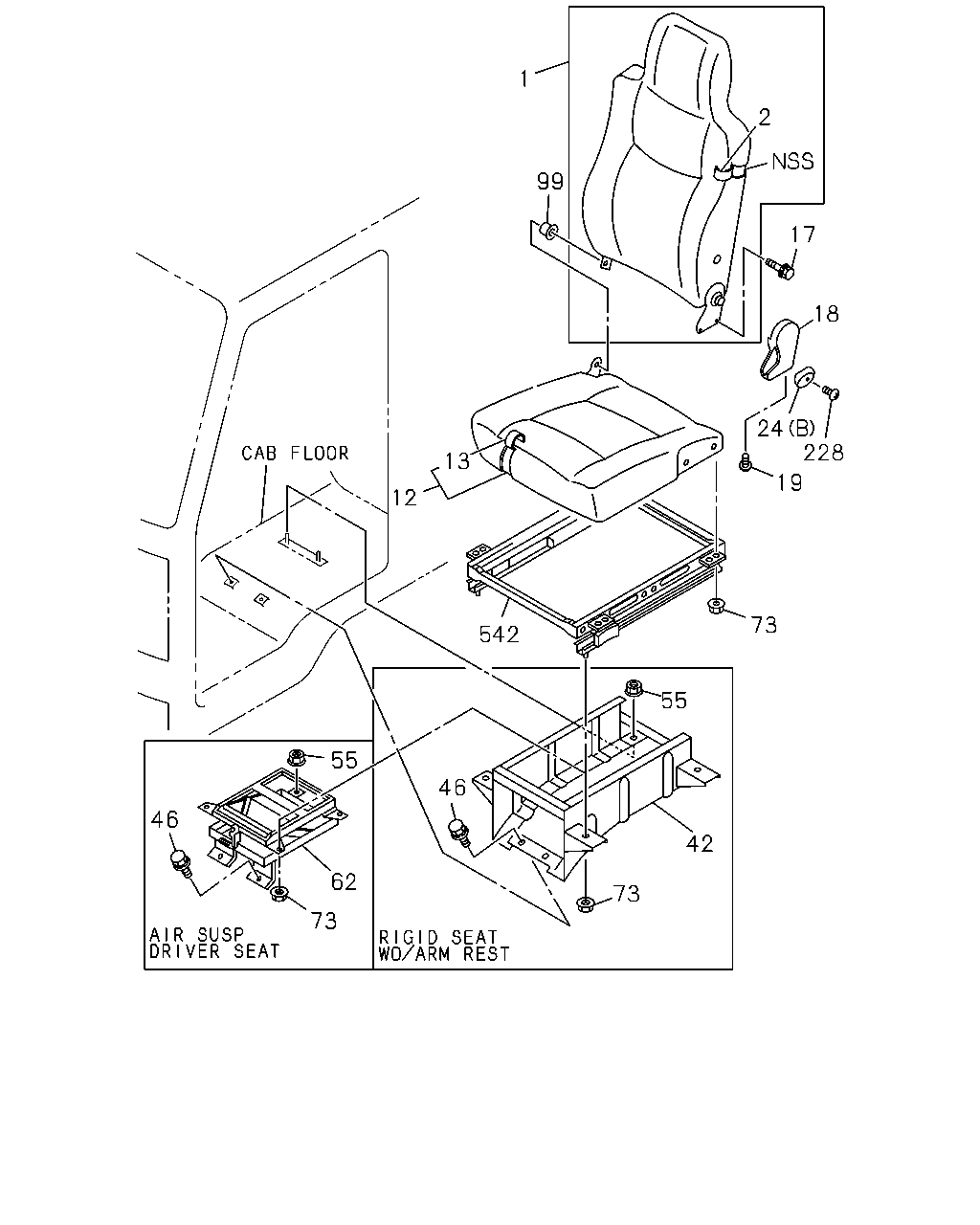

1 2 99 17 18 24 19 228 13 12 542 73 55 42 73 46 55 62 73 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75208-072-3	01	1	0411-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-3	01	1	0411-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-707-1	01	1	0411-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-1	01	1	0411-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-700-1	01	1	0411-
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-1	01	1	0411-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-688-1	01	1	0411-
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-1	01	1	0411-
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0411-
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0411-
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0411-
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0411-0710
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	0711-
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0411-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	0411-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0411-0703
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0411-0703
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0411-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0411-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0411-0501
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0411-
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0411-0710
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0411-0710
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-3	01	1	0411-1502
542	ADJUSTER ASM; SEAT SLIDE	8-98291-656-0	01	1	1503-

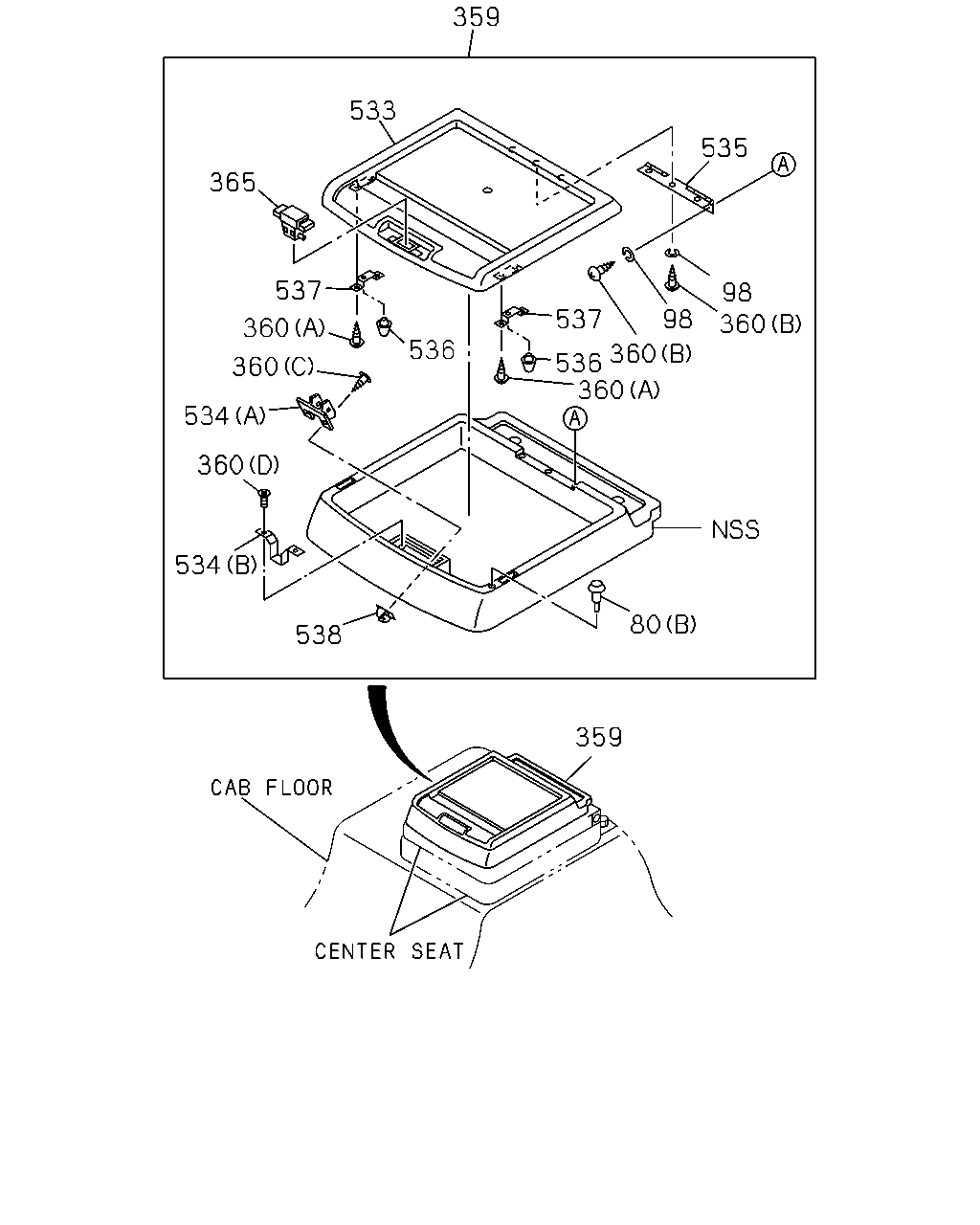

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-123-0	01	1	0411-
80	RUBBER; STOPPER CENTER SEAT 3 CREWS<SA1> (B)	1-72538-187-0	02	1	1007-
98	WASHER; HINGE CENTER SEAT 3 CREWS<SA1> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0411-
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1>	1-72538-275-4	01	1	0411-1006
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1>	8-98145-114-0	01	1	1007-
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0411-0612
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	0411-0612
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70040-416-0	06	1	0701-1104
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0411-1006
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-
365	LOCK ASM; SEAT CENTER SEAT 3 CREWS<SA1>	1-72538-180-0	01	1	0411-
533	LID; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-72538-277-1	01	1	0411-1006
533	LID; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	8-98145-118-0	01	1	1007-
534	STRIKER; PARCEL BOX CENTER SEAT 3 CREWS<SA1> (A)	1-72538-181-0	01	1	0411-1006
534	STRIKER; PARCEL BOX CENTER SEAT 3 CREWS<SA1> (B)	1-72538-190-0	01	1	1007-
535	HINGE; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-72447-391-1	01	1	0411-
536	RUBBER; CUSHION CENTER SEAT 3 CREWS<SA1>	5-09983-002-1	02	1	0411-1006
537	BRACKET; RUBBER CENTER SEAT 3 CREWS<SA1>	1-72548-057-1	02	1	0411-1006
538	GROMMET; SCREW CENTER SEAT 3 CREWS<SA1>	1-09983-165-0	02	1	0411-1006

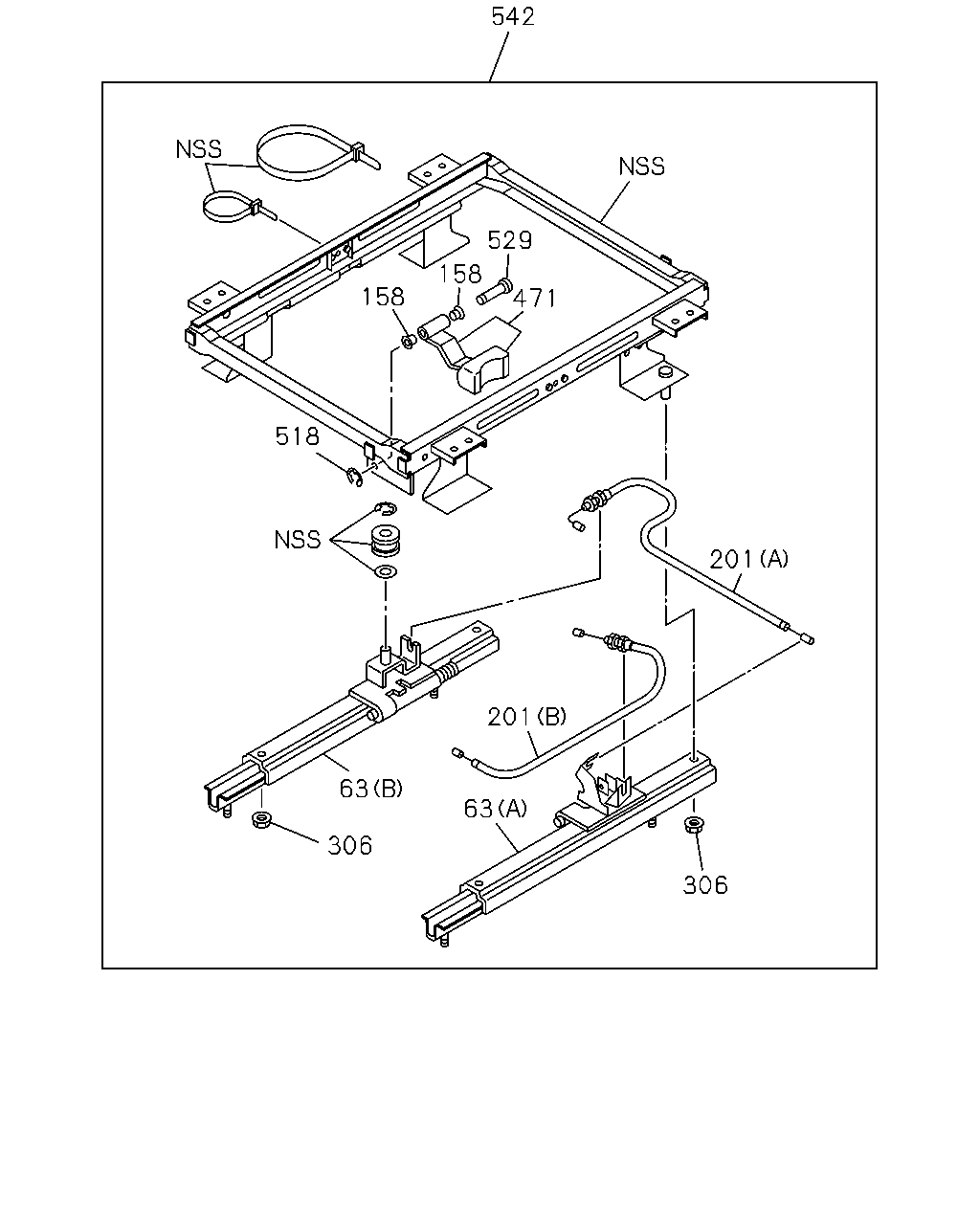

306 63 201 63 306 201 518 158 158 529 471 542

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	0411-
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-1	01	1	0411-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0411-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0411-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0411-
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0411-0501
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	12	1	0502-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0502-
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	0411-0710
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0711-
518	NUT; TILT ADJ	1-75518-263-0	01	1	0411-
529	PIN; LINK	1-75518-262-0	01	1	0411-
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-3	01	1	0411-1502
542	ADJUSTER ASM; SEAT SLIDE	8-98291-656-0	01	1	1503-

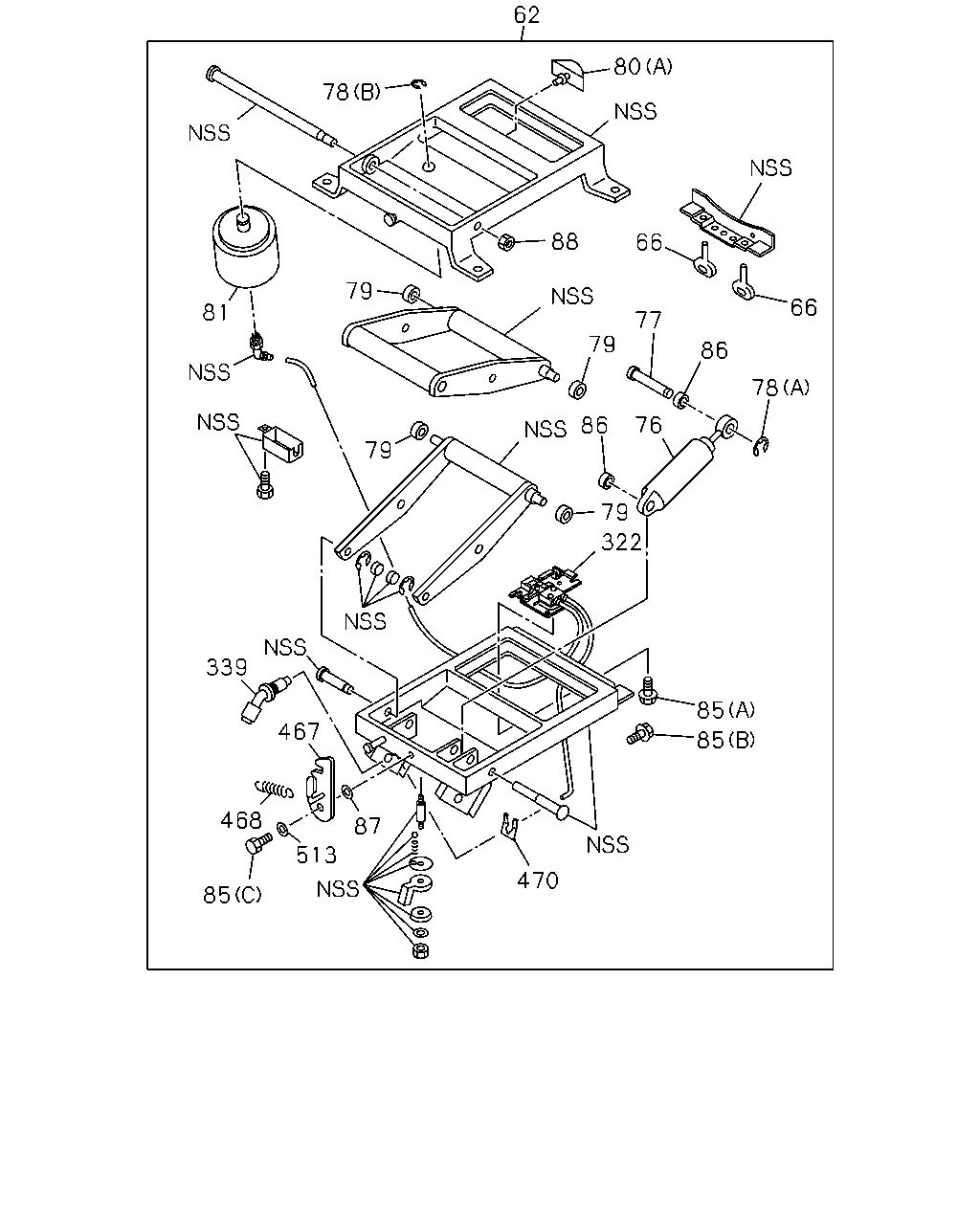

62 80 78 88 66 79 66 81 77 79 86 78 86 76 79 79 322 339 85 467 85 468 87 513 470 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0411-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	0411-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	0411-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	0411-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0411-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	0411-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	0411-1403
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-123-0	01	1	0411-
80	RUBBER; STOPPER CENTER SEAT 3 CREWS<SA1> (B)	1-72538-187-0	02	1	1007-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	1-75538-151-2	01	1	0411-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	8-98242-816-0	01	1	1401-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	0411-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	0411-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0411-1312
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0411-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	9-09150-508-0	01	1	0411-0710
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	0711-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	0411-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-187-3	01	1	0411-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75538-131-3	01	1	0411-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	0411-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56>	1-75538-132-0	01	1	0411-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	0411-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	0411-
