Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#59530) — 25 parça

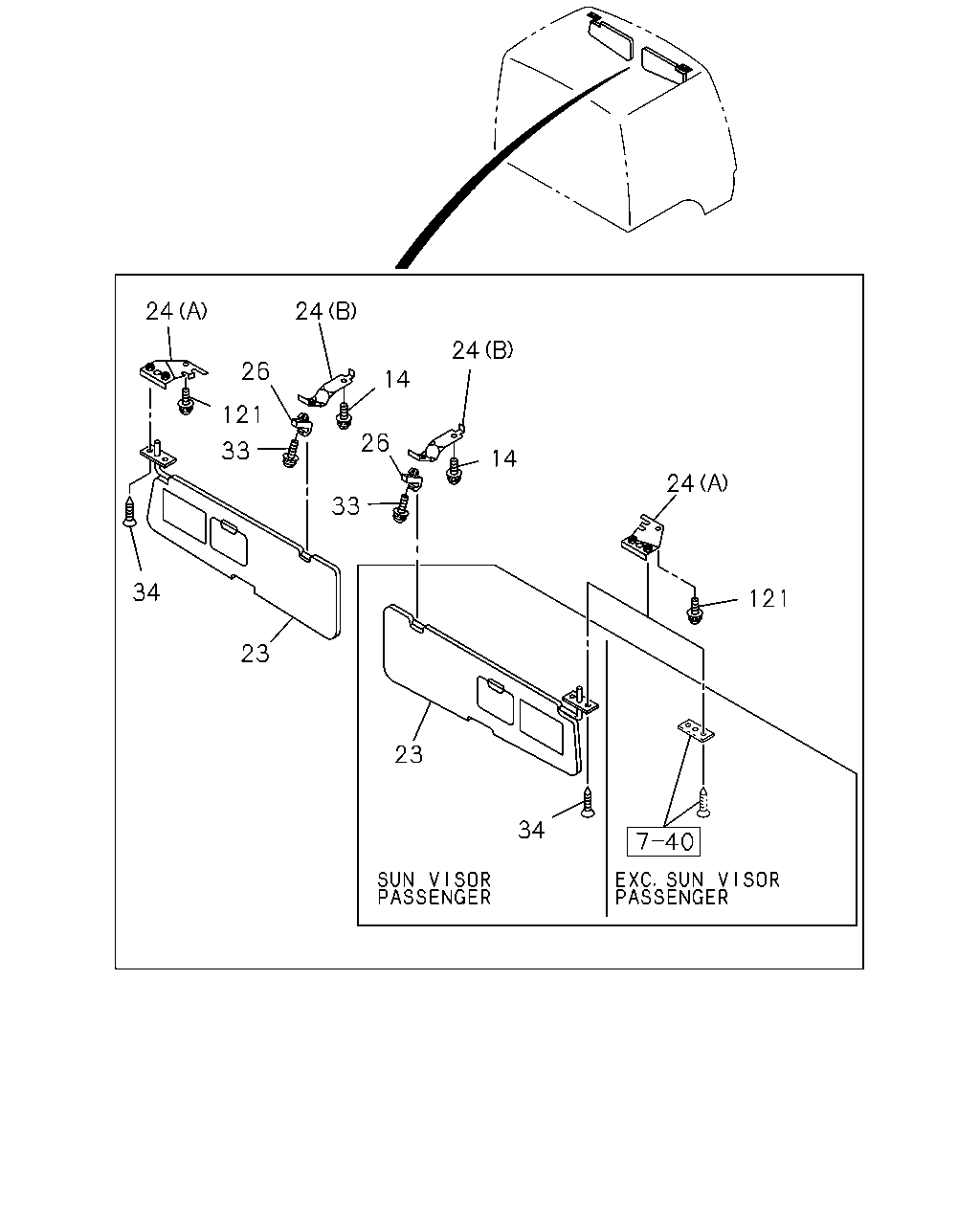

24 24 24 26 14 121 26 33 14 24 33 34 121 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	SCREW; BRKT M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	0411-
23	SUN VISOR	1-73138-157-1	01	1	0411-
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-156-1	01	1	0411-
24	BRACKET; SUN VISOR (B)	1-73138-145-0	02	1	0411-
24	BRACKET; SUN VISOR (A)	1-73138-144-1	01	1	0411-
24	BRACKET; SUN VISOR (A)	1-73138-143-1	01	1	0411-
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0411-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0411-0603
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	0411-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	0411-
121	SCREW; BRKT,SUN VISOR M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	0411-

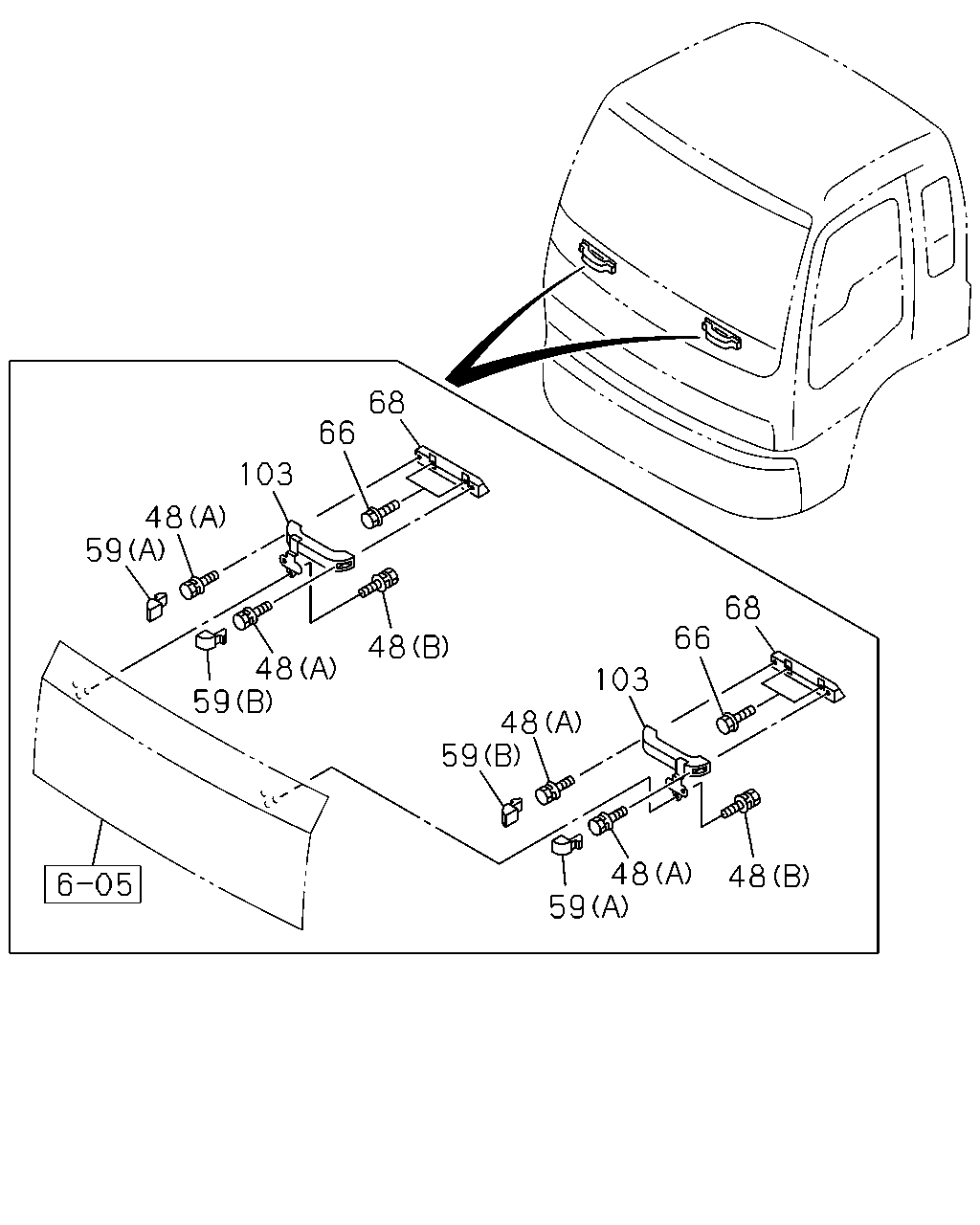

68 66 103 48 59 68 66 48 48 59 103 48 59 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0411-
48	BOLT; ASSIST GRIP (A) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0411-
59	COVER; ASSIST GRIP (A) OUTER	1-71998-789-2	02	1	0411-
59	COVER; ASSIST GRIP (B) INNER	1-71998-790-2	02	1	0411-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0411-
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	0411-
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	0411-
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	0411-

71 142 54 150 149 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	GRIP; ASSIST,QUARTER SIDE	1-73618-185-1	02	1	0411-
71	SCREW M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0411-
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	03	1	0411-
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0411-
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0411-
