2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#5953) — 140 parça

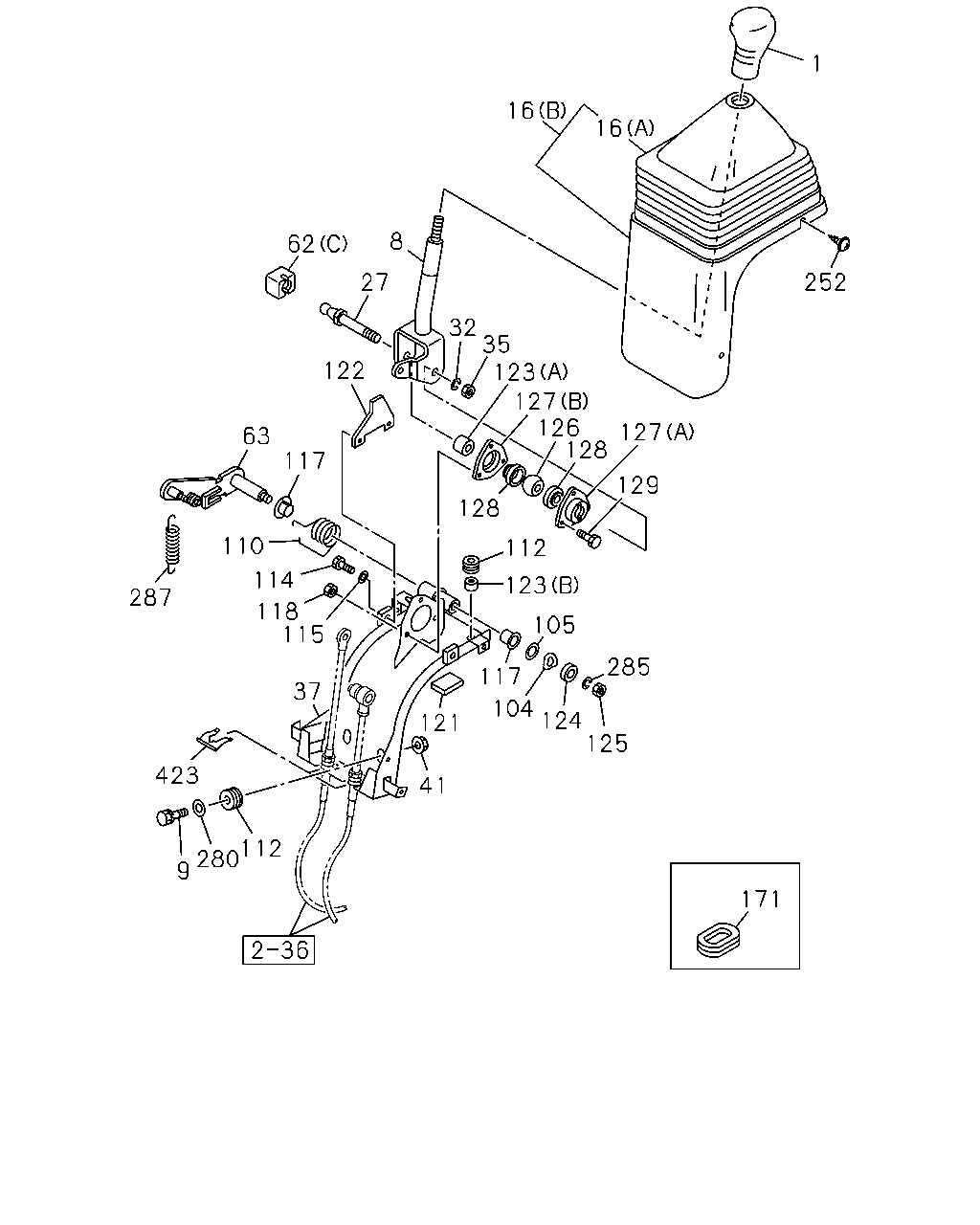

1 16 16 8 62 252 27 32 35 123 127 126 128 122 127 63 117 129 128 110 112 114 123 287 118 115 105 117 285 37 104 124 125 121 423 41 112 280 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	KNOB; CHANGE LEVER DARK GRAY	1-33611-050-1	01	1	9606-9810	●	●
1	KNOB; CHANGE LEVER DARK BLUE	1-33611-053-1	01	1	9606-9810			●
1	KNOB; CHANGE LEVER DARK GRAY	1-33611-054-1	01	1	9610-9810				●
1	KNOB; CHANGE LEVER	1-33611-070-1	01	1	9811-					●
8	LEVER; CHANGE	1-33613-333-0	01	1	9606-9810	●	●	●
8	LEVER; CHANGE	1-33619-462-0	01	1	9811-					●
8	LEVER; CHANGE	1-33613-304-0	01	1	9610-9810				●
9	BOLT; CHANGE LEVER M8X25 FLANGE	0-28680-825-0	02	1	9606-9810	●	●	●	●
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	9811-					●
16	BOOT; CHANGE LEVER (A)	1-79998-630-0	01	1	9606-9810	●	●	●	●
16	BOOT; CHANGE LEVER (C)	1-79998-913-1	01	1	9811-					●
16	BOOT; CHANGE LEVER (B)	1-79998-645-2	01	1	9606-9810	●	●	●	●
27	STUD; BALL,CHANGE LEVER	1-33619-259-0	01	1	9610-9810				●
32	WASHER; LK,BALL STUD,CHANGE LEVER ID=12.2	9-09150-512-0	01	1	9610-9810				●
35	NUT; BALL STUD,CHANGE LEVER M12	9-99111-412-0	01	1	9610-9810				●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-333-0	01	1	9606-9810	●	●	●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-461-0	01	1	9811-					●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-267-3	01	1	9610-9810				●
41	NUT; CHANGE LEVER M8 FLANGE	5-09440-005-0	02	1	9606-9810	●	●	●
41	NUT; CHANGE LEVER M8 W/LK WASHER	8-97065-435-0	02	1	9811-0107	●	●	●
41	NUT; CHANGE LEVER M8 FLANGE	8-97046-127-0	02	1	0108-	●	●	●
41	NUT; CHANGE LEVER M8 FLANGE	1-09464-018-1	02	1	9610-9810				●
62	SEAT; BALL,CHANGE LEVER (C)	8-94447-303-0	01	1	9610-9810				●
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	9811-					●
62	SEAT; BALL,CHANGE LEVER (B)	8-97011-900-0	01	1	9811-					●
63	LEVER; RELAY,SELECT	1-33651-442-0	01	1	9610-9810				●
104	WASHER; WAVED	1-09550-009-0	02	1	9606-9810	●	●	●
104	WASHER; WAVED	1-09550-009-0	01	1	9811-					●
104	WASHER; WAVED	1-09550-009-0	01	1	9610-9810				●
105	SHIM; CHANGE LEVER	9-41119-031-0	01	1	9610-9810				●
110	SPRING; RETURN,CHANGE LEVER	1-09583-303-0	01	1	9606-9810	●	●	●
110	SPRING; RETURN,CHANGE LEVER	1-33619-435-0	01	1	9811-					●
110	SPRING; RETURN,CHANGE LEVER	1-09585-117-0	01	1	9610-9810				●
112	RUBBER; CUSHION	1-33619-337-0	01	1	9606-9810	●	●	●
112	RUBBER; CUSHION	1-33619-442-0	04	1	9811-					●
112	RUBBER; CUSHION	1-33619-266-0	04	1	9610-9810				●
114	BOLT; STOPPER PLATE M6X10	0-20800-610-0	02	1	9610-9810				●
115	WASHER; LK,STOPPER PLATE ID=6.1	9-09150-506-0	02	1	9610-9810				●
117	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	02	1	9610-9810				●
118	NUT; SUPPORT,CHANGE LEVER M6 FLANGE	0-91150-106-0	03	1	9610-9810				●
121	SEAL; CHANGE LEVER	1-33619-265-0	02	1	9610-9810				●
122	PLATE; STOPPER,RETURN SPRING	1-33619-262-0	01	1	9610-9810				●
123	COLLAR; DIST,CHANGE LEVER (A)	1-33619-195-1	01	1	9610-9810				●
123	COLLAR; DIST,CHANGE LEVER (B)	1-33619-238-0	04	1	9610-9810				●
123	COLLAR; DIST,CHANGE LEVER (C)	1-33619-443-0	04	1	9811-					●
124	WASHER; PL,RELAY LEVER ID=10.5 OD=22	9-09160-610-0	01	1	9610-9810				●
125	NUT; ARM M10	9-09110-410-0	01	1	9610-9810				●
126	BOSS; CHANGE LEVER	1-33615-028-0	01	1	9610-9810				●
127	SUPPORT; CHANGE LEVER (B) T=10	1-33619-207-0	01	1	9610-9810				●
127	SUPPORT; CHANGE LEVER (A) T=18	1-33619-260-0	01	1	9610-9810				●
128	GUIDE; LEVER BALL	1-33619-261-0	02	1	9610-9810				●
129	BOLT; SUPPORT,CHANGE LEVER M6X20	0-20800-620-0	03	1	9610-9810				●
171	GROMMET; CONT ROD	1-09983-098-0	01	1	9606-9609	●	●	●	●
171	GROMMET; CONT ROD	1-09983-098-0	02	1	9610-9810	●	●	●	●
252	BOLT; COVER,CHANGE LEVER M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	9606-9810	●	●	●	●
280	WASHER; PL ID=8.4 OD=22	9-09160-708-0	02	1	9606-9810	●	●	●	●
285	WASHER; LK,RELAY LEVER ID=10.2	9-09150-510-0	01	1	9610-9810				●
287	SPRING; COIL,CHANGE LEVER	1-09583-251-0	01	1	9610-9810				●
423	CLIP; BAND	1-09700-966-1	02	1	9606-9810	●	●	●	●

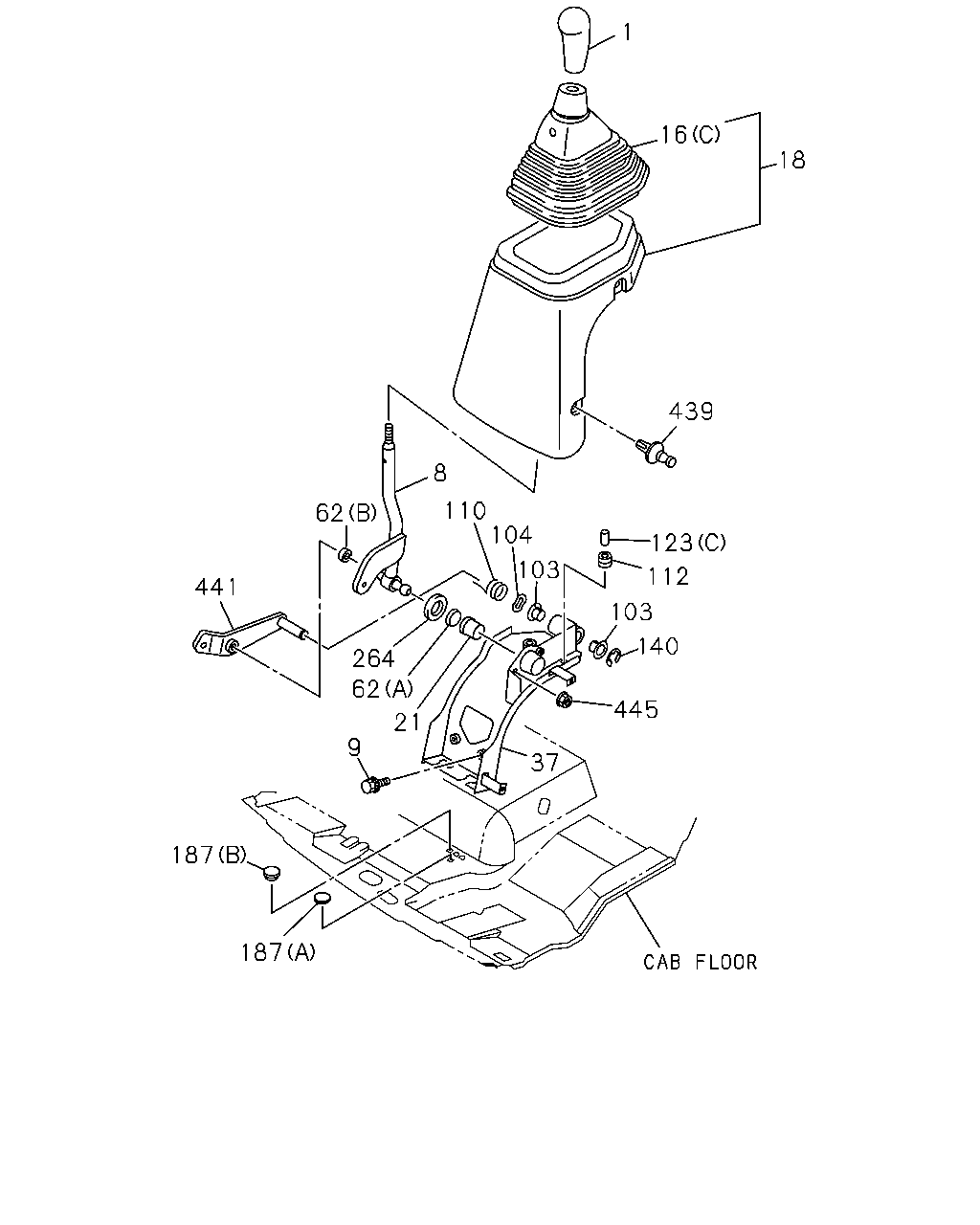

1 16 18 439 8 110 104 62 123 103 112 441 103 140 264 62 445 21 37 9 187 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	KNOB; CHANGE LEVER DARK GRAY	1-33611-050-1	01	1	9606-9810	●	●
1	KNOB; CHANGE LEVER DARK BLUE	1-33611-053-1	01	1	9606-9810			●
1	KNOB; CHANGE LEVER DARK GRAY	1-33611-054-1	01	1	9610-9810				●
1	KNOB; CHANGE LEVER	1-33611-070-1	01	1	9811-					●
8	LEVER; CHANGE	1-33613-333-0	01	1	9606-9810	●	●	●
8	LEVER; CHANGE	1-33619-462-0	01	1	9811-					●
8	LEVER; CHANGE	1-33613-304-0	01	1	9610-9810				●
9	BOLT; CHANGE LEVER M8X25 FLANGE	0-28680-825-0	02	1	9606-9810	●	●	●	●
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	9811-					●
16	BOOT; CHANGE LEVER (A)	1-79998-630-0	01	1	9606-9810	●	●	●	●
16	BOOT; CHANGE LEVER (C)	1-79998-913-1	01	1	9811-					●
16	BOOT; CHANGE LEVER (B)	1-79998-645-2	01	1	9606-9810	●	●	●	●
18	BOOT; CHANGE LEVER	1-79998-910-1	01	1	9811-	●	●	●
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	9811-					●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-333-0	01	1	9606-9810	●	●	●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-461-0	01	1	9811-					●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-267-3	01	1	9610-9810				●
62	SEAT; BALL,CHANGE LEVER (C)	8-94447-303-0	01	1	9610-9810				●
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	9811-					●
62	SEAT; BALL,CHANGE LEVER (B)	8-97011-900-0	01	1	9811-					●
103	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	04	1	9606-9810	●	●	●
103	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	02	1	9811-					●
104	WASHER; WAVED	1-09550-009-0	02	1	9606-9810	●	●	●
104	WASHER; WAVED	1-09550-009-0	01	1	9811-					●
104	WASHER; WAVED	1-09550-009-0	01	1	9610-9810				●
110	SPRING; RETURN,CHANGE LEVER	1-09583-303-0	01	1	9606-9810	●	●	●
110	SPRING; RETURN,CHANGE LEVER	1-33619-435-0	01	1	9811-					●
110	SPRING; RETURN,CHANGE LEVER	1-09585-117-0	01	1	9610-9810				●
112	RUBBER; CUSHION	1-33619-337-0	01	1	9606-9810	●	●	●
112	RUBBER; CUSHION	1-33619-442-0	04	1	9811-					●
112	RUBBER; CUSHION	1-33619-266-0	04	1	9610-9810				●
123	COLLAR; DIST,CHANGE LEVER (A)	1-33619-195-1	01	1	9610-9810				●
123	COLLAR; DIST,CHANGE LEVER (B)	1-33619-238-0	04	1	9610-9810				●
123	COLLAR; DIST,CHANGE LEVER (C)	1-33619-443-0	04	1	9811-					●
140	RING; SNAP ID=10	9-09185-410-0	01	1	9811-0604					●
140	RING; SNAP ID=10	0-91805-510-0	01	1	0605-					●
187	GROMMET; HOLE,CHANGE LEVER (A)	1-09983-016-0	01	1	9811-					●
187	GROMMET; HOLE,CHANGE LEVER (B)	1-09983-098-0	01	1	9811-					●
264	PLATE; COVER	1-33619-430-0	01	1	9811-					●
439	FASTENER; COVER	1-09987-245-1	04	1	9811-					●
441	LEVER; SELECT	1-33619-437-2	01	1	9811-					●
445	NUT; PLATE M6 FLANGE	0-91150-106-0	02	1	9811-0602					●
445	NUT; PLATE M6 FLANGE	0-91180-106-0	02	1	0603-					●

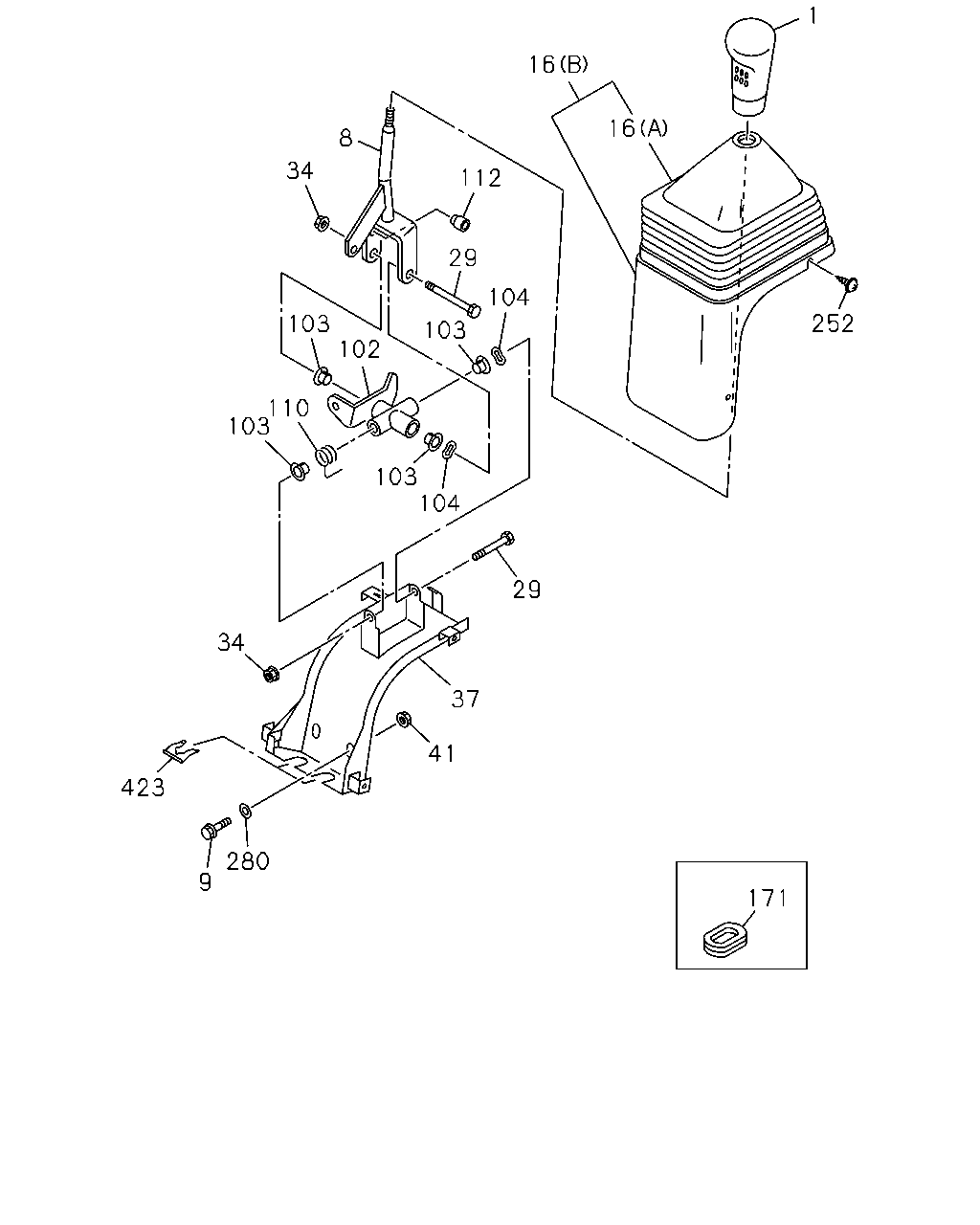

1 16 16 8 34 112 29 104 252 103 103 102 110 103 103 104 29 34 37 41 423 280 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	KNOB; CHANGE LEVER DARK GRAY	1-33611-050-1	01	1	9606-9810	●	●
1	KNOB; CHANGE LEVER DARK BLUE	1-33611-053-1	01	1	9606-9810			●
1	KNOB; CHANGE LEVER DARK GRAY	1-33611-054-1	01	1	9610-9810				●
1	KNOB; CHANGE LEVER	1-33611-070-1	01	1	9811-					●
8	LEVER; CHANGE	1-33613-333-0	01	1	9606-9810	●	●	●
8	LEVER; CHANGE	1-33619-462-0	01	1	9811-					●
8	LEVER; CHANGE	1-33613-304-0	01	1	9610-9810				●
9	BOLT; CHANGE LEVER M8X25 FLANGE	0-28680-825-0	02	1	9606-9810	●	●	●	●
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	9811-					●
16	BOOT; CHANGE LEVER (A)	1-79998-630-0	01	1	9606-9810	●	●	●	●
16	BOOT; CHANGE LEVER (C)	1-79998-913-1	01	1	9811-					●
16	BOOT; CHANGE LEVER (B)	1-79998-645-2	01	1	9606-9810	●	●	●	●
29	SHAFT	1-33619-336-0	02	1	9606-9810	●	●	●
34	NUT M10 FLANGE	0-91150-110-0	02	1	9606-9810	●	●	●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-333-0	01	1	9606-9810	●	●	●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-461-0	01	1	9811-					●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-267-3	01	1	9610-9810				●
41	NUT; CHANGE LEVER M8 FLANGE	5-09440-005-0	02	1	9606-9810	●	●	●
41	NUT; CHANGE LEVER M8 W/LK WASHER	8-97065-435-0	02	1	9811-0107	●	●	●
41	NUT; CHANGE LEVER M8 FLANGE	8-97046-127-0	02	1	0108-	●	●	●
41	NUT; CHANGE LEVER M8 FLANGE	1-09464-018-1	02	1	9610-9810				●
102	SPIDER ASM	1-33619-335-0	01	1	9606-9810	●	●	●
103	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	04	1	9606-9810	●	●	●
103	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	02	1	9811-					●
104	WASHER; WAVED	1-09550-009-0	02	1	9606-9810	●	●	●
104	WASHER; WAVED	1-09550-009-0	01	1	9811-					●
104	WASHER; WAVED	1-09550-009-0	01	1	9610-9810				●
110	SPRING; RETURN,CHANGE LEVER	1-09583-303-0	01	1	9606-9810	●	●	●
110	SPRING; RETURN,CHANGE LEVER	1-33619-435-0	01	1	9811-					●
110	SPRING; RETURN,CHANGE LEVER	1-09585-117-0	01	1	9610-9810				●
112	RUBBER; CUSHION	1-33619-337-0	01	1	9606-9810	●	●	●
112	RUBBER; CUSHION	1-33619-442-0	04	1	9811-					●
112	RUBBER; CUSHION	1-33619-266-0	04	1	9610-9810				●
171	GROMMET; CONT ROD	1-09983-098-0	01	1	9606-9609	●	●	●	●
171	GROMMET; CONT ROD	1-09983-098-0	02	1	9610-9810	●	●	●	●
252	BOLT; COVER,CHANGE LEVER M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	9606-9810	●	●	●	●
280	WASHER; PL ID=8.4 OD=22	9-09160-708-0	02	1	9606-9810	●	●	●	●
423	CLIP; BAND	1-09700-966-1	02	1	9606-9810	●	●	●	●
