Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#5952) — 616 parça

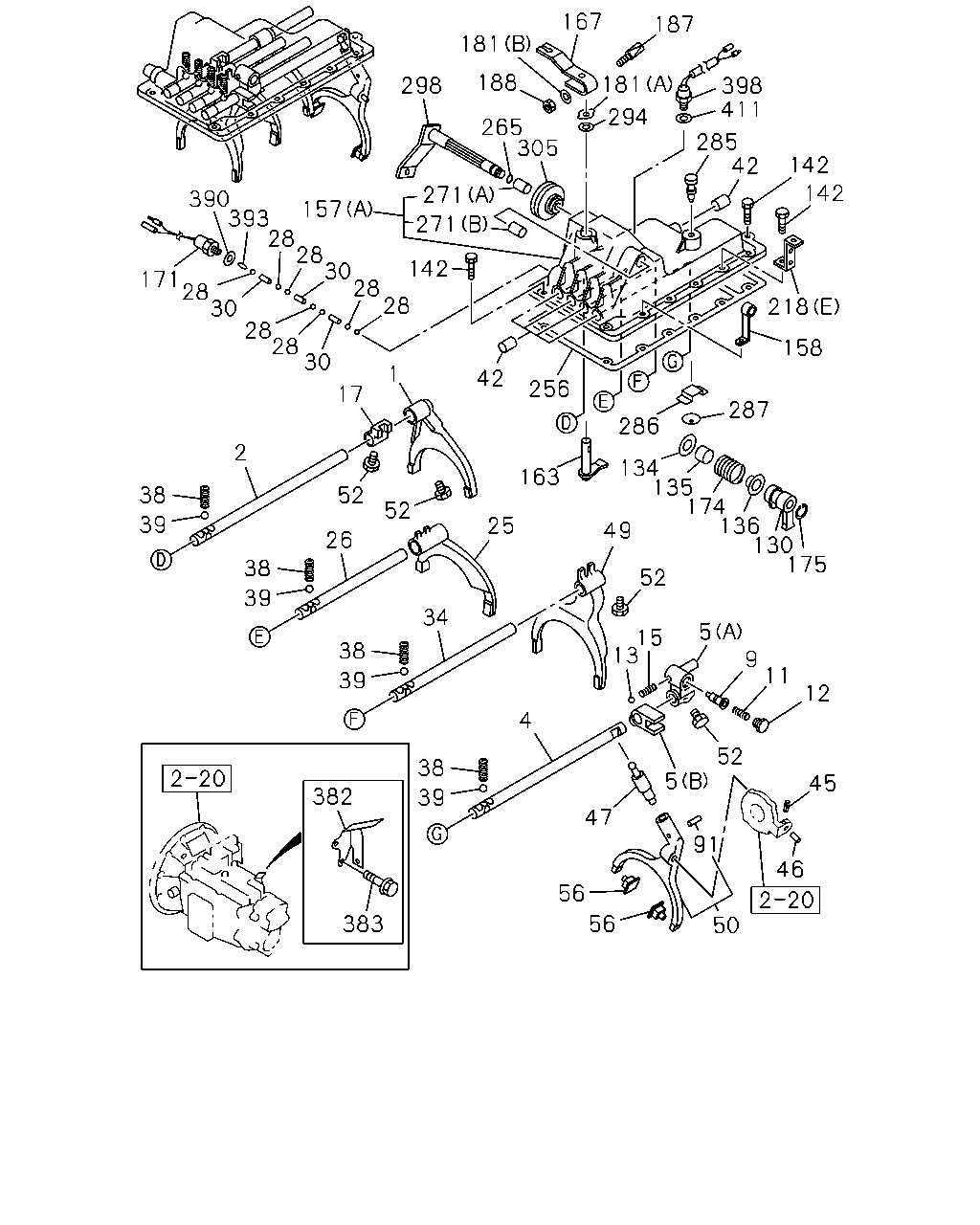

382 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
382	BRACKET; PARKING BRK CONT CABLE	1-46147-137-1	01	1	9606-9810	●	●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-136-3	01	1	9606-9810			●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-0	01	1	9610-9810				●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-1	01	1	9811-					●
383	BOLT; BRKT,PARK BRAKE M10X16 FLANGE	0-28181-016-0	01	1	9606-9810			●
383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	9610-9810				●
383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	9811-					●

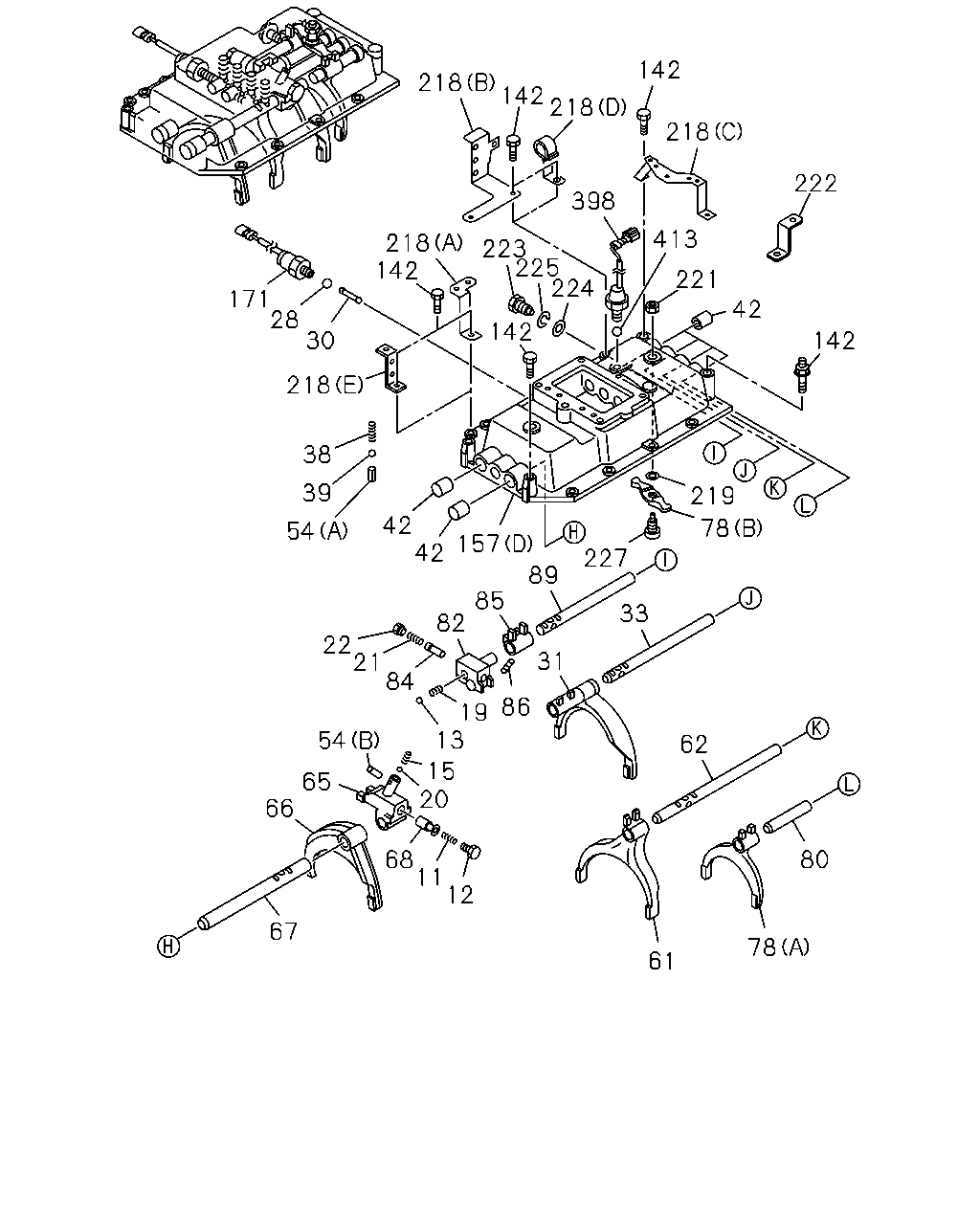

142 218 142 218 218 222 398 413 218 142 223 225 224 221 171 28 30 42 142 142 218 38 219 39 42 42 78 54 227 157 89 85 82 33 22 21 84 31 86 19 13 54 62 15 20 65 66 80 68 11 12 67 78 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9606-9609			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9610-9810			●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9811-					●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9606-9609			●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9610-9810			●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9811-					●
13	BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	9606-9810			●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9610-9810				●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9811-					●
15	SPRING; LK,SHIFT SLEEVE	1-09580-526-0	01	1	9606-9810			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9610-9810				●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9811-					●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9610-9810				●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9811-					●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9610-9810				●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9811-					●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9610-9810				●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9811-					●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9610-9810				●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9811-					●
28	BALL; INTER LK	9-00097-010-0	05	1	9606-9810	●	●
28	BALL; INTER LK	9-00097-010-0	07	1	9606-9810			●
28	BALL; INTER LK	9-00097-501-0	04	1	9610-9810				●
28	BALL; INTER LK	9-00097-501-0	04	1	9811-					●
30	PIN; INTER LK	1-33534-002-0	02	1	9606-9810	●	●
30	PIN; INTER LK	1-33534-002-0	03	1	9606-9810			●
30	PIN; INTER LK	9-33534-003-0	03	1	9610-9810				●
30	PIN; INTER LK	9-33534-003-0	03	1	9811-					●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9610-9810				●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9811-					●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9610-9810				●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9811-					●
38	SPRING; DETENT	1-09580-374-0	03	1	9606-9810	●	●
38	SPRING; DETENT	1-09580-374-0	04	1	9606-9810			●
38	SPRING; DETENT	1-09580-419-0	04	1	9610-9810				●
38	SPRING; DETENT	1-09580-419-0	04	1	9811-					●
39	BALL; DETENT	9-00097-013-0	03	1	9606-9810	●	●
39	BALL; DETENT	9-00097-013-0	04	1	9606-9810			●
39	BALL; DETENT	1-09843-012-0	04	1	9610-9810				●
39	BALL; DETENT	1-09843-012-0	04	1	9811-					●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9606-9810	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9606-9810	●	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	05	1	9606-9810			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9610-9810				●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9811-					●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9610-9810				●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9811-0201					●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9610-9810				●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9811-					●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9610-9810				●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9811-					●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9610-9810				●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9811-					●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-308-1	01	1	9610-9810				●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-513-0	01	1	9811-					●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9610-9810				●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9811-					●
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	9610-9810				●
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	9811-					●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9610-9810				●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9811-					●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9610-9810				●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9811-					●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9610-9810				●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9811-					●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9610-9810				●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9811-					●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9610-9810				●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9811-					●
84	SLEEVE; REV	1-33516-025-0	01	1	9610-9810				●
84	SLEEVE; REV	1-33516-025-0	01	1	9811-					●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9610-9810				●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9811-					●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	9610-9810				●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	9811-					●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9610-9810				●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9811-					●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	08	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	09	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	01	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	01	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X34 FLANGE REAMER	1-09040-091-0	01	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	02	1	9606-9810	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9606-9609	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9610-9810	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	9811-0805					●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-					●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	11	1	9606-9810			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9811-0805					●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	0806-					●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9610-9810				●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9610-9810				●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	9811-0512					●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28151-060-0	03	1	0601-					●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9610-9810				●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	9811-					●
157	BOX; QUAD,TRANS (A)	1-33541-353-1	01	1	9606-9810	●	●
157	BOX; QUAD,TRANS (A)	1-33541-437-0	01	1	9606-9810			●
157	BOX; QUAD,TRANS (B)	1-33541-392-1	01	1	9610-9810				●
157	BOX; QUAD,TRANS (C)	1-33541-478-0	01	1	9811-					●
157	BOX; QUAD,TRANS (D)	1-33541-480-0	01	1	9610-9810				●
157	BOX; QUAD,TRANS (D)	1-33541-480-0	01	1	9811-					●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9606-9810	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9610-9810				●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9811-0702					●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801					●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-					●
218	BRACKET; HARNESS CLIP,QUAD BOX (E)	1-47476-812-1	01	1	9606-9609	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (E)	1-47476-812-1	01	1	9610-9810	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9811-					●
218	BRACKET; HARNESS CLIP,QUAD BOX (D) ID=11	1-09700-415-0	01	1	9610-9810				●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	9811-					●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	9811-					●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9610-9810				●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9811-					●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9610-9810				●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9811-0602					●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-					●
222	BRACKET; CLIP	1-47475-868-0	02	1	9610-9810				●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9610-9810				●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9811-					●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9610-9810				●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9811-0605					●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-					●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9610-9810				●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9811-0603					●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-					●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9610-9810				●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9811-					●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9606-9609	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9610-9810	●	●	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9811-0602					●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-					●
413	BALL; BACK SW	9-00097-013-0	01	1	9610-9810				●
413	BALL; BACK SW	9-00097-013-0	01	1	9811-					●

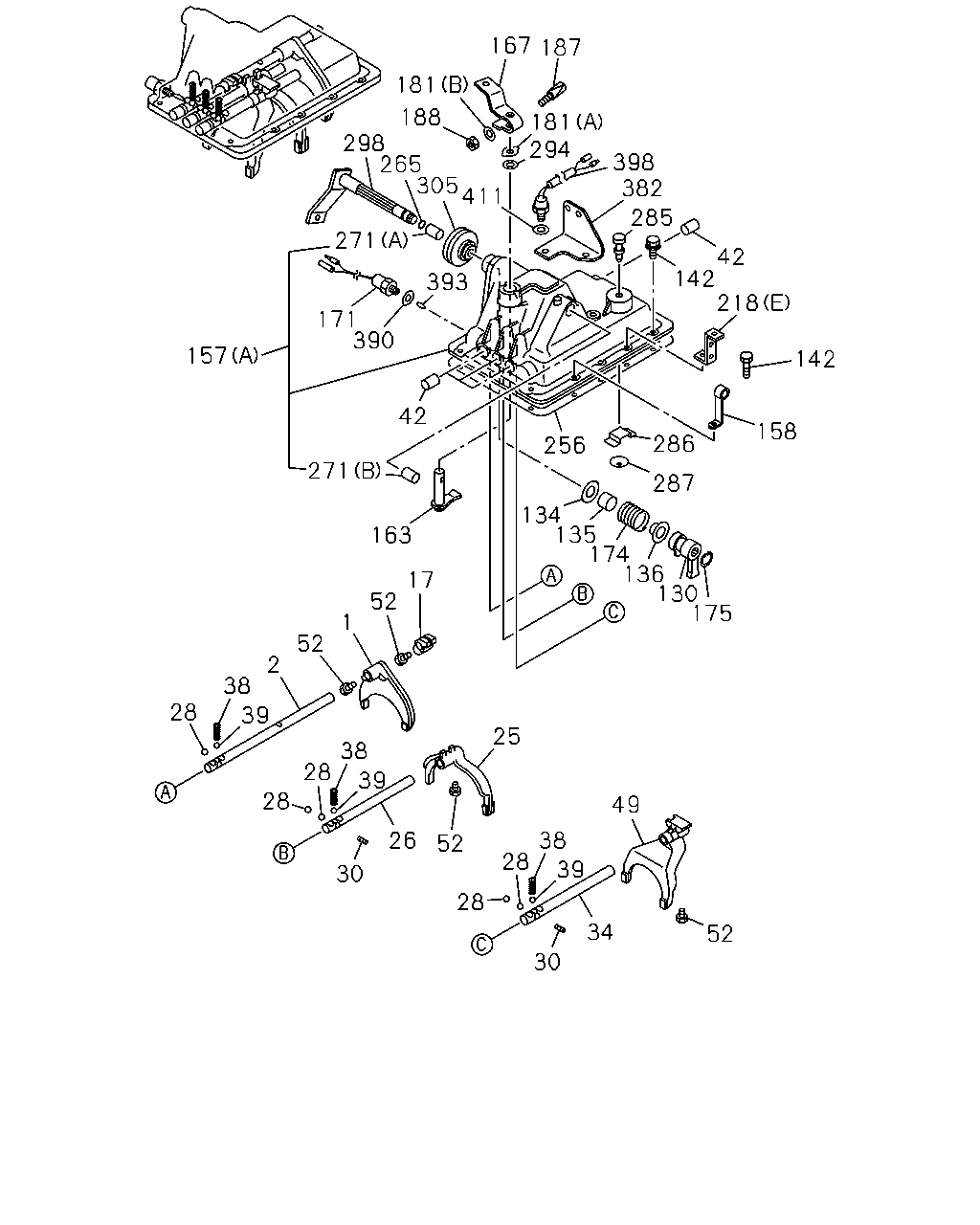

167 187 181 188 181 294 298 265 305 411 398 382 285 271 42 142 218 393 171 390 157 142 42 158 286 256 271 287 134 135 174 136 130 175 163 17 52 1 52 2 38 28 39 25 38 28 39 28 49 38 28 26 52 39 30 28 34 52 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	ARM; SHIFT,1ST & REV	1-33511-078-3	01	1	9606-9810	●	●	●
2	ROD; SHIFT,1ST & REV	1-33531-318-2	01	1	9606-9810	●	●	●
17	BLOCK; SHIFT,1ST & REV	1-33511-325-1	01	1	9606-9810	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-442-0	01	1	9606-9810	●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-342-1	01	1	9606-9810	●	●	●
28	BALL; INTER LK	9-00097-010-0	05	1	9606-9810	●	●
28	BALL; INTER LK	9-00097-010-0	07	1	9606-9810			●
28	BALL; INTER LK	9-00097-501-0	04	1	9610-9810				●
28	BALL; INTER LK	9-00097-501-0	04	1	9811-					●
30	PIN; INTER LK	1-33534-002-0	02	1	9606-9810	●	●
30	PIN; INTER LK	1-33534-002-0	03	1	9606-9810			●
30	PIN; INTER LK	9-33534-003-0	03	1	9610-9810				●
30	PIN; INTER LK	9-33534-003-0	03	1	9811-					●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-343-1	01	1	9606-9810	●	●	●
38	SPRING; DETENT	1-09580-374-0	03	1	9606-9810	●	●
38	SPRING; DETENT	1-09580-374-0	04	1	9606-9810			●
38	SPRING; DETENT	1-09580-419-0	04	1	9610-9810				●
38	SPRING; DETENT	1-09580-419-0	04	1	9811-					●
39	BALL; DETENT	9-00097-013-0	03	1	9606-9810	●	●
39	BALL; DETENT	9-00097-013-0	04	1	9606-9810			●
39	BALL; DETENT	1-09843-012-0	04	1	9610-9810				●
39	BALL; DETENT	1-09843-012-0	04	1	9811-					●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9606-9810	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9606-9810	●	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	05	1	9606-9810			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9610-9810				●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9811-					●
49	ARM; SHIFT,4TH & 5TH	1-33511-446-1	01	1	9606-9810	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-445-0	01	1	9606-9810			●
52	BOLT; SHIFT ARM	1-09052-034-2	04	1	9606-9810	●	●
52	BOLT; SHIFT ARM	1-09052-034-2	06	1	9606-9810			●
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9606-9810	●	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-093-1	01	1	9610-9810				●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9811-					●
134	SEAT; REV RESIST SPR	1-33549-105-0	01	1	9606-9810	●	●	●
135	STOPPER; LOW & REV,SELECT	1-33537-018-0	01	1	9606-9810	●	●	●
136	SLEEVE; REV RESIST SPR	1-33516-030-0	01	1	9606-9810	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	08	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	09	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	01	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	01	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X34 FLANGE REAMER	1-09040-091-0	01	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	02	1	9606-9810	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9606-9609	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9610-9810	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	9811-0805					●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-					●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	11	1	9606-9810			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9811-0805					●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	0806-					●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9610-9810				●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9610-9810				●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	9811-0512					●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28151-060-0	03	1	0601-					●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9610-9810				●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	9811-					●
157	BOX; QUAD,TRANS (A)	1-33541-353-1	01	1	9606-9810	●	●
157	BOX; QUAD,TRANS (A)	1-33541-437-0	01	1	9606-9810			●
157	BOX; QUAD,TRANS (B)	1-33541-392-1	01	1	9610-9810				●
157	BOX; QUAD,TRANS (C)	1-33541-478-0	01	1	9811-					●
157	BOX; QUAD,TRANS (D)	1-33541-480-0	01	1	9610-9810				●
157	BOX; QUAD,TRANS (D)	1-33541-480-0	01	1	9811-					●
158	CLIP; HARNESS ID=11	1-09700-415-0	02	1	9606-9810	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9606-9810	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9610-9810				●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9811-					●
167	LEVER; SELECT,EXTERNAL	1-33521-123-0	01	1	9606-9810	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9610-9810				●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	9811-					●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9606-9810	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9610-9810				●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9811-0702					●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801					●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-					●
174	SPRING; REV	1-09580-443-0	01	1	9606-9810	●	●	●
175	RING; STOPPER,SHIFT LEVER	1-09588-174-0	01	1	9606-9810	●	●	●
181	WASHER; PL,SELECT LEVER (A) OD=37	1-09532-007-0	01	1	9606-9810	●	●	●
181	WASHER; PL,SELECT LEVER (B) ID=8.4 OD=22	9-09160-708-0	01	1	9606-9810	●	●	●
181	WASHER; PL,SELECT LEVER (C) OD=40	1-09532-008-0	01	1	9610-9810				●
181	WASHER; PL,SELECT LEVER (C) OD=40	1-09532-008-0	01	1	9811-					●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9606-9609	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9610-9810	●	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9811-					●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9606-9810	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9610-9804				●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-9810				●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9811-					●
218	BRACKET; HARNESS CLIP,QUAD BOX (E)	1-47476-812-1	01	1	9606-9609	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (E)	1-47476-812-1	01	1	9610-9810	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9811-					●
218	BRACKET; HARNESS CLIP,QUAD BOX (D) ID=11	1-09700-415-0	01	1	9610-9810				●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	9811-					●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	9811-					●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-036-2	01	1	9606-9810	●	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-037-1	01	1	9606-9810			●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-269-0	01	1	9606-9810	●	●	●
271	BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	9606-9810	●	●	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9811-					●
271	BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	9606-9810	●	●	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9811-					●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9606-9810	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9610-9810				●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9811-					●
286	PLATE; BAFFLE,AIR BREATHER	1-33549-102-0	01	1	9606-9810	●	●	●
287	COVER; AIR BREATHER	1-33549-103-0	01	1	9606-9810	●	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-369-0	01	1	9606-9810	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-118-1	01	1	9606-9810	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-091-1	01	1	9610-9810				●
298	SHAFT; SHIFT LEVER	1-33522-122-0	01	1	9811-0307					●
298	SHAFT; SHIFT LEVER	1-33522-185-0	01	1	0308-					●
305	BOOT; LEVER SHAFT	1-33529-051-0	01	1	9606-9810	●	●	●
305	BOOT; LEVER SHAFT	1-33529-028-0	01	1	9811-					●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-137-1	01	1	9606-9810	●	●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-136-3	01	1	9606-9810			●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-0	01	1	9610-9810				●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-1	01	1	9811-					●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9606-9810	●	●	●
393	PIN; SW	1-33534-003-0	01	1	9606-9810	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9606-9609	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9610-9810	●	●	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9811-0602					●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-					●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9606-9810	●	●	●

167 187 181 188 181 298 398 411 294 265 305 285 42 142 142 271 390 393 28 28 30 28 28 157 271 142 171 28 30 28 28 30 218 158 1 42 256 17 287 286 2 134 135 174 136 130 175 163 38 52 52 39 25 49 26 38 52 39 34 5 9 15 13 38 11 39 12 4 52 5 38 45 382 39 47 91 46 56 383 56 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	ARM; SHIFT,1ST & REV	1-33511-078-3	01	1	9606-9810	●	●	●
2	ROD; SHIFT,1ST & REV	1-33531-318-2	01	1	9606-9810	●	●	●
4	ROD; SHIFT,6TH	1-33531-344-1	01	1	9606-9810			●
5	BLOCK; SHIFT,6TH (A)	1-33511-320-2	01	1	9606-9810			●
5	BLOCK; SHIFT,6TH (B)	1-33511-326-1	01	1	9606-9810			●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-029-0	01	1	9606-9810			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9606-9609			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9610-9810			●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9811-					●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9606-9609			●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9610-9810			●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9811-					●
13	BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	9606-9810			●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9610-9810				●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9811-					●
15	SPRING; LK,SHIFT SLEEVE	1-09580-526-0	01	1	9606-9810			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9610-9810				●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9811-					●
17	BLOCK; SHIFT,1ST & REV	1-33511-325-1	01	1	9606-9810	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-442-0	01	1	9606-9810	●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-342-1	01	1	9606-9810	●	●	●
28	BALL; INTER LK	9-00097-010-0	05	1	9606-9810	●	●
28	BALL; INTER LK	9-00097-010-0	07	1	9606-9810			●
28	BALL; INTER LK	9-00097-501-0	04	1	9610-9810				●
28	BALL; INTER LK	9-00097-501-0	04	1	9811-					●
30	PIN; INTER LK	1-33534-002-0	02	1	9606-9810	●	●
30	PIN; INTER LK	1-33534-002-0	03	1	9606-9810			●
30	PIN; INTER LK	9-33534-003-0	03	1	9610-9810				●
30	PIN; INTER LK	9-33534-003-0	03	1	9811-					●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-343-1	01	1	9606-9810	●	●	●
38	SPRING; DETENT	1-09580-374-0	03	1	9606-9810	●	●
38	SPRING; DETENT	1-09580-374-0	04	1	9606-9810			●
38	SPRING; DETENT	1-09580-419-0	04	1	9610-9810				●
38	SPRING; DETENT	1-09580-419-0	04	1	9811-					●
39	BALL; DETENT	9-00097-013-0	03	1	9606-9810	●	●
39	BALL; DETENT	9-00097-013-0	04	1	9606-9810			●
39	BALL; DETENT	1-09843-012-0	04	1	9610-9810				●
39	BALL; DETENT	1-09843-012-0	04	1	9811-					●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9606-9810	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9606-9810	●	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	05	1	9606-9810			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9610-9810				●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9811-					●
45	PIN; SPRING,SHIFT LEVER	1-09748-016-0	01	1	9606-9810			●
46	PIN; 6TH SHIFT ARM	1-33522-093-0	01	1	9606-9810			●
47	LEVER; SHIFT,6TH ARM	1-33521-101-1	01	1	9606-9810			●
49	ARM; SHIFT,4TH & 5TH	1-33511-446-1	01	1	9606-9810	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-445-0	01	1	9606-9810			●
50	ARM; SHIFT,6TH	1-33511-457-1	01	1	9606-9810			●
52	BOLT; SHIFT ARM	1-09052-034-2	04	1	9606-9810	●	●
52	BOLT; SHIFT ARM	1-09052-034-2	06	1	9606-9810			●
56	PIECE; SHIFT,6TH ARM	1-33518-002-0	02	1	9606-9810			●
91	PIN; SPR,SHIFT ARM	1-09748-015-0	01	1	9606-9810			●
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9606-9810	●	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-093-1	01	1	9610-9810				●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9811-					●
134	SEAT; REV RESIST SPR	1-33549-105-0	01	1	9606-9810	●	●	●
135	STOPPER; LOW & REV,SELECT	1-33537-018-0	01	1	9606-9810	●	●	●
136	SLEEVE; REV RESIST SPR	1-33516-030-0	01	1	9606-9810	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	08	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	09	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	01	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	01	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X34 FLANGE REAMER	1-09040-091-0	01	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	02	1	9606-9810	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9606-9609	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9610-9810	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	9811-0805					●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-					●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	11	1	9606-9810			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9811-0805					●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	0806-					●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9610-9810				●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9610-9810				●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	9811-0512					●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28151-060-0	03	1	0601-					●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9610-9810				●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	9811-					●
157	BOX; QUAD,TRANS (A)	1-33541-353-1	01	1	9606-9810	●	●
157	BOX; QUAD,TRANS (A)	1-33541-437-0	01	1	9606-9810			●
157	BOX; QUAD,TRANS (B)	1-33541-392-1	01	1	9610-9810				●
157	BOX; QUAD,TRANS (C)	1-33541-478-0	01	1	9811-					●
157	BOX; QUAD,TRANS (D)	1-33541-480-0	01	1	9610-9810				●
157	BOX; QUAD,TRANS (D)	1-33541-480-0	01	1	9811-					●
158	CLIP; HARNESS ID=11	1-09700-415-0	02	1	9606-9810	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9606-9810	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9610-9810				●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9811-					●
167	LEVER; SELECT,EXTERNAL	1-33521-123-0	01	1	9606-9810	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9610-9810				●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	9811-					●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9606-9810	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9610-9810				●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9811-0702					●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801					●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-					●
174	SPRING; REV	1-09580-443-0	01	1	9606-9810	●	●	●
175	RING; STOPPER,SHIFT LEVER	1-09588-174-0	01	1	9606-9810	●	●	●
181	WASHER; PL,SELECT LEVER (A) OD=37	1-09532-007-0	01	1	9606-9810	●	●	●
181	WASHER; PL,SELECT LEVER (B) ID=8.4 OD=22	9-09160-708-0	01	1	9606-9810	●	●	●
181	WASHER; PL,SELECT LEVER (C) OD=40	1-09532-008-0	01	1	9610-9810				●
181	WASHER; PL,SELECT LEVER (C) OD=40	1-09532-008-0	01	1	9811-					●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9606-9609	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9610-9810	●	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9811-					●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9606-9810	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9610-9804				●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-9810				●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9811-					●
218	BRACKET; HARNESS CLIP,QUAD BOX (E)	1-47476-812-1	01	1	9606-9609	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (E)	1-47476-812-1	01	1	9610-9810	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	9811-					●
218	BRACKET; HARNESS CLIP,QUAD BOX (D) ID=11	1-09700-415-0	01	1	9610-9810				●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	9811-					●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	9811-					●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-036-2	01	1	9606-9810	●	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-037-1	01	1	9606-9810			●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-269-0	01	1	9606-9810	●	●	●
271	BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	9606-9810	●	●	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9811-					●
271	BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	9606-9810	●	●	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9811-					●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9606-9810	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9610-9810				●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9811-					●
286	PLATE; BAFFLE,AIR BREATHER	1-33549-102-0	01	1	9606-9810	●	●	●
287	COVER; AIR BREATHER	1-33549-103-0	01	1	9606-9810	●	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-369-0	01	1	9606-9810	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-118-1	01	1	9606-9810	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-091-1	01	1	9610-9810				●
298	SHAFT; SHIFT LEVER	1-33522-122-0	01	1	9811-0307					●
298	SHAFT; SHIFT LEVER	1-33522-185-0	01	1	0308-					●
305	BOOT; LEVER SHAFT	1-33529-051-0	01	1	9606-9810	●	●	●
305	BOOT; LEVER SHAFT	1-33529-028-0	01	1	9811-					●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-137-1	01	1	9606-9810	●	●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-136-3	01	1	9606-9810			●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-0	01	1	9610-9810				●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-1	01	1	9811-					●
383	BOLT; BRKT,PARK BRAKE M10X16 FLANGE	0-28181-016-0	01	1	9606-9810			●
383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	9610-9810				●
383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	9811-					●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9606-9810	●	●	●
393	PIN; SW	1-33534-003-0	01	1	9606-9810	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9606-9609	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9610-9810	●	●	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9811-0602					●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-					●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9606-9810	●	●	●

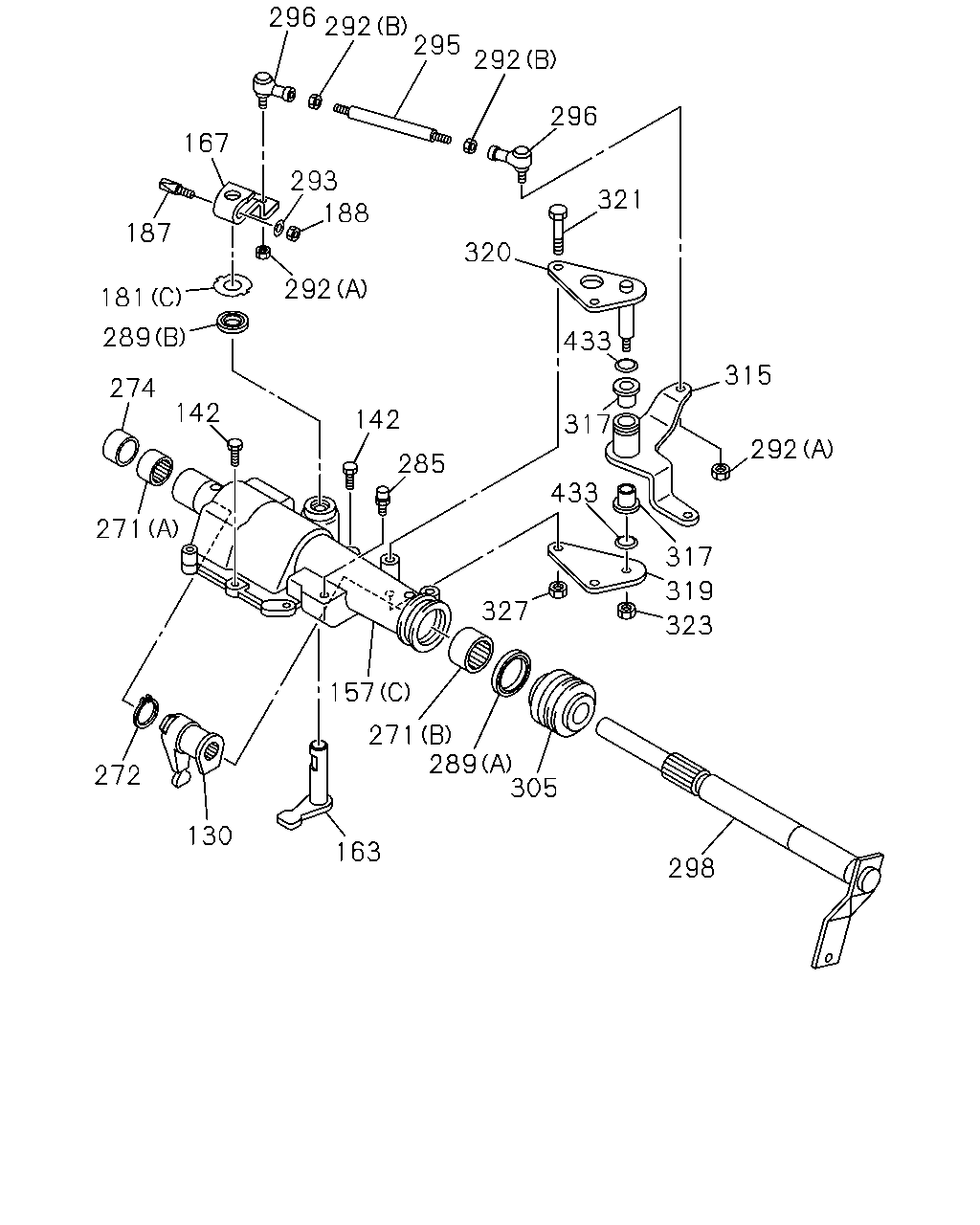

296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 142 142 317 292 285 433 271 317 319 327 323 157 271 289 305 272 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9606-9810	●	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-093-1	01	1	9610-9810				●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9811-					●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	08	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	09	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	01	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	01	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X34 FLANGE REAMER	1-09040-091-0	01	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	02	1	9606-9810	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9606-9609	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9610-9810	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	9811-0805					●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-					●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	11	1	9606-9810			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9811-0805					●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	0806-					●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9610-9810				●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9610-9810				●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	9811-0512					●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28151-060-0	03	1	0601-					●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9610-9810				●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	9811-					●
157	BOX; QUAD,TRANS (A)	1-33541-353-1	01	1	9606-9810	●	●
157	BOX; QUAD,TRANS (A)	1-33541-437-0	01	1	9606-9810			●
157	BOX; QUAD,TRANS (B)	1-33541-392-1	01	1	9610-9810				●
157	BOX; QUAD,TRANS (C)	1-33541-478-0	01	1	9811-					●
157	BOX; QUAD,TRANS (D)	1-33541-480-0	01	1	9610-9810				●
157	BOX; QUAD,TRANS (D)	1-33541-480-0	01	1	9811-					●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9606-9810	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9610-9810				●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9811-					●
167	LEVER; SELECT,EXTERNAL	1-33521-123-0	01	1	9606-9810	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9610-9810				●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	9811-					●
181	WASHER; PL,SELECT LEVER (A) OD=37	1-09532-007-0	01	1	9606-9810	●	●	●
181	WASHER; PL,SELECT LEVER (B) ID=8.4 OD=22	9-09160-708-0	01	1	9606-9810	●	●	●
181	WASHER; PL,SELECT LEVER (C) OD=40	1-09532-008-0	01	1	9610-9810				●
181	WASHER; PL,SELECT LEVER (C) OD=40	1-09532-008-0	01	1	9811-					●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9606-9609	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9610-9810	●	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9811-					●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9606-9810	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9610-9804				●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-9810				●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9811-					●
271	BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	9606-9810	●	●	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9811-					●
271	BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	9606-9810	●	●	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9811-					●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9811-					●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9610-9810				●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9811-					●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9606-9810	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9610-9810				●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9811-					●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9610-9810				●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9811-0307					●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-					●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9610-9810				●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9811-					●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9610-9804				●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-9810				●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9811-					●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9610-9810				●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9811-0512					●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-					●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9610-9810				●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9811-0605					●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-					●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9610-9810				●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9811-					●
296	ROD END L=48	1-09760-038-1	02	1	9610-9810				●
296	ROD END L=48	1-09760-038-1	02	1	9811-0309					●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-					●
298	SHAFT; SHIFT LEVER	1-33522-118-1	01	1	9606-9810	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-091-1	01	1	9610-9810				●
298	SHAFT; SHIFT LEVER	1-33522-122-0	01	1	9811-0307					●
298	SHAFT; SHIFT LEVER	1-33522-185-0	01	1	0308-					●
305	BOOT; LEVER SHAFT	1-33529-051-0	01	1	9606-9810	●	●	●
305	BOOT; LEVER SHAFT	1-33529-028-0	01	1	9811-					●
315	LEVER; SELECT	1-33651-496-0	01	1	9610-9810				●
315	LEVER; SELECT	1-33651-648-1	01	1	9811-					●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9610-9810				●
317	BUSHING; LEVER	1-09330-119-0	02	1	9811-					●
319	BRACKET; SELECT LEVER	1-33657-240-0	01	1	9610-9810				●
319	BRACKET; SELECT LEVER	1-33657-515-0	01	1	9811-					●
320	SHAFT; LEVER	1-33657-241-0	01	1	9610-9810				●
320	SHAFT; LEVER	1-33619-474-0	01	1	9811-					●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9610-9810				●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9811-0512					●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10856-080-0	02	1	0601-					●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9610-9810				●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9811-					●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9610-9810				●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9811-0602					●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91180-210-0	02	1	0603-					●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9610-9810				●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	9811-0602					●
433	GASKET; BUSHING	1-09623-130-0	01	1	9610-9810				●
433	GASKET; BUSHING	1-09623-594-0	02	1	9811-					●

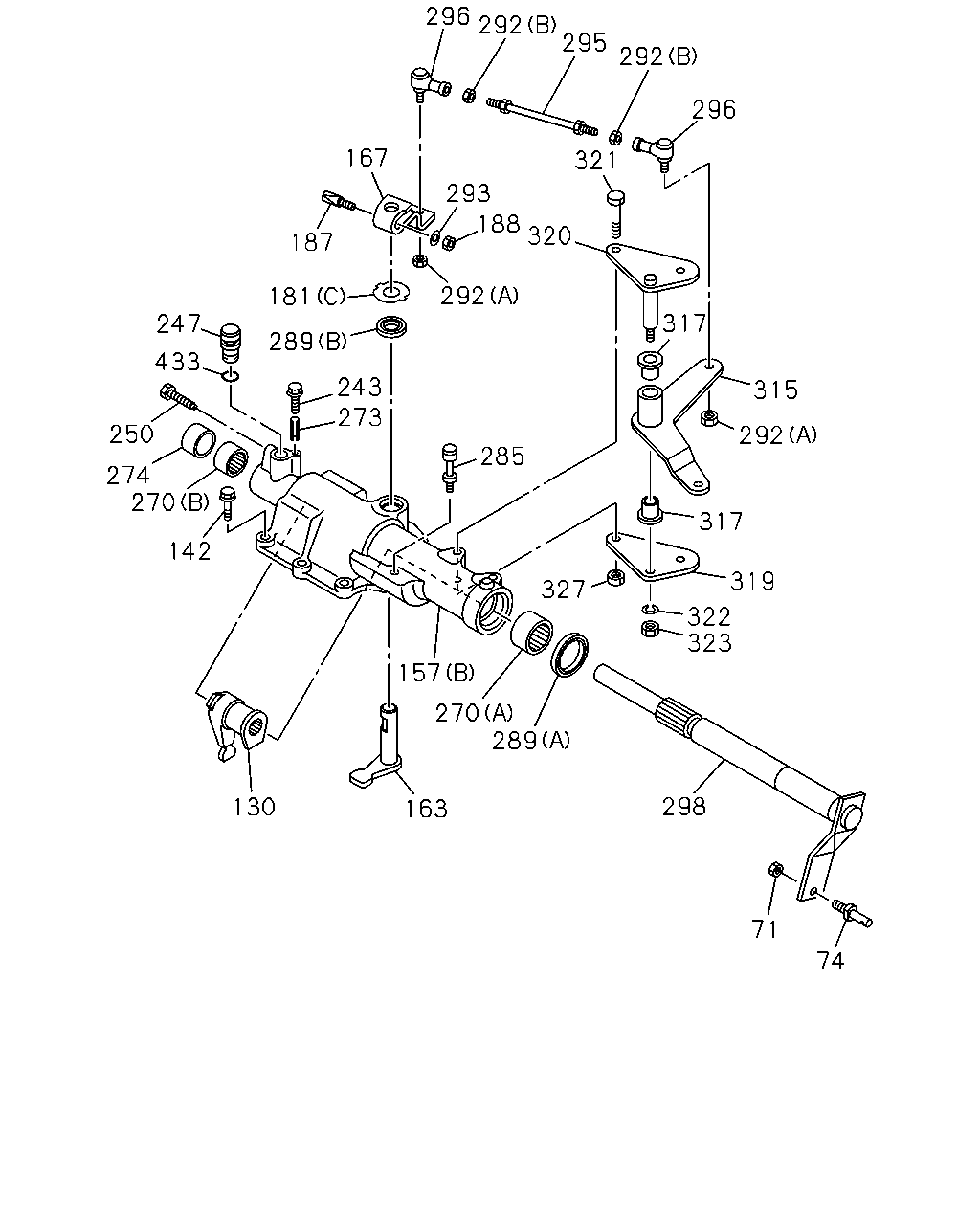

296 292 295 292 296 321 167 293 188 320 187 292 181 317 247 289 433 243 273 315 250 292 285 274 270 317 142 319 327 322 323 157 270 289 298 130 163 71 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
71	NUT; SHIFT LEVER M10 FLANGE	0-91150-210-0	01	1	9610-9810				●
74	PIN; WIRE,SHIFT LEVER	1-33659-115-0	01	1	9610-9810				●
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9606-9810	●	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-093-1	01	1	9610-9810				●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9811-					●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	08	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	09	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	01	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	01	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X34 FLANGE REAMER	1-09040-091-0	01	1	9606-9810	●	●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	02	1	9606-9810	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9606-9609	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9610-9810	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	9811-0805					●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-					●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	11	1	9606-9810			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9811-0805					●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	0806-					●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9610-9810				●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9610-9810				●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	9811-0512					●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28151-060-0	03	1	0601-					●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9610-9810				●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	9811-					●
157	BOX; QUAD,TRANS (A)	1-33541-353-1	01	1	9606-9810	●	●
157	BOX; QUAD,TRANS (A)	1-33541-437-0	01	1	9606-9810			●
157	BOX; QUAD,TRANS (B)	1-33541-392-1	01	1	9610-9810				●
157	BOX; QUAD,TRANS (C)	1-33541-478-0	01	1	9811-					●
157	BOX; QUAD,TRANS (D)	1-33541-480-0	01	1	9610-9810				●
157	BOX; QUAD,TRANS (D)	1-33541-480-0	01	1	9811-					●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9606-9810	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9610-9810				●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9811-					●
167	LEVER; SELECT,EXTERNAL	1-33521-123-0	01	1	9606-9810	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9610-9810				●
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	9811-					●
181	WASHER; PL,SELECT LEVER (A) OD=37	1-09532-007-0	01	1	9606-9810	●	●	●
181	WASHER; PL,SELECT LEVER (B) ID=8.4 OD=22	9-09160-708-0	01	1	9606-9810	●	●	●
181	WASHER; PL,SELECT LEVER (C) OD=40	1-09532-008-0	01	1	9610-9810				●
181	WASHER; PL,SELECT LEVER (C) OD=40	1-09532-008-0	01	1	9811-					●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9606-9609	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9610-9810	●	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9811-					●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9606-9810	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9610-9804				●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-9810				●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9811-					●
243	BOLT; COVER M6X10 FLANGE	0-28080-610-0	01	1	9610-9810				●
247	BUSHING ASM; DETENT	1-33529-019-0	01	1	9610-9810				●
250	SCREW; BUSHING	9-06130-618-0	01	1	9610-9810				●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-006-0	01	1	9610-9810				●
270	BEARING; NEEDLE,QUAD BOX (B) NSK	1-09811-057-0	01	1	9610-9810				●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-260-0	01	1	9610-9810				●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9610-9810				●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9610-9810				●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9811-					●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9606-9810	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9610-9810				●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	9811-					●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9610-9810				●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9811-0307					●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-					●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9610-9810				●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9811-					●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9610-9804				●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9805-9810				●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	9811-					●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9610-9810				●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9811-0512					●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-					●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9610-9810				●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9811-0605					●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-					●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9610-9810				●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9811-					●
296	ROD END L=48	1-09760-038-1	02	1	9610-9810				●
296	ROD END L=48	1-09760-038-1	02	1	9811-0309					●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-					●
298	SHAFT; SHIFT LEVER	1-33522-118-1	01	1	9606-9810	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-091-1	01	1	9610-9810				●
298	SHAFT; SHIFT LEVER	1-33522-122-0	01	1	9811-0307					●
298	SHAFT; SHIFT LEVER	1-33522-185-0	01	1	0308-					●
315	LEVER; SELECT	1-33651-496-0	01	1	9610-9810				●
315	LEVER; SELECT	1-33651-648-1	01	1	9811-					●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9610-9810				●
317	BUSHING; LEVER	1-09330-119-0	02	1	9811-					●
319	BRACKET; SELECT LEVER	1-33657-240-0	01	1	9610-9810				●
319	BRACKET; SELECT LEVER	1-33657-515-0	01	1	9811-					●
320	SHAFT; LEVER	1-33657-241-0	01	1	9610-9810				●
320	SHAFT; LEVER	1-33619-474-0	01	1	9811-					●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9610-9810				●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9811-0512					●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10856-080-0	02	1	0601-					●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9610-9810				●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9610-9810				●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9811-					●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9610-9810				●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9811-0602					●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91180-210-0	02	1	0603-					●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9610-9810				●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	9811-0602					●
433	GASKET; BUSHING	1-09623-130-0	01	1	9610-9810				●
433	GASKET; BUSHING	1-09623-594-0	02	1	9811-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
