Isuzu WW
▶
TRUCKS
▶
FRR
▶
11333 - FRR(MIDEAST)6H ENG
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

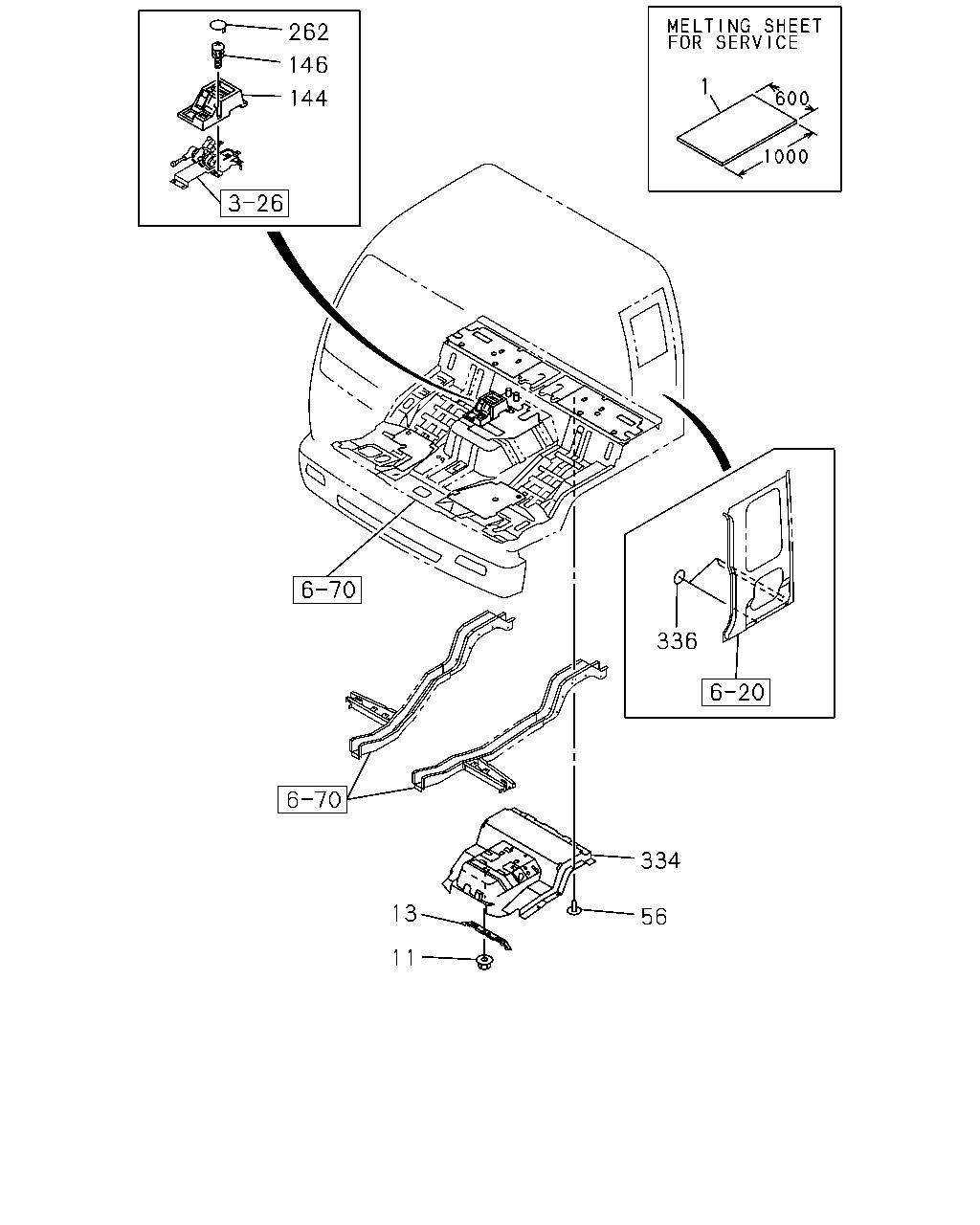

6-76 — FLOOR EQUIPMENT AND SEALING
(#59519) — 9 parça
262
146
1
144
336
334
13
56
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0
1-61970-039-0
AR
1
0411-
11
NUT; HEAT INSULATOR
M8 FLANGE
1-75538-207-0
02
1
0411-
13
PLATE; HEAT INSULATOR
1-71998-812-4
01
1
0411-
56
CLIP; HEAT INSULATOR,ENG HOOD
ID=6.2 L=11.4
8-97808-623-0
17
1
0411-
144
COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-73908-307-2
01
1
0411-
146
BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
0411-
262
COVER; CHECK HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-76337-461-0
04
1
0411-
334
INSULATOR; ENG HOOD
1-71996-038-4
01
1
0411-
336
SEAL; FLOOR SIDE
OD=25 BLACK
1-76798-019-0
06
1
0411-
