Isuzu WW
▶
TRUCKS
▶
FRR
▶
11333 - FRR(MIDEAST)6H ENG
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

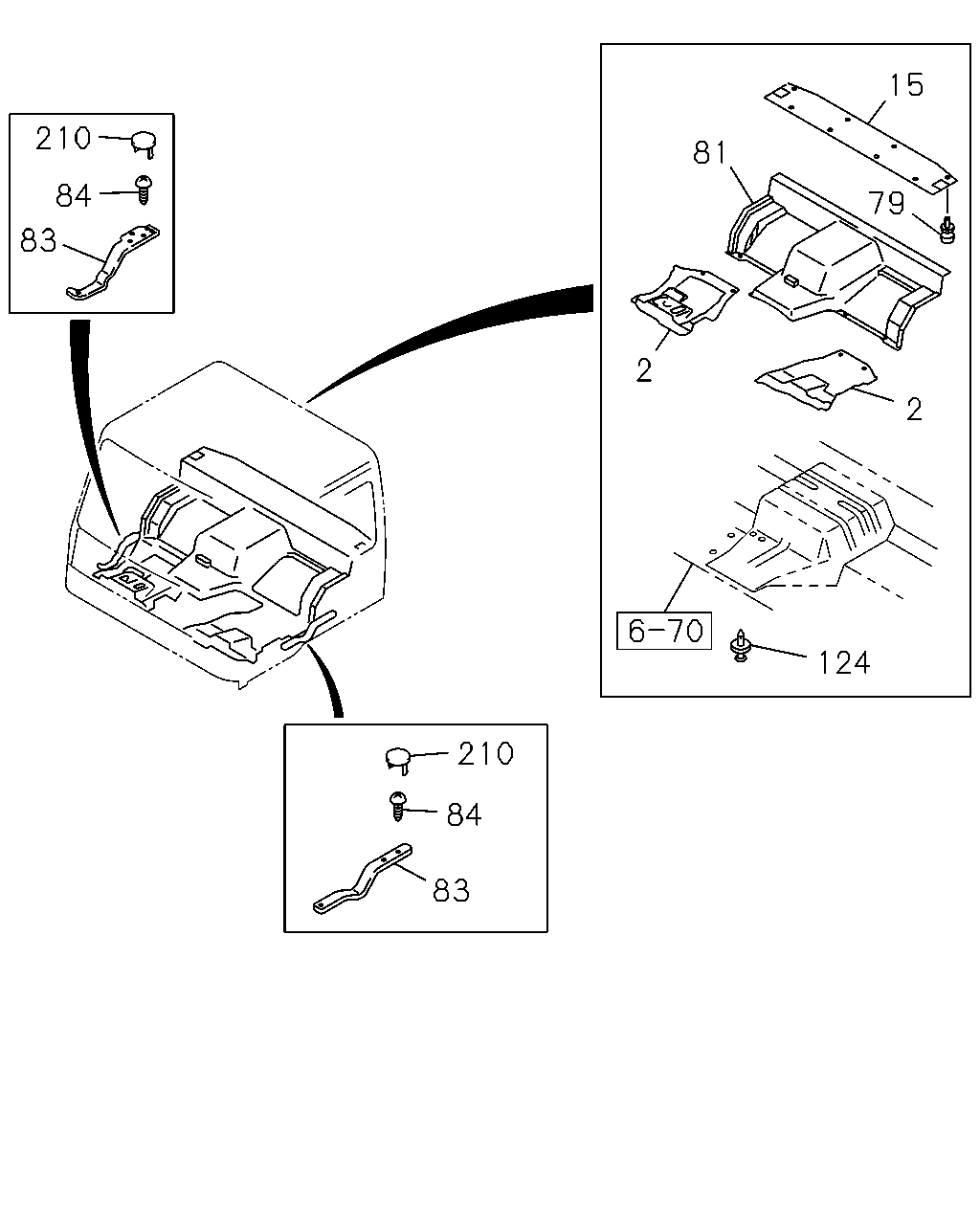

6-75 — MAT AND CARPET
(#59518) — 14 parça
15
210
81
79
84
83
2
2
124
210
84
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MAT; FLOOR
VINYL CARPET<B30>
1-73236-465-2
01
1
0411-
2
MAT; FLOOR
VINYL CARPET<B30>
1-73236-466-1
01
1
0411-
2
MAT; FLOOR
EXC. VINYL CARPET<B30>
1-73236-467-1
01
1
0411-
2
MAT; FLOOR
EXC. VINYL CARPET<B30>
1-73236-468-2
01
1
0411-
15
MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40>
1-73236-522-1
01
1
0411-
15
MAT; FLOOR REAR
MATTRESS SLEEPER CAB<E40>
1-73236-522-1
01
1
0411-
79
HOOK; MALE
BLACK
8-94279-089-0
08
1
0411-
81
MAT; FLOOR,CENTER
VINYL CARPET<B30>
1-73236-507-1
01
1
0411-
81
MAT; FLOOR,CENTER
EXC. VINYL CARPET<B30>
1-73236-511-3
01
1
0411-
83
PLATE; KICKING,FLOOR MAT
1-76798-046-0
01
1
0411-
83
PLATE; KICKING,FLOOR MAT
1-76798-045-0
01
1
0411-
84
SCREW; PLATE TO FLOOR
M5X16
8-94279-312-0
08
1
0411-
124
FASTENER
1-09470-007-0
04
1
0411-
210
COVER; KICKING PLATE
1-76337-461-0
09
1
0411-
