Isuzu WW
▶
TRUCKS
▶
FRR
▶
11333 - FRR(MIDEAST)6H ENG
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶

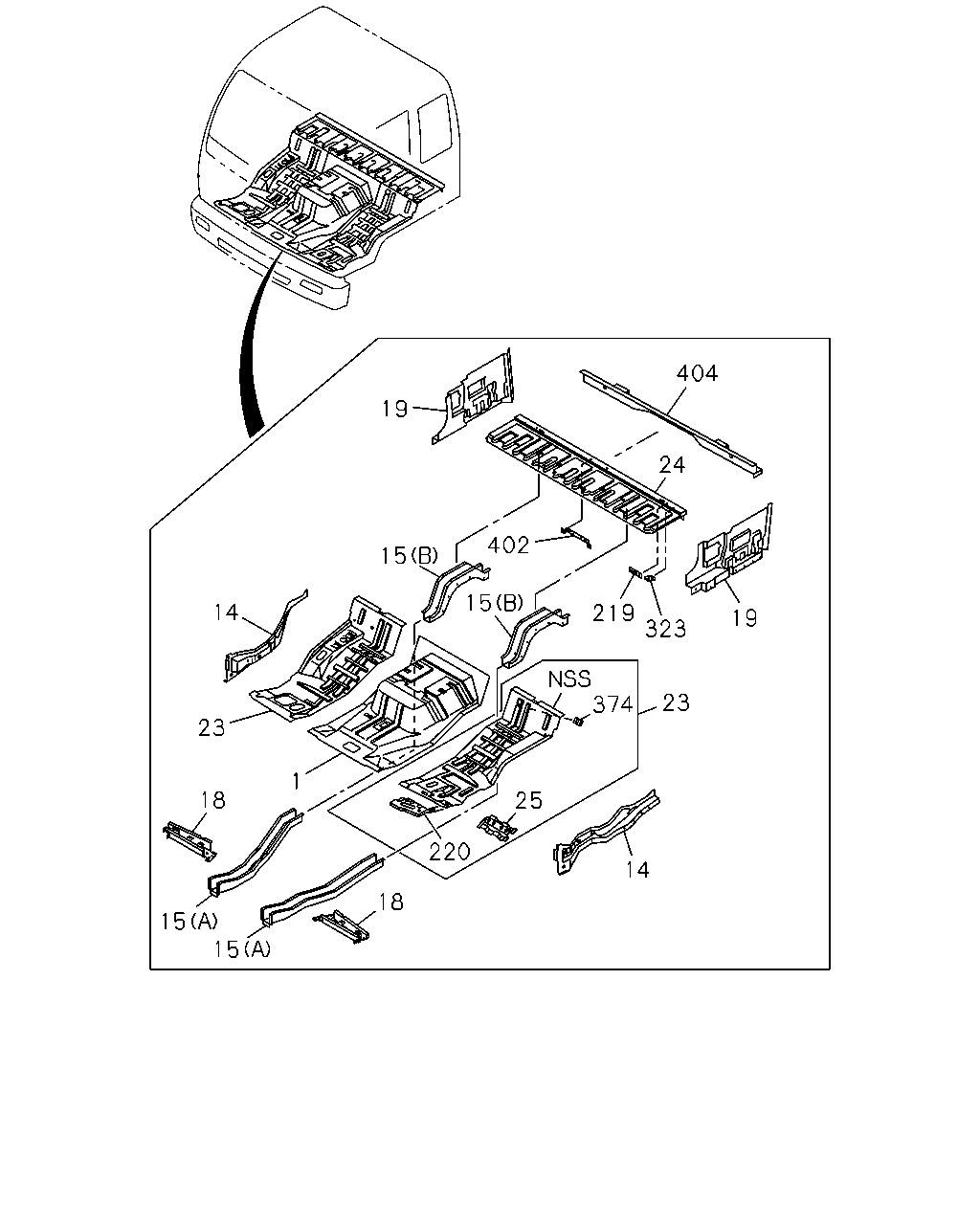

6-70 — FLOOR PANEL
(#59517) — 21 parça
404
19
24
402
15
15
14
219
19
323
374
23
23
1
18
25
220
14
18
15
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; FLOOR
1-62183-532-0
01
1
0411-
14
PANEL; FLOOR SIDE,FRT
1-62482-917-6
01
1
0411-
14
PANEL; FLOOR SIDE,FRT
1-62482-918-6
01
1
0411-
15
FRAME; UNDER
(A)
1-62483-083-3
01
1
0411-
15
FRAME; UNDER
(B)
1-62483-153-3
01
1
0411-
15
FRAME; UNDER
(B)
1-62483-154-3
01
1
0411-
15
FRAME; UNDER
(A)
1-62483-333-1
01
1
0411-
18
FRAME; FLOOR,CENTER SIDE
1-62483-096-5
01
1
0411-
18
FRAME; FLOOR,CENTER SIDE
1-62483-105-5
01
1
0411-
19
PANEL; FLOOR SIDE,REAR
1-62482-923-5
01
1
0411-
19
PANEL; FLOOR SIDE,REAR
1-62482-924-6
01
1
0411-
23
PANEL; FLOOR,SIDE
1-62183-126-4
01
1
0411-
23
PANEL; FLOOR,SIDE
1-62183-127-7
01
1
0411-
24
PANEL; BED PAN
1-62182-940-9
01
1
0411-
25
REINFORCEMENT; FRAME FLOOR,FRT
1-62172-780-2
01
1
0411-
219
PATCH; AIR DUCT LWR
1-62182-941-0
01
1
0411-
220
PATCH
1-62183-191-2
01
1
0411-
323
PATCH; HAND LEVER
1-62182-961-0
01
1
0411-
374
NUT; FLOOR
M6
1-09984-110-0
05
1
0411-
402
PATCH; CAB LOCK
1-62183-327-0
01
1
0411-
404
RAIL ASM; MTG,RR
1-62482-955-4
01
1
0411-
