Isuzu WW
▶
TRUCKS
▶
FRR
▶
11333 - FRR(MIDEAST)6H ENG
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

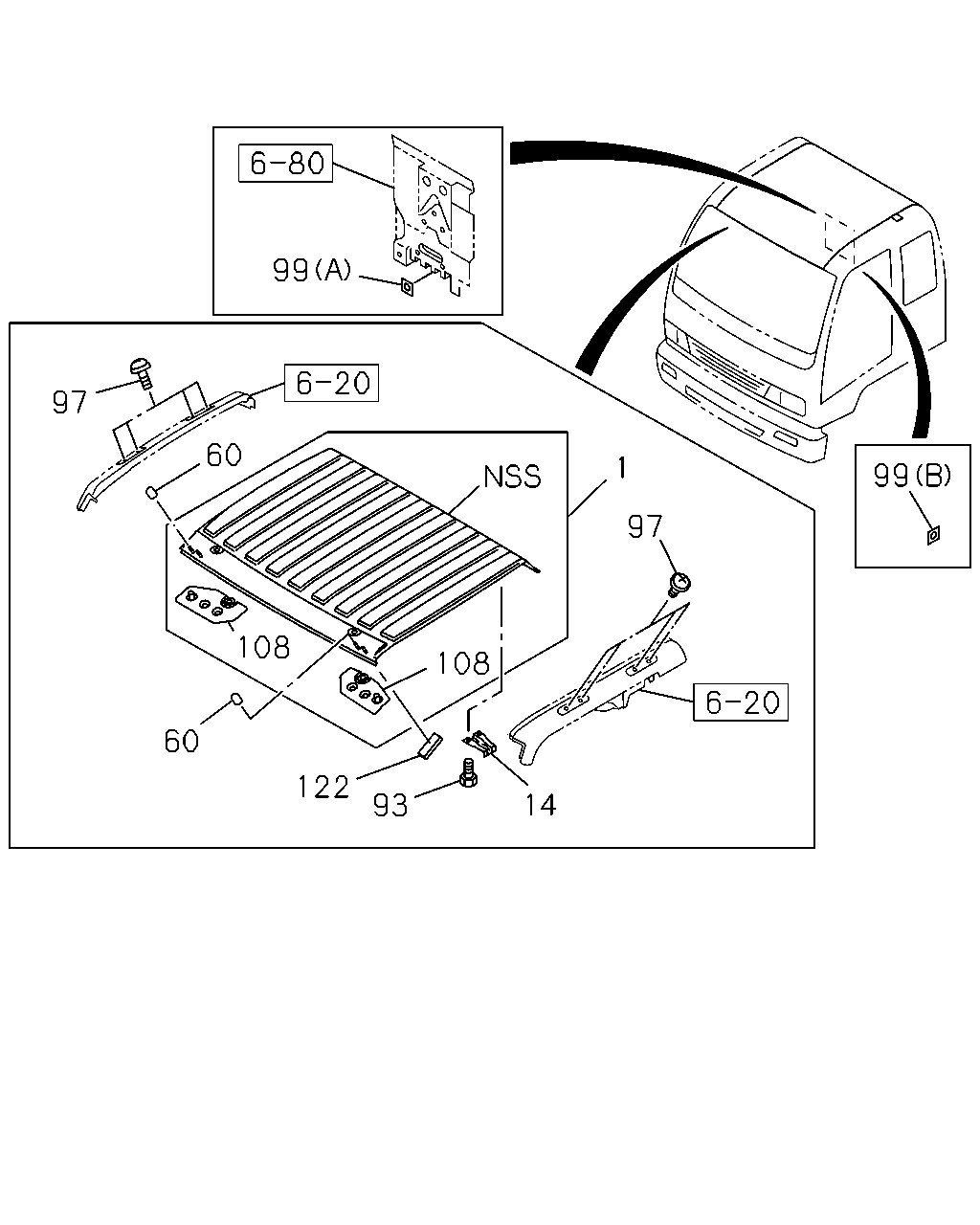

6-60 — ROOF PANEL
(#59515) — 14 parça
99
97
60
1
99
97
108
108
60
122
93
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
1-61181-072-0
01
1
0411-
14
SUPPORT; ROOF
1-73318-510-1
02
1
0411-
60
COVER; ROOF
1-71736-200-0
02
1
0411-
60
COVER; ROOF
1-71736-200-0
02
1
0411-
93
BOLT; SUPPORT
M6X12 W/LK&PL WASHER
8-94279-200-0
10
1
0411-
97
BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER
1-79198-003-2
08
1
0411-
99
SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7
1-61281-380-2
17
1
0411-
99
SEAL; BODY,METAL
(B) 14X14 ID=10 T=0.7
1-61281-427-1
08
1
0411-
99
SEAL; BODY,METAL
(B) 14X14 ID=10 T=0.7
1-61281-427-1
02
1
0411-
99
SEAL; BODY,METAL
(B) 14X14 ID=10 T=0.7
1-61281-427-1
02
1
0411-
108
PATCH; MIRROR
1-61181-029-4
01
1
0411-
108
PATCH; MIRROR
1-61281-241-5
01
1
0411-
122
SEAL; FRT UPR
1-61270-919-0
02
1
0411-0809
122
SEAL; FRT UPR
1-61270-973-0
02
1
0810-
