Sayfa 2-26 - Isuzu EPC

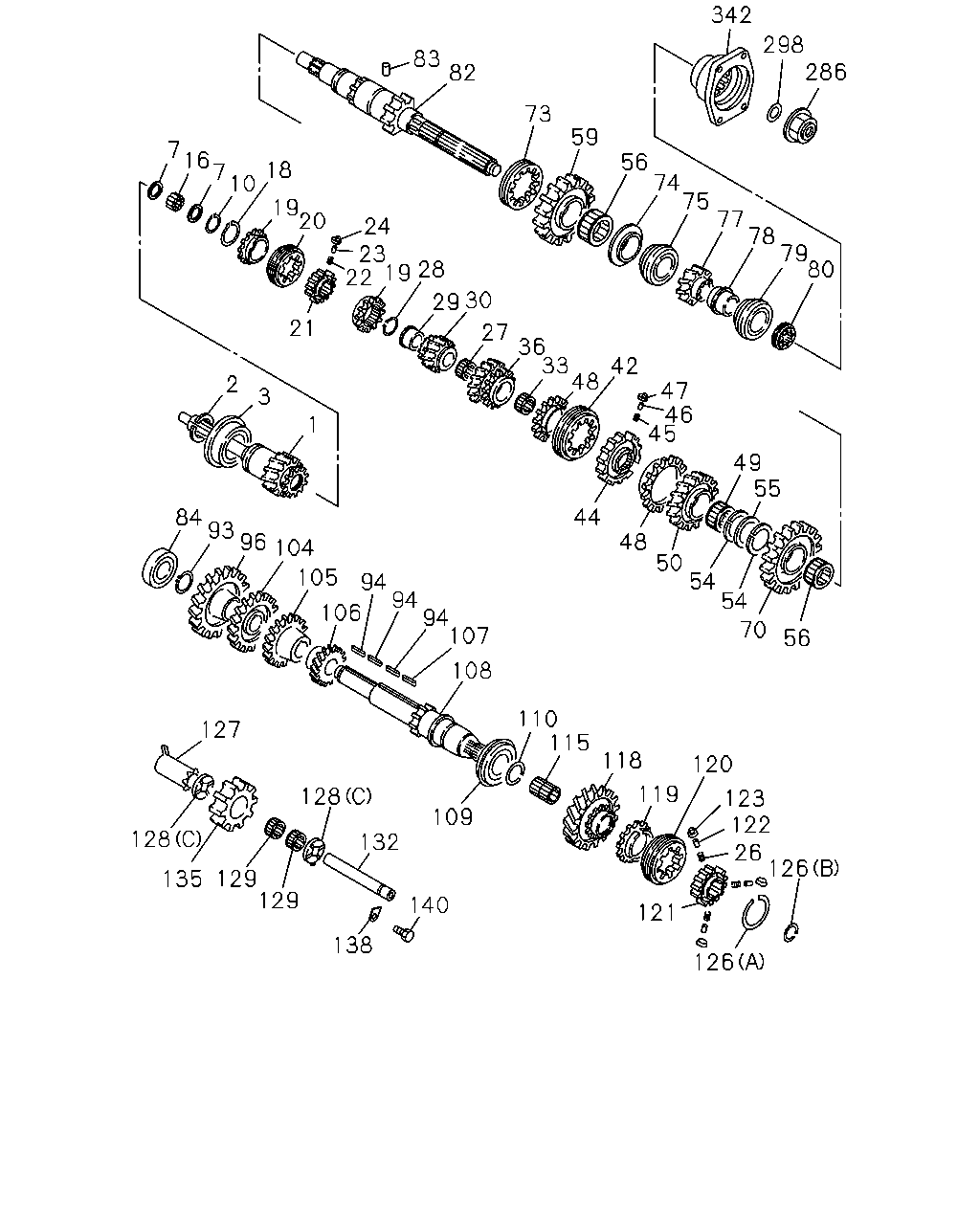

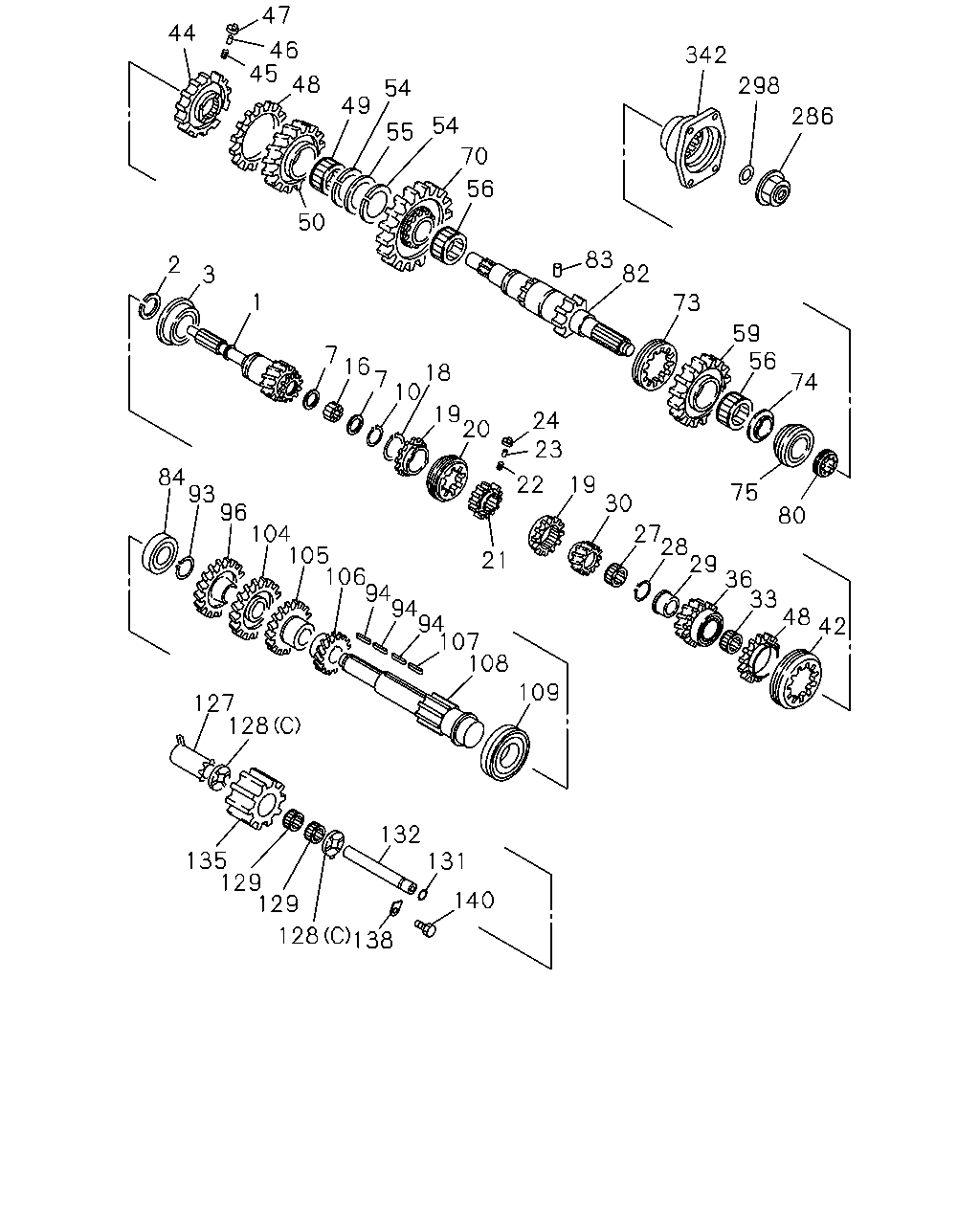

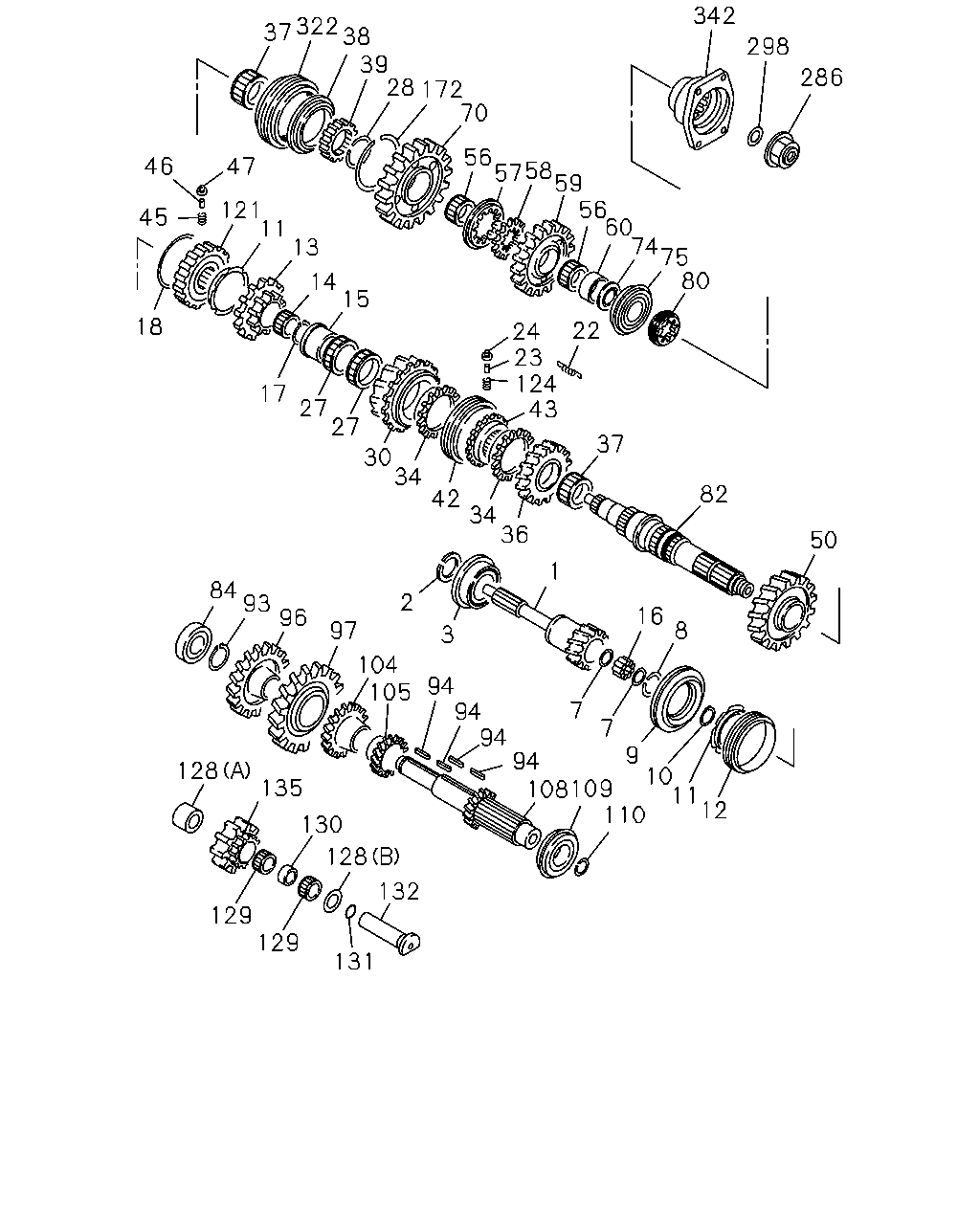

2-26 — MANUAL TRANSMISSION GEAR (#5951) — 577 parça

47 44 46 45 342 48 298 54 49 286 54 55 70 56 50 83 82 2 3 1 73 59 56 7 16 18 7 10 74 19 20 24 23 84 93 96 104 105 106 94 94 94 107 108 19 30 22 75 80 27 28 29 36 33 48 42 21 109 127 128 132 131 135 129 129 140 128 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-776-0	01	1	9606-9810	●	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-777-0	01	1	9606-9810			●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9610-9810				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9811-0006					●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-985-0	01	1	0007-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9606-9609	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9610-9810	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9811-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9606-9609	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9610-9810	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9811-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9606-9609	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9610-9810	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9811-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9606-9609	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9610-9810	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9811-					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9606-9810	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9610-9810				●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9811-					●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9606-9810	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9610-9810				●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9811-					●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9606-9810	●	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9610-9810				●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9811-					●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9606-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9606-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-008-2	14	1	9606-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9610-9810				●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9811-					●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	9606-9810	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9610-9810				●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9811-					●
19	RING; BLOCK,4TH & 5TH Z=39	1-33265-408-0	02	1	9606-9810	●	●	●
20	SLEEVE	1-33262-094-1	01	1	9606-9810	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-148-0	01	1	9606-9810	●	●	●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9606-9810	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9610-9810				●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9811-					●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9606-9609	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9610-9810	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9811-					●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9606-9609	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9610-9810	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9811-					●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9606-9810	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9606-9810	●	●	●
27	BEARING; 4TH GEAR JTEKT	1-09811-266-0	01	1	9606-9810	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9610-9810				●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9811-					●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9606-9810	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9610-9810				●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9811-					●
29	COLLAR; 3RD GEAR	1-33234-042-2	01	1	9606-9810	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	9606-9810	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9610-9810				●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9811-					●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-198-0	01	1	9606-9810	●	●	●
33	BEARING; NEEDLE,3RD GEAR JTEKT	1-09811-199-0	01	1	9606-9810	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9606-9810	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9610-9810				●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9811-					●
42	SLEEVE Z=45	1-33262-162-0	01	1	9606-9810	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9610-9810				●
42	SLEEVE Z=54	1-33262-154-0	01	1	9811-					●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-216-0	01	1	9606-9810	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9606-9810	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9610-9810				●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9811-					●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9606-9810	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9610-9810				●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9811-					●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9606-9810	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9610-9810				●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9811-					●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9606-9810	●	●	●
49	BEARING; NEEDLE,2ND GEAR	1-09811-141-1	01	1	9606-9810	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9606-9810	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9610-9810				●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9811-					●
54	RING; SNAP,THRUST WASHER	1-09588-080-0	02	1	9606-9810	●	●	●
55	WASHER; THRUST,MAINSHAFT	1-33239-016-0	01	1	9606-9810	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9606-9810	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-020-0	02	1	9606-9810	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9610-9810				●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9811-					●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9606-9810	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9610-9810				●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9811-					●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9606-9810	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9610-9810				●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9811-					●
73	CLUTCH; SYN 1ST	1-33261-133-0	01	1	9606-9810	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	9606-9810	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9610-9810				●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9811-					●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9606-9810	●	●	●
75	BEARING; MAINSHAFT JTEKT	1-09810-155-0	01	1	9606-9810	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9610-9810				●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9811-					●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9610-9810				●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9811-					●
80	GEAR; SPD DRIVE Z=6	1-33371-042-2	01	1	9606-9810	●	●	●
80	GEAR; SPD DRIVE FINAL GEAR 41/8 15.5" HYPOID(W4H) Z=7	1-33371-040-2	01	1	9610-9810				●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 15.5" HYPOID(W1R) Z=5	1-33371-041-2	01	1	9610-9810				●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9811-					●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9606-9810	●		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-247-0	01	1	9606-9810		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9610-9810				●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9811-					●
83	PIN; THRUST WASHER	1-09740-032-0	01	1	9606-9810	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9606-9810	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9606-9810	●	●	●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-129-0	01	1	9606-9810	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9610-9810				●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9811-					●
93	RING; SNAP,COUNTER FRT BRG ID=53.3 T=2.5	1-09588-102-0	01	1	9606-9810	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9610-9810				●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9811-					●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	9606-9810	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9811-					●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9610-9810				●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9610-9810				●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9811-					●
96	GEAR; COUNTER DRIVE Z=38	1-33331-209-0	01	1	9606-9810	●	●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9606-9810			●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9610-9810				●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9811-					●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	9606-9810	●	●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9610-9805				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-9810				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9811-					●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9606-9810	●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9610-9805				●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-9810				●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9811-					●
106	GEAR; 2ND,COUNTER Z=22	1-33334-019-0	01	1	9606-9810	●	●	●
107	KEY; FEATHER,2ND COUNTER L=41	1-09735-021-0	01	1	9606-9810	●	●	●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9606-9810	●		●
108	SHAFT; COUNTER Z=14	1-33311-233-1	01	1	9606-9810		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9610-9810				●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9811-					●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9606-9810	●	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9610-9810				●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9811-					●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9610-9810				●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9811-					●
127	COLLAR; THRUST,REV SHAFT	1-33363-005-0	01	1	9606-9810	●	●	●
128	WASHER; THRUST,REV SHAFT (C) T=2.9	9-33271-033-0	02	1	9606-9810	●	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9610-9810				●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9811-					●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9610-9810				●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9811-					●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9606-9810	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9606-9810	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9610-9810				●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9811-					●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9610-9810				●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9811-					●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9606-9810	●		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9610-9810				●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9811-					●
132	SHAFT; REV	1-33351-013-1	01	1	9606-9810	●		●
132	SHAFT; REV	1-33351-018-2	01	1	9606-9810		●
132	SHAFT; REV	1-33351-017-0	01	1	9610-9810				●
132	SHAFT; REV	1-33351-017-0	01	1	9811-					●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9606-9810	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9610-9810				●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9811-					●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9606-9810	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9606-9810	●	●	●
286	NUT; LK,MAINSHAFT M30 FLANGE	1-09449-066-1	01	1	9606-9810	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9606-9810	●	●	●	●
342	FLANGE; OUTPUT	1-37243-242-1	01	1	9606-9810	●	●	●	●

342 298 286 83 82 73 59 7 16 7 10 56 74 75 77 78 79 80 18 19 20 24 23 19 28 22 21 27 36 33 48 42 2 47 46 45 3 1 49 55 44 84 93 96 48 50 54 54 104 105 94 94 94 107 106 70 56 108 110 115 127 118 120 119 128 123 122 26 126 109 128 132 129 129 135 140 121 126 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-776-0	01	1	9606-9810	●	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-777-0	01	1	9606-9810			●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9610-9810				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9811-0006					●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-985-0	01	1	0007-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9606-9609	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9610-9810	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9811-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9606-9609	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9610-9810	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9811-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9606-9609	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9610-9810	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9811-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9606-9609	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9610-9810	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9811-					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9606-9810	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9610-9810				●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9811-					●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9606-9810	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9610-9810				●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9811-					●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9606-9810	●	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9610-9810				●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9811-					●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9606-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9606-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-008-2	14	1	9606-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9610-9810				●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9811-					●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	9606-9810	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9610-9810				●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9811-					●
19	RING; BLOCK,4TH & 5TH Z=39	1-33265-408-0	02	1	9606-9810	●	●	●
20	SLEEVE	1-33262-094-1	01	1	9606-9810	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-148-0	01	1	9606-9810	●	●	●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9606-9810	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9610-9810				●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9811-					●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9606-9609	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9610-9810	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9811-					●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9606-9609	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9610-9810	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9811-					●
26	SPRING; BLOCK,INSERT	1-09580-373-0	03	1	9606-9810		●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9606-9810	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9606-9810	●	●	●
27	BEARING; 4TH GEAR JTEKT	1-09811-266-0	01	1	9606-9810	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9610-9810				●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9811-					●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9606-9810	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9610-9810				●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9811-					●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-198-0	01	1	9606-9810	●	●	●
33	BEARING; NEEDLE,3RD GEAR JTEKT	1-09811-199-0	01	1	9606-9810	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9606-9810	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9610-9810				●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9811-					●
42	SLEEVE Z=45	1-33262-162-0	01	1	9606-9810	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9610-9810				●
42	SLEEVE Z=54	1-33262-154-0	01	1	9811-					●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-216-0	01	1	9606-9810	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9606-9810	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9610-9810				●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9811-					●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9606-9810	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9610-9810				●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9811-					●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9606-9810	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9610-9810				●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9811-					●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9606-9810	●	●	●
49	BEARING; NEEDLE,2ND GEAR	1-09811-141-1	01	1	9606-9810	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9606-9810	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9610-9810				●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9811-					●
54	RING; SNAP,THRUST WASHER	1-09588-080-0	02	1	9606-9810	●	●	●
55	WASHER; THRUST,MAINSHAFT	1-33239-016-0	01	1	9606-9810	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9606-9810	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-020-0	02	1	9606-9810	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9610-9810				●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9811-					●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9606-9810	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9610-9810				●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9811-					●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9606-9810	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9610-9810				●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9811-					●
73	CLUTCH; SYN 1ST	1-33261-133-0	01	1	9606-9810	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	9606-9810	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9610-9810				●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9811-					●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9606-9810	●	●	●
75	BEARING; MAINSHAFT JTEKT	1-09810-155-0	01	1	9606-9810	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9610-9810				●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9811-					●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9610-9810				●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9811-					●
77	GEAR; 6TH,MAINSHAFT Z=17	1-33253-516-0	01	1	9606-9810		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-095-0	01	1	9606-9810		●
79	BEARING; BALL,MAINSHAFT NSK	1-09800-019-0	01	1	9606-9810		●
79	BEARING; BALL,MAINSHAFT JTEKT	1-09800-120-1	01	1	9606-9810		●
80	GEAR; SPD DRIVE Z=6	1-33371-042-2	01	1	9606-9810	●	●	●
80	GEAR; SPD DRIVE FINAL GEAR 41/8 15.5" HYPOID(W4H) Z=7	1-33371-040-2	01	1	9610-9810				●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 15.5" HYPOID(W1R) Z=5	1-33371-041-2	01	1	9610-9810				●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9811-					●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9606-9810	●		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-247-0	01	1	9606-9810		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9610-9810				●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9811-					●
83	PIN; THRUST WASHER	1-09740-032-0	01	1	9606-9810	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9606-9810	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9606-9810	●	●	●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-129-0	01	1	9606-9810	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9610-9810				●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9811-					●
93	RING; SNAP,COUNTER FRT BRG ID=53.3 T=2.5	1-09588-102-0	01	1	9606-9810	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9610-9810				●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9811-					●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	9606-9810	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9811-					●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9610-9810				●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9610-9810				●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9811-					●
96	GEAR; COUNTER DRIVE Z=38	1-33331-209-0	01	1	9606-9810	●	●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9606-9810			●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9610-9810				●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9811-					●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	9606-9810	●	●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9610-9805				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-9810				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9811-					●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9606-9810	●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9610-9805				●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-9810				●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9811-					●
106	GEAR; 2ND,COUNTER Z=22	1-33334-019-0	01	1	9606-9810	●	●	●
107	KEY; FEATHER,2ND COUNTER L=41	1-09735-021-0	01	1	9606-9810	●	●	●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9606-9810	●		●
108	SHAFT; COUNTER Z=14	1-33311-233-1	01	1	9606-9810		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9610-9810				●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9811-					●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9606-9810	●	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9610-9810				●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9811-					●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9610-9810				●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9811-					●
110	RING; SNAP,COUNTER BRG ID=41.9	1-09588-075-1	01	1	9606-9810		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9610-9810				●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9811-					●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-267-0	01	1	9606-9810		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-268-0	01	1	9606-9810		●
115	BEARING; NEEDLE,6TH,COUNTER JTEKT	1-09811-269-0	01	1	9606-9810		●
118	GEAR; 6TH,COUNTER Z=41	1-33338-273-0	01	1	9606-9810		●
119	RING; BLOCK,6TH SYN Z=39	1-33265-408-0	01	1	9606-9810		●
120	SLEEVE	1-33262-095-0	01	1	9606-9810		●
121	HUB; CLU,6TH	1-33261-143-1	01	1	9606-9810		●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9610-9810				●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9811-0212					●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-					●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9606-9810		●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9606-9810		●
126	RING; SNAP,CLU HUB (A) OD=100 T=2	1-09587-032-0	01	1	9606-9810		●
126	RING; SNAP,CLU HUB (B) ID=46.3 T=1.75	1-09588-121-1	01	1	9606-9810		●
127	COLLAR; THRUST,REV SHAFT	1-33363-005-0	01	1	9606-9810	●	●	●
128	WASHER; THRUST,REV SHAFT (C) T=2.9	9-33271-033-0	02	1	9606-9810	●	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9610-9810				●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9811-					●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9610-9810				●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9811-					●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9606-9810	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9606-9810	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9610-9810				●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9811-					●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9610-9810				●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9811-					●
132	SHAFT; REV	1-33351-013-1	01	1	9606-9810	●		●
132	SHAFT; REV	1-33351-018-2	01	1	9606-9810		●
132	SHAFT; REV	1-33351-017-0	01	1	9610-9810				●
132	SHAFT; REV	1-33351-017-0	01	1	9811-					●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9606-9810	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9610-9810				●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9811-					●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9606-9810	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9606-9810	●	●	●
286	NUT; LK,MAINSHAFT M30 FLANGE	1-09449-066-1	01	1	9606-9810	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9606-9810	●	●	●	●
342	FLANGE; OUTPUT	1-37243-242-1	01	1	9606-9810	●	●	●	●

342 322 37 38 39 28 172 70 298 286 56 57 58 59 56 60 74 75 80 46 47 121 11 45 13 14 15 18 22 24 23 124 43 17 27 27 37 30 34 42 34 36 82 50 1 84 93 96 2 16 8 97 3 104 105 94 94 94 94 110 7 7 9 10 11 12 128 135 130 128 132 129 129 131 108 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-776-0	01	1	9606-9810	●	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-777-0	01	1	9606-9810			●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9610-9810				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9811-0006					●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-985-0	01	1	0007-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9606-9609	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9610-9810	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9811-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9606-9609	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9610-9810	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9811-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9606-9609	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9610-9810	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9811-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9606-9609	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9610-9810	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9811-					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9606-9810	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9610-9810				●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9811-					●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9606-9810	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9610-9810				●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9811-					●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9610-9810				●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9811-					●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9610-9810				●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9811-					●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9606-9810	●	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9610-9810				●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9811-					●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9610-9810				●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9811-					●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9610-9810				●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9811-					●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9610-9810				●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9811-9908					●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	9909-					●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9610-9810				●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9811-					●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9610-9810				●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9811-					●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9606-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9606-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-008-2	14	1	9606-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9610-9810				●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9811-					●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9610-9810				●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9811-					●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	9606-9810	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9610-9810				●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9811-					●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9606-9810	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9610-9810				●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9811-					●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9606-9609	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9610-9810	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9811-					●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9606-9609	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9610-9810	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9811-					●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9606-9810	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9606-9810	●	●	●
27	BEARING; 4TH GEAR JTEKT	1-09811-266-0	01	1	9606-9810	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9610-9810				●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9811-					●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9606-9810	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9610-9810				●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9811-					●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	9606-9810	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9610-9810				●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9811-					●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9610-9810				●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9811-0312					●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-					●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9606-9810	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9610-9810				●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9811-					●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9610-9810				●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9811-					●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9610-9810				●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9811-					●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9610-9810				●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9811-0312					●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-					●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9610-9810				●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9811-					●
42	SLEEVE Z=45	1-33262-162-0	01	1	9606-9810	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9610-9810				●
42	SLEEVE Z=54	1-33262-154-0	01	1	9811-					●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9610-9810				●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9811-					●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9606-9810	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9610-9810				●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9811-					●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9606-9810	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9610-9810				●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9811-					●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9606-9810	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9610-9810				●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9811-					●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9606-9810	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9610-9810				●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9811-					●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9606-9810	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-020-0	02	1	9606-9810	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9610-9810				●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9811-					●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9610-9810				●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9811-					●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9610-9810				●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9811-					●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9606-9810	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9610-9810				●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9811-					●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9610-9810				●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9811-0009					●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-					●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9606-9810	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9610-9810				●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9811-					●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	9606-9810	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9610-9810				●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9811-					●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9606-9810	●	●	●
75	BEARING; MAINSHAFT JTEKT	1-09810-155-0	01	1	9606-9810	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9610-9810				●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9811-					●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9610-9810				●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9811-					●
80	GEAR; SPD DRIVE Z=6	1-33371-042-2	01	1	9606-9810	●	●	●
80	GEAR; SPD DRIVE FINAL GEAR 41/8 15.5" HYPOID(W4H) Z=7	1-33371-040-2	01	1	9610-9810				●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 15.5" HYPOID(W1R) Z=5	1-33371-041-2	01	1	9610-9810				●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9811-					●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9606-9810	●		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-247-0	01	1	9606-9810		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9610-9810				●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9811-					●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9606-9810	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9606-9810	●	●	●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-129-0	01	1	9606-9810	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9610-9810				●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9811-					●
93	RING; SNAP,COUNTER FRT BRG ID=53.3 T=2.5	1-09588-102-0	01	1	9606-9810	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9610-9810				●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9811-					●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	9606-9810	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9811-					●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9610-9810				●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9610-9810				●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9811-					●
96	GEAR; COUNTER DRIVE Z=38	1-33331-209-0	01	1	9606-9810	●	●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9606-9810			●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9610-9810				●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9811-					●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9610-9810				●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9811-					●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	9606-9810	●	●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9610-9805				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-9810				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9811-					●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9606-9810	●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9610-9805				●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-9810				●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9811-					●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9606-9810	●		●
108	SHAFT; COUNTER Z=14	1-33311-233-1	01	1	9606-9810		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9610-9810				●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9811-					●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9606-9810	●	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9610-9810				●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9811-					●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9610-9810				●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9811-					●
110	RING; SNAP,COUNTER BRG ID=41.9	1-09588-075-1	01	1	9606-9810		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9610-9810				●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9811-					●
121	HUB; CLU,6TH	1-33261-143-1	01	1	9606-9810		●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9610-9810				●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9811-0212					●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-					●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9610-9810				●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9811-					●
128	WASHER; THRUST,REV SHAFT (C) T=2.9	9-33271-033-0	02	1	9606-9810	●	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9610-9810				●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9811-					●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9610-9810				●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9811-					●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9606-9810	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9606-9810	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9610-9810				●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9811-					●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9610-9810				●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9811-					●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9610-9810				●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9811-					●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9606-9810	●		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9610-9810				●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9811-					●
132	SHAFT; REV	1-33351-013-1	01	1	9606-9810	●		●
132	SHAFT; REV	1-33351-018-2	01	1	9606-9810		●
132	SHAFT; REV	1-33351-017-0	01	1	9610-9810				●
132	SHAFT; REV	1-33351-017-0	01	1	9811-					●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9606-9810	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9610-9810				●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9811-					●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9610-9810				●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9811-					●
286	NUT; LK,MAINSHAFT M30 FLANGE	1-09449-066-1	01	1	9606-9810	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9606-9810	●	●	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9610-9810				●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9811-					●
342	FLANGE; OUTPUT	1-37243-242-1	01	1	9606-9810	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
