Isuzu WW
▶
TRUCKS
▶
FRR
▶
11333 - FRR(MIDEAST)6H ENG
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-20 - SIDE PANEL AND STEP
▶

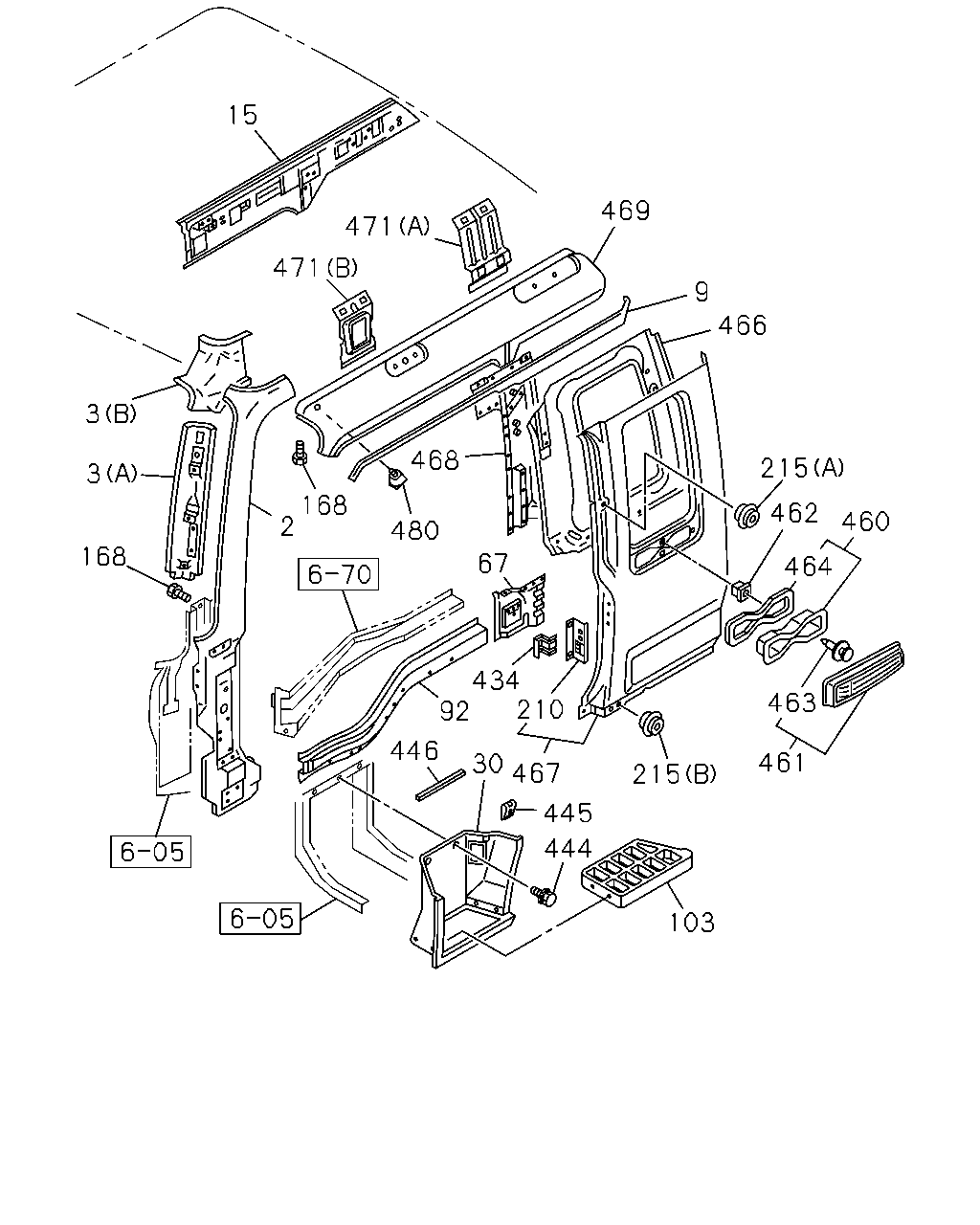

6-20 — SIDE PANEL AND STEP
(#59507) — 50 parça
15
469
471
471
9
466
3
468
215
3
168
2
462
460
480
168
67
464
434
92
210
463
446
461
30
467
215
445
444
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
PILLAR; FRT
1-61281-410-2
01
1
0411-
2
PILLAR; FRT
1-61281-409-2
01
1
0411-
3
PANEL; CLOSING,FRT PILLAR
(B)
1-61281-250-4
01
1
0411-
3
PANEL; CLOSING,FRT PILLAR
(A)
1-61281-344-5
01
1
0411-
3
PANEL; CLOSING,FRT PILLAR
(B)
1-61281-249-4
01
1
0411-
3
PANEL; CLOSING,FRT PILLAR
(A)
1-61281-343-5
01
1
0411-
9
MOLDING; DRIP,CAB SIDE
1-61281-281-5
01
1
0411-
9
MOLDING; DRIP,CAB SIDE
1-61281-280-5
01
1
0411-
15
PANEL; CANT RAIL SIDE
1-61281-254-5
01
1
0411-
15
PANEL; CANT RAIL SIDE
1-61281-253-5
01
1
0411-
30
CLOSING; SIDE STEP
1-71998-878-7
01
1
0411-
30
CLOSING; SIDE STEP
1-71998-877-7
01
1
0411-
67
PANEL; INNER,RR PILLAR LWR
1-61281-195-5
01
1
0411-
67
PANEL; INNER,RR PILLAR LWR
1-61281-194-5
01
1
0411-
92
PANEL; SIDE SILL,CAB
1-61281-212-8
01
1
0411-
92
PANEL; SIDE SILL,CAB
1-61281-211-9
01
1
0411-
103
PLATE; STEP
1-71996-174-0
01
1
0411-
103
PLATE; STEP
1-71996-173-0
01
1
0411-
168
BOLT; BODY SIDE PANEL
M6X10 FLANGE
0-28080-610-0
04
1
0411-0512
168
BOLT; BODY SIDE PANEL
M6X10 FLANGE
0-28080-610-0
04
1
0411-0512
168
BOLT; BODY SIDE PANEL
M6X10 FLANGE
0-28050-610-0
04
1
0601-
168
BOLT; BODY SIDE PANEL
M6X10 FLANGE
0-28050-610-0
04
1
0601-
210
PANEL; DOOR STRIKER REINF
8-97851-446-1
01
1
0411-
215
GROMMET; RR PILLAR
(A) OD=23.5
1-09983-101-0
02
1
0411-
215
GROMMET; RR PILLAR
(B) OD=28.5
8-94279-711-0
02
1
0411-
434
PATCH; ASSIST GRIP
1-61270-763-1
01
1
0411-
444
BOLT; CLOSING
M8X24.5 W/LK&PL WASHER
8-94279-208-0
06
1
0411-0904
444
BOLT; CLOSING
M8X24.5 W/LK&PL WASHER
8-98059-720-0
06
1
0905-
445
NUT; CLOSING
8-94279-723-0
02
1
0411-0601
445
NUT; CLOSING
8-94279-723-0
02
1
0610-
446
FINISHER; STEP
ID=18 L=80
1-71996-051-0
02
1
0411-
460
VENTILATOR; BODY SIDE
1-76378-292-4
02
1
0411-
461
ORNAMENT; VENTILATOR
1-76378-303-6
01
1
0411-
461
ORNAMENT; VENTILATOR
1-76378-302-6
01
1
0411-
462
GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
08
1
0411-
463
PIN; ORNAMENT
D4.2X13
1-09983-161-0
08
1
0411-
464
SEAL; VENTILATOR
1-76378-299-0
02
1
0411-
466
PANEL; INNER,BACK CORNER
1-61281-416-1
01
1
0411-
466
PANEL; INNER,BACK CORNER
1-61281-415-1
01
1
0411-
467
PANEL; OUTER,BACK CORNER
1-61281-478-5
01
1
0411-
467
PANEL; OUTER,BACK CORNER
1-61281-203-4
01
1
0411-
468
REINFORCEMENT; SEAT BELT ANCHOR
1-61281-435-2
01
1
0411-
468
REINFORCEMENT; SEAT BELT ANCHOR
1-61281-434-2
01
1
0411-
469
ROOF; SIDE
1-61281-268-6
01
1
0411-
469
ROOF; SIDE
1-61281-267-6
01
1
0411-
471
PATCH; AIR DEFLECTOR
(A)
1-61281-273-3
02
1
0411-
471
PATCH; AIR DEFLECTOR
(B)
1-61281-270-3
01
1
0411-
471
PATCH; AIR DEFLECTOR
(B)
1-61281-269-3
01
1
0411-
480
REINFORCEMENT ASM; STAY ROOF
1-61180-997-3
01
1
0411-
480
REINFORCEMENT ASM; STAY ROOF
1-61180-996-3
01
1
0411-
