Isuzu WW
▶
TRUCKS
▶
FRR
▶
11333 - FRR(MIDEAST)6H ENG
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

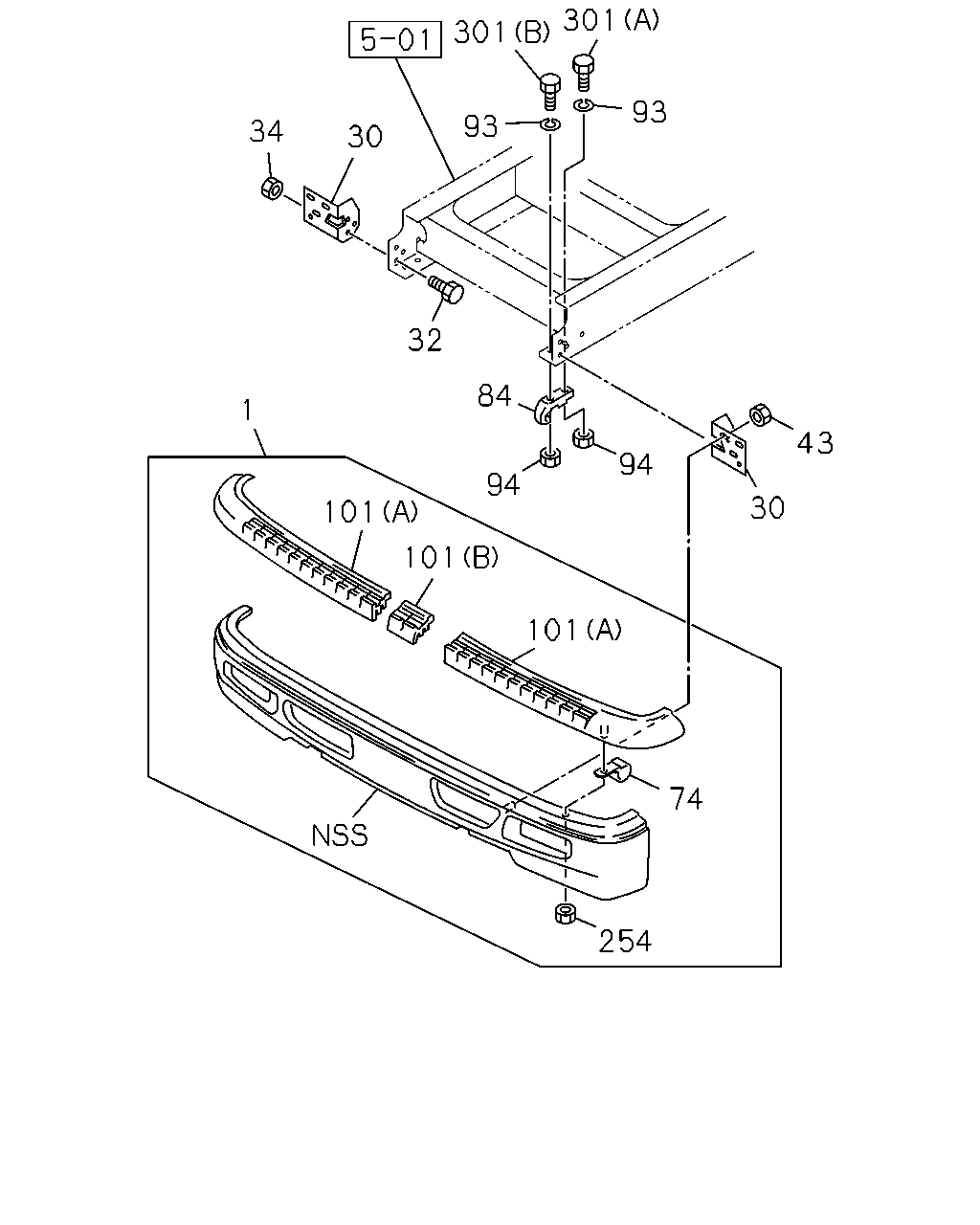

6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#59502) — 24 parça
301
301
93
93
34
30
32
84
1
43
94
94
30
101
101
101
74
254
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
WHITE
1-71210-583-4
01
1
0411-
30
BRACKET; FRT BUMPER
1-71230-208-3
01
1
0411-
30
BRACKET; FRT BUMPER
1-71230-568-1
01
1
0411-
32
BOLT; BRKT,BUMPER
M10X30 FLANGE
0-28681-030-0
06
1
0411-0512
32
BOLT; BRKT,BUMPER
M10X30 FLANGE
0-28651-030-0
06
1
0601-
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91150-210-0
06
1
0411-0602
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
06
1
0603-
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91150-210-0
04
1
0411-0602
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91180-210-0
04
1
0603-
74
CLIP; FOG LAMP HARNESS
1-09701-203-0
05
1
0411-
84
HOOK
1-57181-017-2
01
1
0411-
93
WASHER; LK,HOOK
ID=14.2
9-09150-514-0
02
1
0411-0603
93
WASHER; LK,HOOK
ID=14.2
0-91510-514-0
02
1
0604-
94
NUT; HOOK
M14
9-99110-414-0
02
1
0411-0512
94
NUT; HOOK
M14
0-91110-514-0
02
1
0601-
101
STEP; BUMPER
(A)
1-71260-080-1
01
1
0411-
101
STEP; BUMPER
(A)
1-71260-081-1
01
1
0411-
101
STEP; BUMPER
(B)
1-71260-082-1
01
1
0411-
254
NUT; STEP
M8 FLANGE
0-91150-108-0
11
1
0411-0602
254
NUT; STEP
M8 FLANGE
0-91180-108-0
11
1
0603-
301
BOLT; HOOK TO FRAME
(A) M14X60
0-10811-460-0
01
1
0411-0512
301
BOLT; HOOK TO FRAME
(A) M14X60
0-10861-460-0
01
1
0601-
301
BOLT; HOOK TO FRAME
(B) M14X70
0-10811-470-0
01
1
0411-0512
301
BOLT; HOOK TO FRAME
(B) M14X70
0-10861-470-0
01
1
0601-
