5-30 — SPARE TIRE CARRIER AND COVER (#59501) — 10 parça

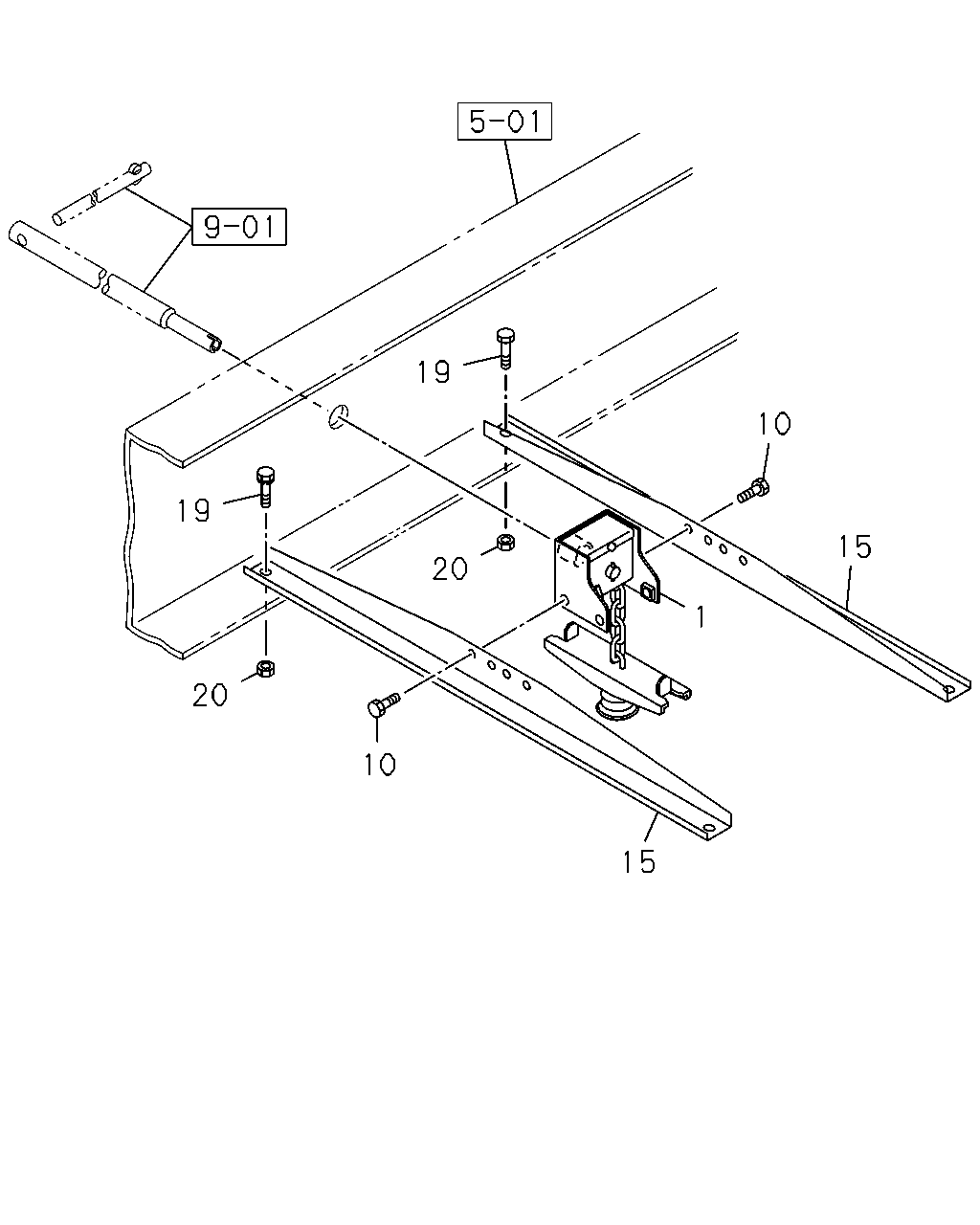

çizim 172549
19 10 19 15 20 1 20 10 15
BalonParca AdiParca NoAdetTipApplied Date
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-188-3 01 1 0411-
10 BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M10X30 FLANGE 		0-28681-030-0 04 1 0411-0512
10 BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M10X30 FLANGE 		0-28651-030-0 04 1 0601-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M10X20 FLANGE 		0-28681-020-0 04 1 0411-0512
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M10X20 FLANGE 		0-28651-020-0 04 1 0601-
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-343-2 02 1 0411-
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28081-025-0 04 1 0411-0512
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28051-025-0 04 1 0601-
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 04 1 0411-0602
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 04 1 0603-
