◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11333 - FRR(MIDEAST)6H ENG ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#59500) — 30 parça

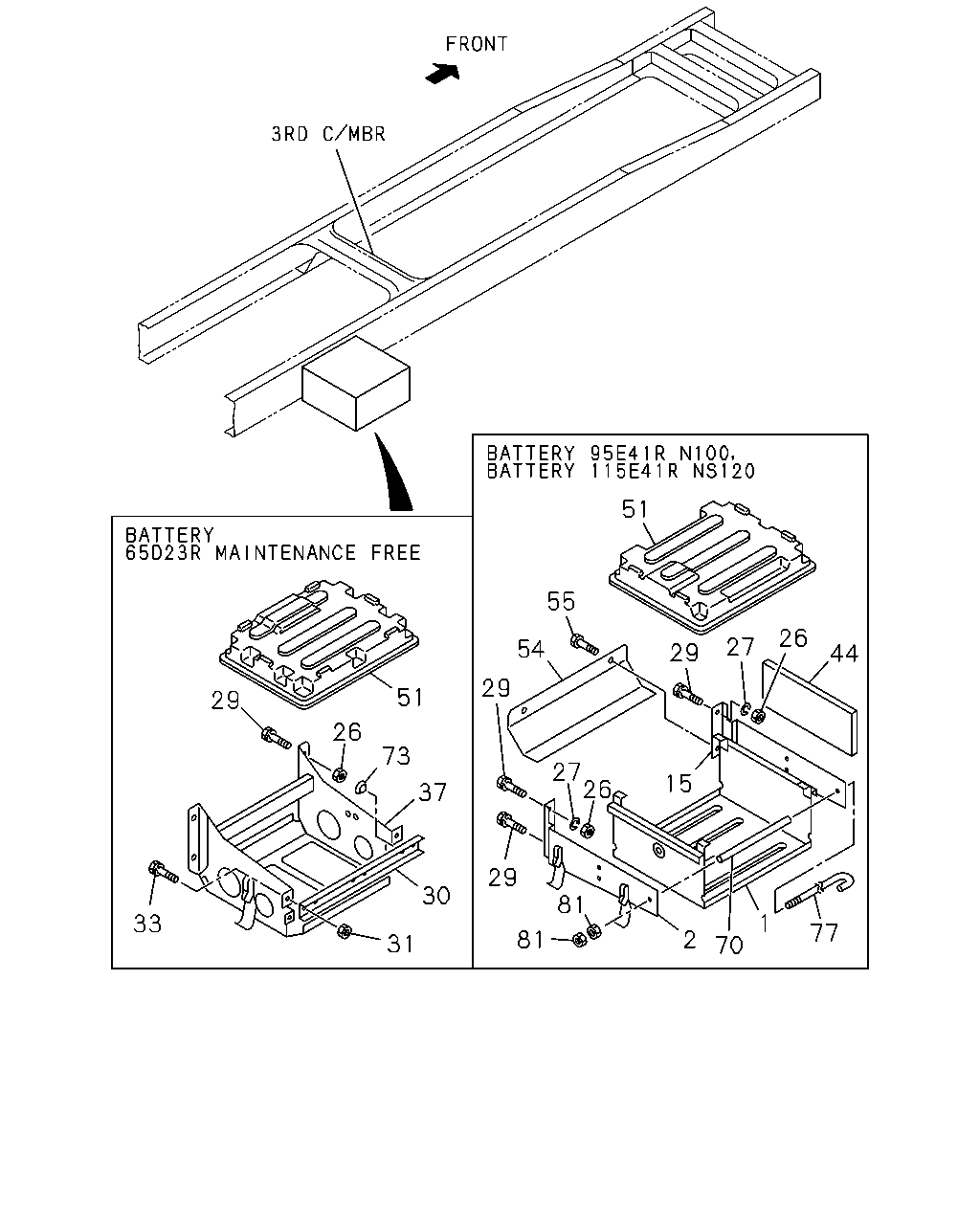

çizim 172582
51 55 26 27 54 29 44 29 51 29 26 73 27 26 15 37 29 30 81 1 33 77 81 2 31 70
BalonParca AdiParca NoAdetTipApplied Date
1 CARRIER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-53613-584-3 01 1 0411-
2 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-339-3 01 1 0411-
15 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-340-3 01 1 0411-
26 NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M10 		9-09110-510-0 04 1 0411-0512
26 NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M10 		0-91110-510-0 04 1 0601-
26 NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		9-99110-414-0 04 1 0411-0512
26 NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		0-91110-514-0 04 1 0601-
27 WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		9-09150-514-0 04 1 0411-0603
27 WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		0-91510-514-0 04 1 0604-
29 BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4> M10X35 FLANGE 		0-28681-035-0 04 1 0411-0512
29 BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4> M10X35 FLANGE 		0-28651-035-0 04 1 0601-
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35 		0-20801-435-0 04 1 0411-0512
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35 		0-20851-435-0 04 1 0601-
30 PLATE; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53616-046-3 01 1 0411-
31 NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> M8 		9-09110-408-0 02 1 0411-0512
31 NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> M8 		0-91110-508-0 02 1 0601-
33 BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28680-820-0 02 1 0411-0512
33 BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28650-820-0 02 1 0601-
37 BRACKET; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53613-354-3 01 1 0411-
44 SPACER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-006-0 02 1 0411-
51 COVER; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53612-019-1 01 1 0411-
51 COVER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53612-029-1 01 1 0411-
54 PROTECTOR; HEAT,BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-075-1 01 1 0411-
55 BOLT; HEAT PROTECTOR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE 		0-28680-820-0 02 1 0411-0512
55 BOLT; HEAT PROTECTOR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE 		0-28650-820-0 02 1 0601-
70 SPACER; BATTERY CARRIER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-023-0 01 1 0411-
73 RUBBER; CUSHION,PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-09337-002-0 04 1 0411-
77 BOLT; BATTERY BRKT,FRT TO RR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53616-101-0 02 1 0411-
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 04 1 0411-0512
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		0-91110-508-0 04 1 0601-
