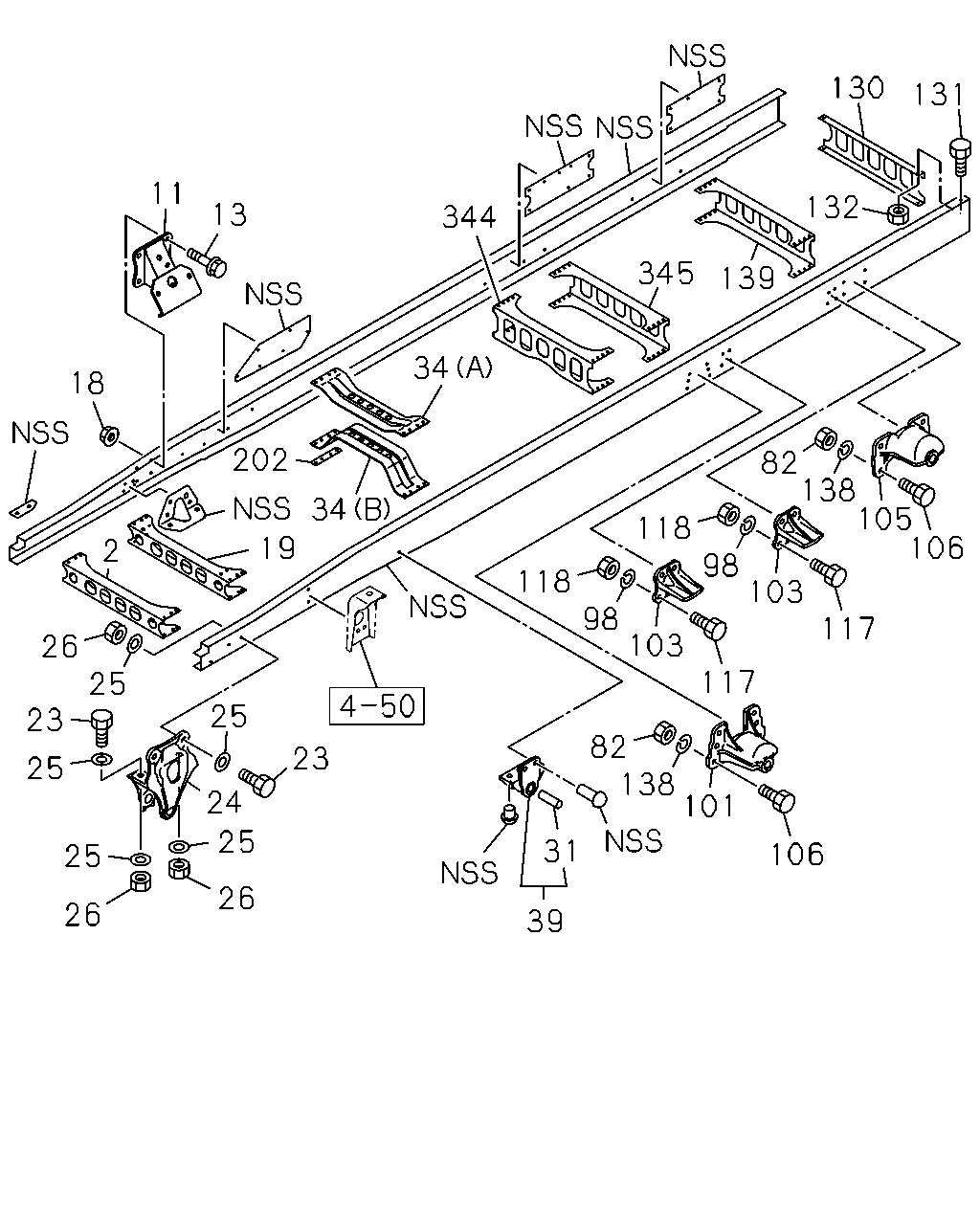

5-01 — FRAME AND OTHER PARTS
(#59497) — 41 parça
130
131
11
132
13
344
345
139
34
18
82
138
105
106
202
34
2
118
98
103
19
118
98
103
117
26
25
117
25
23
82
138
101
23
25
24
25
31
106
25
26
26
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
1-53181-892-4
01
1
0411-
11
BRACKET; ENG MTG
1-53211-195-0
02
1
0411-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28691-235-0
08
1
0411-0512
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
0601-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91150-212-0
08
1
0411-0602
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
0603-
19
MEMBER; CROSS,2ND
8-97606-307-1
01
1
0411-
23
BOLT; BRKT,SPR
M14X45
9-92061-445-0
08
1
0411-
24
BRACKET; FRT SPR,FRT
1-53351-215-0
01
1
0411-
24
BRACKET; FRT SPR,FRT
1-53351-216-0
01
1
0411-
25
WASHER; PL,BRKT
ID=15
9-09651-069-0
16
1
0411-1201
25
WASHER; PL,BRKT
ID=15
8-98010-627-1
16
1
1202-
26
NUT; BRKT,SPR
M14
9-99110-514-0
08
1
0411-0512
26
NUT; BRKT,SPR
M14
0-91110-514-0
08
1
0601-
31
BUSHING; FRT SPR,RR
ID=25
8-98082-176-0
02
1
0411-
34
MEMBER; CROSS,3RD
(A)
1-53175-358-1
01
1
0411-
34
MEMBER; CROSS,3RD
(B)
1-53175-360-1
01
1
0411-
39
BRACKET; FRT SPR,RR
1-53352-154-2
02
1
0411-
82
NUT; BRKT
M14
9-99110-414-0
22
1
0411-0512
82
NUT; BRKT
M14
0-91110-514-0
22
1
0601-
98
WASHER; LK,STOPPER
ID=14.2
9-09150-614-0
16
1
0411-0603
98
WASHER; LK,STOPPER
ID=14.2
0-91510-614-0
16
1
0604-
101
BRACKET; RR SPR,FRT
1-53353-090-4
02
1
0411-
103
STOPPER; SUB SPR
1-53356-059-1
04
1
0411-
105
BRACKET; RR SPR,RR
1-53354-074-0
02
1
0411-
106
BOLT; BRKT
M14X40
0-20801-440-0
22
1
0411-0512
106
BOLT; BRKT
M14X40
0-20851-440-0
22
1
0601-
117
BOLT; STOPPER
M14X45
0-20801-445-0
16
1
0411-
118
NUT; STOPPER
M14
9-99110-414-0
16
1
0411-0512
118
NUT; STOPPER
M14
0-91110-514-0
16
1
0601-
130
MEMBER; CROSS,END
1-53181-516-2
01
1
0411-
131
BOLT; END C/MBR
M10X25 FLANGE
0-28681-025-0
04
1
0411-0512
131
BOLT; END C/MBR
M10X25 FLANGE
0-28651-025-0
04
1
0601-
132
NUT; END C/MBR
M10 FLANGE
0-91150-110-0
04
1
0411-0602
132
NUT; END C/MBR
M10 FLANGE
0-91180-110-0
04
1
0603-
138
WASHER; LK,BRKT
ID=14.2
9-09150-614-0
22
1
0411-0603
138
WASHER; LK,BRKT
ID=14.2
0-91510-614-0
22
1
0604-
139
MEMBER; CROSS,6TH
1-53181-465-9
01
1
0411-
202
SPACER; 3RD C/MBR
1-53178-015-0
02
1
0411-
344
MEMBER; CROSS,4TH
1-53181-463-3
01
1
0411-
345
MEMBER; CROSS,5TH
1-53181-465-9
01
1
0411-
