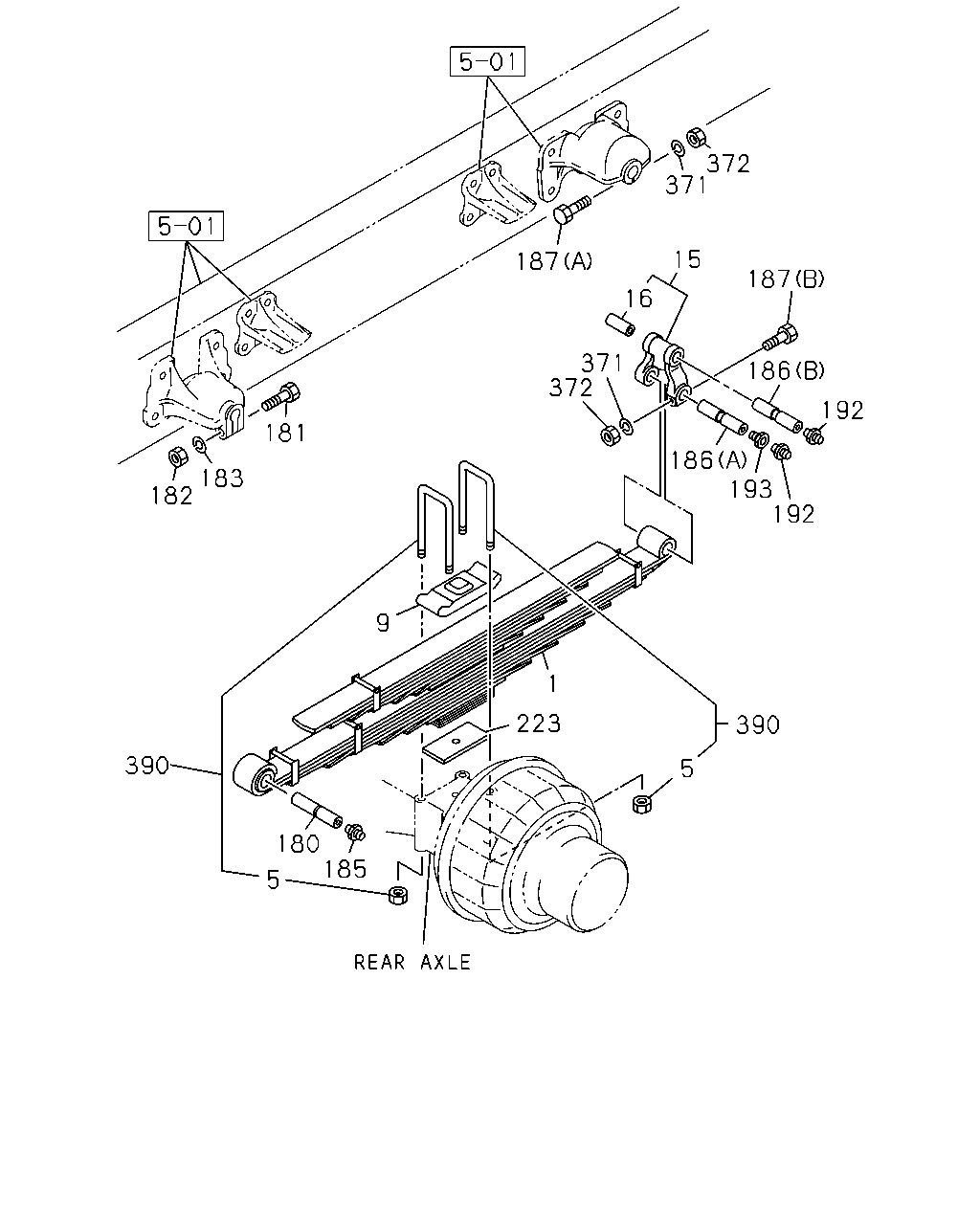

4-60 — REAR SUSPENSION
(#59494) — 27 parça
372
371
15
187
187
16
371
372
186
192
181
186
193
192
183
182
9
1
223
390
390
5
180
185
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
1-51300-362-3
02
1
0411-
5
NUT; U-BOLT,RR SPR
M18 FLANGE
1-09440-039-1
08
1
0411-
9
PAD; U BOLT,RR SPR
1-51372-059-0
02
1
0411-
15
SHACKLE; RR SPR
1-51362-038-2
02
1
0411-
16
BUSHING; SHACKLE,RR SPR
ID=25
9-51151-032-0
02
1
0411-0902
16
BUSHING; SHACKLE,RR SPR
ID=25
8-98082-176-0
02
1
0903-
180
PIN; RR SPR
DO=25 L=115 PT1/8
1-51361-016-0
02
1
0411-
181
BOLT; SPR & SHACKLE
M12X55
0-10811-255-0
02
1
0411-
182
NUT; PIN,RR SPR
M12
9-99110-512-0
02
1
0411-0512
182
NUT; PIN,RR SPR
M12
0-91110-512-0
02
1
0601-
183
WASHER; LK,PIN,RR SPR
ID=12.2
9-09150-612-0
02
1
0411-0603
183
WASHER; LK,PIN,RR SPR
ID=12.2
0-91510-612-0
02
1
0604-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
9-09031-010-0
02
1
0411-0512
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
0601-
186
PIN; SHACKLE,RR SPR
(A) DO=25 L=115 PT1/8
1-51361-016-0
02
1
0411-
186
PIN; SHACKLE,RR SPR
(B) DO=25 L=115 M12
1-51361-017-0
02
1
0411-
187
BOLT; SPR & SHACKLE
(A) M12X55
0-10811-255-0
02
1
0411-
187
BOLT; SPR & SHACKLE
(B) M12X65
0-10811-265-0
02
1
0411-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT
9-09031-010-0
04
1
0411-0512
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT
0-90301-410-0
04
1
0601-
193
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
02
1
0411-
223
SPACER; U BOLT,RR SPR
1-51377-329-1
02
1
0411-
371
WASHER; LK,SHACKLE
ID=12.2
9-09150-612-0
04
1
0411-0603
371
WASHER; LK,SHACKLE
ID=12.2
0-91510-612-0
04
1
0604-
372
NUT; SHACKLE
M12
9-99110-512-0
04
1
0411-0512
372
NUT; SHACKLE
M12
0-91110-512-0
04
1
0601-
390
U-BOLT SET; RR SPRING
L=405
1-87870-353-0
04
1
0411-
