Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#5949) — 220 parça

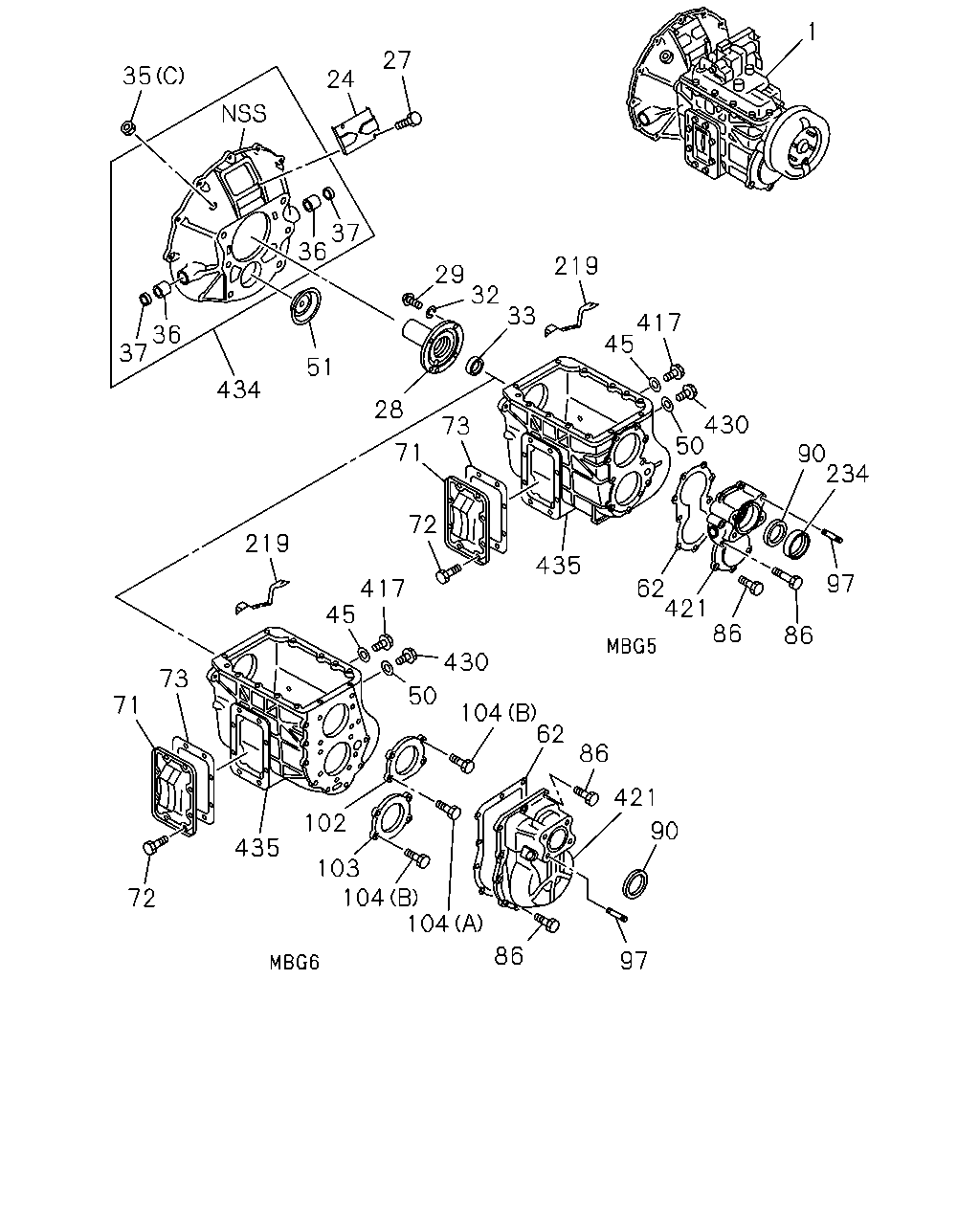

1 27 35 24 37 36 219 29 32 33 417 45 36 37 51 434 28 430 50 73 71 90 234 72 219 435 97 62 421 86 417 45 86 430 73 50 71 104 62 86 421 102 90 435 103 104 104 72 86 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S)	1-33032-757-0	01	1	9606-9810	●
1	TRANSMISSION ASM; MANUAL EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33032-768-0	01	1	9606-9810	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S)	1-33033-286-0	01	1	9606-9810		●
1	TRANSMISSION ASM; MANUAL EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-297-0	01	1	9606-9810		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S)	1-33033-682-0	01	1	9606-9810			●
1	TRANSMISSION ASM; MANUAL EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-693-0	01	1	9606-9810			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-33033-971-0	01	1	9610-9810				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5" HYPOID(W1R)	1-33033-974-0	01	1	9610-9810				●
1	TRANSMISSION ASM; MANUAL	1-33041-500-0	01	1	9811-					●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9606-9609	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9610-9807	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9808-9810	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9811-					●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9606-9609	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9610-9810	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9811-0104					●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512					●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-					●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	9606-9810	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9610-9810				●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9811-					●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9606-9609	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9610-9810	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9811-0805					●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-					●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9606-9609	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9610-9810	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9811-					●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-0	01	1	9606-9810	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9610-9810				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9811-					●
35	GROMMET; CLU HSG (C) OD=45	9-31139-007-0	01	1	9606-9609	●	●	●
35	GROMMET; CLU HSG (C) OD=45	9-31139-007-0	01	1	9610-9810	●	●	●	●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9811-					●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9811-					●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9606-9609	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9610-9810	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9811-					●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9606-9609	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9610-9810	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9811-					●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9606-9609	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9610-9810	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9811-					●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9606-9609	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9610-9810	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9811-					●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9606-9810	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9610-9810				●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9811-					●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9606-9810	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33112-014-1	01	1	9606-9810			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9610-9810				●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9811-					●
71	COVER; SIDE,TRANS CASE	1-33141-028-0	01	1	9606-9810	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9610-9810				●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9811-					●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9606-9609	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9610-9810	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9811-0512					●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-					●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9606-9609	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9610-9810	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9811-					●
86	BOLT; RR COVER M10X25	1-09044-080-0	07	1	9606-9810	●	●
86	BOLT; RR COVER M10X55	1-09044-083-0	02	1	9606-9810	●	●	●
86	BOLT; RR COVER M10X25	1-09044-080-0	08	1	9606-9810			●
86	BOLT; RR COVER M12X16	1-09044-082-0	02	1	9606-9810			●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9610-9810				●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9811-					●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	9610-9810				●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	9811-					●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9606-9810	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). JTEKT	1-09625-522-0	01	1	9606-9710	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9610-9810				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9811-					●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9606-9810	●	●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	03	1	9606-9810			●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	03	1	9610-9810				●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	03	1	9811-					●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9610-9810				●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9811-					●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-040-1	01	1	9606-9810			●
103	RETAINER; BRG	1-33151-029-0	01	1	9606-9810			●
104	BOLT; BRG RET (A) M10X28 FLANGE REAMER	1-09040-089-0	01	1	9606-9810			●
104	BOLT; BRG RET (B) M10X25	1-09049-006-1	07	1	9606-9810			●
219	PLATE; TRANS CASE & QUAD BOX	1-33119-073-1	01	1	9606-9810	●	●	●
234	COVER; OIL SEAL	1-33139-001-1	01	1	9606-9810	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9606-9609	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9610-9802	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-9810	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9811-0201					●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-					●
421	COVER; RR,TRANS PARKING BRAKE DRUM 8.5"(B1S)	1-33131-058-5	01	1	9606-9810	●	●
421	COVER; RR,TRANS EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33131-063-4	01	1	9606-9810	●	●
421	COVER; RR,TRANS PARKING BRAKE DRUM 8.5"(B1S)	1-33131-141-0	01	1	9606-9810			●
421	COVER; RR,TRANS EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33131-143-1	01	1	9606-9810			●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9610-9810				●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9811-					●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9606-9609	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9610-9810	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9811-					●
434	HOUSING; CLU	1-31110-085-2	01	1	9606-9810	●	●	●
434	HOUSING; CLU	1-31110-092-2	01	1	9610-9810				●
434	HOUSING; CLU	1-31110-169-0	01	1	9811-					●
435	CASE; TRANS	1-33111-157-3	01	1	9606-9810	●	●
435	CASE; TRANS	1-33111-158-4	01	1	9606-9810			●
435	CASE; TRANS	1-33111-235-0	01	1	9610-9810				●
435	CASE; TRANS	1-33111-235-0	01	1	9811-0201					●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303					●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406					●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0802					●

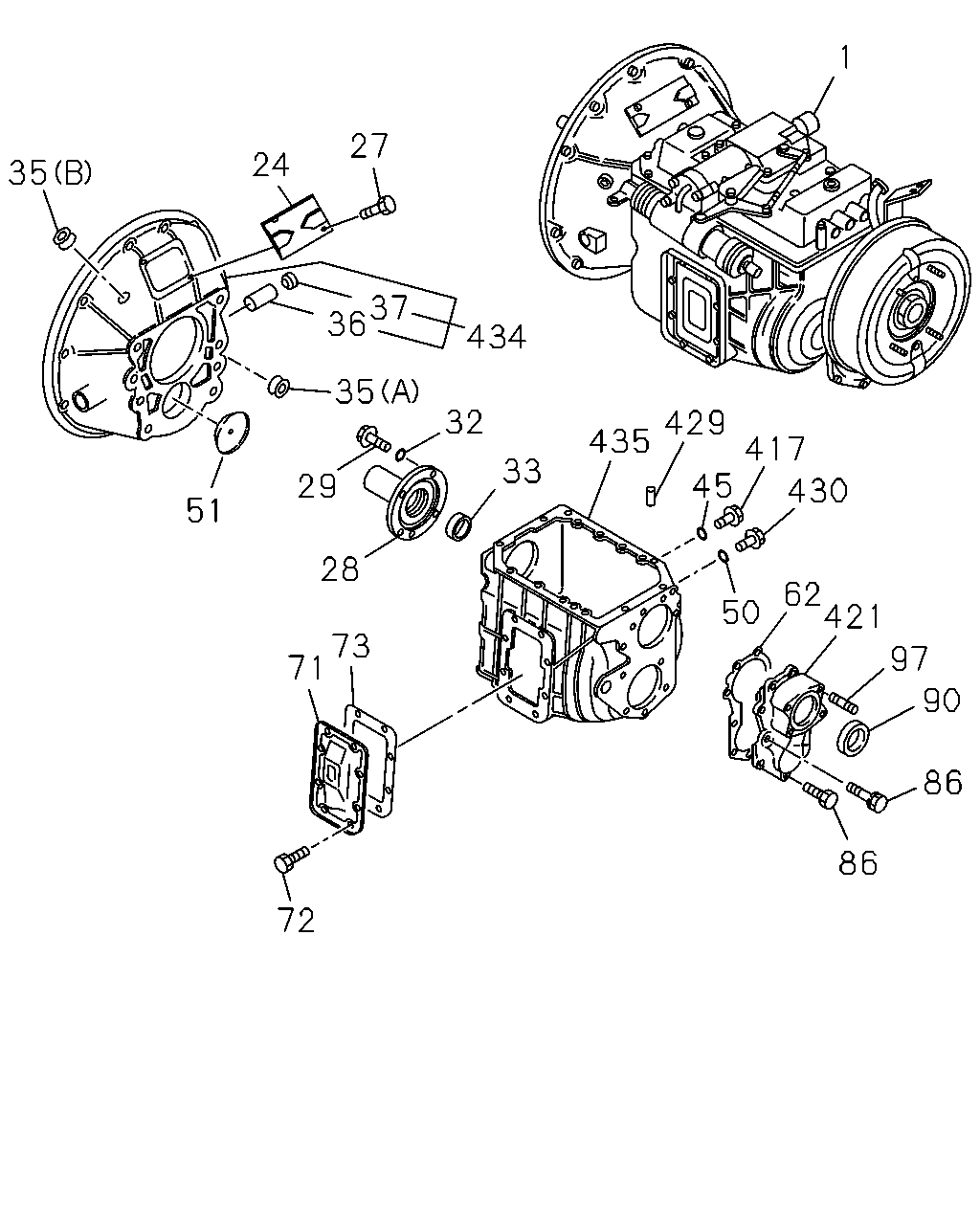

1 27 24 35 37 36 434 35 32 429 435 417 45 33 29 430 51 28 62 421 50 73 71 97 90 86 86 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S)	1-33032-757-0	01	1	9606-9810	●
1	TRANSMISSION ASM; MANUAL EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33032-768-0	01	1	9606-9810	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S)	1-33033-286-0	01	1	9606-9810		●
1	TRANSMISSION ASM; MANUAL EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-297-0	01	1	9606-9810		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S)	1-33033-682-0	01	1	9606-9810			●
1	TRANSMISSION ASM; MANUAL EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-693-0	01	1	9606-9810			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-33033-971-0	01	1	9610-9810				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5" HYPOID(W1R)	1-33033-974-0	01	1	9610-9810				●
1	TRANSMISSION ASM; MANUAL	1-33041-500-0	01	1	9811-					●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9606-9609	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9610-9807	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9808-9810	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9811-					●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9606-9609	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9610-9810	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9811-0104					●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512					●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-					●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	9606-9810	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9610-9810				●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9811-					●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9606-9609	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9610-9810	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9811-0805					●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-					●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9606-9609	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9610-9810	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9811-					●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-0	01	1	9606-9810	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9610-9810				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9811-					●
35	GROMMET; CLU HSG (C) OD=45	9-31139-007-0	01	1	9606-9609	●	●	●
35	GROMMET; CLU HSG (C) OD=45	9-31139-007-0	01	1	9610-9810	●	●	●	●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9811-					●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9811-					●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9606-9609	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9610-9810	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9811-					●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9606-9609	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9610-9810	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9811-					●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9606-9609	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9610-9810	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9811-					●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9606-9609	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9610-9810	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9811-					●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9606-9810	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9610-9810				●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9811-					●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9606-9810	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33112-014-1	01	1	9606-9810			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9610-9810				●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9811-					●
71	COVER; SIDE,TRANS CASE	1-33141-028-0	01	1	9606-9810	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9610-9810				●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9811-					●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9606-9609	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9610-9810	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9811-0512					●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-					●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9606-9609	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9610-9810	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9811-					●
86	BOLT; RR COVER M10X25	1-09044-080-0	07	1	9606-9810	●	●
86	BOLT; RR COVER M10X55	1-09044-083-0	02	1	9606-9810	●	●	●
86	BOLT; RR COVER M10X25	1-09044-080-0	08	1	9606-9810			●
86	BOLT; RR COVER M12X16	1-09044-082-0	02	1	9606-9810			●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9610-9810				●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9811-					●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	9610-9810				●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	9811-					●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9606-9810	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). JTEKT	1-09625-522-0	01	1	9606-9710	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9610-9810				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9811-					●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9606-9810	●	●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	03	1	9606-9810			●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	03	1	9610-9810				●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	03	1	9811-					●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9610-9810				●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9811-					●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9606-9609	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9610-9802	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-9810	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9811-0201					●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-					●
421	COVER; RR,TRANS PARKING BRAKE DRUM 8.5"(B1S)	1-33131-058-5	01	1	9606-9810	●	●
421	COVER; RR,TRANS EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33131-063-4	01	1	9606-9810	●	●
421	COVER; RR,TRANS PARKING BRAKE DRUM 8.5"(B1S)	1-33131-141-0	01	1	9606-9810			●
421	COVER; RR,TRANS EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33131-143-1	01	1	9606-9810			●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9610-9810				●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9811-					●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9610-9810				●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9811-					●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9606-9609	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9610-9810	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9811-					●
434	HOUSING; CLU	1-31110-085-2	01	1	9606-9810	●	●	●
434	HOUSING; CLU	1-31110-092-2	01	1	9610-9810				●
434	HOUSING; CLU	1-31110-169-0	01	1	9811-					●
435	CASE; TRANS	1-33111-157-3	01	1	9606-9810	●	●
435	CASE; TRANS	1-33111-158-4	01	1	9606-9810			●
435	CASE; TRANS	1-33111-235-0	01	1	9610-9810				●
435	CASE; TRANS	1-33111-235-0	01	1	9811-0201					●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303					●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406					●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0802					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
