3-78 — FIXING PARTS; AIR PIPING (#59479) — 109 parça
çizim 172521
172 393 174 174 172 172 173 170 173 171 20 375 322 267 376 21 268 297 172 173 174 170 265
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0411-0512
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0411-0602
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
170 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 01 1 0411-
170 CLIP; NYLON TUBE
(C) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 0411-
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 01 1 0411-
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 14 1 0411-0512
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 15 1 0601-1303
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 16 1 1304-
171 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 03 1 0411-0512
171 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0601-
172 BRACKET; TUBE CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0411-
172 BRACKET; TUBE CLIP
(A) 		1-47477-649-0 01 1 0411-
172 BRACKET; TUBE CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0411-
172 BRACKET; TUBE CLIP
(D) L=125 		1-47477-975-1 02 1 0411-
172 BRACKET; TUBE CLIP
(E) L=59 B=20 		1-47479-048-0 01 1 0411-
173 BOLT; CLIP BRKT
M10X16 FLANGE 		0-28181-016-0 02 1 0411-0512
173 BOLT; CLIP BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0601-
173 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0411-0512
173 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0601-
174 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 06 1 0411-0602
174 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 06 1 0603-
265 CLIP; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 12 1 0411-0512
265 CLIP; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 13 1 0601-
267 BOLT; CLIP BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28680-820-0 01 1 0411-0512
267 BOLT; CLIP BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
268 NUT; CLIP BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 0411-0602
268 NUT; CLIP BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0603-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0411-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
322 BRACKET; CLIP
L=90 B=25 		1-47475-530-0 01 1 0411-
375 CLIP; AIR PIPE
D=9 T=45 		5-09700-021-0 01 1 0411-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0411-0512
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0411-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0411-0904
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
376 BOLT; BRKT
DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0411-
393 NUT; UNION
M8 FLANGE 		0-91150-108-0 03 1 0411-0602
393 NUT; UNION
M8 FLANGE 		0-91180-108-0 03 1 0603-

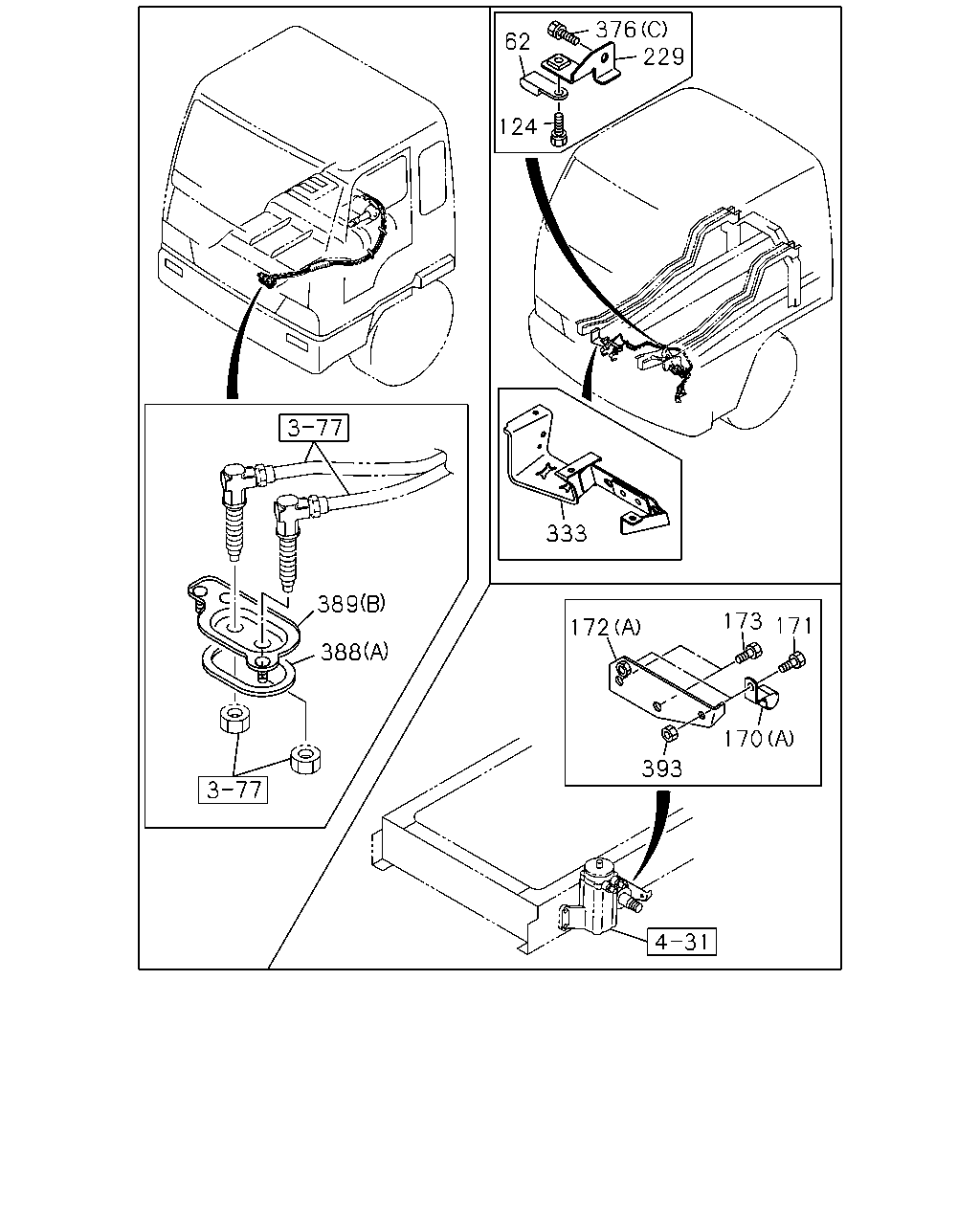

çizim 172530
376 229 62 124 333 389 173 171 172 388 170 393
BalonParca AdiParca NoAdetTipApplied Date
62 CLIP; AIR PIPE
ID=13X2 L=20 		9-09535-236-0 02 1 0411-0606
62 CLIP; AIR PIPE
ID=13X2 L=20 		0-95325-236-0 02 1 0607-
124 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0411-0904
124 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
170 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 01 1 0411-
170 CLIP; NYLON TUBE
(C) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 0411-
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 01 1 0411-
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 14 1 0411-0512
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 15 1 0601-1303
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 16 1 1304-
171 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 03 1 0411-0512
171 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0601-
172 BRACKET; TUBE CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0411-
172 BRACKET; TUBE CLIP
(A) 		1-47477-649-0 01 1 0411-
172 BRACKET; TUBE CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0411-
172 BRACKET; TUBE CLIP
(D) L=125 		1-47477-975-1 02 1 0411-
172 BRACKET; TUBE CLIP
(E) L=59 B=20 		1-47479-048-0 01 1 0411-
173 BOLT; CLIP BRKT
M10X16 FLANGE 		0-28181-016-0 02 1 0411-0512
173 BOLT; CLIP BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0601-
173 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0411-0512
173 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0601-
229 BRACKET; PIPE CLIP 1-79738-858-0 01 1 0411-
333 BRACKET; BRK AIR PIPE 1-79738-804-4 01 1 0411-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0411-0512
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0411-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0411-0904
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
376 BOLT; BRKT
DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0411-
388 SEAL
(A) L=280 		1-79738-793-1 01 1 0411-
388 SEAL
(B) L=215 		1-79738-794-1 01 1 0411-
389 BRACKET; UNION
DUAL AIR GAUGE<UG2> (A) 		1-79738-790-1 01 1 0411-
389 BRACKET; UNION
EXC. DUAL AIR GAUGE<UG2> (A) 		1-79738-795-1 01 1 0411-
389 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-79738-839-0 01 1 0411-
389 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-79738-811-1 01 1 0411-
393 NUT; UNION
M8 FLANGE 		0-91150-108-0 03 1 0411-0602
393 NUT; UNION
M8 FLANGE 		0-91180-108-0 03 1 0603-

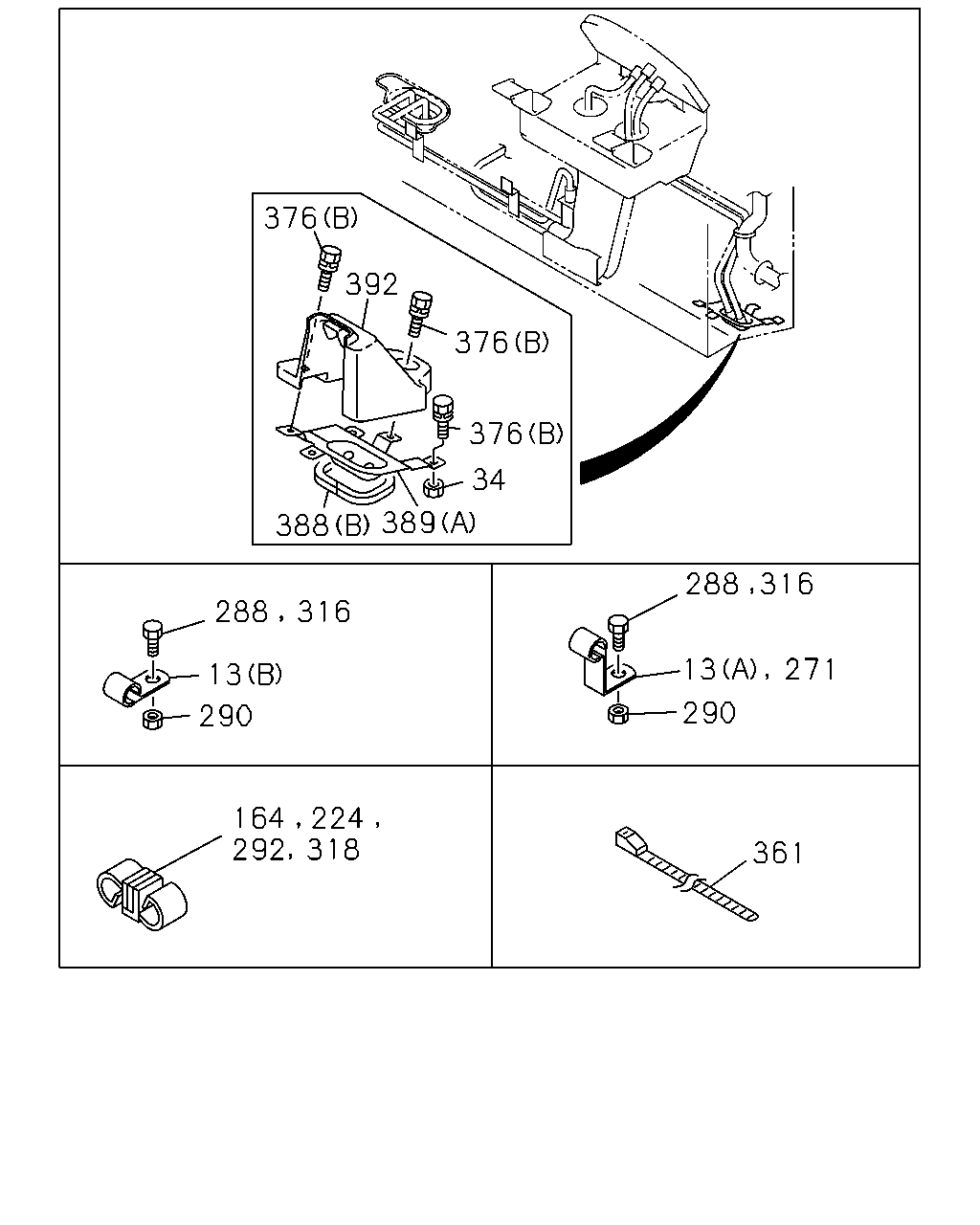

çizim 172538
376 392 376 376 34 388 389 271 13 13 290 290 361 288 316 288 316 164 224 292 318
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; AIR PIPE
(A) ID=7 L=38 H=21 		1-09700-916-0 01 1 0411-
13 CLIP; AIR PIPE
(B) ID=7 L=40 		9-09524-675-0 01 1 0411-0606
13 CLIP; AIR PIPE
(B) ID=7 L=40 		0-95234-675-0 01 1 0607-
34 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0411-0605
34 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0411-0605
34 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0606-
164 CLIP; AIR PIPE
ID=10 & 12 		1-09709-278-1 01 1 0411-
224 CLIP; AIR PIPE
ID=10 & 12 		1-09709-278-1 01 1 0411-
271 CLIP; AIR PIPE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20 		1-09700-604-0 01 1 0411-
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 02 1 0411-0512
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 0411-0602
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603-
292 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 01 1 0411-
316 BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE 		0-28080-810-0 01 1 0411-0512
316 BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE 		0-28050-810-0 01 1 0601-
318 CLIP; AIR PIPE
ID=6.35 & 12 		1-09709-275-1 01 1 0411-
361 CLIP; FLEX HOSE,AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=140 		5-09707-031-1 01 1 0411-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0411-0512
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0411-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0411-0904
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
376 BOLT; BRKT
DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0411-
388 SEAL
(A) L=280 		1-79738-793-1 01 1 0411-
388 SEAL
(B) L=215 		1-79738-794-1 01 1 0411-
389 BRACKET; UNION
DUAL AIR GAUGE<UG2> (A) 		1-79738-790-1 01 1 0411-
389 BRACKET; UNION
EXC. DUAL AIR GAUGE<UG2> (A) 		1-79738-795-1 01 1 0411-
389 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-79738-839-0 01 1 0411-
389 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-79738-811-1 01 1 0411-
392 COVER; BRKT
DUAL AIR GAUGE<UG2> 		1-73996-264-1 01 1 0411-
