Isuzu WW
▶
TRUCKS
▶
FRR
▶
11333 - FRR(MIDEAST)6H ENG
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#59477) — 21 parça
◀

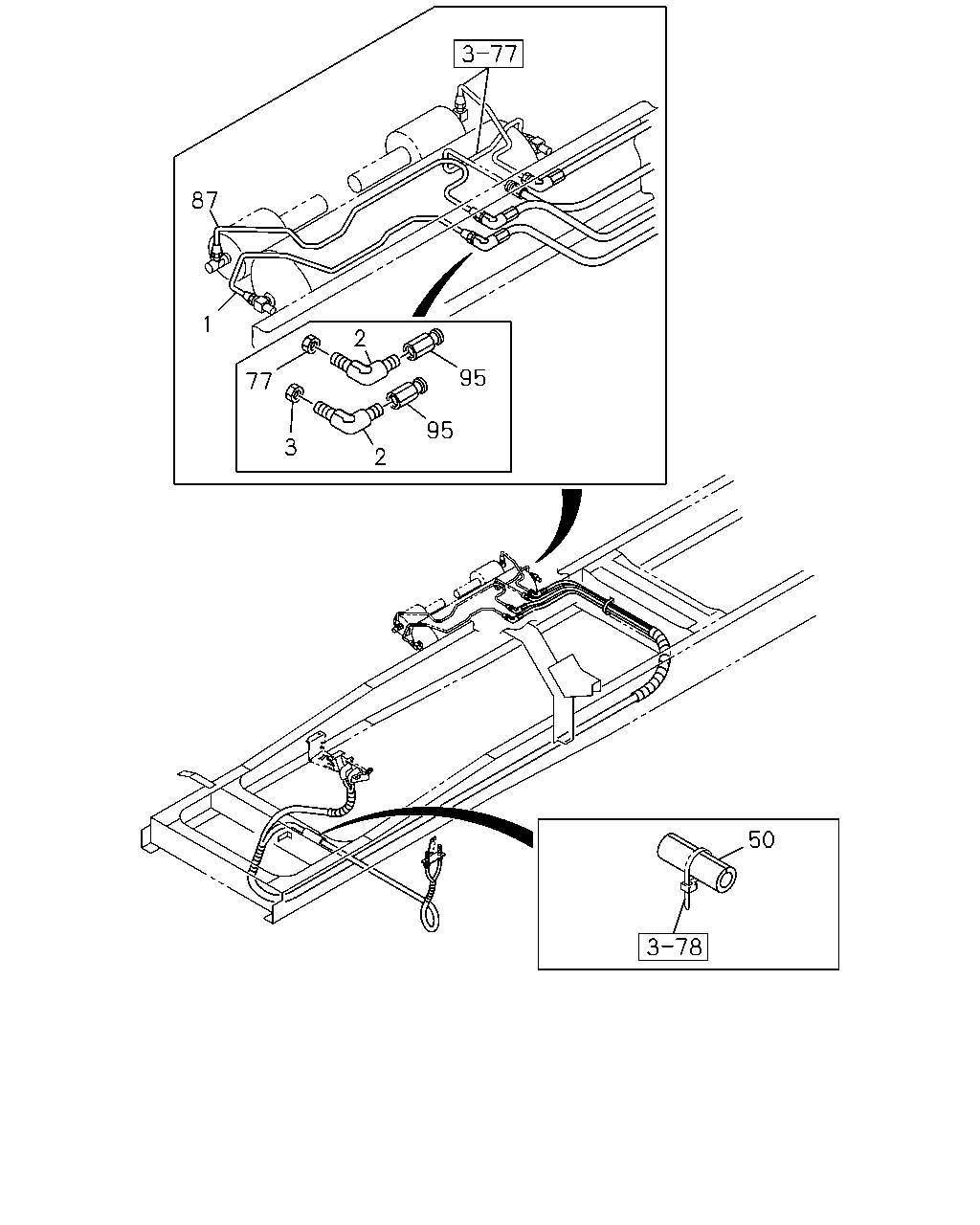

[375A] FRAME SIDE (10 parça)

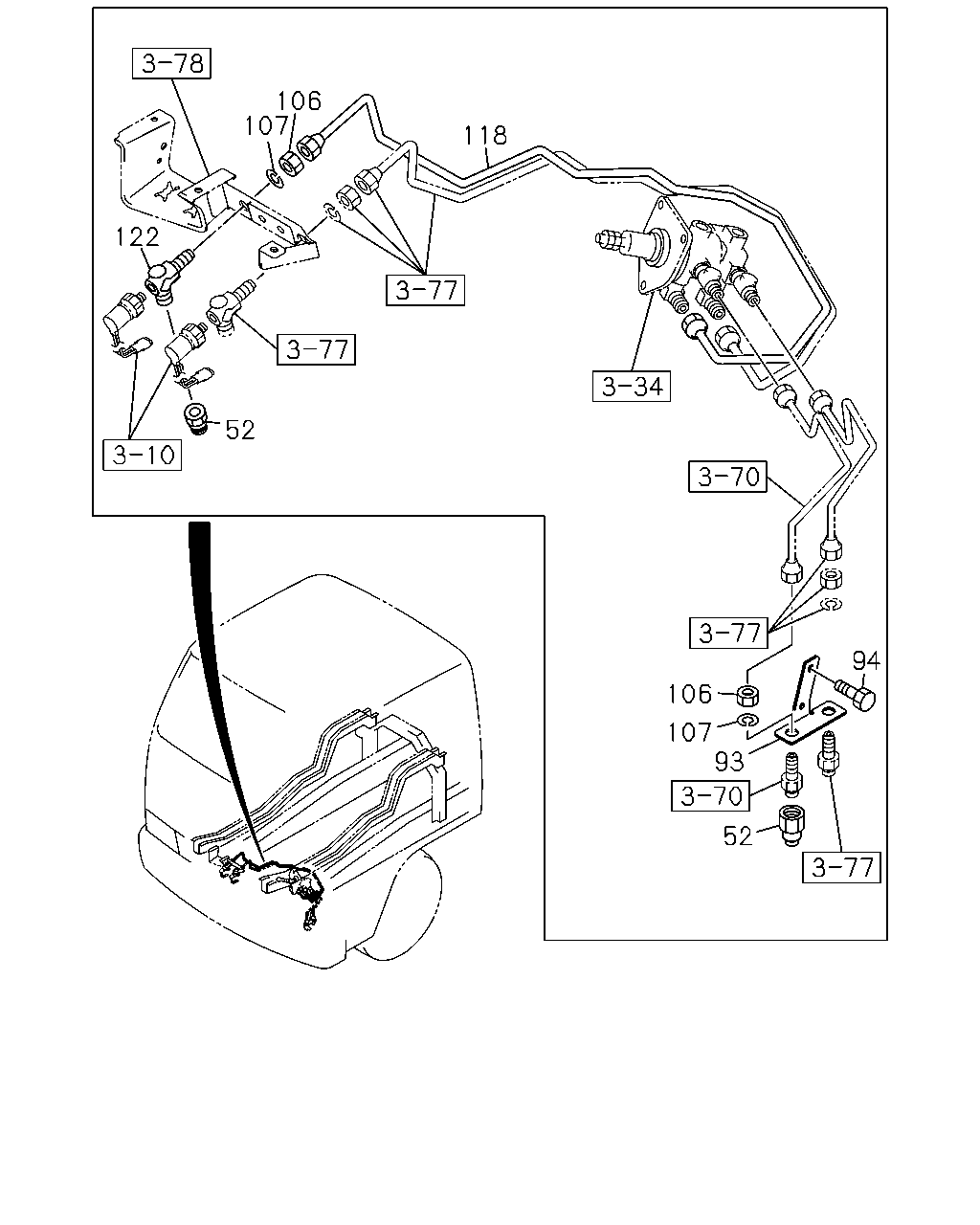

[375A] CAB SIDE (11 parça)
▶
87
1
2
95
77
95
3
2
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,AIR TANK TO UNION
1-49124-022-0
01
1
0411-
2
UNION; AIR PIPE
M16 ELBOW
9-09235-210-1
02
1
0411-0607
2
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
02
1
0608-
3
NUT; PIPE UNION
M16
9-99111-416-0
01
1
0411-0512
3
NUT; PIPE UNION
M16
0-91111-516-0
01
1
0601-
50
SLEEVE; RUBBER,NYLON TUBE
L=150 SERVICED BY L=1300
1-09360-677-1
01
1
0411-
77
NUT; PIPE UNION
M16
9-99111-416-0
01
1
0411-0512
77
NUT; PIPE UNION
M16
0-91111-516-0
01
1
0601-
87
PIPE; AIR,UNION TO AIR MASTER
L=607
1-49123-213-0
01
1
0411-
95
ADAPTER; BRKT
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0411-
106
107
118
122
52
94
106
107
93
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0411-
52
CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0411-
93
BRACKET; UNION,TUBE
1-71996-119-0
01
1
0411-
94
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0411-0904
94
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
106
NUT; FLEX HOSE
M16
9-99111-416-0
02
1
0411-0512
106
NUT; FLEX HOSE
M16
0-91111-516-0
02
1
0601-
107
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
0411-0603
107
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=989
1-49121-666-0
01
1
0411-
122
CONNECTOR; FLEX HOSE
M16X2 & PT1/4 3WAY
1-09656-329-1
01
1
0411-
