Sayfa 3-70 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11333 - FRR(MIDEAST)6H ENG ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶

3-70 — BRAKE PIPING; AIR,AIR MASTER (#59476) — 144 parça

171 154 34 176 14 170 154 14 184 6 186 185 3 2 1 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=350	1-09363-558-0	01	1	0411-
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	0411-0512
2	NUT; FLEX HOSE,AIR TANK M22	0-91111-522-0	01	1	0601-
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	0411-0603
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	0-91510-522-0	01	1	0604-
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-864-0	01	1	0411-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0411-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7>	1-49114-920-0	01	1	0411-
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49119-158-0	01	1	0411-
34	PIPE; AIR AIR DRYER<PS7>	1-49119-150-1	01	1	0411-
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-146-0	01	1	0411-
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49123-104-0	01	1	0411-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-49122-150-0	01	1	0411-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7>	1-49119-646-0	01	1	0411-
184	HOSE; FLEX,AIR GOV L=350	1-09363-651-0	01	1	0411-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	0411-
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	0411-0603
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	01	1	0604-

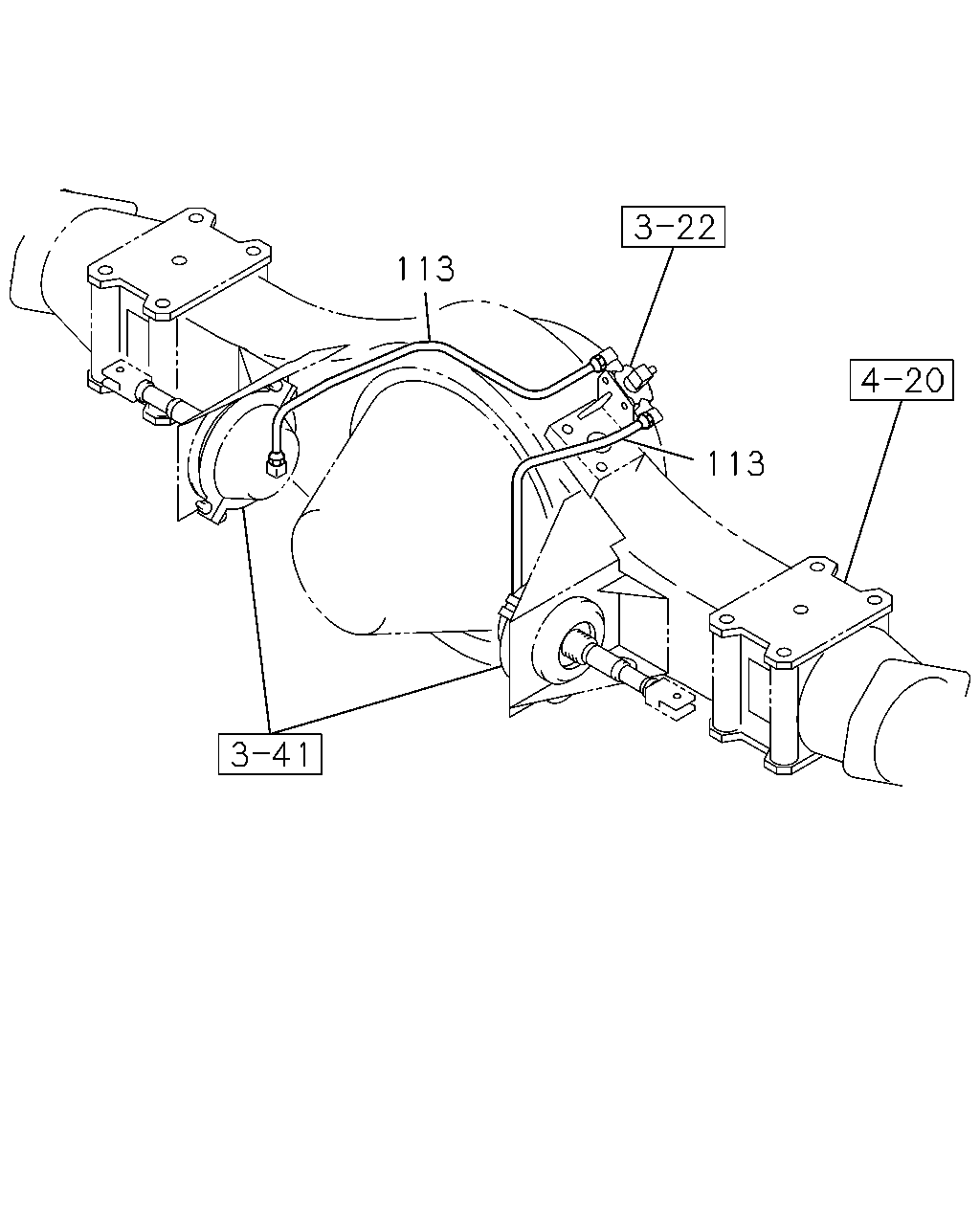

113 113

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=635	1-49112-658-0	01	1	0411-
	113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=324	1-49112-659-0	01	1	0411-

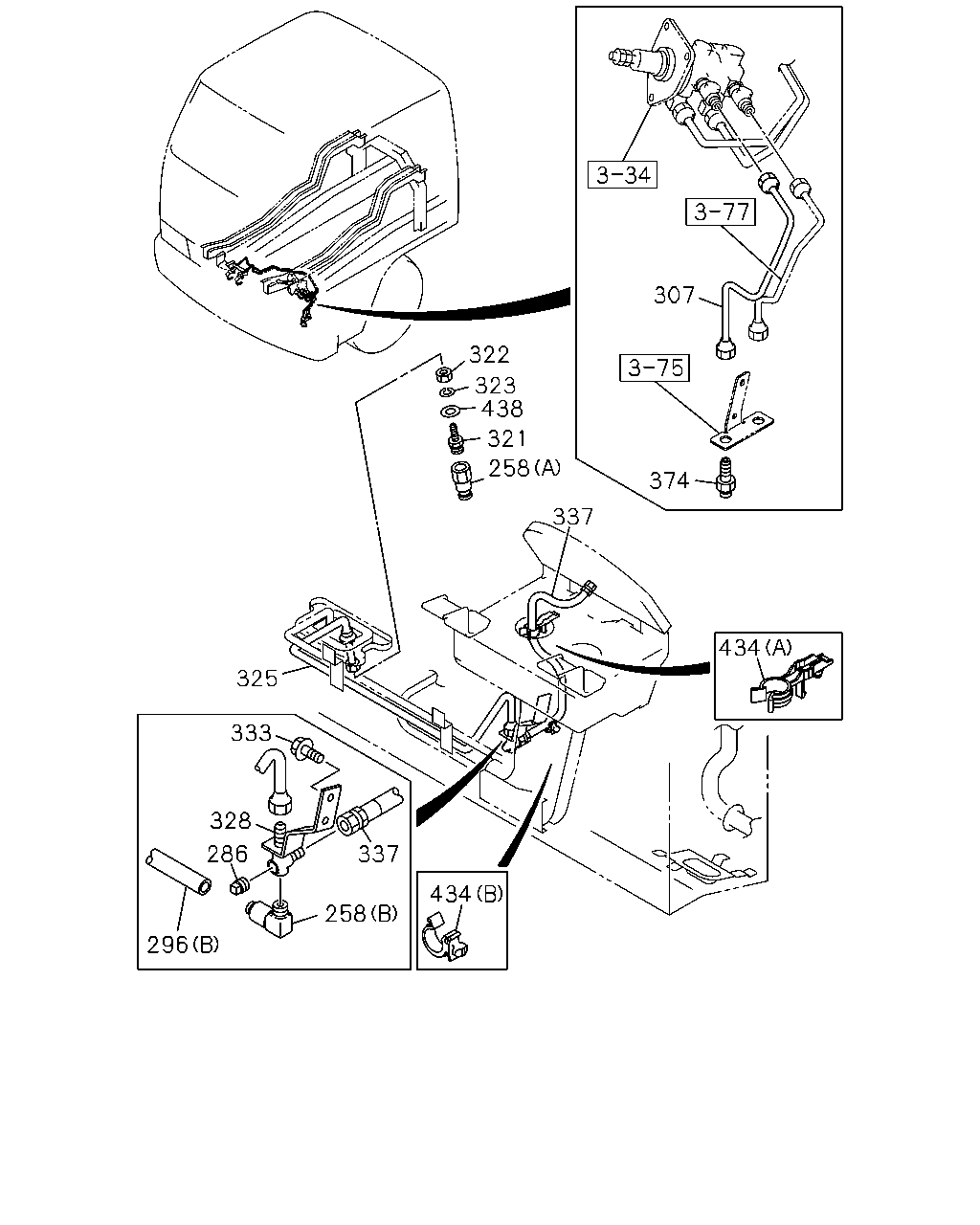

307 322 323 438 321 258 374 337 434 325 333 328 286 337 434 258 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8	1-09660-760-1	01	1	0411-
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0411-
258	CONNECTOR; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0411-
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0411-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0411-
286	PLUG; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>	9-09204-510-0	01	1	0411-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6	1-09366-256-1	01	1	0411-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0411-
296	TUBE; NYLON PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0411-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0411-
296	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0411-
307	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=540	1-49113-427-2	01	1	0411-
307	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=434	1-49116-435-1	01	1	0411-
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0411-
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0411-
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0411-
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0411-
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0411-0603
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0411-0603
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	01	1	0604-
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	01	1	0604-
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> L=791	1-49116-077-0	01	1	0411-
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=791	1-49116-077-0	01	1	0411-
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47470-415-1	01	1	0411-
328	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-473-0	01	1	0411-
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0411-
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0411-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	0411-0608
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-57210-720-0	02	1	0609-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-07210-810-0	01	1	0411-0605
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-57210-810-0	01	1	0606-
374	CONNECTOR M16 STRAIGHT	1-09654-380-0	01	1	0411-
434	CLIP DUAL AIR GAUGE<UG2> (C) ID=10 & 10	1-09709-221-0	01	1	0411-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	0411-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	02	1	0411-
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0411-
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0411-

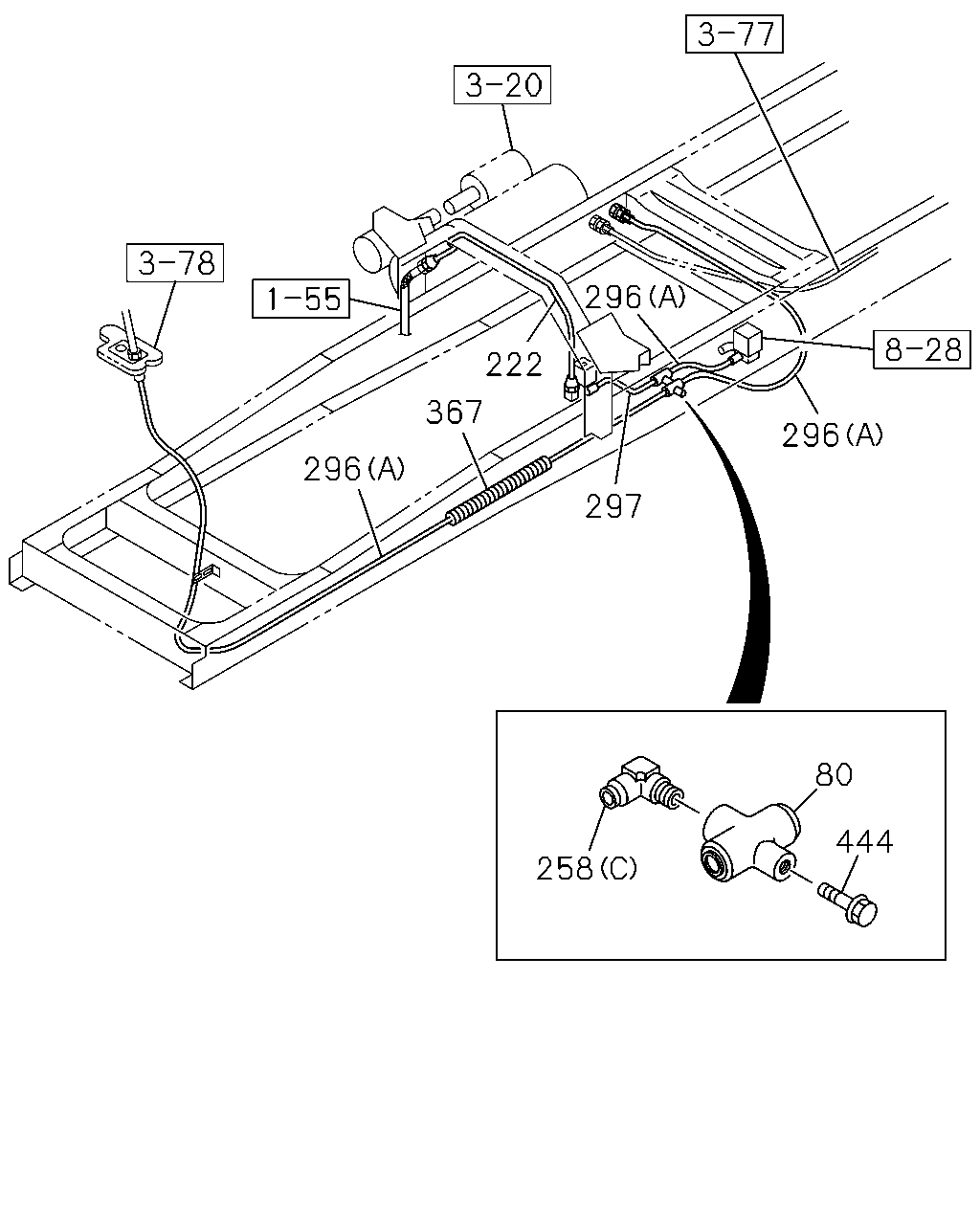

296 222 367 296 296 297 80 444 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	UNION; 3 WAY AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0411-
80	UNION; 3 WAY EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0411-
222	PIPE; AIR,MAG VLV TO FLEX HOSE L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	0411-
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8	1-09660-760-1	01	1	0411-
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0411-
258	CONNECTOR; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0411-
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0411-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0411-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6	1-09366-256-1	01	1	0411-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0411-
296	TUBE; NYLON PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0411-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0411-
296	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0411-
297	TUBE; NYLON DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0411-
297	TUBE; NYLON PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0411-
297	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0411-
297	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0411-
367	TUBE; CORRUGATE EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0411-
444	BOLT; UNION AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE	0-28080-820-0	01	1	0411-0512
444	BOLT; UNION EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28080-820-0	01	1	0411-0512
444	BOLT; UNION AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE	0-28050-820-0	01	1	0601-
444	BOLT; UNION EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28050-820-0	01	1	0601-

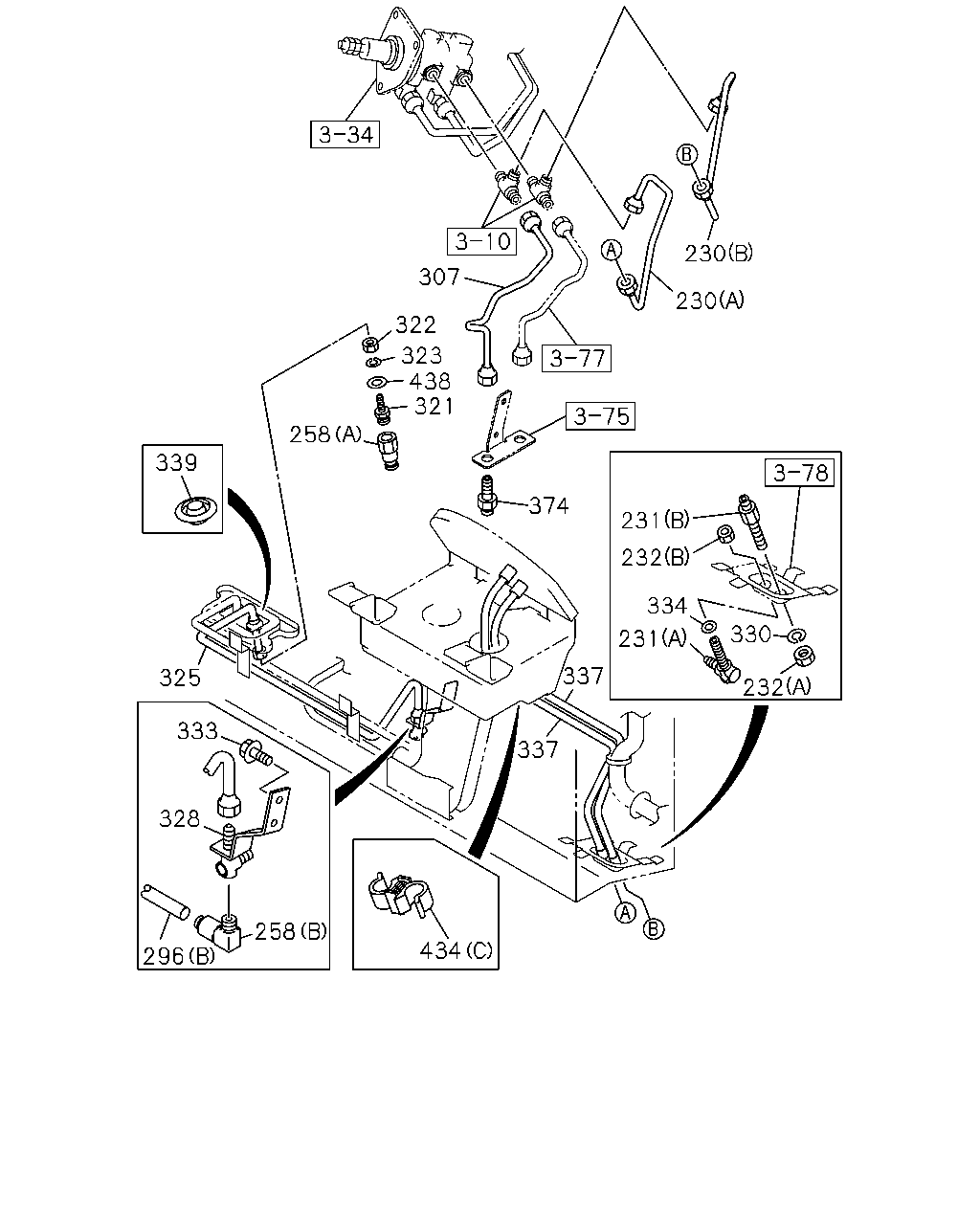

230 307 230 322 323 438 321 258 339 374 231 232 334 330 231 337 325 232 333 337 328 258 296 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (A) L=426	1-49116-433-0	01	1	0411-
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (B) L=483	1-49116-434-0	01	1	0411-
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (A) M10 ELBOW	1-09654-186-2	01	1	0411-
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B) M10 STRAIGHT	1-09654-361-0	01	1	0411-
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> (A) M10 H=8	1-09400-029-0	01	1	0411-
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> (B) M10	9-09110-410-0	01	1	0411-0512
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> (B) M10	0-91110-510-0	01	1	0601-
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8	1-09660-760-1	01	1	0411-
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0411-
258	CONNECTOR; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0411-
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0411-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0411-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6	1-09366-256-1	01	1	0411-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0411-
296	TUBE; NYLON PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0411-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0411-
296	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0411-
307	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=540	1-49113-427-2	01	1	0411-
307	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=434	1-49116-435-1	01	1	0411-
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0411-
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0411-
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0411-
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0411-
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0411-0603
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0411-0603
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	01	1	0604-
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	01	1	0604-
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> L=791	1-49116-077-0	01	1	0411-
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=791	1-49116-077-0	01	1	0411-
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47470-415-1	01	1	0411-
328	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-473-0	01	1	0411-
330	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	02	1	0411-0603
330	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	02	1	0604-
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0411-
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0411-
334	SPACER; PIPE UNION DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4	1-09503-045-0	01	1	0411-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	0411-0608
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-57210-720-0	02	1	0609-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-07210-810-0	01	1	0411-0605
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-57210-810-0	01	1	0606-
339	GROMMET; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> OD=28	8-94279-720-0	01	1	0411-
374	CONNECTOR M16 STRAIGHT	1-09654-380-0	01	1	0411-
434	CLIP DUAL AIR GAUGE<UG2> (C) ID=10 & 10	1-09709-221-0	01	1	0411-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	0411-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	02	1	0411-
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0411-
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0411-

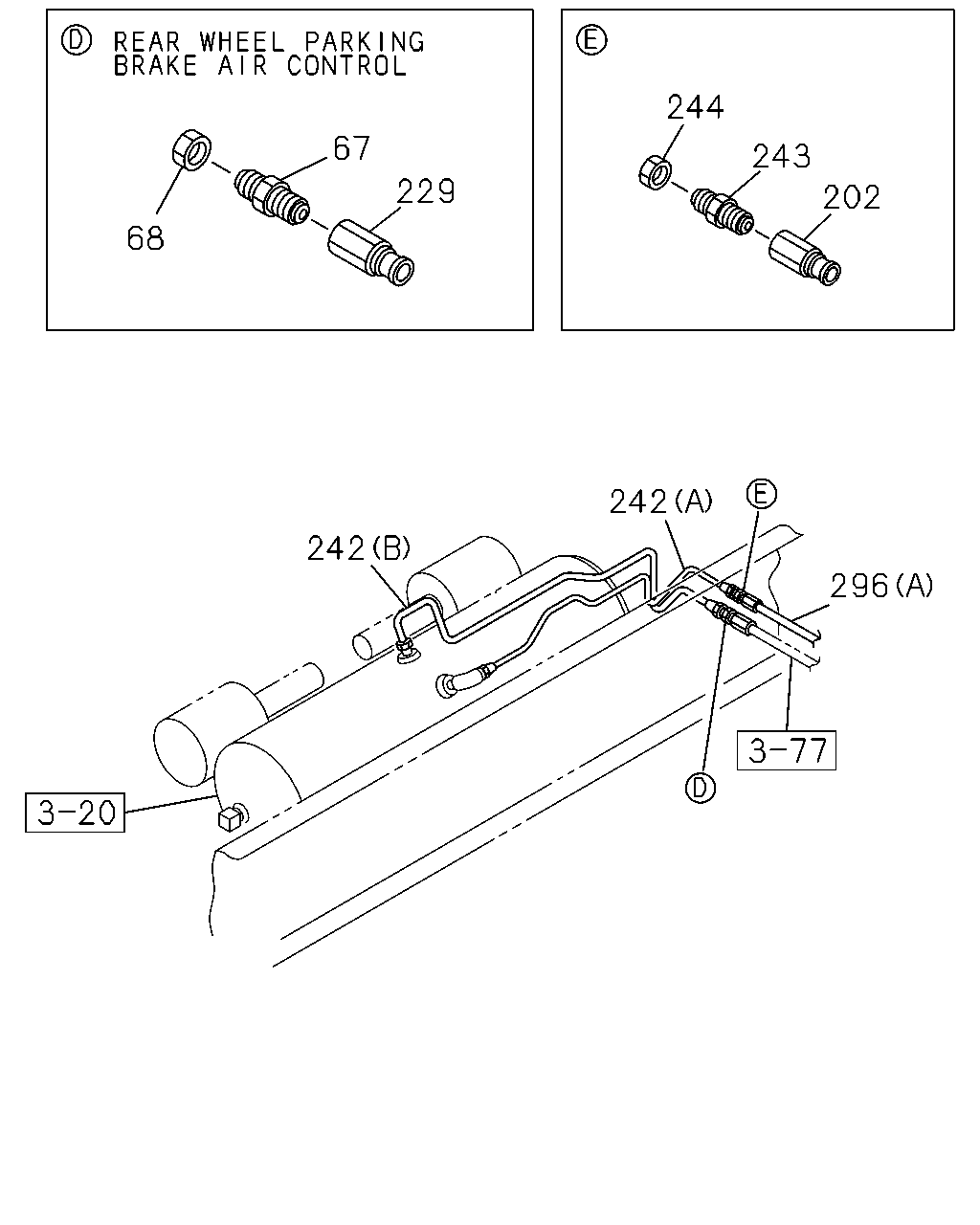

244 67 243 229 202 68 242 242 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
67	JOINT; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 L=74	9-09233-310-1	01	1	0411-0607
67	JOINT; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 L=74	0-92123-310-0	01	1	0608-
68	NUT; JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	9-99111-416-0	01	1	0411-0512
68	NUT; JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0601-
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0411-
229	ADAPTER; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0411-
242	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49118-369-0	01	1	0411-
242	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49118-536-0	01	1	0411-
242	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49118-368-0	01	1	0411-
243	UNION; AIR PIPE M12 L=66.5	9-09223-306-1	01	1	0411-0607
243	UNION; AIR PIPE M12 L=66.5	0-92113-306-0	01	1	0608-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0411-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6	1-09366-256-1	01	1	0411-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0411-
296	TUBE; NYLON PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0411-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0411-
296	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
