Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11312 - FVZ(MIDDLE EAST)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶
7-60 — SEAT BELT
(#59471) — 27 parça
◀

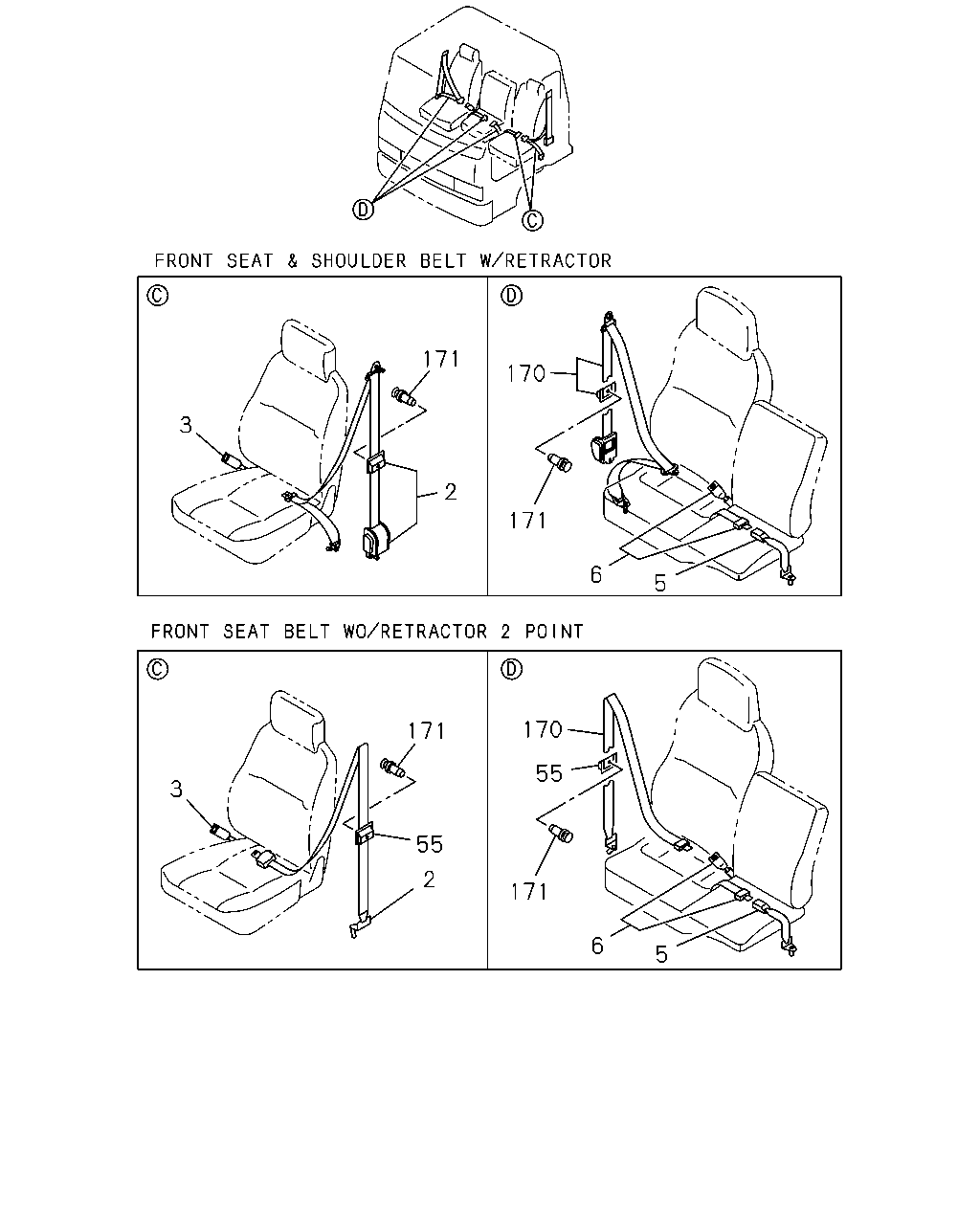

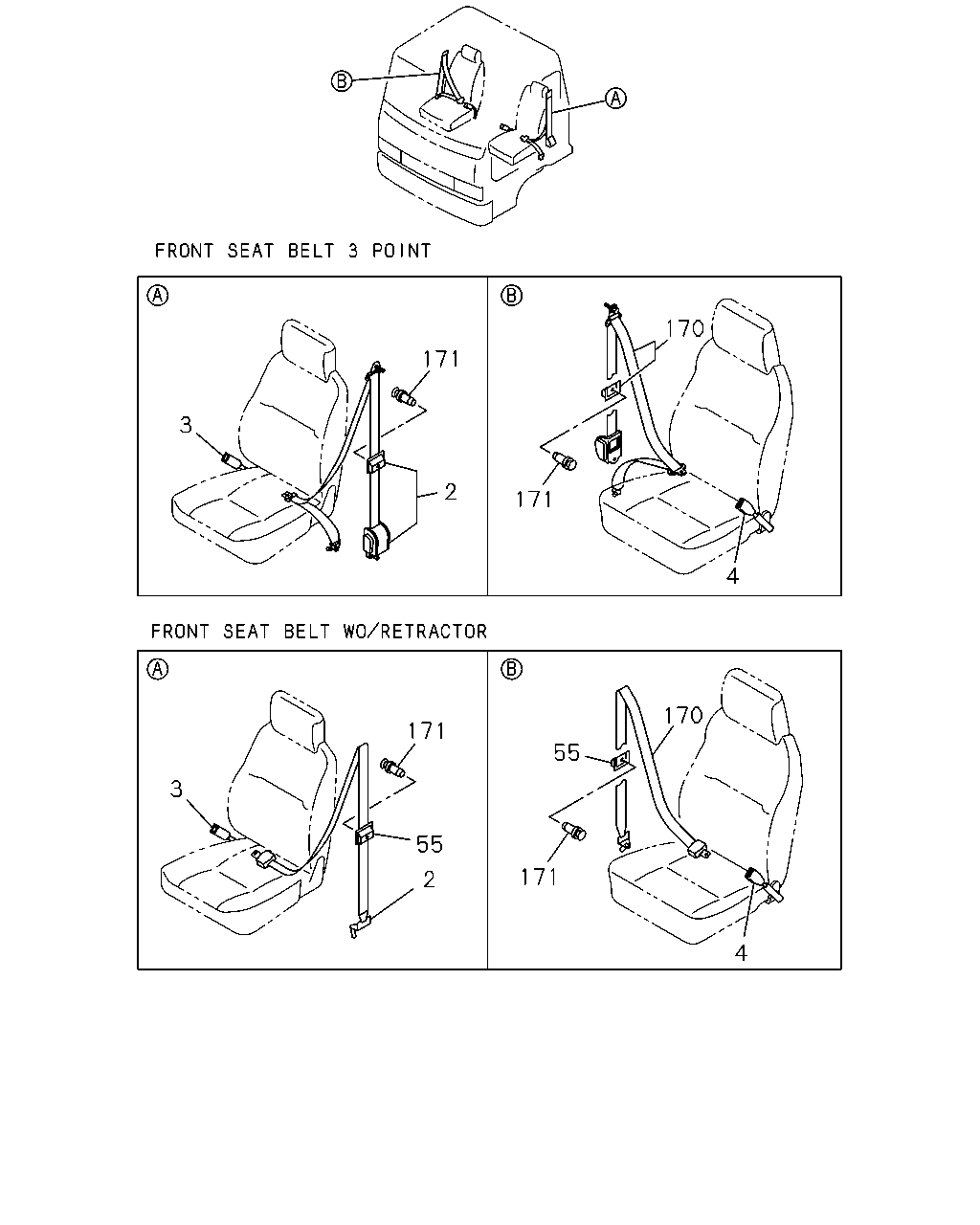

[760A] NO.1 (10 parça)
[760A] NO.3 (6 parça)
[760A] NO.2 (11 parça)
▶
170
171
3
2
171
4
170
171
55
3
55
171
2
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75618-936-4
01
1
0006-
2
BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
1-75618-909-5
01
1
0006-0806
2
BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
8-98120-810-0
01
1
0807-
3
BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75617-545-0
01
1
0006-
4
BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3POINT<SHY>
1-75618-911-1
01
1
0006-
55
GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT 3 POINT<SHY>
1-75617-556-0
02
1
0006-
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75618-936-4
01
1
0006-
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
1-75618-912-5
01
1
0006-0806
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
8-98120-818-0
01
1
0807-
171
CLIP; SEAT BELT GUIDE
1-09987-239-0
02
1
0006-

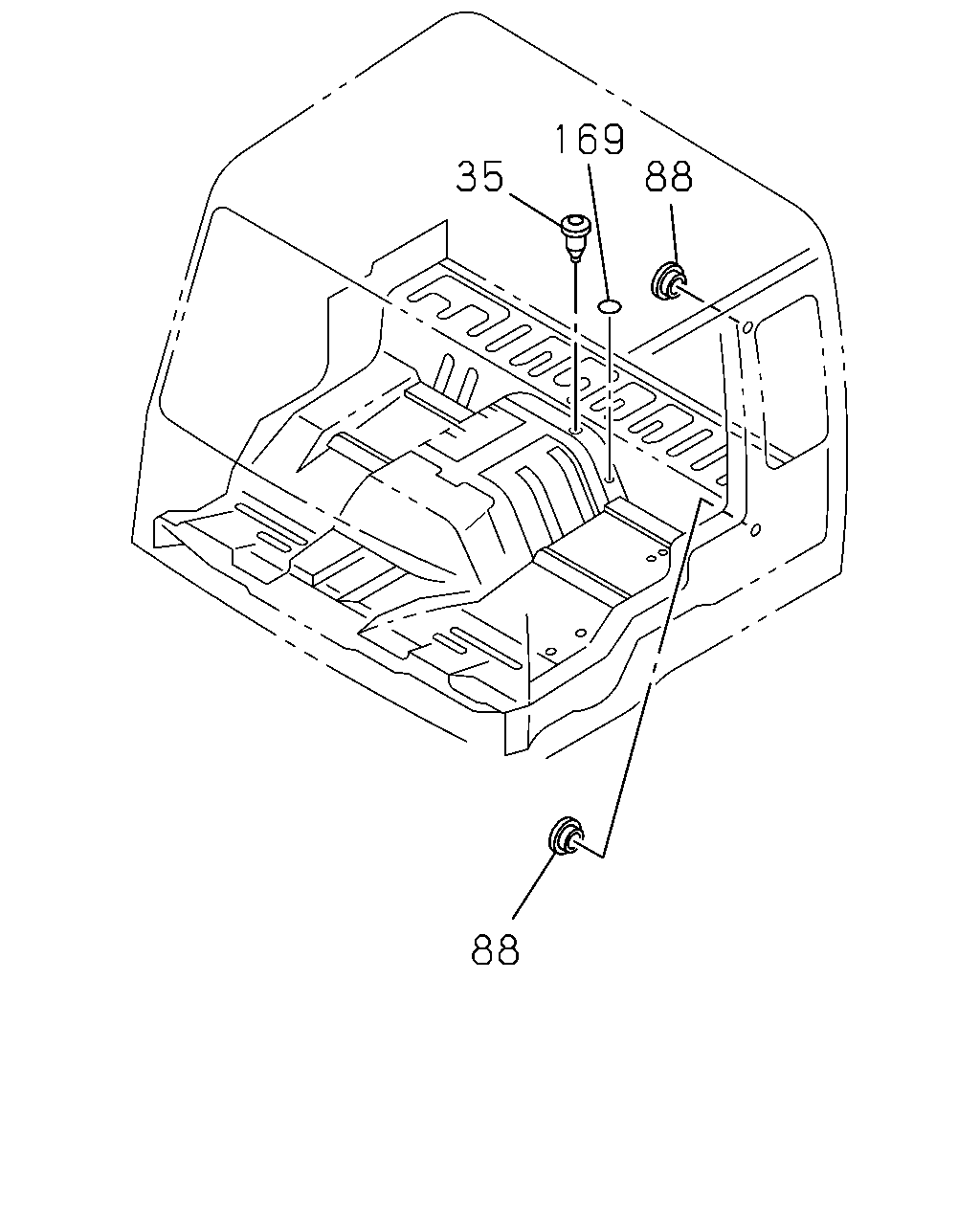

169
35
88
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
35
GROMMET; SEAT BELT ANCHOR
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3POINT<SHY> OD=22
9-61168-535-0
01
1
0006-1005
35
GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=22
9-61168-535-0
03
1
0006-1005
35
GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=22
9-61168-535-0
02
1
1006-
88
PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT 3 POINT<SHY> OD=31.6
8-94198-177-0
02
1
0006-
169
SEAL
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3POINT<SHY> OD=25 BLACK
1-76798-019-0
01
1
1006-
169
SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=25 BLACK
1-76798-019-0
03
1
1006-
171
170
3
2
171
6
5
170
171
55
3
55
2
171
6
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75618-936-4
01
1
0006-
2
BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
1-75618-909-5
01
1
0006-0806
2
BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
8-98120-810-0
01
1
0807-
3
BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 3 POINT<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75617-545-0
01
1
0006-
5
BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75617-553-1
01
1
0006-
6
BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75618-915-4
01
1
0006-
55
GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT 3 POINT<SHY>
1-75617-556-0
02
1
0006-
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75618-936-4
01
1
0006-
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
1-75618-912-5
01
1
0006-0806
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 3 POINT<SHY>
8-98120-818-0
01
1
0807-
171
CLIP; SEAT BELT GUIDE
1-09987-239-0
02
1
0006-
