7-50 — FRONT SEAT (#59470) — 187 parça

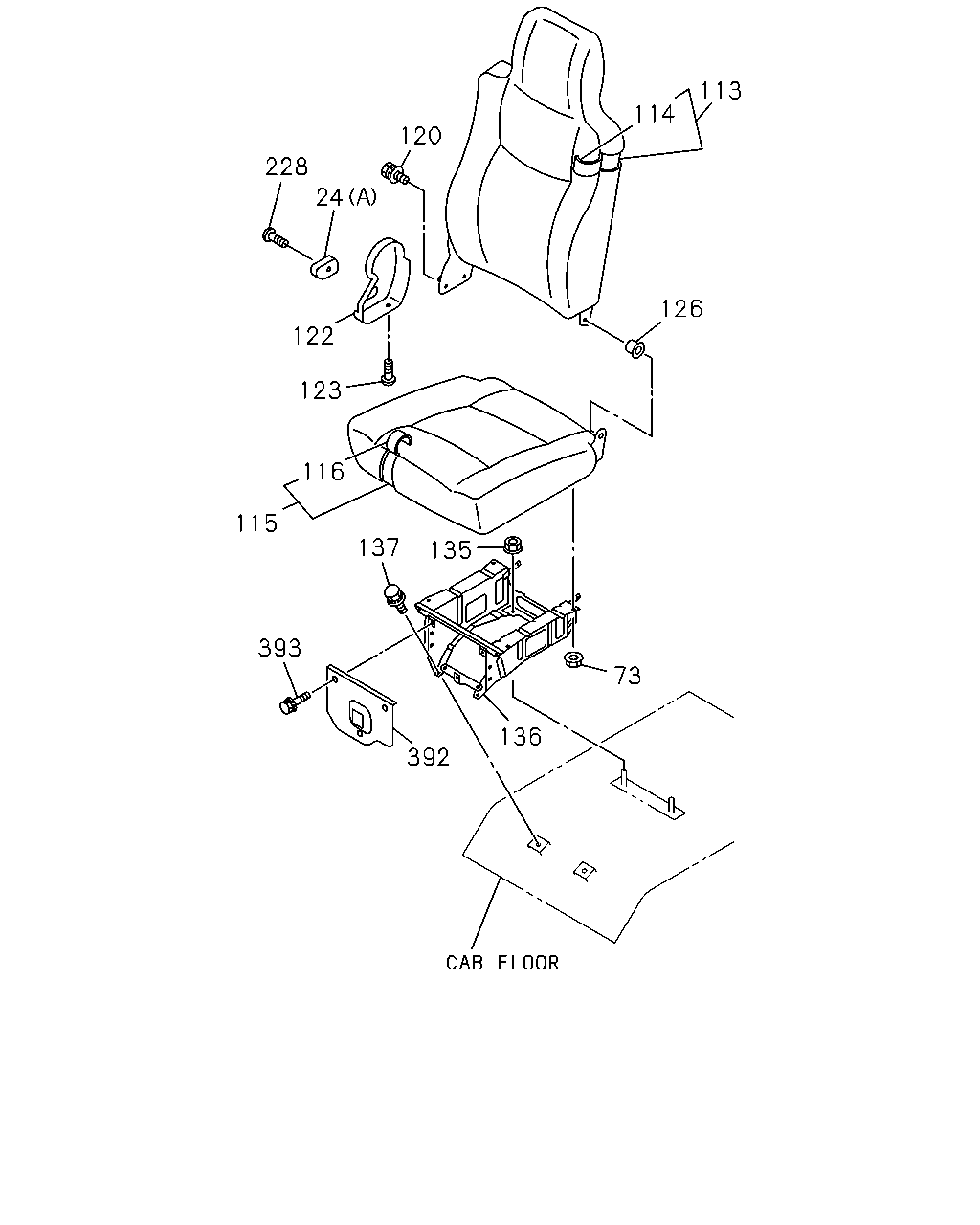

113 114 120 228 24 126 122 123 116 115 137 135 393 73 136 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0006-0710
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-067-0	01	1	0711-
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0006-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0006-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0006-0501
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-723-0	01	1	0006-0105
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75208-062-3	01	1	0106-
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75026-728-0	01	1	0006-0105
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75208-067-3	01	1	0106-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-602-1	01	1	0006-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-702-1	01	1	0006-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-698-1	01	1	0006-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-692-1	01	1	0006-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75116-686-1	01	1	0006-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-680-1	01	1	0006-
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0006-
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	0006-
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0006-
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0006-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0006-0703
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-
136	STAND; PASSENGER SEAT	1-75558-582-1	01	1	0006-0008
136	STAND; PASSENGER SEAT	1-75558-550-4	01	1	0009-0105
136	STAND; PASSENGER SEAT	1-75558-587-0	01	1	0106-0212
136	STAND; PASSENGER SEAT	1-75558-550-7	01	1	0301-1305
136	STAND; PASSENGER SEAT	8-98242-292-0	01	1	1306-
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0006-0703
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-
228	SCREW; KNOB DRIVER M4X6	8-97042-273-0	01	1	0006-0105
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> DRIVER M4X6	8-97042-273-0	01	1	0006-0105
228	SCREW; KNOB DRIVER M4X6	8-97042-273-0	01	1	0106-0710
228	SCREW; KNOB DRIVER M4X6	8-97042-273-0	01	1	0106-0710
228	SCREW; KNOB DRIVER M4X6	8-97042-273-0	01	1	0711-
228	SCREW; KNOB PASSENGER M4	8-98062-662-0	01	1	0711-
392	COVER; STAND,PASSENGER SEAT	1-75558-535-3	01	1	0006-
393	BOLT; COVER,SEAT STAND M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0006-0703
393	BOLT; COVER,SEAT STAND M6X16	0-52000-616-0	03	1	0704-

175 506 360 188 176 16 189 188 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75418-062-0	01	1	0006-0211
16	ADJUSTER ASM; RECLINING CENTER SEAT<SA1>	1-75418-062-1	01	1	0212-
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83> CENTER SEAT<SA1>	1-75418-061-0	01	1	0006-0211
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-854-3	01	1	0006-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> CENTER SEAT<SA1>	1-75026-856-3	01	1	0006-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-650-1	01	1	0006-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> CENTER SEAT<SA1>	1-75116-710-1	01	1	0006-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-693-1	01	1	0006-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> CENTER SEAT<SA1>	1-75116-692-1	01	1	0006-
182	CUSHION ASM; CENTER SEAT CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-842-4	01	1	0006-
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> CENTER SEAT<SA1>	1-75026-841-4	01	1	0006-
188	BOLT; BACK TO CUSHION CENTER SEAT<SA1> M10X16 FLANGE	1-75198-053-0	04	1	0006-
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT<SA1>	8-97854-900-0	01	1	0006-
359	BOX; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-72538-275-0	01	1	0006-0211
359	BOX; PARCEL CENTER SEAT<SA1>	1-72538-275-4	01	1	0212-1006
359	BOX; PARCEL CENTER SEAT<SA1>	8-98145-114-0	01	1	1007-
359	BOX; PARCEL VINYL SEAT<A83> CENTER SEAT<SA1>	1-72538-157-2	01	1	0006-0211
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0006-0612
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006
360	SCREW; PARCEL CENTER SEAT<SA1> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70080-416-0	06	1	0006-0612
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	0701-1104
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	08	1	0006-0310
360	SCREW; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X20	9-09829-324-1	02	1	0006-0211
360	SCREW; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X20	9-09829-324-1	01	1	0212-0310
360	SCREW; PARCEL VINYL SEAT<A83> CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0006-0310
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0311-1006
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-
403	NUT; CENTER SEAT CENTER SEAT<SA1> M8 FLANGE	8-94279-518-0	04	1	0006-0312
403	NUT; CENTER SEAT CENTER SEAT<SA1> M8 FLANGE	1-75538-207-0	04	1	0401-0703
403	NUT; CENTER SEAT CENTER SEAT<SA1> M8 FLANGE	0-91180-108-0	04	1	0704-
506	CAP; PARCEL BOX CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-09983-180-0	04	1	0006-0211
506	CAP; PARCEL BOX CENTER SEAT<SA1>	1-09983-180-3	04	1	0212-1006
506	CAP; PARCEL BOX CENTER SEAT<SA1>	1-09983-180-3	02	1	1007-
506	CAP; PARCEL BOX VINYL SEAT<A83> CENTER SEAT<SA1>	1-09983-164-0	04	1	0006-0211

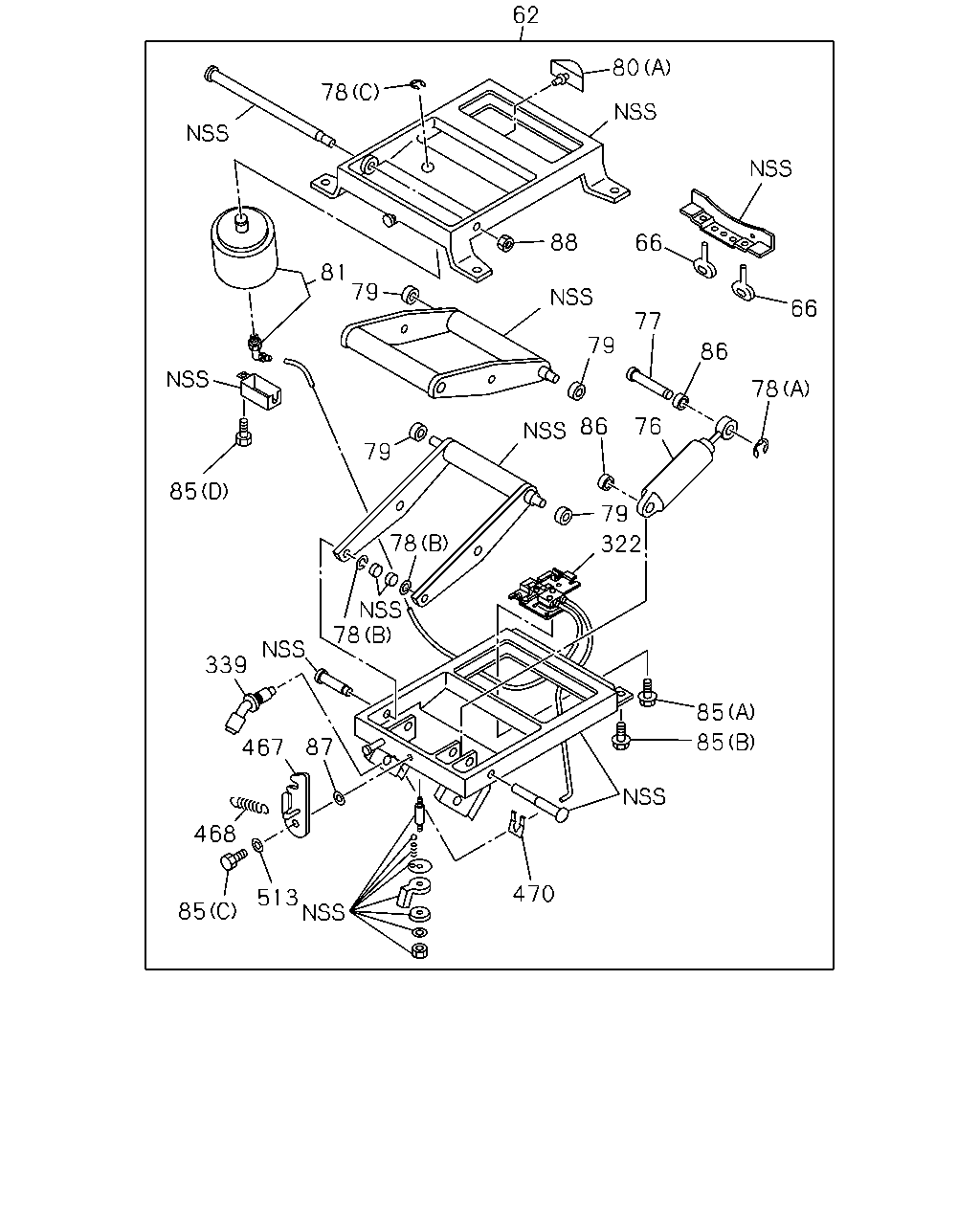

62 80 78 88 66 86 78 77 79 76 86 79 322 85 85 470 513 85 468 87 467 339 78 78 79 85 79 81 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0006-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	0006-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	0006-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	0006-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0006-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=10	9-09185-410-0	02	1	0006-0406
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (C) ID=15	9-09185-415-0	01	1	0006-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	0006-1403
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-123-0	01	1	0006-
80	RUBBER; STOPPER CENTER SEAT<SA1> (B)	1-72538-187-0	02	1	1007-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	1-75538-151-2	01	1	0006-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	8-98242-816-0	01	1	1401-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	0006-0102
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	0103-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	0006-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0006-1312
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0006-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	9-09150-508-0	01	1	0006-0710
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	0711-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	0006-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-187-3	01	1	0006-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75538-131-3	01	1	0006-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	0006-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56>	1-75538-132-0	01	1	0006-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	0006-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	0006-

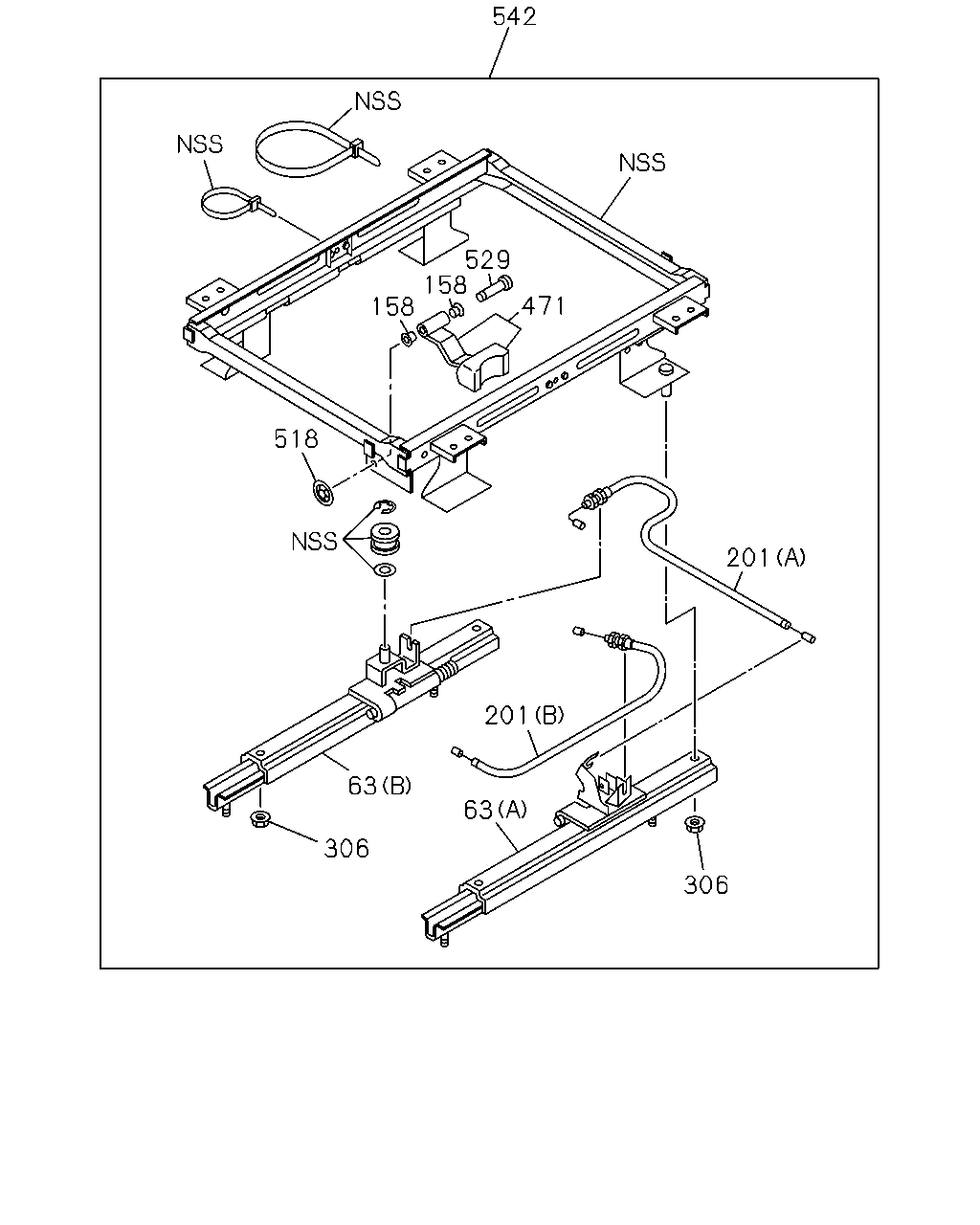

542 529 158 158 471 518 63 306 63 201 306 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
63	ADJUSTER; SEAT SLIDE (A)	1-75518-227-1	01	1	0006-
63	ADJUSTER; SEAT SLIDE (B)	1-75518-295-1	01	1	0006-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0006-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0006-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0006-
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0006-0501
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	12	1	0502-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0502-
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	0006-0710
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0711-
518	NUT; TILT ADJ	1-75518-263-0	01	1	0006-
529	PIN; LINK	1-75518-262-0	01	1	0006-
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-3	01	1	0006-1502
542	ADJUSTER ASM; SEAT SLIDE	8-98291-656-0	01	1	1503-
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56>	1-75518-283-3	01	1	0006-1502
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56>	8-98291-656-0	01	1	1503-

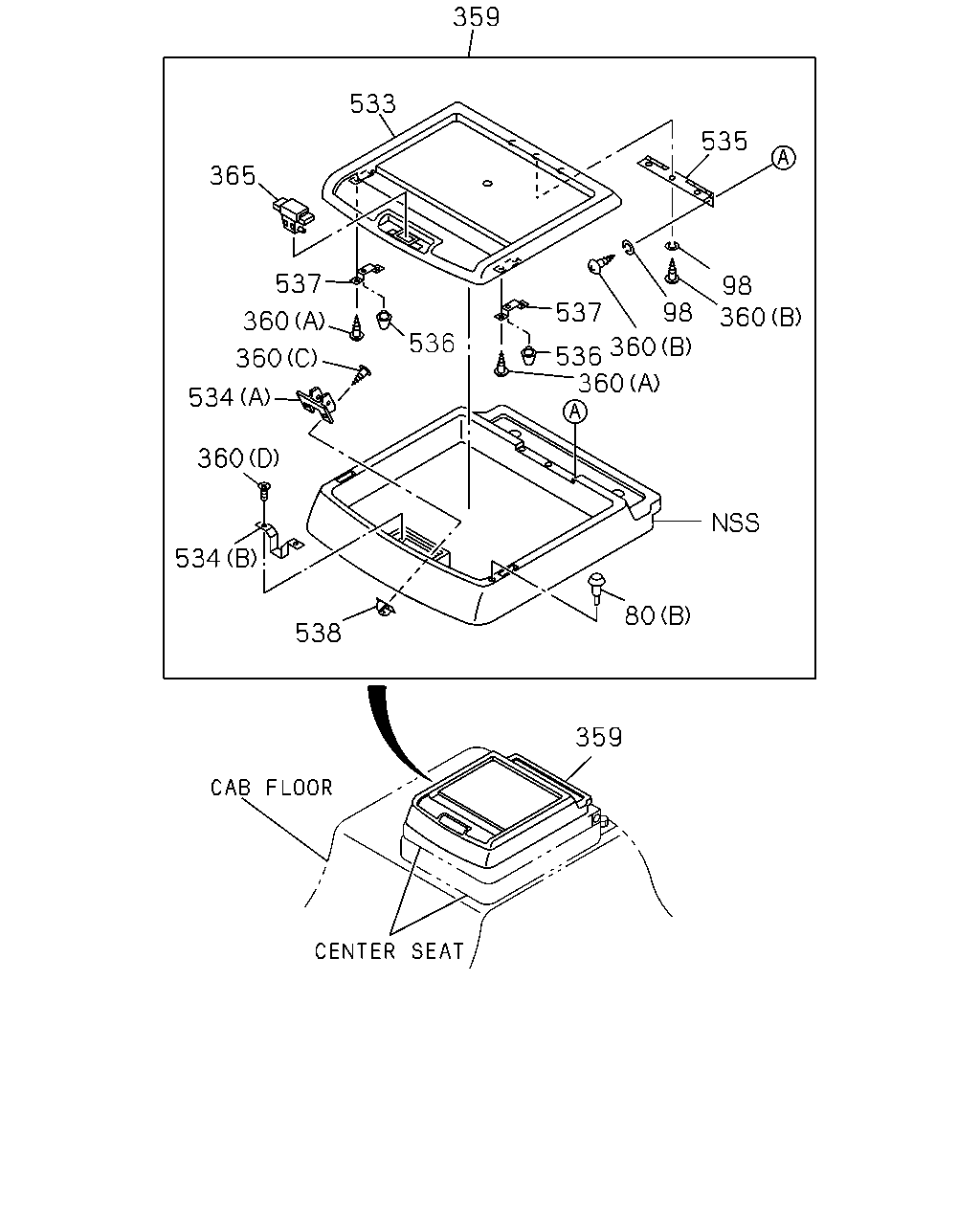

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-123-0	01	1	0006-
80	RUBBER; STOPPER CENTER SEAT<SA1> (B)	1-72538-187-0	02	1	1007-
98	WASHER; HINGE VINYL SEAT<A83> CENTER SEAT<SA1> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0006-0310
98	WASHER; HINGE CENTER SEAT<SA1> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0311-
359	BOX; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-72538-275-0	01	1	0006-0211
359	BOX; PARCEL CENTER SEAT<SA1>	1-72538-275-4	01	1	0212-1006
359	BOX; PARCEL CENTER SEAT<SA1>	8-98145-114-0	01	1	1007-
359	BOX; PARCEL VINYL SEAT<A83> CENTER SEAT<SA1>	1-72538-157-2	01	1	0006-0211
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0006-0612
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006
360	SCREW; PARCEL CENTER SEAT<SA1> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70080-416-0	06	1	0006-0612
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	0701-1104
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	08	1	0006-0310
360	SCREW; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X20	9-09829-324-1	02	1	0006-0211
360	SCREW; PARCEL CENTER SEAT<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X20	9-09829-324-1	01	1	0212-0310
360	SCREW; PARCEL VINYL SEAT<A83> CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0006-0310
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0311-1006
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-
365	LOCK ASM; SEAT CENTER SEAT<SA1>	1-72538-180-0	01	1	0006-
533	LID; PARCEL BOX CENTER SEAT<SA1>	1-72538-194-2	01	1	0006-0310
533	LID; PARCEL BOX CENTER SEAT<SA1>	1-72538-277-1	01	1	0311-1006
533	LID; PARCEL BOX CENTER SEAT<SA1>	8-98145-118-0	01	1	1007-
534	STRIKER; PARCEL BOX CENTER SEAT<SA1> (A)	1-72538-181-0	01	1	0006-1006
534	STRIKER; PARCEL BOX CENTER SEAT<SA1> (B)	1-72538-190-0	01	1	1007-
535	HINGE; PARCEL BOX CENTER SEAT<SA1>	1-72447-391-1	01	1	0006-
536	RUBBER; CUSHION CENTER SEAT<SA1>	5-09983-002-1	02	1	0006-1006
537	BRACKET; RUBBER CENTER SEAT<SA1>	1-72548-057-1	02	1	0006-1006
538	GROMMET; SCREW CENTER SEAT<SA1>	1-09983-165-0	02	1	0006-1006

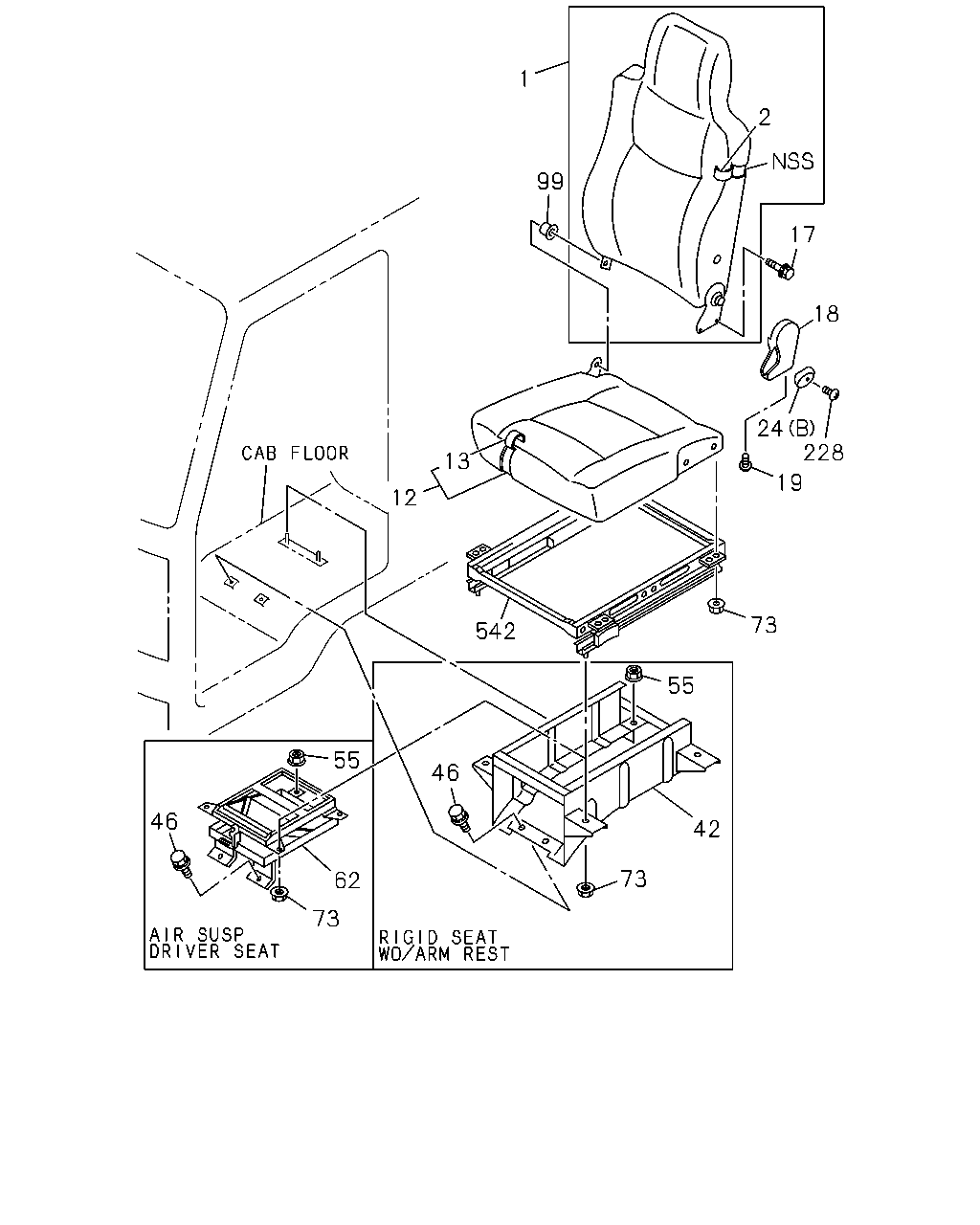

1 99 2 17 18 24 228 19 73 542 13 12 55 42 73 46 55 46 62 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75026-733-0	01	1	0006-0105
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75208-072-3	01	1	0106-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75026-735-0	01	1	0006-0105
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-3	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-707-1	01	1	0006-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-1	01	1	0006-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-700-1	01	1	0006-
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-1	01	1	0006-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-688-1	01	1	0006-
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-1	01	1	0006-
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0006-
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0006-
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0006-
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0006-0710
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-067-0	01	1	0711-
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0006-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	0006-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0006-0703
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0006-0703
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0006-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0006-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0006-0501
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0006-
228	SCREW; KNOB DRIVER M4X6	8-97042-273-0	01	1	0006-0105
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> DRIVER M4X6	8-97042-273-0	01	1	0006-0105
228	SCREW; KNOB DRIVER M4X6	8-97042-273-0	01	1	0106-0710
228	SCREW; KNOB DRIVER M4X6	8-97042-273-0	01	1	0106-0710
228	SCREW; KNOB DRIVER M4X6	8-97042-273-0	01	1	0711-
228	SCREW; KNOB PASSENGER M4	8-98062-662-0	01	1	0711-
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-3	01	1	0006-1502
542	ADJUSTER ASM; SEAT SLIDE	8-98291-656-0	01	1	1503-
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56>	1-75518-283-3	01	1	0006-1502
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56>	8-98291-656-0	01	1	1503-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
