◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#5947) — 24 parça

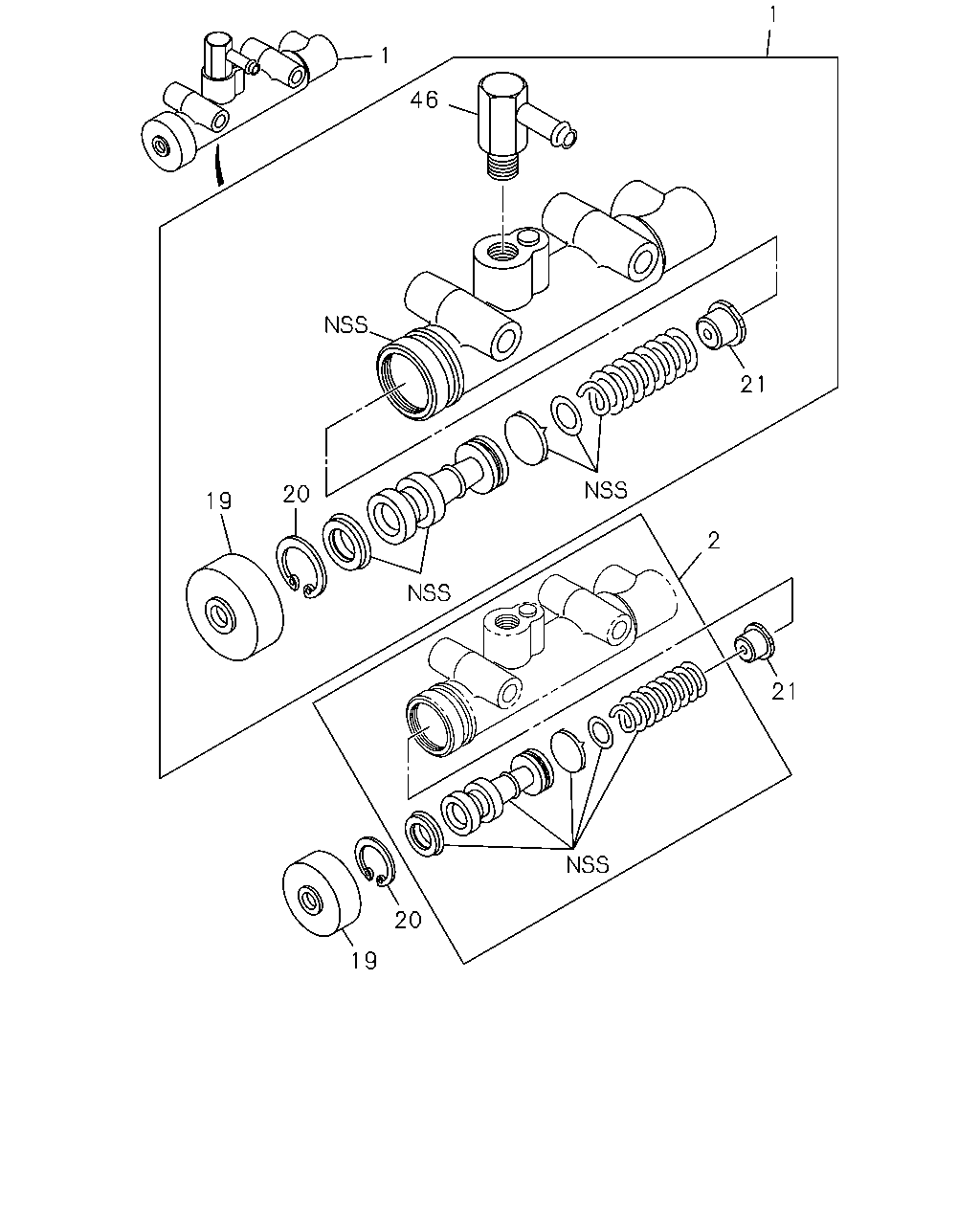

çizim 7489
1 1 46 21 20 19 2 21 20 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER 1-47500-222-0 01 1 9606-9810 ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-239-2 01 1 9811- ● ●
2 REPAIR KIT; CLU M/CYL 1-87830-370-1 01 1 9606-9810 ● ●
2 REPAIR KIT; CLU M/CYL 1-85572-010-0 01 1 9811- ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9606-9810 ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9811- ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9606-9810 ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9811- ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9606-9810 ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9811- ● ●
46 CONNECTOR; PIPE 1-47559-016-0 01 1 9606-9810 ● ●
46 CONNECTOR; PIPE 1-47559-016-0 01 1 9811- ● ●

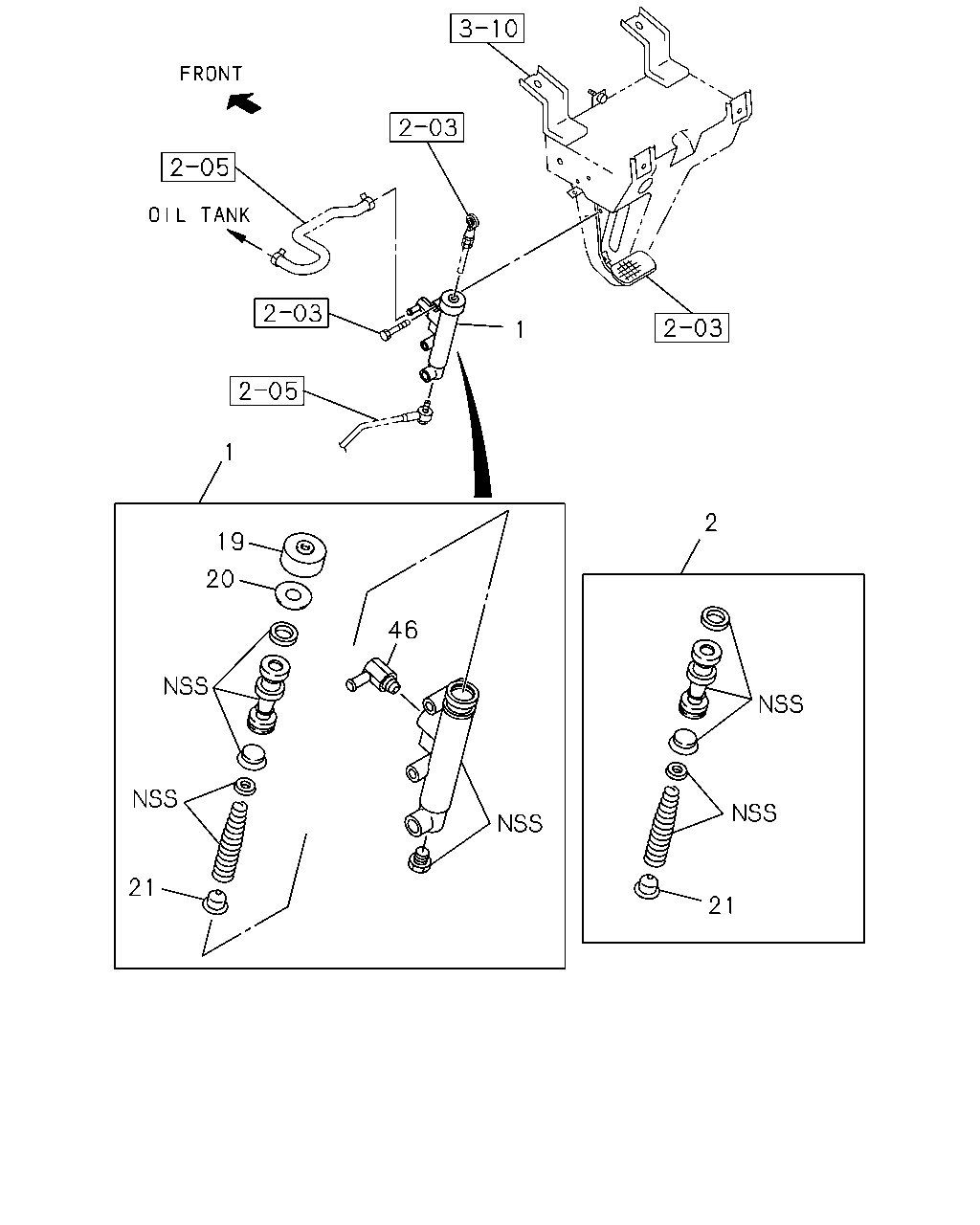

çizim 41818
1 1 2 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER 1-47500-222-0 01 1 9606-9810 ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-239-2 01 1 9811- ● ●
2 REPAIR KIT; CLU M/CYL 1-87830-370-1 01 1 9606-9810 ● ●
2 REPAIR KIT; CLU M/CYL 1-85572-010-0 01 1 9811- ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9606-9810 ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9811- ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9606-9810 ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9811- ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9606-9810 ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9811- ● ●
46 CONNECTOR; PIPE 1-47559-016-0 01 1 9606-9810 ● ●
46 CONNECTOR; PIPE 1-47559-016-0 01 1 9811- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
