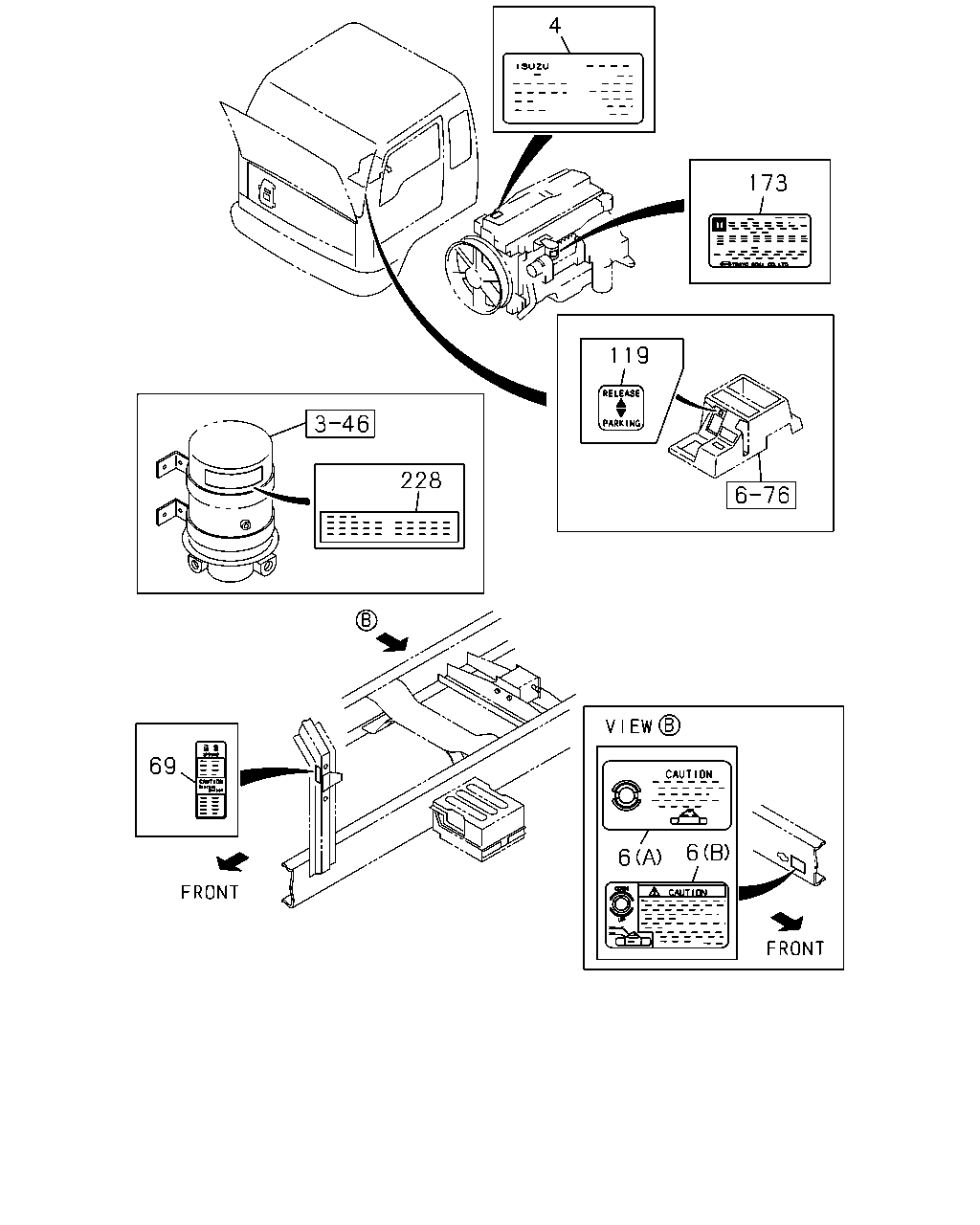

7-10 — CAUTION PLATE AND LABEL (#59464) — 26 parça

49 51 51 60 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PLATE; CAUTION,FUSE BOX	1-85878-278-0	01	1	0006-0901
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>	1-85878-278-0	01	1	0902-
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-224-0	01	1	0902-
51	PLATE; CAUTION,WARNING (A)	1-85880-707-1	01	1	0006-0901
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7> (A)	1-85880-707-1	01	1	0902-
51	PLATE; CAUTION,WARNING (B)	1-85888-559-2	01	1	0006-0901
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7> (B)	1-85888-559-2	01	1	0902-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-709-1	01	1	0902-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (B)	1-85888-560-2	01	1	0902-
60	PLATE; CAUTION,CAB TILT	1-85883-169-0	01	1	0006-0901
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS ARABIAN<WJ7>	1-85883-169-0	01	1	0902-
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-172-0	01	1	0902-
160	PLATE; CAUTION,TOWING	1-85888-737-1	01	1	0006-

4 173 119 228 69 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LABEL; ENG MAINTENANCE	1-85886-791-0	01	1	0006-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> (B)	8-98082-441-0	01	1	0902-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53639-004-0	01	1	0006-0708
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	8-98082-437-0	01	1	0709-0901
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS ARABIAN<WJ7> (B)	8-98082-437-0	01	1	0902-
69	PLATE; CAUTION,STARTER SW	1-85887-389-0	01	1	0006-0302
69	PLATE; CAUTION,STARTER SW EXC. STARTER SWITCH DELETION<E5D>	1-85887-389-0	01	1	0303-0901
69	PLATE; CAUTION,STARTER SW EXC. STARTER SWITCH DELETION<E5D>,CAUTIONS ARABIAN<WJ7>	1-85887-389-0	01	1	0902-
69	PLATE; CAUTION,STARTER SW CAUTIONS ARABIAN<WJ7> EXC. STARTER SWITCH DELETION<E5D>	1-85887-537-0	01	1	0902-
119	PLATE; CAUTION,HAND BRK LEVER	1-85881-759-0	01	1	0006-
173	PLATE; CAUTION,FUEL FILTER	1-85886-348-0	01	1	0006-
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS ARABIAN<WJ7>	1-85877-948-0	01	1	0110-1001
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS ARABIAN<WJ7>	1-85887-935-0	01	1	0110-1001
