◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#5946) — 75 parça

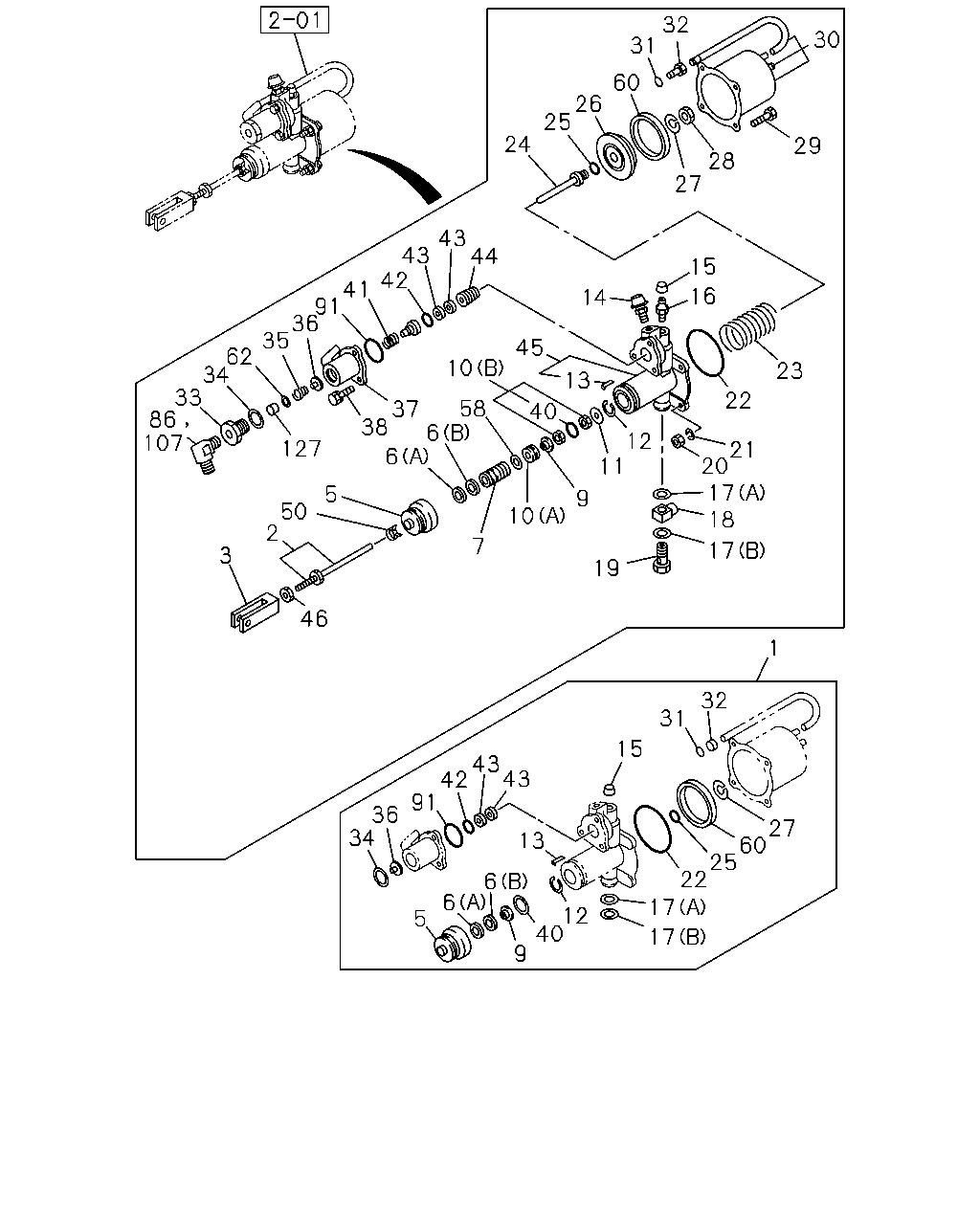

çizim 41825
32 30 31 60 26 25 24 29 28 27 43 42 15 41 91 36 35 62 34 33 86 107 16 14 45 10 23 13 22 37 58 38 6 40 12 11 127 21 20 17 18 6 5 9 50 2 10 7 17 3 19 46 1 32 31 15 43 91 36 34 13 27 60 25 22 17 6 6 12 40 9 5 17 43 42 44 43
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-352-0 01 1 9811-0106
1 REPAIR KIT; CLU BOOSTER 1-31829-542-0 01 1 0107-0307
1 REPAIR KIT; CLU BOOSTER 1-31829-550-0 01 1 0308-
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 9811-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 9811-0106
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-538-0 01 1 0107-0307
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0308-
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9811-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9811-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9811-
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 9811-0106
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9811-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-285-0 01 1 9811-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-293-0 01 1 9811-0106
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-428-0 01 1 0107-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9811-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9811-0106
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 0107-
13 PIN; SPR 1-31829-109-0 01 1 9811-
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9811-0106
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-0307
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0308-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9811-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9811-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9811-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9811-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9811-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9811-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 9811-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 9811-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 9811-
23 SPRING; SHELL,CLU BOOSTER 1-31829-110-0 01 1 9811-0106
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0107-
24 ROD; PUSH,CLU BOOSTER 1-31829-340-0 01 1 9811-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9811-
26 PISTON; SHELL,CLU BOOSTER 1-31821-057-0 01 1 9811-0106
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0107-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9811-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9811-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 9811-
30 SHELL; CYL,CLU BOOSTER 1-31811-026-0 01 1 9811-0106
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0107-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 9811-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 9811-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 9811-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9811-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9811-0106
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0107-
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9811-0106
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0107-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-018-0 01 1 9811-0106
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-089-0 01 1 0107-0307
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-138-0 01 1 0308-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 1-44519-022-0 03 1 9811-0106
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0107-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9811-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 9811-
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 9811-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9811-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-019-0 01 1 9811-0307
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-089-0 01 1 0308-
45 PLATE; END,CLU BOOSTER 1-31811-062-0 01 1 9811-
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 01 1 9811-0106
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0107-0307
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0308-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 9811-
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 9811-0106
60 GASKET; SHELL,CLU BOOSTER 1-31829-066-0 01 1 9811-0106
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0107-
62 RETAINER; POPPET 1-31829-489-0 01 1 0107-
86 ELBOW ASM; CLU BOOSTER 1-09650-358-1 01 1 9811-0106
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9811-
107 CONNECTOR; ELBOW 1-09650-358-1 01 1 0107-
127 FILTER; POPPET 1-31829-495-0 01 1 0107-
