◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11312 - FVZ(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#59443) — 167 parça

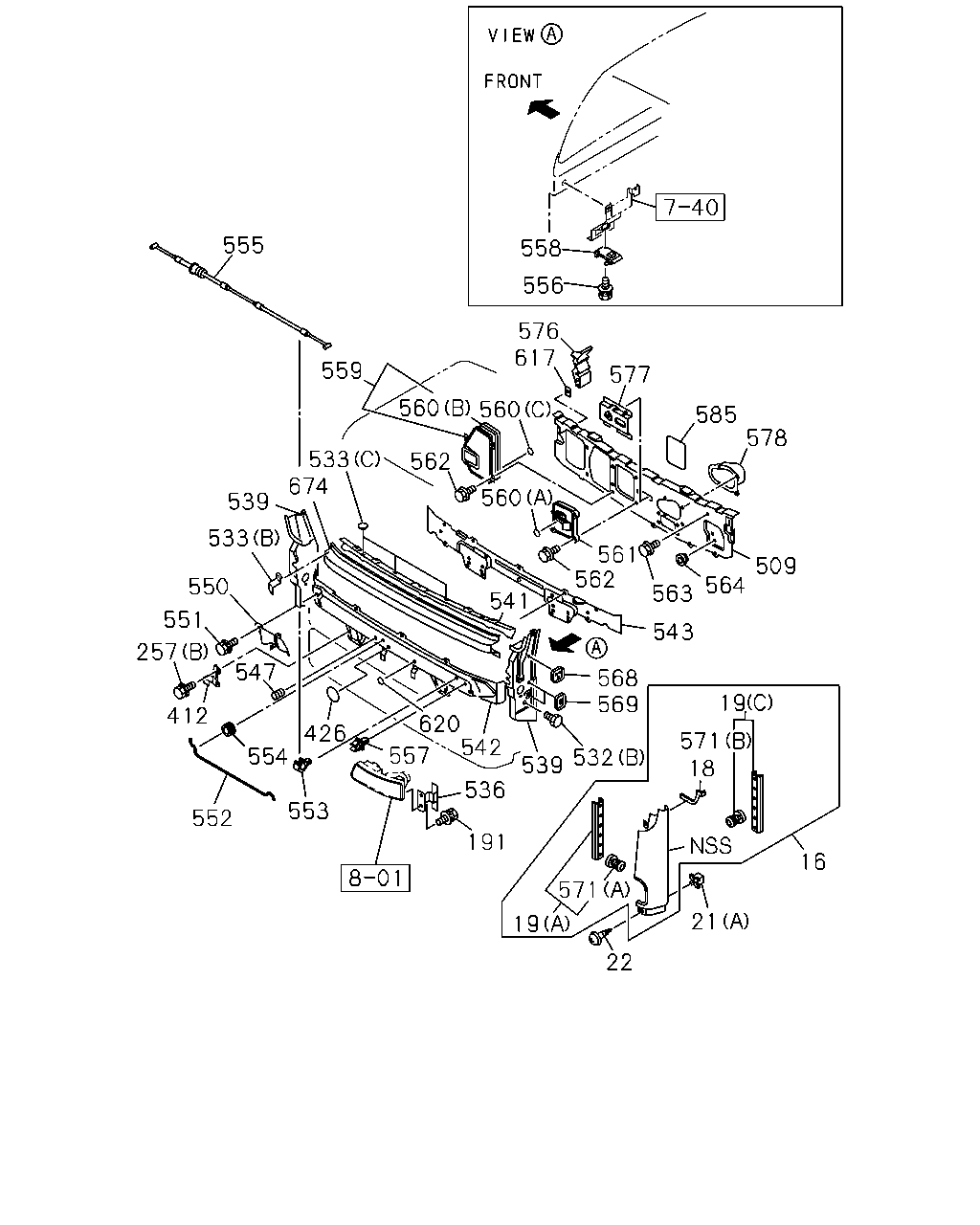

çizim 177001
558 555 556 576 617 559 577 585 578 533 674 562 560 539 533 561 562 509 541 564 550 563 551 543 257 547 568 569 412 620 542 557 426 571 18 554 532 539 536 553 552 191 16 571 21 19 22 19 560 560
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-591-2 01 1 0006-
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 0006-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0006-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0006-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0006-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0006-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0006-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0006-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0006-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0006-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0006-
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0006-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011-
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0006-0708
191 BOLT; HINGE
M6X16 FLANGE 		0-28650-616-0 04 1 0709-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0006-0411
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0006-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0006-
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0006-
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0006-
509 PANEL; DASH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-214-4 01 1 0006-
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-62280-216-4 01 1 0006-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0006-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0006-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 0006-0406
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0006-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0006-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0006-
536 HINGE 1-86830-004-5 01 1 0006-
536 HINGE 1-86830-003-5 01 1 0006-
539 CLOSING; PILLAR 1-61480-762-1 01 1 0006-
539 CLOSING; PILLAR 1-61480-763-1 01 1 0006-
541 PANEL; FRONT,INNER 1-61480-765-1 01 1 0006-
542 RAIL; FRT MOUNTING 1-61480-774-7 01 1 0006-
543 CLOSING; FRT MTG RAIL 1-61480-769-2 01 1 0006-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0006-
550 LOCK ASM; FRT LID 1-79318-007-5 01 1 0006-
550 LOCK ASM; FRT LID 1-79318-006-3 01 1 0006-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0006-
552 STAY; FRT LID 1-71996-046-2 01 1 0006-0205
552 STAY; FRT LID 1-71996-311-0 01 1 0206-0706
552 STAY; FRT LID 1-71996-353-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 0006-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0006-
555 CABLE; FRT LID
L=2242 		1-79348-006-2 01 1 0006-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0006-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 0006-
558 LEVER; FRT LID 8-97865-110-0 01 1 0006-
559 COVER; EVAPOLATOR 1-71996-193-1 01 1 0006-
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 0006-
560 SEAL; COVER
(C) OD=25 BLACK 		1-76798-019-0 01 1 0006-
560 SEAL; COVER
(A) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0006-0604
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0006-
561 COVER; HEATER CORE 1-71998-993-2 01 1 0006-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0006-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 0006-0202
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0006-
568 PATCH; INST REINF 1-61480-675-2 02 1 0006-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0006-
569 PATCH; LWR GRIP 1-61480-772-0 01 1 0006-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0006-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0006-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0006-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0006-
576 FRAME; INST SIDE 1-62280-200-2 01 1 0006-
576 FRAME; INST SIDE 1-62280-201-2 01 1 0006-
577 BRACKET; IDLER 1-62280-202-0 01 1 0006-
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 0006-
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-71996-084-1 01 1 0006-
617 SEAL; DASH 1-61281-497-1 02 1 0006-
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 01 1 0006-
674 PANEL; UPR 1-61480-785-1 01 1 0006-

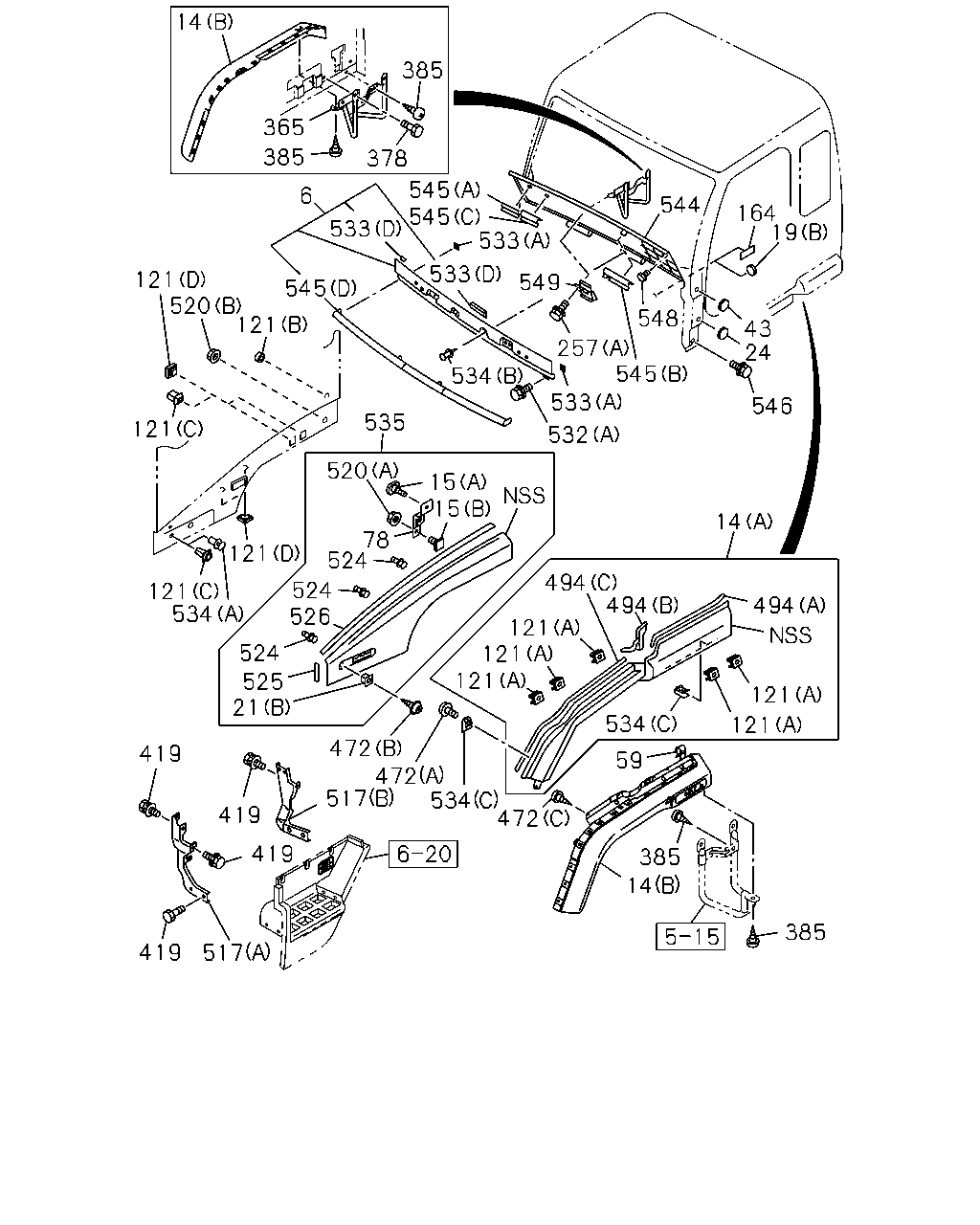

çizim 177016
14 385 365 385 378 545 545 533 533 6 544 164 19 549 533 121 520 121 545 548 43 24 257 545 534 533 546 535 121 532 520 15 15 78 524 14 121 494 494 524 526 121 534 494 121 121 121 524 525 21 121 534 121 472 472 517 419 59 534 472 419 419 385 14 385 419 517
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-744-2 01 1 0006-
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 0006-
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 0006-
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 0006-0209
14 FENDER; FRT
(A) 		1-65482-045-1 01 1 0210-
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 0006-0209
14 FENDER; FRT
(A) 		1-65482-044-1 01 1 0210-
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0006-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0006-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0006-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0006-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0006-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0006-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0006-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0006-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0006-
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 08 1 0006-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0006-
59 GROMMET; SCREW 8-94279-723-0 02 1 0006-
78 BRACKET; FENDER 1-71268-323-0 01 1 0006-
78 BRACKET; FENDER 1-71268-322-0 01 1 0006-
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 0006-1009
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0006-0304
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305-
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 0006-0304
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 0006-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0006-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0006-0411
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0006-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
365 SUPPORT; FENDER 1-71996-147-1 01 1 0006-
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0006-
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 0006-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 0006-0009
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0010-0904
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302-
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 0006-
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 0006-
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 0006-
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0006-
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0006-
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0006-
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0006-
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 0006-0610
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611-
517 SUPPORT; STEP PANEL
(A) 		1-71996-078-3 01 1 0006-
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0006-
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0006-
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 0006-
520 NUT; FENDER
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0006-
520 NUT; FENDER
(A) M6 		1-09984-189-0 02 1 0006-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0006-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0006-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER 1-71268-276-1 01 1 0006-0209
526 FINISHER; FENDER 1-71268-275-1 01 1 0006-0209
526 FINISHER; FENDER 1-71268-275-1 02 1 0210-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0006-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0006-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 0006-0406
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0006-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0006-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0006-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0006-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(C) 		1-71996-035-1 20 1 0006-
534 FASTENER
(C) 		1-71996-035-1 04 1 0006-0404
534 FASTENER
(C) 		1-71996-035-1 06 1 0405-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0006-
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 0006-0209
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0210-
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 0006-0209
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0210-
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> HITACHI CHEMICAL 		1-71108-152-0 01 1 0006-
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> MITRAS 		1-71108-116-0 01 1 0007-0411
544 LID; FRT
EXC. FRONT PANEL CARGO FACE<NGD> 		1-71108-235-3 01 1 0006-
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0006-
545 SEAL; FRT LID
(B) 		1-71996-257-1 01 1 0006-
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0006-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0006-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0006-
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 0006-
549 BRACKET; STOPPER,FRT LID 1-71108-060-1 01 1 0006-0301
549 BRACKET; STOPPER,FRT LID 8-97589-019-0 01 1 0302-
