Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11312 - FVZ(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

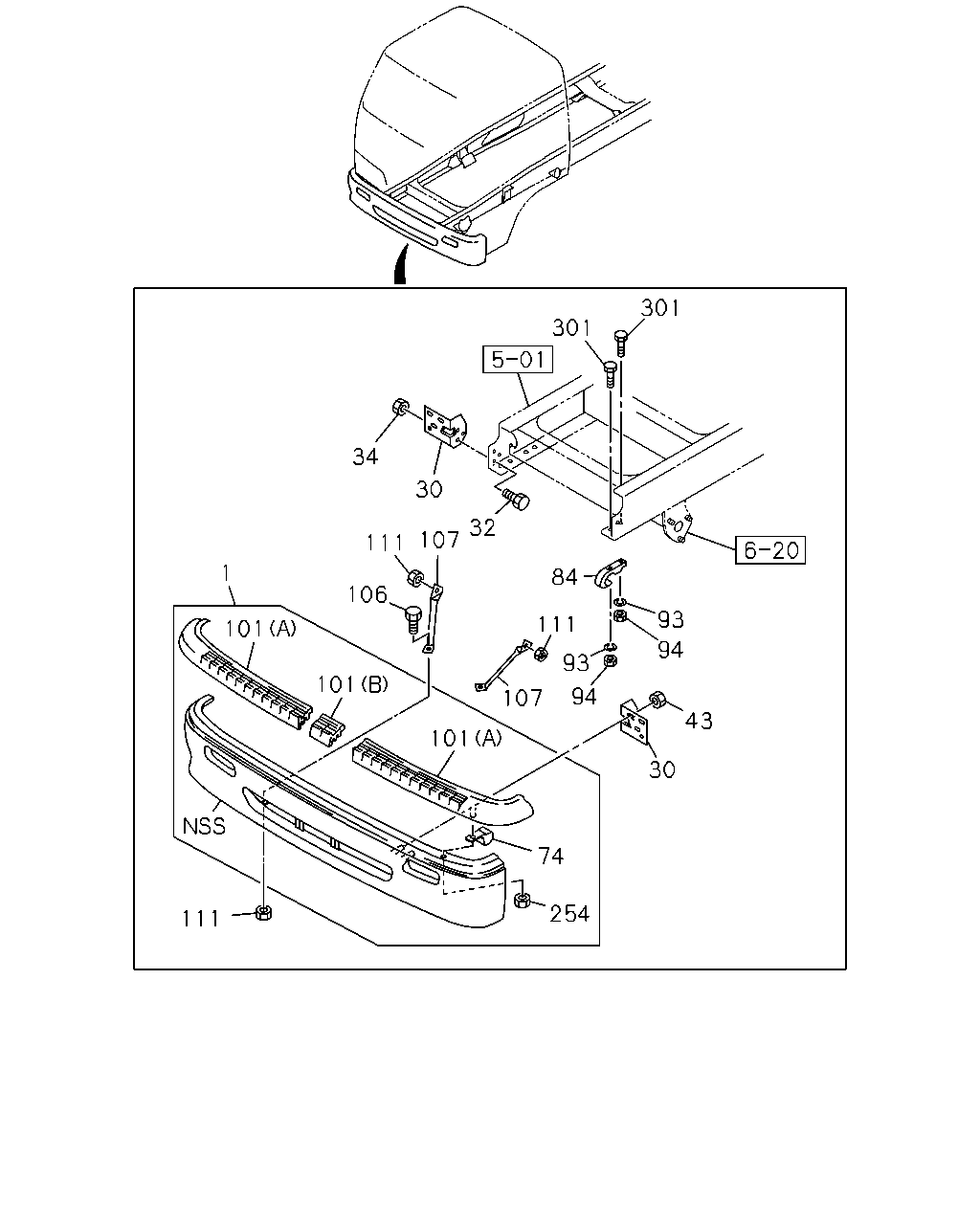

6-01 — FRONT BUMPER
(#59441) — 38 parça
301
301
34
30
32
107
111
1
84
106
93
111
101
94
93
101
94
107
43
101
30
74
254
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
FRONT PANEL CARGO FACE<NGD> WHITE
1-71210-661-2
01
1
0006-
1
BUMPER ASM; FRT
EXC. FRONT PANEL CARGO FACE<NGD> WHITE
1-71210-846-3
01
1
0006-
30
BRACKET; FRT BUMPER
1-71230-207-3
01
1
0006-0111
30
BRACKET; FRT BUMPER
1-71230-568-1
01
1
0112-
30
BRACKET; FRT BUMPER
1-71230-208-3
01
1
0006-
32
BOLT; BRKT,BUMPER
M10X30 FLANGE
0-28681-030-0
06
1
0006-0512
32
BOLT; BRKT,BUMPER
M10X30 FLANGE
0-28651-030-0
06
1
0601-
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91150-210-0
06
1
0006-0602
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
06
1
0603-
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91150-210-0
06
1
0006-0602
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91180-210-0
06
1
0603-
74
CLIP; FOG LAMP HARNESS
1-09701-203-0
05
1
0006-
84
HOOK
1-57181-027-1
01
1
0006-0208
84
HOOK
TOW HOOK<V76>
1-57181-027-1
01
1
0209-
93
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
0006-0208
93
WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2
9-09150-516-0
02
1
0209-0603
93
WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2
0-91510-516-0
02
1
0604-
94
NUT; HOOK
M16
9-99110-416-0
02
1
0006-0206
94
NUT; HOOK
M16
9-99110-516-0
02
1
0207-0208
94
NUT; HOOK
TOW HOOK<V76> M16
9-99110-516-0
02
1
0209-0512
94
NUT; HOOK
TOW HOOK<V76> M16
0-91110-516-0
02
1
0601-
101
STEP; BUMPER
(A)
1-71260-080-1
01
1
0006-
101
STEP; BUMPER
(A)
1-71260-081-1
01
1
0006-
101
STEP; BUMPER
(B)
1-71260-082-1
01
1
0006-
106
BOLT; AIR DAM
M10X25 FLANGE
0-28681-025-0
02
1
0006-0512
106
BOLT; AIR DAM
M10X25 FLANGE
0-28651-025-0
02
1
0601-
107
STAY; AIR DAM
1-71260-132-1
01
1
0006-
107
STAY; AIR DAM
1-71260-131-1
01
1
0006-
111
NUT; STAY
M10 FLANGE
0-91150-210-0
04
1
0006-0602
111
NUT; STAY
M10 FLANGE
0-91180-210-0
04
1
0603-
254
NUT; STEP
M8 FLANGE
0-91150-108-0
11
1
0006-0602
254
NUT; STEP
M8 FLANGE
0-91180-108-0
11
1
0603-
301
BOLT; HOOK TO FRAME
M16X70
0-10811-670-0
01
1
0006-0208
301
BOLT; HOOK TO FRAME
TOW HOOK<V76> M16X70
0-10811-670-0
01
1
0209-0512
301
BOLT; HOOK TO FRAME
TOW HOOK<V76> M16X70
0-10861-670-0
01
1
0601-
301
BOLT; HOOK TO FRAME
M16X50
0-20801-650-0
01
1
0006-0208
301
BOLT; HOOK TO FRAME
TOW HOOK<V76> M16X50
0-20801-650-0
01
1
0209-0512
301
BOLT; HOOK TO FRAME
TOW HOOK<V76> M16X50
0-20851-650-0
01
1
0601-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
