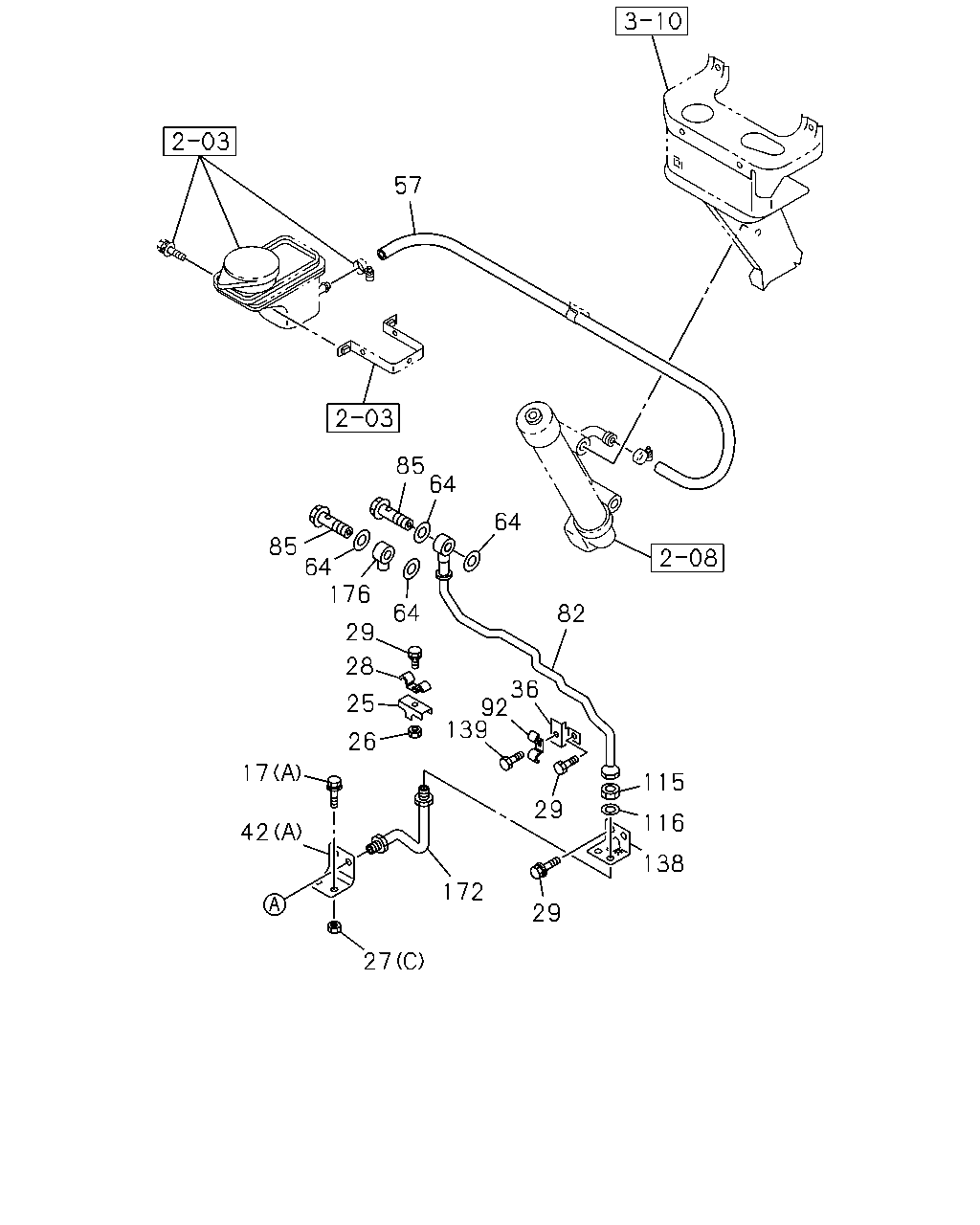

2-05 — CLUTCH PIPING (#5944) — 174 parça

57 85 64 64 85 64 176 64 82 29 28 36 92 139 25 26 17 115 29 116 42 138 172 29 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9606-9609	●	●	●
17	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M8X20 FLANGE	0-28680-820-0	02	1	9610-9810	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9811-0512					●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-					●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-					●
25	BRACKET; OIL PIPE	1-47475-427-1	01	1	9606-9810	●	●	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9606-9810	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9811-0602					●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-					●
27	NUT; BRKT (C) M8	9-09110-408-0	02	1	9606-9609	●	●	●
27	NUT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) M8	9-09110-408-0	02	1	9610-9810	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9811-0602					●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-					●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-					●
28	CLIP; OIL PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9606-9810	●	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9811-					●
29	BOLT; CLIP,OIL PIPE M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9606-9609	●	●	●
29	BOLT; CLIP,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9610-9810	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X35 FLANGE	0-28680-835-0	01	1	9606-9810	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9811-0512					●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-					●
29	BOLT; CLIP,OIL PIPE M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9606-9810	●	●	●	●
36	BRACKET; CLIP	1-47465-169-1	01	1	9606-9810	●	●	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	9811-					●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-371-0	01	1	9606-9609	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-47476-371-0	01	1	9610-9810	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9811-					●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9606-9810	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9811-					●
57	HOSE; CLU M/CYL TO OIL TANK L=630	1-09360-320-0	01	1	9606-9609	●	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=630 SERVICED BY L=1800	1-09360-320-0	01	1	9610-9810	●	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK HEAVY DUTY PACKAGE TRUCK<RD2> SERVICED BY L=1800	1-09360-320-0	01	1	9610-9810	●	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9811-					●
64	SEAL; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9606-9810	●	●	●	●
82	PIPE; OIL,M/CYL TO FLEX HOSE L=802	1-47425-600-0	01	1	9606-9609	●	●	●	●
82	PIPE; OIL,M/CYL TO FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=802	1-47425-600-0	01	1	9610-9810	●	●	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9606-9810	●	●	●	●
92	CLIP; OIL PIPE ID=5 & 8	5-09700-165-0	01	1	9606-9810	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9606-9810	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9811-0512					●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-					●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9606-9810	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9811-0603					●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-					●
138	BRACKET; AIR PIPE	1-79738-107-0	01	1	9606-9609	●	●	●	●
138	BRACKET; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-79738-107-0	01	1	9610-9810	●	●	●	●
139	BOLT; BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9606-9609	●	●	●	●
139	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9610-9810	●	●	●	●
172	HOSE; FLEX,CLU BOOSTER L=400	1-09364-263-0	01	1	9606-9609	●	●	●
172	HOSE; FLEX,CLU BOOSTER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=400	1-09364-263-0	01	1	9610-9810	●	●	●	●
176	JOINT; EYE,CLU M/CYL FLUID HEAVY DUTY PACKAGE TRUCK<RD2>	9-09907-088-1	01	1	9610-9810	●	●	●	●

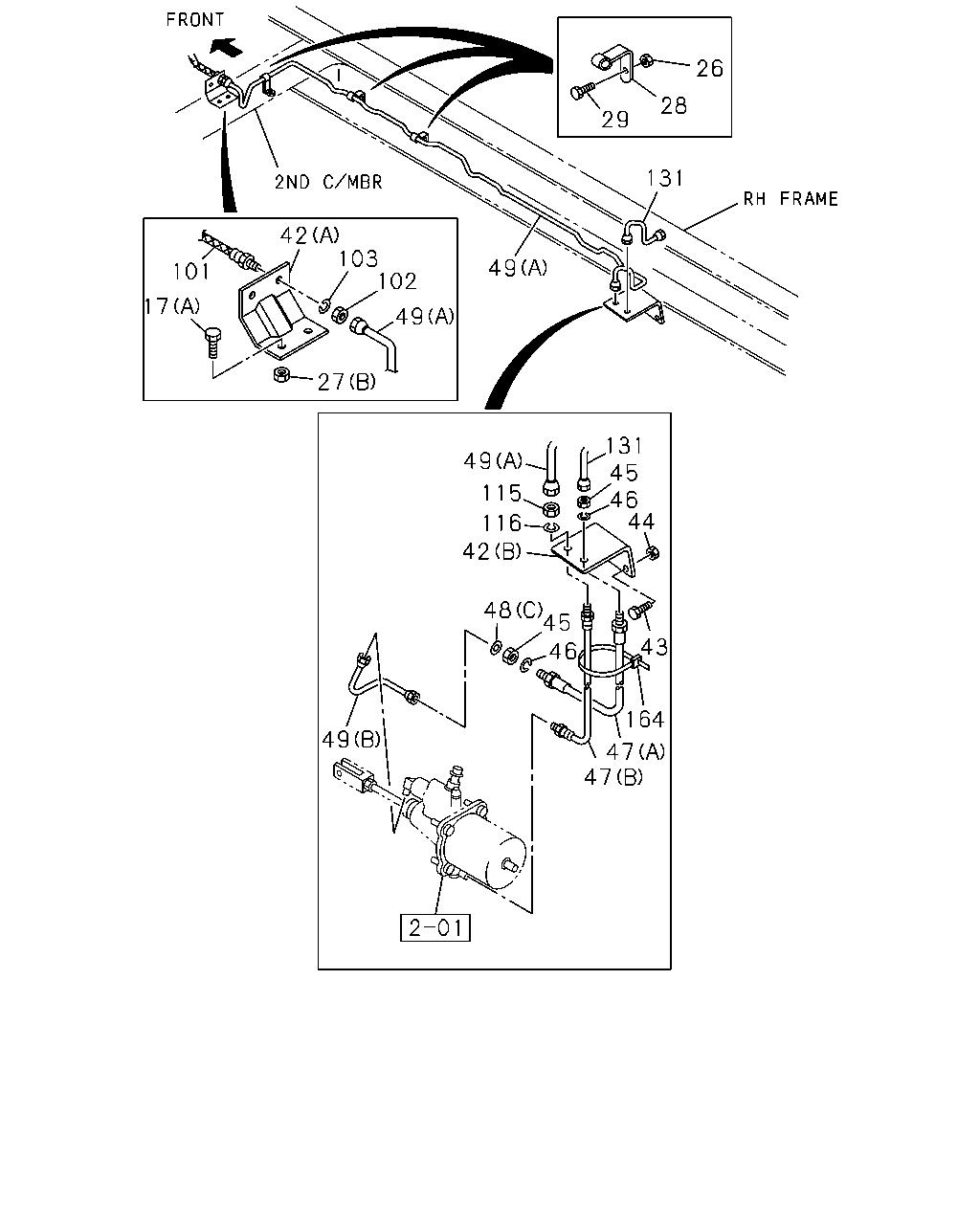

58 27 36 27 13 67 58 57 36 167 185 17 67 66 187 50 50 50 133 94 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47429-143-0	01	1	9811-					●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9606-9609	●	●	●
17	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M8X20 FLANGE	0-28680-820-0	02	1	9610-9810	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9811-0512					●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-					●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-					●
27	NUT; BRKT (C) M8	9-09110-408-0	02	1	9606-9609	●	●	●
27	NUT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) M8	9-09110-408-0	02	1	9610-9810	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9811-0602					●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-					●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-					●
36	BRACKET; CLIP	1-47465-169-1	01	1	9606-9810	●	●	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	9811-					●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9811-					●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9811-0512					●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-					●
57	HOSE; CLU M/CYL TO OIL TANK L=630	1-09360-320-0	01	1	9606-9609	●	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=630 SERVICED BY L=1800	1-09360-320-0	01	1	9610-9810	●	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK HEAVY DUTY PACKAGE TRUCK<RD2> SERVICED BY L=1800	1-09360-320-0	01	1	9610-9810	●	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9811-					●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9811-					●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9811-					●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-					●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9811-0605					●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-					●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9811-0703					●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-					●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9811-0603					●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-					●
167	BRACKET; UNION	1-79738-204-3	01	1	9811-					●
180	PLUG; PIPE	9-09204-510-0	01	1	9811-					●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9811-					●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9811-	●	●	●
187	SEAL; BRKT	1-79738-190-0	01	1	9811-	●	●	●

102 44 49 115 116 42 43 161 48 48 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-371-0	01	1	9606-9609	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-47476-371-0	01	1	9610-9810	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9811-					●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9606-9810	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9811-					●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28680-825-0	02	1	9606-9810	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9811-0512					●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-					●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9606-9810	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9811-0602					●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-					●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9606-9810	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9811-					●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=14.2	9-09851-004-0	01	1	9606-9810	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=2416 SERVICED BY L=2500	1-47426-362-0	01	1	9606-9810	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=3000 SERVICED BY L=3000	1-47426-397-0	01	1	9811-					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=216	1-47493-418-1	01	1	9811-					●
102	NUT; FLEX HOSE,CLU CONT M14	9-99110-414-0	01	1	9606-9609	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14	9-99110-414-0	01	1	9610-9810	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9811-0512					●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-					●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	9606-9810	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9606-9810	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9811-0512					●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-					●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9606-9810	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9811-0603					●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-					●
161	HOSE; FLEX,SLAVE CYL L=310	0-05567-310-0	01	1	9606-9810	●	●	●	●

26 28 29 131 42 103 102 49 101 17 49 27 131 45 46 44 49 115 116 42 48 45 43 46 164 49 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9606-9609	●	●	●
17	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M8X20 FLANGE	0-28680-820-0	02	1	9610-9810	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9811-0512					●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-					●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-					●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9606-9810	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9811-0602					●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-					●
27	NUT; BRKT (C) M8	9-09110-408-0	02	1	9606-9609	●	●	●
27	NUT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) M8	9-09110-408-0	02	1	9610-9810	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9811-0602					●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-					●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-					●
28	CLIP; OIL PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9606-9810	●	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9811-					●
29	BOLT; CLIP,OIL PIPE M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9606-9609	●	●	●
29	BOLT; CLIP,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9610-9810	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X35 FLANGE	0-28680-835-0	01	1	9606-9810	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9811-0512					●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-					●
29	BOLT; CLIP,OIL PIPE M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9606-9810	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-371-0	01	1	9606-9609	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-47476-371-0	01	1	9610-9810	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9811-					●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9606-9810	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9811-					●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28680-825-0	02	1	9606-9810	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9811-0512					●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-					●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9606-9810	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9811-0602					●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-					●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	9811-					●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	02	1	9811-0603					●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	02	1	0604-					●
47	HOSE; FLEX,CLU CONT (A) L=580	0-07030-580-0	01	1	9811-					●
47	HOSE; FLEX,CLU CONT (B) L=500	1-09364-329-0	01	1	9811-					●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9606-9810	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9811-					●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=14.2	9-09851-004-0	01	1	9606-9810	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=2416 SERVICED BY L=2500	1-47426-362-0	01	1	9606-9810	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=3000 SERVICED BY L=3000	1-47426-397-0	01	1	9811-					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=216	1-47493-418-1	01	1	9811-					●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9811-0703					●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-					●
102	NUT; FLEX HOSE,CLU CONT M14	9-99110-414-0	01	1	9606-9609	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14	9-99110-414-0	01	1	9610-9810	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9811-0512					●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-					●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9811-0603					●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-					●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9606-9810	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9811-0512					●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-					●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9606-9810	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9811-0603					●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-					●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49114-873-0	01	1	9811-					●
164	CLIP; BAND,FLEX HOSE 6HE1 TCC ENG(76L) L=140	5-09707-031-1	01	1	9903-0203					●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0204-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
