◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11312 - FVZ(MIDDLE EAST) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#59436) — 60 parça

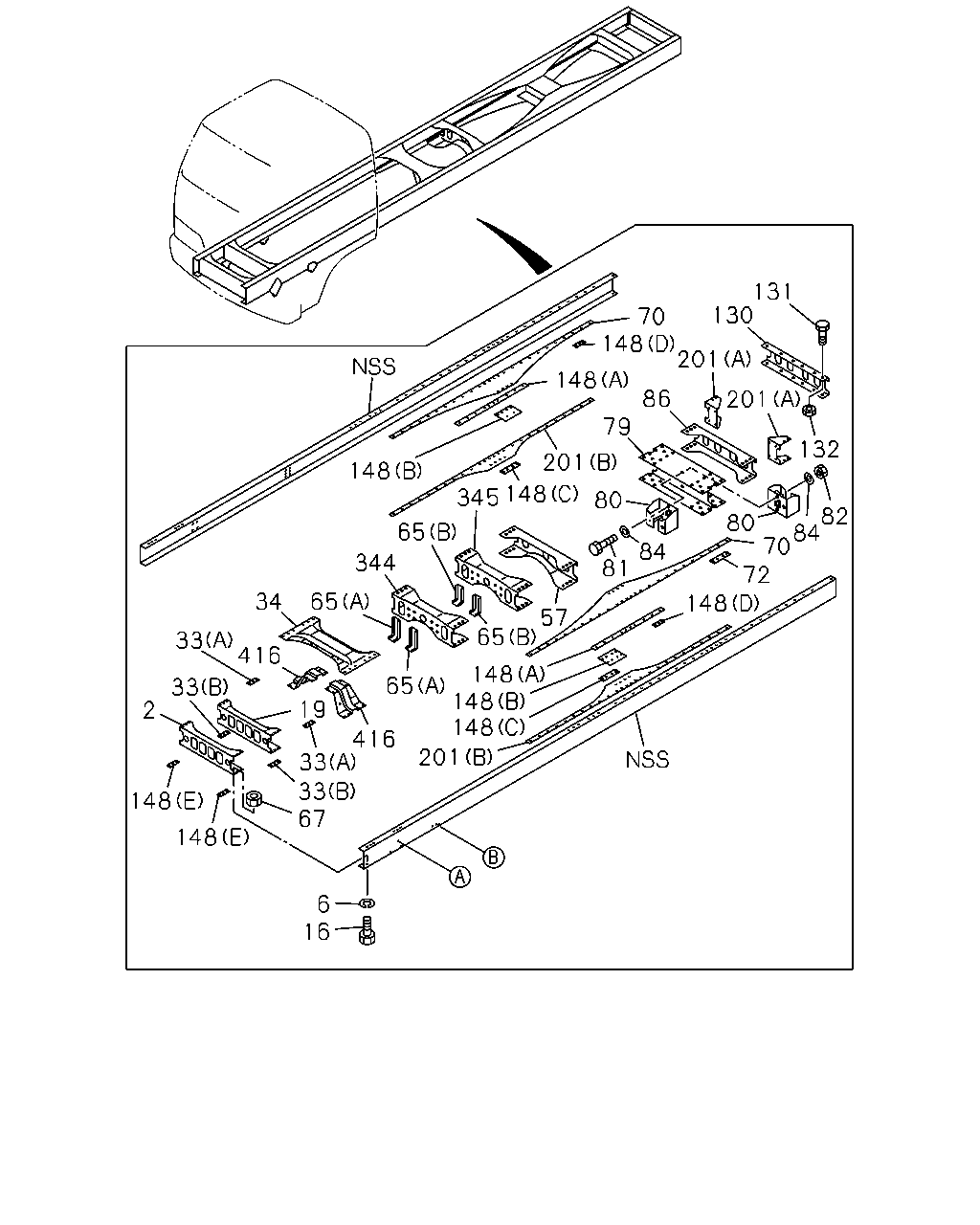

çizim 176995
131 130 70 148 148 201 201 86 79 80 201 148 345 148 65 344 65 34 416 33 33 2 148 148 67 33 33 19 416 65 201 148 148 148 65 57 81 84 80 132 82 84 70 72 148 6 16
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0006-0009 ● ●
2 MEMBER; CROSS,1ST 1-53181-939-2 01 1 0010- ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0006-0603 ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		0-91510-616-0 02 1 0604- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0006-0512 ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20851-640-0 02 1 0601- ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0006-0410 ● ●
19 MEMBER; CROSS,2ND 8-97606-306-0 01 1 0411- ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0006- ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0006- ● ●
34 MEMBER; CROSS,3RD 1-53174-231-2 01 1 0006- ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 0006- ● ●
65 BRACKET; CENTER BRG
(B) L=285 		1-53271-261-2 02 1 0006- ●
65 BRACKET; CENTER BRG
(A) L=270 		1-53271-291-1 02 1 0006- ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0006-0512 ● ●
67 NUT; C/MBR
M16 		0-91110-516-0 02 1 0601- ● ●
70 GUSSET; TRUNNION,UPR 1-53161-317-2 02 1 0006- ● ●
72 SPACER; TRUNNION 1-53168-338-0 04 1 0006- ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-403-1 01 1 0006- ● ●
80 BRACKET; C/MBR 1-53363-068-0 02 1 0006- ● ●
81 BOLT; BRKT
M14X50 		9-91066-450-0 02 1 0006-0512 ● ●
81 BOLT; BRKT
M14X50 		0-10956-450-0 02 1 0601- ● ●
82 NUT; BRKT
M14 		9-99110-514-0 02 1 0006-0512 ● ●
82 NUT; BRKT
M14 		0-91110-514-0 02 1 0601- ● ●
84 WASHER; PL,BRKT
ID=15 		9-09651-069-0 04 1 0006-1201 ● ●
84 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1202- ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 0006- ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0006- ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0006-0512 ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0006-0602 ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 0603- ● ●
148 SPACER; C/MBR
(D) 		1-53168-337-0 02 1 0006- ●
148 SPACER; C/MBR
(C) 		1-53168-338-0 04 1 0006- ●
148 SPACER; C/MBR
(A) 		1-53168-339-0 02 1 0006- ● ●
148 SPACER; C/MBR
(B) UPPER 		1-53168-340-0 02 1 0006- ● ●
148 SPACER; C/MBR
(E) 		1-53168-341-0 02 1 0006- ● ●
148 SPACER; C/MBR
(B) LOWER 		1-53168-352-0 02 1 0006- ● ●
201 GUSSET; C/MBR
(B) 		1-53161-783-0 02 1 0006- ●
201 GUSSET; C/MBR
(A) 		1-53167-303-0 02 1 0006- ● ●
201 GUSSET; C/MBR
(B) 		1-53161-682-0 02 1 0006- ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0006- ●
345 MEMBER; CROSS,5TH 1-53181-580-2 01 1 0006- ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0006- ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0006- ● ●
çizim 177236
46 25 25 26 39 26 25 25 23 23 25 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0006- ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0006-0512 ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0601- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 0006- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 0006- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0006- ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0006-1201 ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1202- ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0006-0512 ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601- ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0006-0512 ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601- ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0006- ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0006- ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0006- ● ●
