Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#5942) — 239 parça

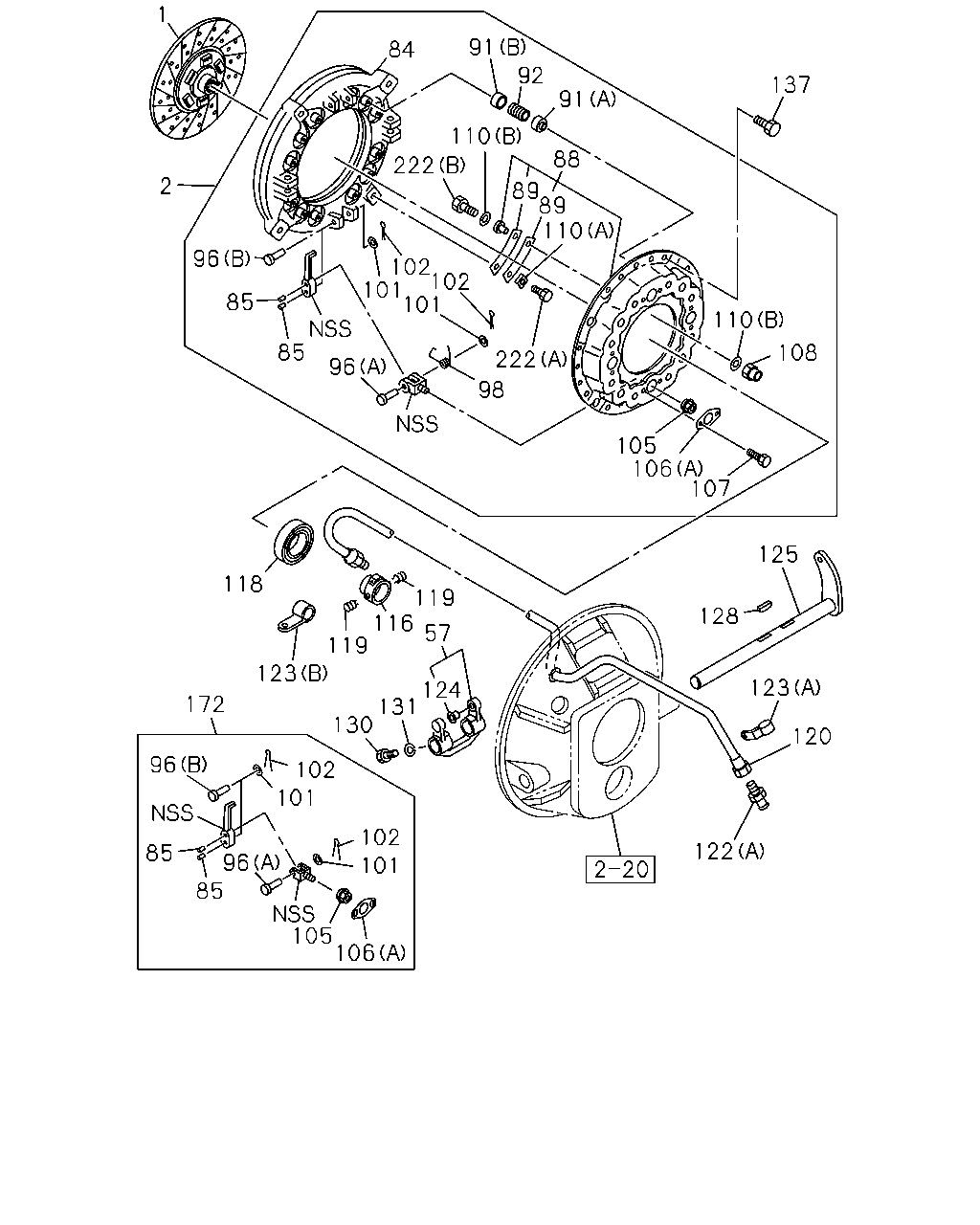

1 91 84 92 137 91 110 88 222 2 89 89 110 96 102 102 101 101 85 110 85 222 108 96 98 105 106 107 125 119 116 119 118 128 57 123 123 124 172 131 130 120 96 102 101 102 101 96 85 122 85 105 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9606-9810	●	●	●	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9811-0105					●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-					●
2	PLATE ASM; PRESSURE,CLU 14"	1-31220-182-1	01	1	9606-9609	●	●	●	●
2	PLATE ASM; PRESSURE,CLU EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 14"	1-31220-182-1	01	1	9610-9810	●	●	●	●
2	PLATE ASM; PRESSURE,CLU HEAVY DUTY PACKAGE TRUCK<RD2> 14"	1-31220-168-1	01	1	9610-9810	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-304-0	01	1	9811-0109					●
2	PLATE ASM; PRESSURE,CLU	1-31220-365-2	01	1	0110-					●
57	FORK; SHIFT,CLU	1-31341-028-0	01	1	9606-9810	●	●	●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9610-9810				●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9811-					●
84	PLATE; PRESSURE 14"	1-31221-044-0	01	1	9606-9810	●	●	●	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	9811-					●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9606-9810	●	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9811-					●
88	COVER SUB ASM; CLU HEAVY DUTY PACKAGE TRUCK<RD2>	1-31211-036-0	01	1	9610-9810	●	●	●	●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	9811-					●
89	PLATE; STRAP	1-31229-001-0	08	1	9606-9810	●	●	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9811-					●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9606-9810	●	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9811-					●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9606-9810	●	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9811-					●
92	SPRING; CLU	1-09580-412-0	12	1	9606-9609	●	●	●	●
92	SPRING; CLU EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-09580-412-0	12	1	9610-9810	●	●	●	●
92	SPRING; CLU HEAVY DUTY PACKAGE TRUCK<RD2> 14"	1-09580-234-0	12	1	9610-9810	●	●	●	●
92	SPRING; CLU	1-31214-038-0	12	1	9811-0109					●
92	SPRING; CLU	1-31214-064-0	12	1	0110-					●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9606-9810	●	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9811-					●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-008-0	04	1	9606-9810	●	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	9811-					●
98	SPRING; RETURN	1-31233-003-0	04	1	9606-9810	●	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9811-					●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9606-9810	●	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9811-					●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9606-9810	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9811-					●
105	NUT; SUPPORT	9-31235-061-0	04	1	9606-9810	●	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9811-0109					●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308					●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-					●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9606-9810	●	●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9811-					●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	9811-					●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9606-9810	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9811-0308					●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-					●
108	NUT; STRAP	1-09449-036-0	04	1	9606-9810	●	●	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9606-9810	●	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9606-9810	●	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-054-0	01	1	9606-9810	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9610-9810				●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9811-					●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9606-9609	●	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9610-9810	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9811-0111					●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-					●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9606-9810	●	●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9606-9810	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9610-9810				●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9811-					●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9610-9810				●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9811-					●
120	HOSE; FLEX,SHIFT BLOCK,CLU PARKING BRAKE DRUM 8.5"(B1S) L=615	1-09364-717-0	01	1	9606-9810	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU EXC. PARKING BRAKE DRUM 8.5"(B1S) L=315	9-09919-042-0	01	1	9606-9810	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9811-0003					●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-					●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9606-9609	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9610-9810	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9811-0512					●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-					●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9811-					●
123	CLIP; FLEX HOSE,SHIFT BLOCK (A) ID=15.5	1-09700-814-1	01	1	9606-9609	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (A) ID=15.5	1-09700-814-1	01	1	9610-9810	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=13 L=20	1-09701-138-1	01	1	9606-9810	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=22	1-09700-644-1	01	1	9610-9810				●
123	CLIP; FLEX HOSE,SHIFT BLOCK (C) ID=9 L=20	9-09524-835-0	01	1	9811-0606					●
123	CLIP; FLEX HOSE,SHIFT BLOCK (C) ID=9 L=20	0-95234-835-0	01	1	0607-					●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9610-9810				●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9811-					●
125	SHAFT; CLU	1-31342-265-0	01	1	9606-9810	●	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9610-9810				●
125	SHAFT; CLU	1-31342-169-1	01	1	9811-					●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9606-9609	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9610-9810	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9811-					●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9606-9609	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9610-9810	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9811-0512					●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-					●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9606-9609	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9610-9810	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9811-0603					●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-					●
137	BOLT; CLU COVER M10X20 FLANGE	0-28781-020-0	12	1	9606-9810	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9811-0512					●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-					●
172	LEVER KIT; RELEASE,CLU	1-87830-902-1	01	1	0204-0306					●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	0307-					●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	9606-9810	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-2	01	1	9903-0203					●
222	BOLT; STRAP (A) M10X23.2	1-09040-042-0	04	1	9606-9810	●	●	●	●
222	BOLT; STRAP (C) M10X26 HEX SOKET	1-09040-101-0	04	1	9811-0109					●
222	BOLT; STRAP (C)	1-31239-059-0	04	1	0110-					●
222	BOLT; STRAP (B) M10X26 HEX SOCKET	1-09040-043-0	04	1	9606-9810	●	●	●	●

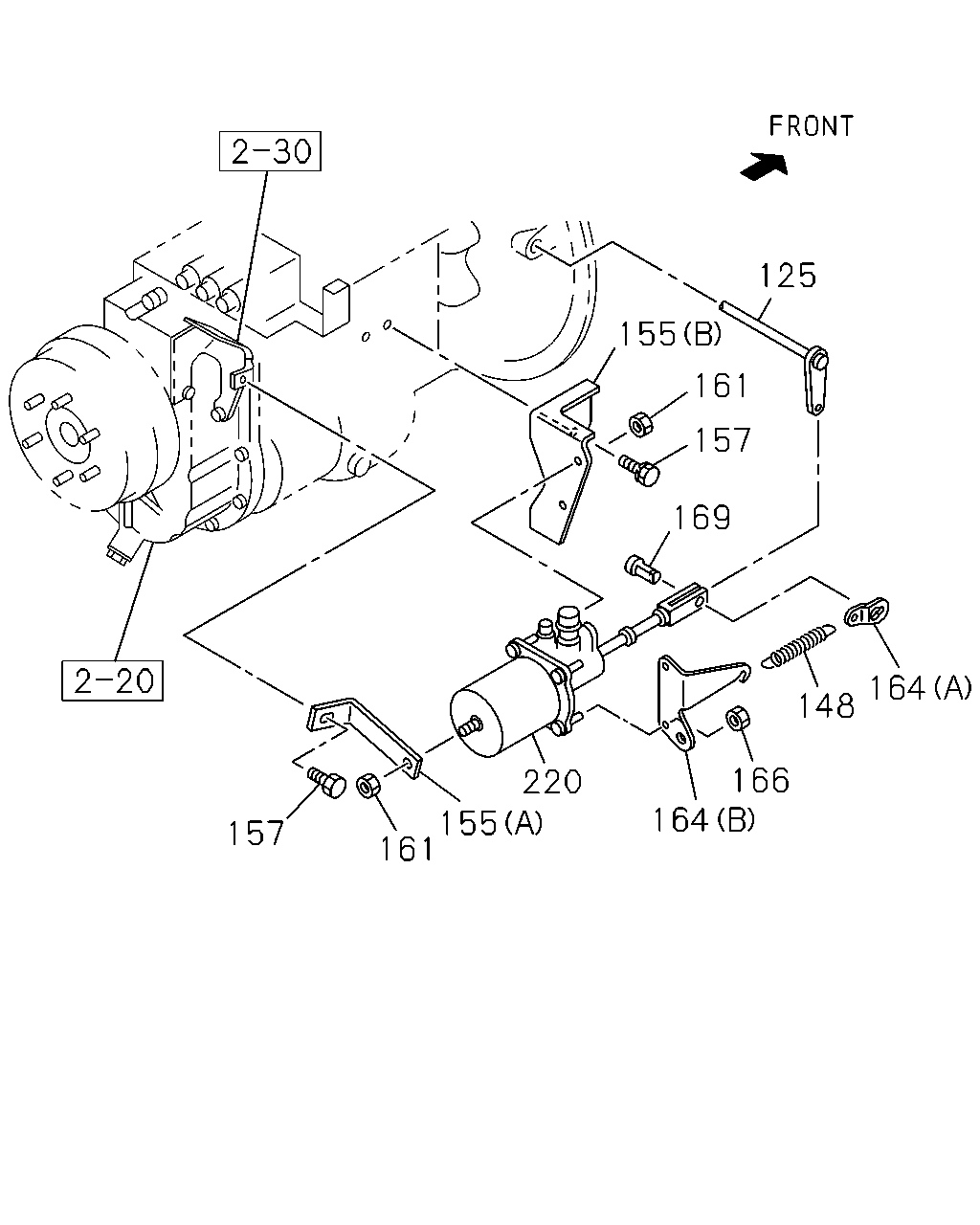

125 155 161 157 169 164 148 166 164 220 155 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
125	SHAFT; CLU	1-31342-265-0	01	1	9606-9810	●	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9610-9810				●
125	SHAFT; CLU	1-31342-169-1	01	1	9811-					●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9606-9609	●	●	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9610-9810	●	●	●	●
148	SPRING; CLU RETURN	9-09942-530-1	01	1	9811-					●
155	BRACKET; MINIPACK (B)	1-31429-175-2	01	1	9811-					●
155	BRACKET; MINIPACK (A)	1-31429-176-0	01	1	9811-					●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9811-					●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	9811-0602					●
161	NUT; BRKT M8 FLANGE	0-91180-208-0	03	1	0603-					●
164	EYE; SPRING (A)	1-31426-019-1	01	1	9811-					●
164	EYE; SPRING (B) L=85	1-47477-788-0	01	1	9811-					●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	9811-0602					●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0603-					●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9811-					●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-383-2	01	1	9811-					●

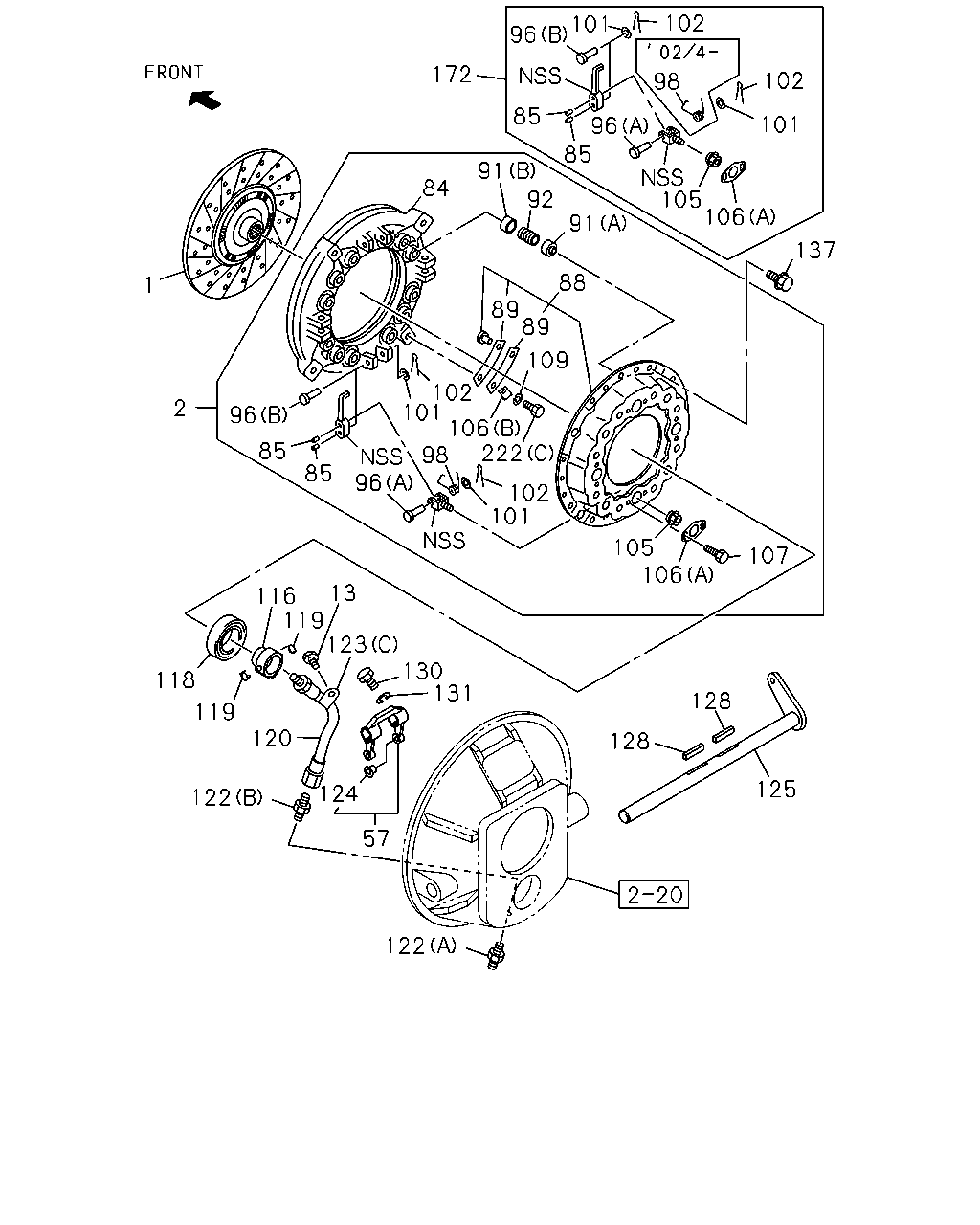

102 101 96 172 102 98 96 85 85 101 91 92 105 106 84 91 137 88 1 89 89 109 106 96 102 101 2 96 85 85 102 101 105 106 107 116 13 119 123 130 131 118 128 119 120 128 124 125 122 57 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9606-9810	●	●	●	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9811-0105					●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-					●
2	PLATE ASM; PRESSURE,CLU 14"	1-31220-182-1	01	1	9606-9609	●	●	●	●
2	PLATE ASM; PRESSURE,CLU EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 14"	1-31220-182-1	01	1	9610-9810	●	●	●	●
2	PLATE ASM; PRESSURE,CLU HEAVY DUTY PACKAGE TRUCK<RD2> 14"	1-31220-168-1	01	1	9610-9810	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-304-0	01	1	9811-0109					●
2	PLATE ASM; PRESSURE,CLU	1-31220-365-2	01	1	0110-					●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-0512					●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-					●
57	FORK; SHIFT,CLU	1-31341-028-0	01	1	9606-9810	●	●	●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9610-9810				●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9811-					●
84	PLATE; PRESSURE 14"	1-31221-044-0	01	1	9606-9810	●	●	●	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	9811-					●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9606-9810	●	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9811-					●
88	COVER SUB ASM; CLU HEAVY DUTY PACKAGE TRUCK<RD2>	1-31211-036-0	01	1	9610-9810	●	●	●	●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	9811-					●
89	PLATE; STRAP	1-31229-001-0	08	1	9606-9810	●	●	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9811-					●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9606-9810	●	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9811-					●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9606-9810	●	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9811-					●
92	SPRING; CLU	1-09580-412-0	12	1	9606-9609	●	●	●	●
92	SPRING; CLU EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-09580-412-0	12	1	9610-9810	●	●	●	●
92	SPRING; CLU HEAVY DUTY PACKAGE TRUCK<RD2> 14"	1-09580-234-0	12	1	9610-9810	●	●	●	●
92	SPRING; CLU	1-31214-038-0	12	1	9811-0109					●
92	SPRING; CLU	1-31214-064-0	12	1	0110-					●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9606-9810	●	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9811-					●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-008-0	04	1	9606-9810	●	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	9811-					●
98	SPRING; RETURN	1-31233-003-0	04	1	9606-9810	●	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9811-					●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9606-9810	●	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9811-					●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9606-9810	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9811-					●
105	NUT; SUPPORT	9-31235-061-0	04	1	9606-9810	●	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9811-0109					●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308					●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-					●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9606-9810	●	●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9811-					●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	9811-					●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9606-9810	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9811-0308					●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-					●
109	WASHER; LK,STRAP ID=10.2	9-09150-510-0	04	1	9811-0603					●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	0604-					●
116	BLOCK; SHIFT,CLU	1-31321-054-0	01	1	9606-9810	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9610-9810				●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9811-					●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9606-9609	●	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9610-9810	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9811-0111					●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-					●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9606-9810	●	●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9606-9810	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9610-9810				●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9811-					●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9610-9810				●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9811-					●
120	HOSE; FLEX,SHIFT BLOCK,CLU PARKING BRAKE DRUM 8.5"(B1S) L=615	1-09364-717-0	01	1	9606-9810	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU EXC. PARKING BRAKE DRUM 8.5"(B1S) L=315	9-09919-042-0	01	1	9606-9810	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9811-0003					●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-					●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9606-9609	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9610-9810	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9811-0512					●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-					●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9811-					●
123	CLIP; FLEX HOSE,SHIFT BLOCK (A) ID=15.5	1-09700-814-1	01	1	9606-9609	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (A) ID=15.5	1-09700-814-1	01	1	9610-9810	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=13 L=20	1-09701-138-1	01	1	9606-9810	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=22	1-09700-644-1	01	1	9610-9810				●
123	CLIP; FLEX HOSE,SHIFT BLOCK (C) ID=9 L=20	9-09524-835-0	01	1	9811-0606					●
123	CLIP; FLEX HOSE,SHIFT BLOCK (C) ID=9 L=20	0-95234-835-0	01	1	0607-					●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9610-9810				●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9811-					●
125	SHAFT; CLU	1-31342-265-0	01	1	9606-9810	●	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9610-9810				●
125	SHAFT; CLU	1-31342-169-1	01	1	9811-					●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9606-9609	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9610-9810	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9811-					●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9606-9609	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9610-9810	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9811-0512					●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-					●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9606-9609	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9610-9810	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9811-0603					●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-					●
137	BOLT; CLU COVER M10X20 FLANGE	0-28781-020-0	12	1	9606-9810	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9811-0512					●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-					●
172	LEVER KIT; RELEASE,CLU	1-87830-902-1	01	1	0204-0306					●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	0307-					●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	9606-9810	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-2	01	1	9903-0203					●

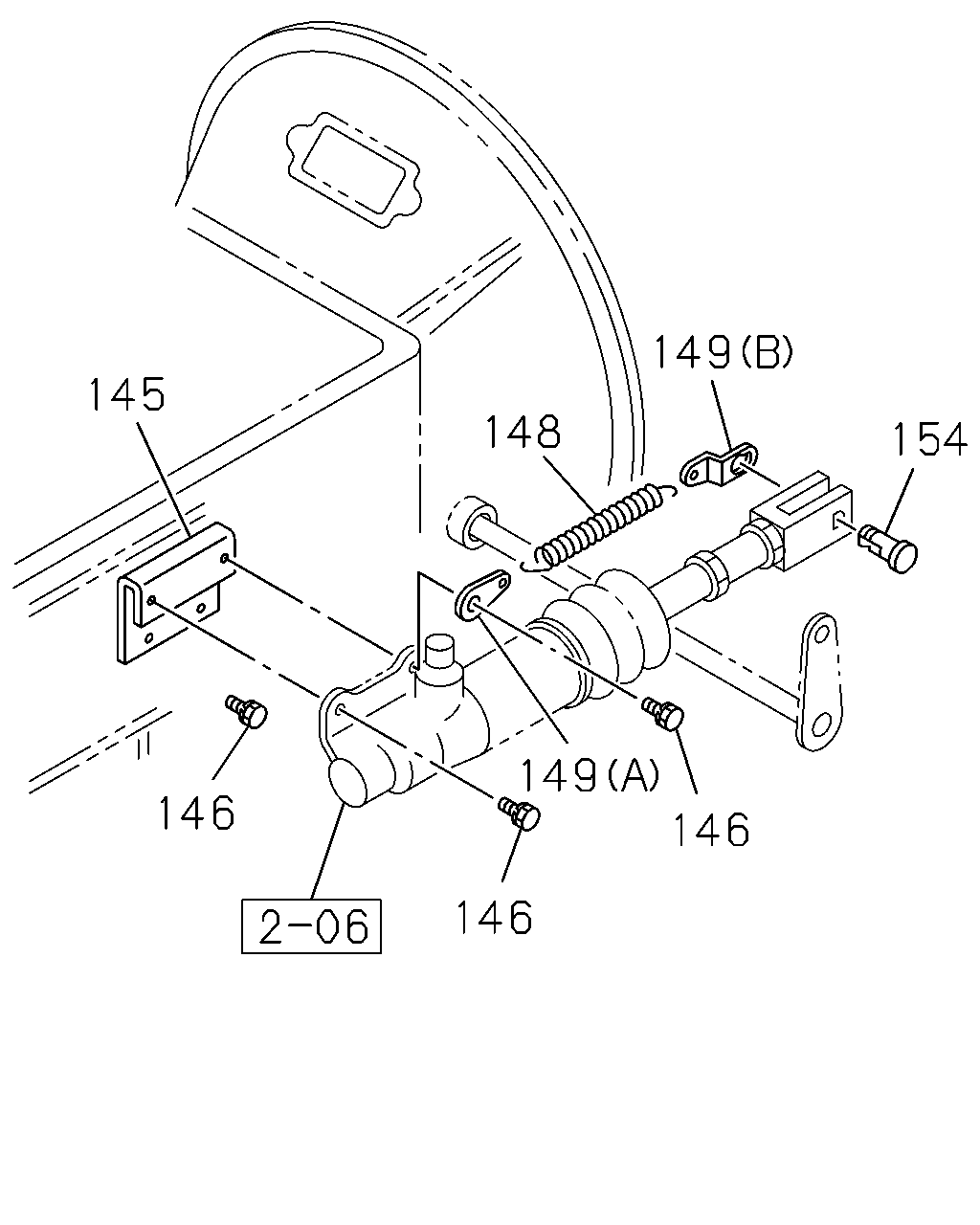

149 145 148 154 149 146 146 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-007-0	01	1	9606-9810	●	●	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-051-0	01	1	9610-9810				●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9606-9609	●	●	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9610-9810	●	●	●	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9606-9609	●	●	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9610-9810	●	●	●	●
148	SPRING; CLU RETURN	9-09942-530-1	01	1	9811-					●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9606-9609	●	●	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9610-9810	●	●	●	●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9606-9609	●	●	●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9610-9810	●	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9606-9609	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9610-9810	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
