◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11312 - FVZ(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#59419) — 191 parça

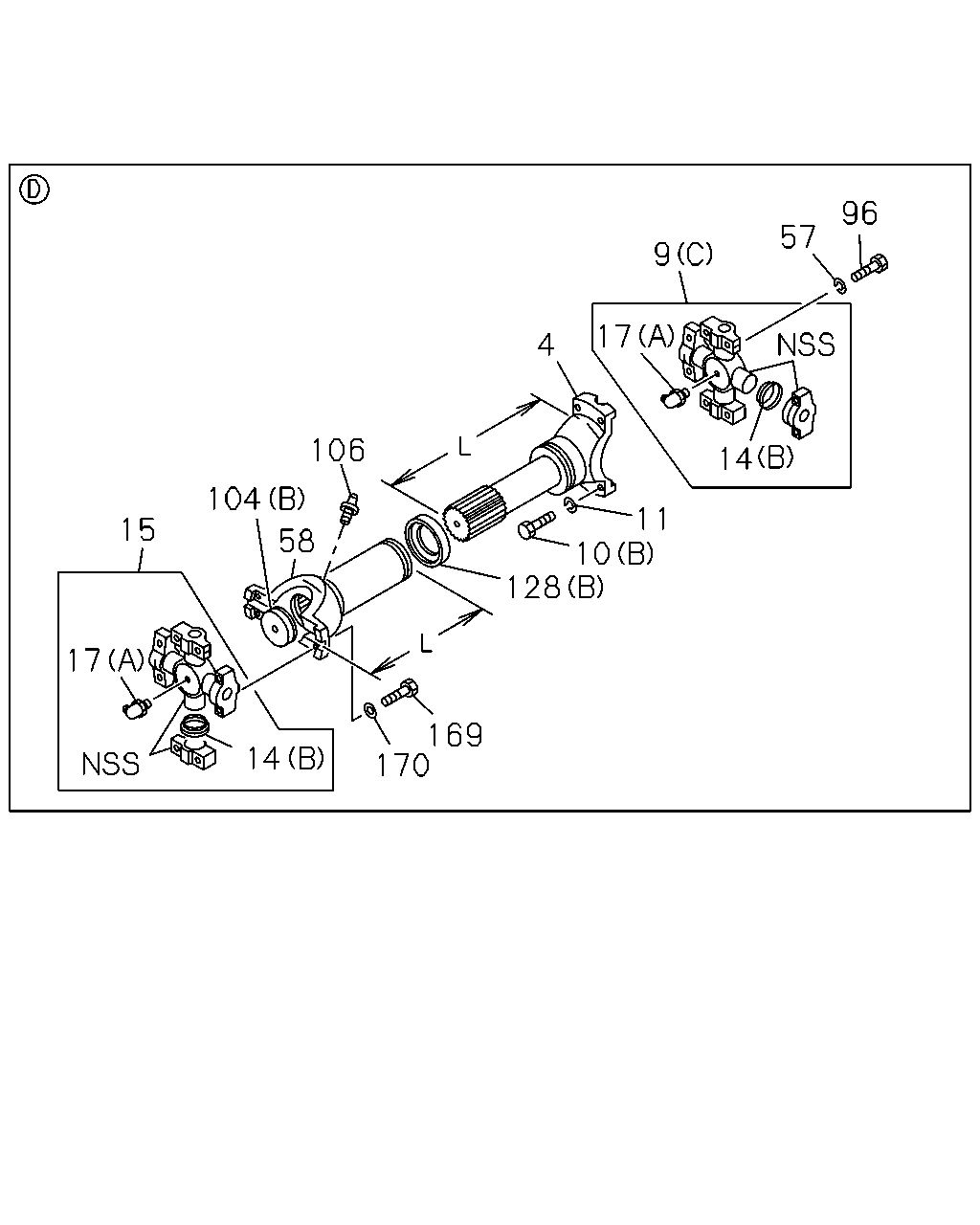

çizim 177209
96 57 9 17 4 106 104 11 10 128 15 58 17 169 170 14 14
BalonParca AdiParca NoAdetTipApplied Date A B
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 0006- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 0006- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 0006- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 0006- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-1 AR 1 0006- ●
10 BOLT; UJT
(A) M10X20 		9-02061-020-0 16 1 0006-0512 ● ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 0601- ● ●
10 BOLT; UJT
(B) M12X45 		9-91066-245-0 04 1 0006-0805 ● ●
10 BOLT; UJT
(B) M12X45 		8-98036-382-0 04 1 0806- ● ●
10 BOLT; UJT
(A) M10X20 		9-02061-020-0 08 1 0006-0512 ●
10 BOLT; UJT
(A) M10X20 		9-02061-020-0 08 1 0006-0512 ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 08 1 0601- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 0006-0603 ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0604- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0006- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0006- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0006- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0006- ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0006- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0006-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0006-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0006-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 0006-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 0006-0603 ● ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 0604- ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0006- ● ●
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0006-0805 ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 0806- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0006- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0006- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0006-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0006-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 0006-0312 ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0401- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0006- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0006-0805 ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 0806- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 0006-0603 ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 0604- ● ●

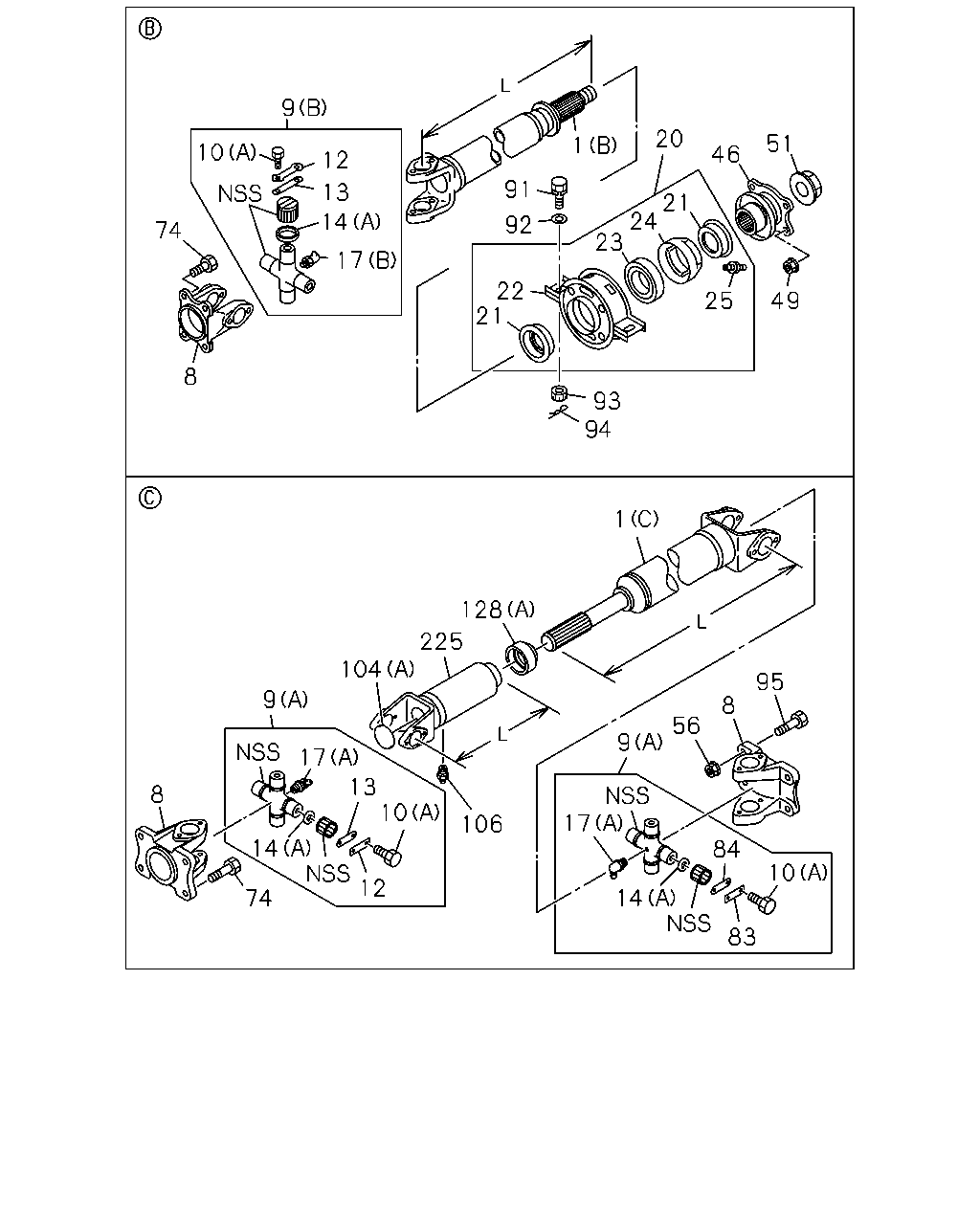

çizim 177218
9 20 51 1 10 46 12 91 13 21 24 23 14 92 74 17 22 21 25 49 8 93 94 1 128 225 104 95 9 8 56 9 17 13 10 8 17 106 14 84 10 12 74 14 83
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(C) L=1034 		1-37123-918-0 01 1 0006- ●
1 SHAFT; PROP
(C) L=847 		1-37124-082-0 01 1 0006- ●
1 SHAFT; PROP
(B) L=743 		1-37152-350-0 01 1 0006- ●
1 SHAFT; PROP
(A) L=603 		1-37152-524-0 01 1 0006- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 0006- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0006- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0006- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 0006- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 0006- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 0006- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-1 AR 1 0006- ●
10 BOLT; UJT
(A) M10X20 		9-02061-020-0 16 1 0006-0512 ● ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 0601- ● ●
10 BOLT; UJT
(B) M12X45 		9-91066-245-0 04 1 0006-0805 ● ●
10 BOLT; UJT
(B) M12X45 		8-98036-382-0 04 1 0806- ● ●
10 BOLT; UJT
(A) M10X20 		9-02061-020-0 08 1 0006-0512 ●
10 BOLT; UJT
(A) M10X20 		9-02061-020-0 08 1 0006-0512 ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 08 1 0601- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 0006- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 0006- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 0006- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 0006- ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 0006- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 0006- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0006- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0006- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0006- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0006- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0006-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0006-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0006-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 0006-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0006- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0006- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0006- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0006- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0006- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0006- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0006- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0006- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0006- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0006- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0006- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0006- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0006- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0006- ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0006- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0006- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0006- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0006- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0006- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0006- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0006- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0006- ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-008-0 04 1 0006- ● ●
84 COVER; UJT,PROP SHAFT 1-37355-020-0 04 1 0006- ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0006- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0006- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 0006-0605 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0006-0606 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 0006- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0006- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0006- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0006-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0006-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 0006-0312 ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0401- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0006- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 0006- ● ●

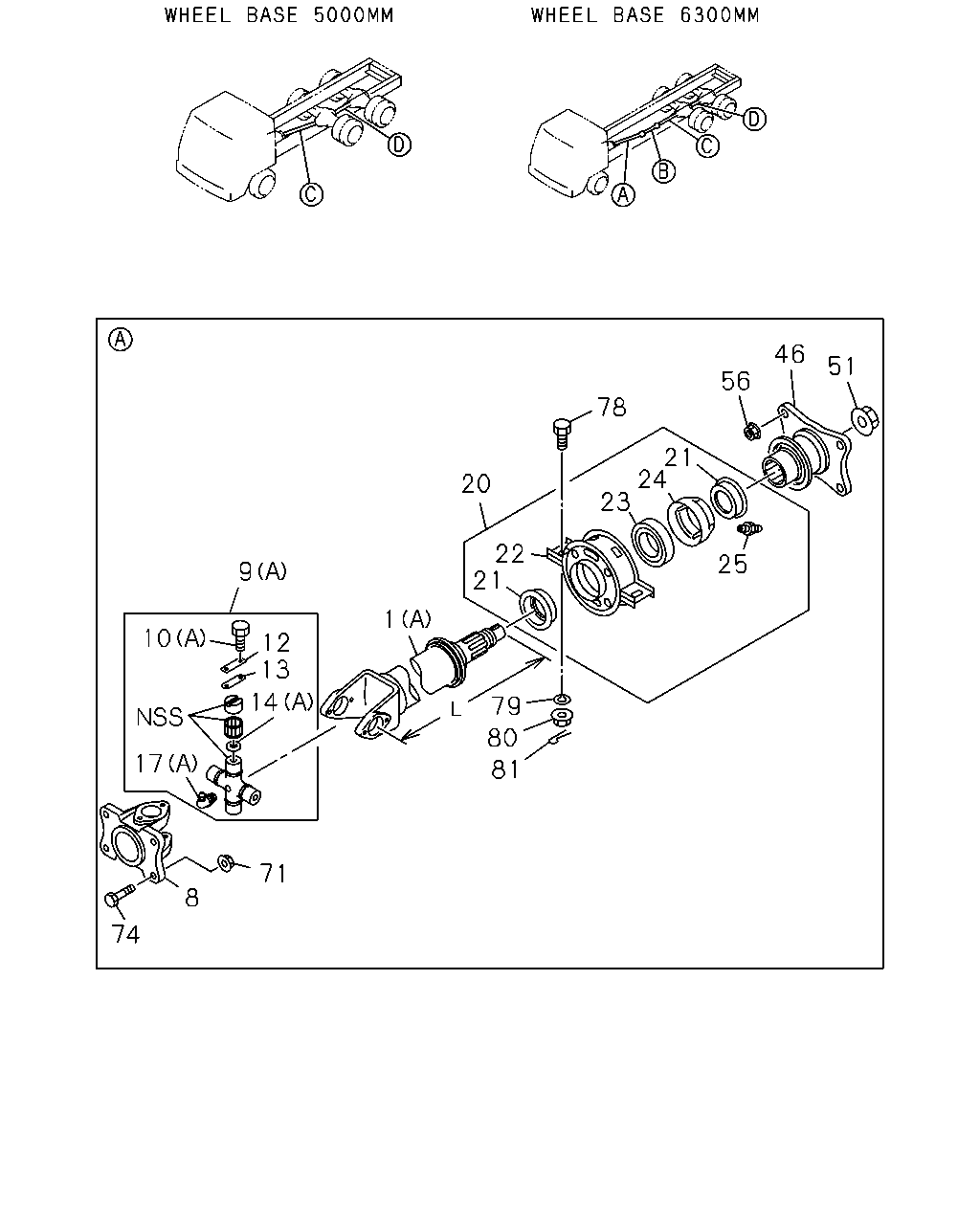

çizim 177228
46 51 56 78 21 24 23 20 22 21 25 9 1 10 12 13 14 79 80 17 81 71 8 74
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(C) L=1034 		1-37123-918-0 01 1 0006- ●
1 SHAFT; PROP
(C) L=847 		1-37124-082-0 01 1 0006- ●
1 SHAFT; PROP
(B) L=743 		1-37152-350-0 01 1 0006- ●
1 SHAFT; PROP
(A) L=603 		1-37152-524-0 01 1 0006- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 0006- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0006- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0006- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 0006- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 0006- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 0006- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-1 AR 1 0006- ●
10 BOLT; UJT
(A) M10X20 		9-02061-020-0 16 1 0006-0512 ● ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 0601- ● ●
10 BOLT; UJT
(B) M12X45 		9-91066-245-0 04 1 0006-0805 ● ●
10 BOLT; UJT
(B) M12X45 		8-98036-382-0 04 1 0806- ● ●
10 BOLT; UJT
(A) M10X20 		9-02061-020-0 08 1 0006-0512 ●
10 BOLT; UJT
(A) M10X20 		9-02061-020-0 08 1 0006-0512 ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 08 1 0601- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 0006- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 0006- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 0006- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 0006- ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 0006- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 0006- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0006- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0006- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0006- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0006- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0006-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0006-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0006-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 0006-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0006- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0006- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0006- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0006- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0006- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0006- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0006- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0006- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0006- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0006- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0006- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0006- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0006- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0006- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0006- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0006- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0006- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0006- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0006- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0006- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0006- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0006- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0006- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0006- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0006-0605 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0006-0606 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
