3-78 — FIXING PARTS; AIR PIPING (#59418) — 132 parça

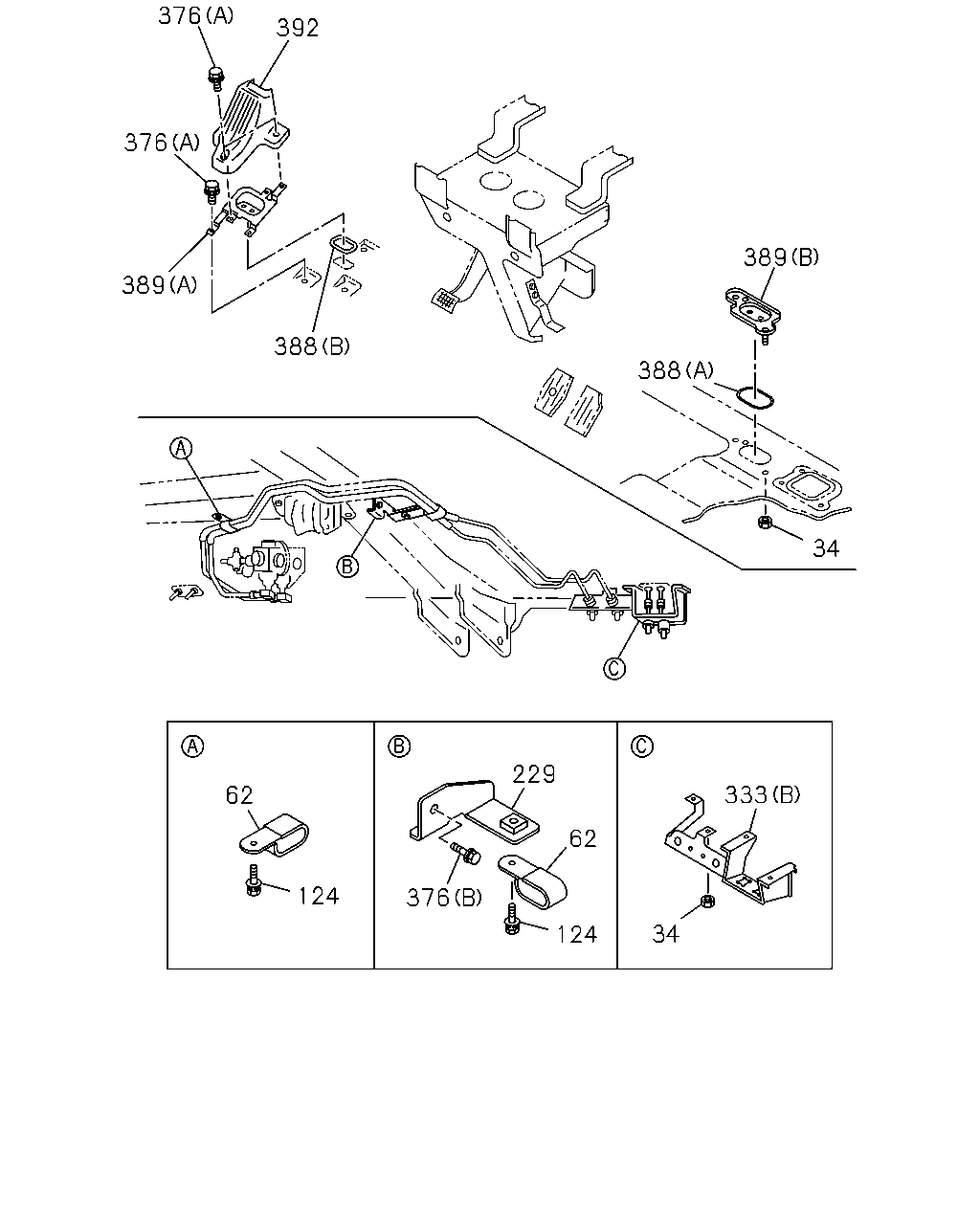

çizim 177211
376 392 376 389 389 388 388 34 229 333 62 62 124 376 34 124
BalonParca AdiParca NoAdetTipApplied Date
34 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0006-0605
34 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0006-0605
34 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0606-
62 CLIP; AIR PIPE
ID=13X2 L=20 		9-09535-236-0 02 1 0006-0606
62 CLIP; AIR PIPE
ID=13X2 L=20 		0-95325-236-0 02 1 0607-
124 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0006-0904
124 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
229 BRACKET; PIPE CLIP 1-79738-858-0 01 1 0006-
333 BRACKET; BRK AIR PIPE
(A) 		1-47475-427-1 01 1 0006-0109
333 BRACKET; BRK AIR PIPE
EXC. AIR DRYER<PS7> (A) 		1-47475-427-1 01 1 0110-
333 BRACKET; BRK AIR PIPE
(B) 		1-79738-804-4 01 1 0006-
376 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0006-
376 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0006-
376 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0006-0904
376 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
376 BOLT; BRKT
(C) M8X30 FLANGE 		0-28680-830-0 01 1 0212-0512
376 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
388 SEAL
(A) L=280 		1-79738-793-1 01 1 0006-
388 SEAL
(B) L=215 		1-79738-794-1 01 1 0006-
389 BRACKET; UNION
(A) 		1-79738-790-1 01 1 0006-
389 BRACKET; UNION
(B) 		1-79738-839-0 01 1 0006-
392 COVER; BRKT 1-73996-264-1 01 1 0006-

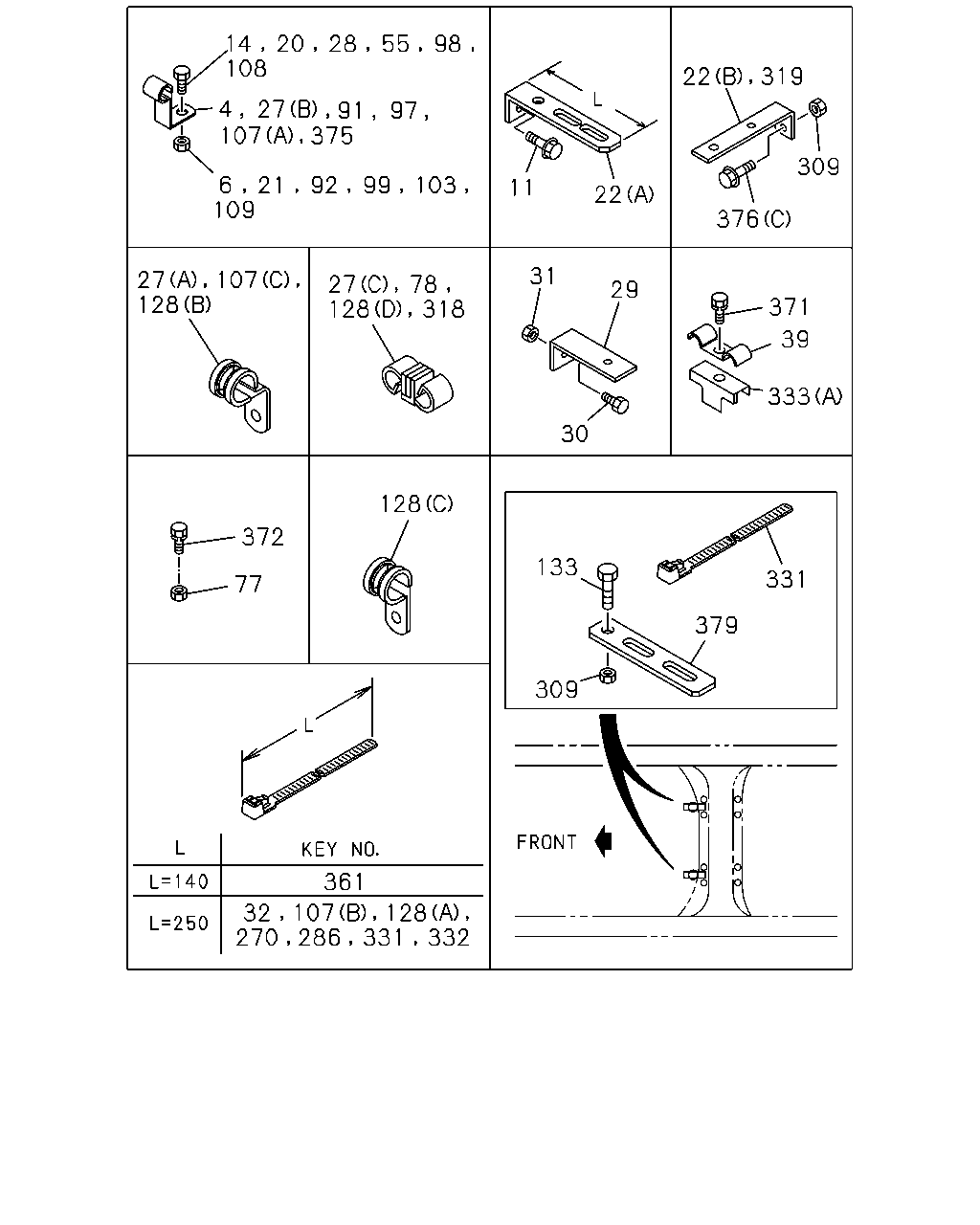

çizim 177220
108 28 55 98 97 309 109 92 99 103 11 22 376 31 27 107 128 29 371 39 333 30 128 372 133 331 77 379 309 361 128 332 14 20 4 27 91 107 375 6 21 22 319 78 27 128 318 107 32 270 286 331
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; AIR PIPE
ID=11 H=20 L=20 		5-09700-351-0 01 1 0006-0707
4 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-
6 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0006-0602
6 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0008-0512
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0212-0512
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
14 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0006-0512
14 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
20 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0006-0512
20 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0006-0602
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0006-0602
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603-
22 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0008-
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 0212-
27 CLIP; FLEX HOSE
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0006-0207
27 CLIP; FLEX HOSE
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0006-0207
27 CLIP; FLEX HOSE
(A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0208-1102
27 CLIP; FLEX HOSE
(A) ID=28 H=45 L=30 		1-09700-948-0 01 1 0006-0207
27 CLIP; FLEX HOSE
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0208-
27 CLIP; FLEX HOSE
(B) ID=25 H=60 L=35 		1-09701-103-0 01 1 0006-1102
27 CLIP; FLEX HOSE
(C) ID=12 & 12 		1-09709-280-1 01 1 0007-0112
28 BOLT; CLIP,FLEX HOSE
M8X25 FLANGE 		0-28680-825-0 04 1 0006-0209
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 04 1 0210-0512
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
29 BRACKET; CLIP,AIR PIPE
L=105 B=25 		1-47476-161-0 01 1 0006-
30 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0006-0512
30 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
31 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0006-0602
31 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
32 CLIP; BAND,RUBBER SLEEVE
L=250 		1-09707-126-0 01 1 0006-
39 CLIP; AIR PIPE
ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 0006-0109
39 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 0110-
55 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0006-0512
55 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
77 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0010-0602
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
78 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 02 1 0006-0109
78 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 02 1 0110-
78 CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 04 1 0110-
91 CLIP; AIR PIPE
ID=11 H=20 L=20 		5-09700-351-0 02 1 0006-0707
91 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 02 1 0708-
92 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0006-0602
92 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
97 CLIP; AIR PIPE
ID=11 H=20 L=20 		5-09700-351-0 01 1 0006-0707
97 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0006-0512
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
99 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0006-0602
99 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
103 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0006-0602
103 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
107 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0006-
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 0006-
107 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 14 1 0006-
108 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0006-0512
108 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0006-0512
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 04 1 0006-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603-
128 CLIP; NYLON TUBE
(C) ID=35 L=33 		1-09700-945-0 02 1 0006-
128 CLIP; NYLON TUBE
(B) ID=35 H=45 L=33 		1-09700-947-0 02 1 0006-
128 CLIP; NYLON TUBE
(D) ID=12 & 12 		1-09709-280-1 02 1 0101-0205
128 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=250 		1-09707-126-0 21 1 0006-0012
128 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=250 		1-09707-126-0 22 1 0101-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0006-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
270 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) L=250 		1-09707-126-0 02 1 0012-
286 CLIP; NYLON TUBE
L=250 		1-09707-126-0 10 1 0006-0008
286 CLIP; NYLON TUBE
L=250 		1-09707-126-0 11 1 0009-0009
286 CLIP; NYLON TUBE
L=250 		1-09707-126-0 12 1 0010-0112
286 CLIP; NYLON TUBE
L=250 		1-09707-126-0 01 1 0201-
286 CLIP; NYLON TUBE
L=250 		1-09707-126-0 09 1 0201-
309 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 02 1 0006-0211
309 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 03 1 0212-0602
309 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 03 1 0603-0604
309 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0605-
309 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0605-
318 CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 6.35 		1-09709-273-1 01 1 0110-
319 BRACKET; CLIP
L=60 H=30 		1-47477-716-1 01 1 0212-
331 CLIP; NYLON TUBE
L=250 		1-09707-126-0 06 1 0006-0012
331 CLIP; NYLON TUBE
L=250 		1-09707-126-0 07 1 0101-0112
331 CLIP; NYLON TUBE
L=250 		1-09707-126-0 09 1 0201-0201
331 CLIP; NYLON TUBE
L=250 		1-09707-126-0 02 1 0202-
331 CLIP; NYLON TUBE
L=250 		1-09707-126-0 07 1 0202-
331 CLIP; NYLON TUBE
L=250 		1-09707-126-0 01 1 0605-
332 CLIP; BAND
L=250 		1-09707-126-0 04 1 0006-
332 CLIP; BAND
L=250 		1-09707-126-0 05 1 0006-
333 BRACKET; BRK AIR PIPE
(A) 		1-47475-427-1 01 1 0006-0109
333 BRACKET; BRK AIR PIPE
EXC. AIR DRYER<PS7> (A) 		1-47475-427-1 01 1 0110-
333 BRACKET; BRK AIR PIPE
(B) 		1-79738-804-4 01 1 0006-
361 CLIP; FLEX HOSE,AIR PRESS GAGE
L=140 		5-09707-031-1 01 1 0006-
371 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 0006-0109
371 BOLT; CLIP,AIR PIPE
EXC. AIR DRYER<PS7> M8X50 FLANGE 		0-28080-850-0 01 1 0110-0512
371 BOLT; CLIP,AIR PIPE
EXC. AIR DRYER<PS7> M8X50 FLANGE 		0-28050-850-0 01 1 0601-
372 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0010-0512
372 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
375 CLIP; AIR PIPE
ID=14 H=50 L=20 		1-09700-843-0 01 1 0006-0401
375 CLIP; AIR PIPE
ID=9 H=60 		1-09700-956-0 01 1 0402-
376 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0006-
376 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0006-
376 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0006-0904
376 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
376 BOLT; BRKT
(C) M8X30 FLANGE 		0-28680-830-0 01 1 0212-0512
376 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
379 BRACKET; NYLON TUBE 1-47477-514-3 02 1 0006-
